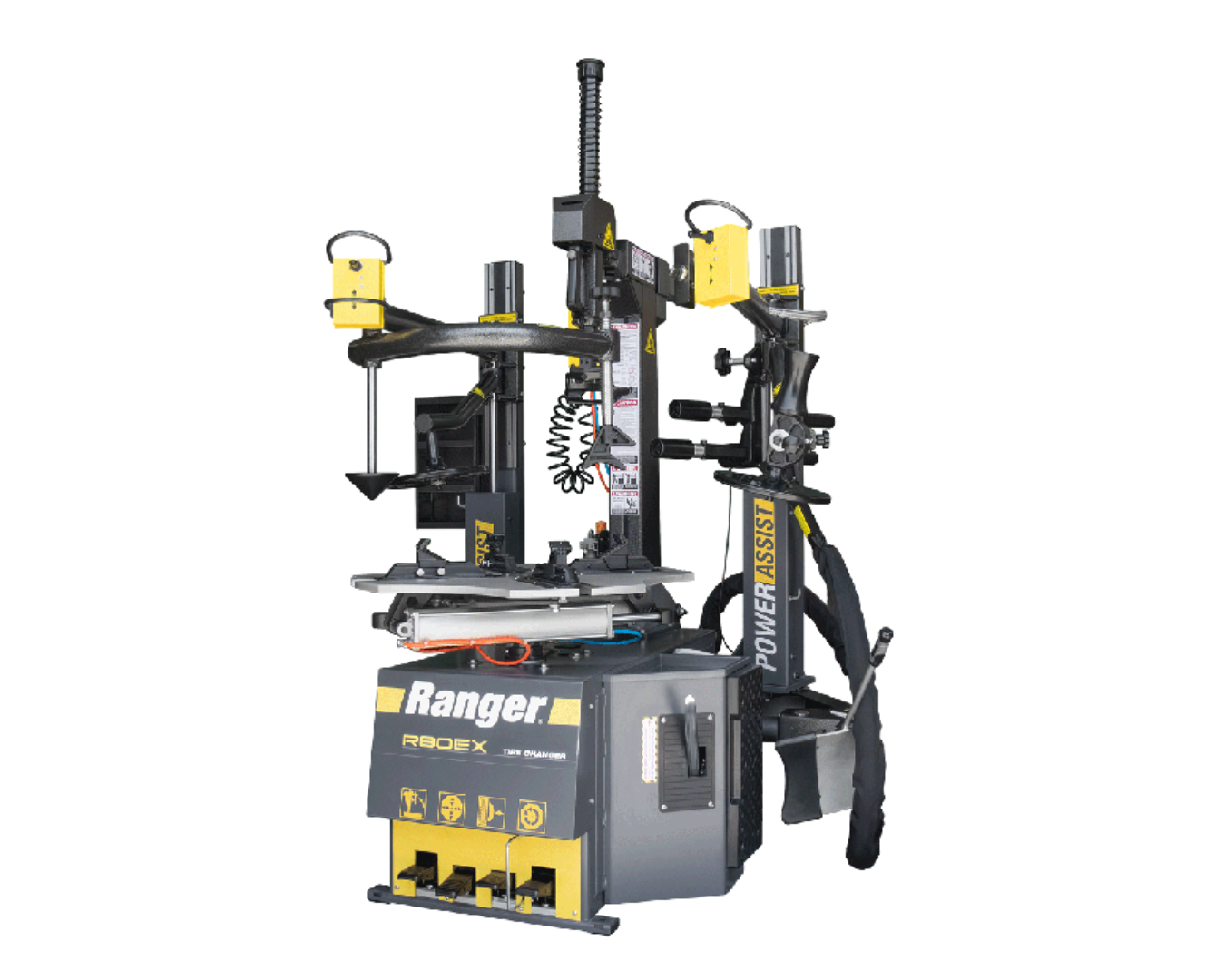

Ranger R80EX Tire Changer

The Ranger R80EX Tire Changer delivers professional-grade performance with a dual-assist, tilt-back tower design and heavy-duty construction built for nonstop shop use. Equipped with advanced assist tools such as power rollers, bead lifting discs, and a traveling drop-center hold-down device, it reduces operator fatigue and ensures efficient, safe tire service. With a large 34” turntable, adjustable RimGuard™ clamps, and a pneumatic bead loosener, this tire changer easily handles a wide range of wheel sizes while maintaining precision and durability.

Specifications:

• Dual-assist, tilt-back tower design

• Classic Ranger reliability with rugged, durable construction

• Designed for professional and high-volume tire shops

• Multi-profile traveling drop-center tool reduces operator effort

• Dual lower bead lifting discs for easy tire handling

• Top bead assist rollers for enhanced mounting control

• Nylon non-marring wheel restraint device to prevent rim damage

• 34” capacity turntable accommodates a wide variety of wheel sizes

• Adjustable hardened-steel RimGuard wheel clamps

• Table clamping system powered by dual pneumatic cylinders

• Wheel clamping method: 4 wheel clamps – internal/external

• Internal and external multi-teeth jaws for secure grip

• Pneumatic blade bead loosener for efficient demounting

• Bi-lateral power-controlled bead loosener for precision control

• Single-lever control on shovel handle for bead loosener operation

• Dual power assist towers (left and right) for efficient operation

• Standard dual power-drop upper bead assist rollers

• Traveling drop-center hold-down device included

• Wheel centering tool and inflation restraint device integrated

• “Turbo-Blast” bead seating system for fast and secure inflation

• Tool tray and bin storage for organized operation

• Inflation gauge with integrated air dump valve

• Inflation pressure regulator and limiter for safety

• Built-in water filter, oiler, and lubricator

• Air regulator for precise air management

• Includes tire iron and bead lever tool

• Large soap/lubricator bucket for tire preparation

• Cleaning brush included for maintenance

• Tilt-back tower design simplifies wheel loading and unloading

• Optional motorcycle turntable clamps available for versatility

• Motor: 3 HP (220 VAC 50-60 HZ)

• Drive System Type: Electric / Air

• Air Requirement: 140 – 165 PSI (9.6-11.4 BAR)

• Wheel Clamping Method: 4 Clamps - Internal / External

• Table Clamping System: Dual Pneumatic Cylinders

• Bead Breaking System: Pneumatic Blade

• Tower Design: Tilt-Back

• Power Assist Towers: Dual / Left & Right

• Bead Seating System: Turbo Blast / Bead Seating

• A - Inside (Wheel) Clamping Range: 13" - 34" (305 mm - 864 mm)

• B - Outside (Wheel) Clamping Range: 10" - 30" (254 mm - 762 mm)

• Maximum Rim Width: 15" (381 mm)

• Maximum Tire Diameter: 47" (1,194 mm)

• Shipping Weight: 1,256 lbs. (570 kg)

• Shipping Dimensions: 65" x 60" x 72" (1,651 mm x 1,524 mm x 1,829 mm)

• Recommended Footprint: 72" x 70" x 76" (1,829 mm x 1,778 mm x 1,930 mm)

A $395 surcharge from the freight carrier will be applied if no forklift or loading dock is available at the delivery location.
