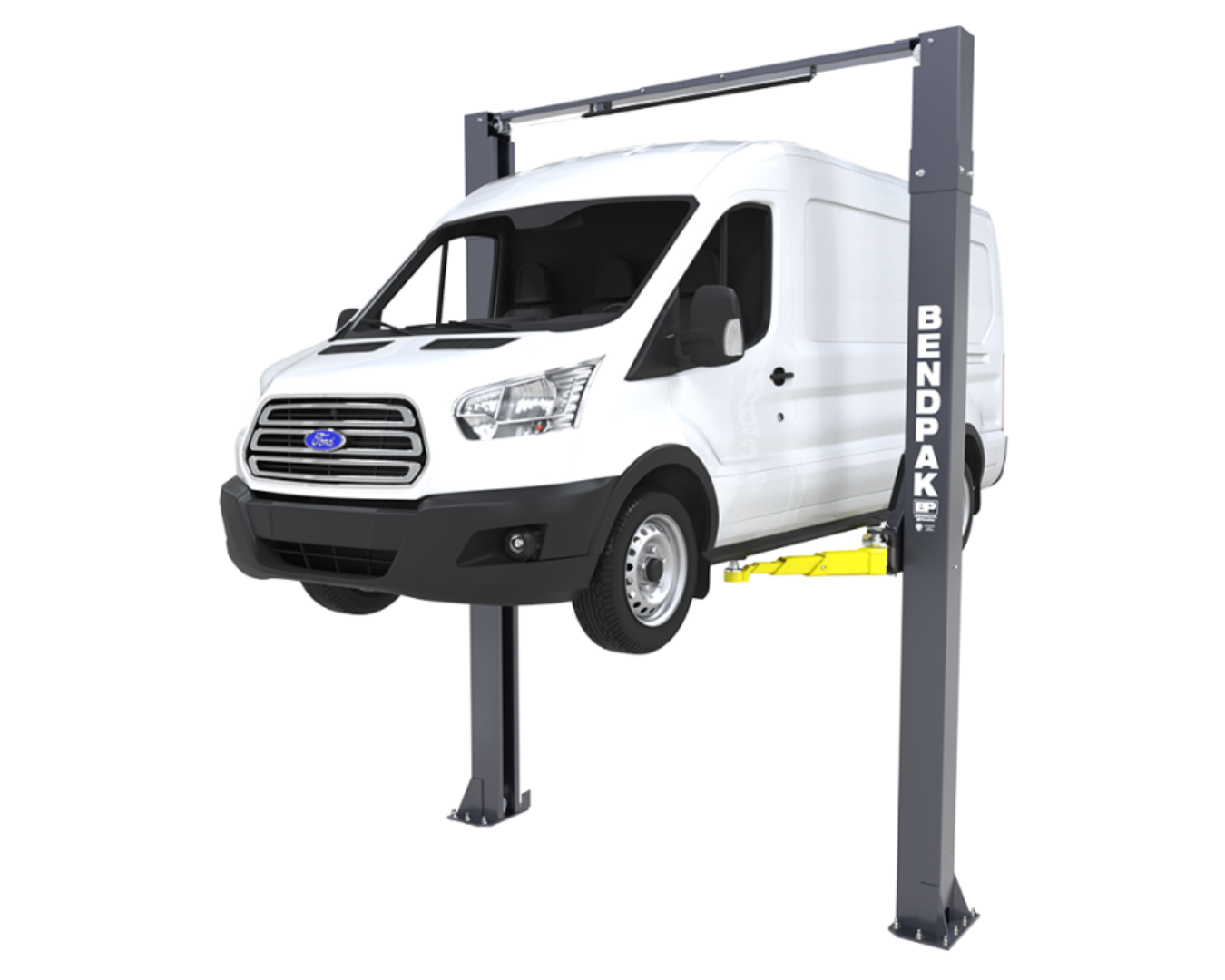

BendPak 10APX-181 Two-Post Car Lift – 10,000 lb Capacity | 181" Extended Height | Bi-Metric Arms | ALI Certified

Maximize Comfort and Performance

Meet the BendPak 10APX-181, the ultimate lift for high-roof and extended-height service applications. Engineered with a towering 181-inch overhead beam, this model delivers greater vertical clearance—perfect for cargo vans, high-roof commercial vehicles, and heavy-duty EVs. Maintaining the same proven 10,000-lb lifting capacity and advanced technology of the 10AP Series, it offers unmatched comfort and performance for technicians who work long hours in demanding environments.

Reaching New Heights in Automotive Lifting

The AP Series represents a major leap forward in lift engineering. It combines the best traits of modern two-post lifts into a single, innovative design built for heavy loads, frequent use, and maximum operator safety. From advanced steel construction to precision hydraulic control, every component has been refined for efficiency, reliability, and performance.

Versatility and Installation Flexibility

The 10AP Series offers both wide and narrow installation options in one configurable package. With expandable top beams and BendPak’s exclusive Bi-Metric arms, the lift can be adjusted for symmetric or asymmetric setups—accommodating everything from compact sedans to extended-wheelbase trucks. Its intelligent design minimizes maintenance costs and boosts shop productivity.

Engineered for Modern EV Service

Electric vehicles (EVs) are heavier and larger than ever, demanding a lift that can handle the load safely. The 10APX-181 features reinforced steel columns, low-profile arms, and expanded column spacing for superior under-car access. Technicians can service battery-reinforced chassis and high-roof vehicles with confidence and precision.

Revolutionary Automatic Swing Arm Restraint System (ASARS)

• Forged-steel construction provides over 2,000 lbs of load-holding force

• 360° grip locks arms firmly in place during operation

• Adaptive design automatically adjusts for optimum safety and stability

• Quick-release lever enables instant, controlled arm movement

Triple-Telescoping Nested Swing Arms

• Patented three-stage arms extend farther and retract shorter than traditional arms

• Nested inner tubes slide beyond the pivot pin for maximum reach

• Ensures precise vehicle positioning for a wide range of lift points

Low-Pro Swing Arms

• Dropped-end pad receivers allow clearance for low-chassis vehicles

• Minimize risk of side-skirt and underbody damage

• Telescoping channels enable better lift point access and pad placement

Adjustable Screw Pads and Adapters

• Polyurethane-topped double-telescoping pads for secure contact

• Optional 2.5" and 5" stackable adapters for precise vertical adjustment

• Column-mounted racks keep adapters organized and accessible

Innovative Automatic Safety Lock System

• Automatic lock engagement at each lift point

• Ergonomic single-point release for smooth descent

• Enhances technician safety and workflow efficiency

Bi-Metric Arm Geometry and Performance

• Allows symmetric or asymmetric operation without re-configuration

• 2-in-1 design streamlines vehicle loading

• Improves throughput and reduces setup time

Built for Strength and Longevity

• Durable powder-coat finish for maximum corrosion resistance

• Dual hydraulic direct-drive cylinders ensure balanced lifting

• Oversized 53" and 59" carriages provide exceptional stability

• Self-lubricating UHMW polyethylene bearings reduce wear

• 3/8" (10 mm) galvanized equalizer cables with oversized sheaves

• Safety locks spaced every 3" for precise height control

• ALI Certified for professional-grade safety

Key Features

• 10,000-lb lifting capacity ideal for cars, SUVs, and high-roof commercial vans

• 181" overall height provides additional clearance for tall and extended vehicles

• Durable powder-coat finish resists corrosion and daily shop wear

• Expandable top beam fits both wide and narrow drive-thru configurations

• Double-telescoping screw pads ensure secure contact with various lift points

• Padded overhead safety shutoff bar prevents roof damage during lifting

• Exclusive Bi-Metric™ arm design supports symmetric or asymmetric lifting setups

• Single-point safety release for quick and effortless lowering

• Drop-end arms offer lower pad height for low-clearance vehicles

• Dual hydraulic direct-drive cylinders provide smooth, even lifting power

• Electric/hydraulic HVLP power system delivers quiet and efficient operation

• Self-lubricating Dura-Glide UHMW polyethylene bearing system minimizes maintenance

• Safety locks in each column spaced every 3" for secure multi-position lifting

• Automatic arm restraints withstand over 2,000 lbs of side-force stress

• 3/8" (10 mm) multi-strand galvanized steel equalizing cables for balanced lifting

• Oversized cable sheaves reduce cable fatigue and extend lifespan

• Four triple-telescoping arms provide exceptional reach and flexibility

• ALI Certified for proven professional safety and reliability

Specifications

Capacity

• Lifting Capacity: 10,000 lbs. (4,536 kg)

• Maximum Load per Arm: 2,500 lbs. (1,134 kg)

Rise

• Lift Rise: 75" (1,905 mm)

• Minimum Height + Pad: 4" (102 mm)

• Time to Full Rise: 45 seconds

Outside Dimensions

• Height Overall: 181" (4,597 mm)

• Width Overall: 135" (3,429 mm) or 145" (3,683 mm)

• Outside Columns: 127" (3,226 mm) or 137" (3,480 mm)

Inside Dimensions

• Inside Columns: 108.25" (2,750 mm) or 118.25" (3,004 mm)

• Drive-Thru Clearance: 92" (2,337 mm) or 102" (2,591 mm)

• Floor to Overhead Switch: 175.5" (4,458 mm)

Arms & Pads

• Front Arm Reach (Min): 22" (559 mm)

• Front Arm Reach (Max): 47.5" (1,207 mm)

• Rear Arm Reach (Min): 29.5" (749 mm)

• Rear Arm Reach (Max): 57" (1,448 mm)

Noise

• Operational Sound Level: <70 dB

Shipping

• Shipping Dimensions: 162" × 24" × 30" (4,115 mm × 610 mm × 762 mm)

• Shipping Weight: 1,902 lbs. (863 kg)
