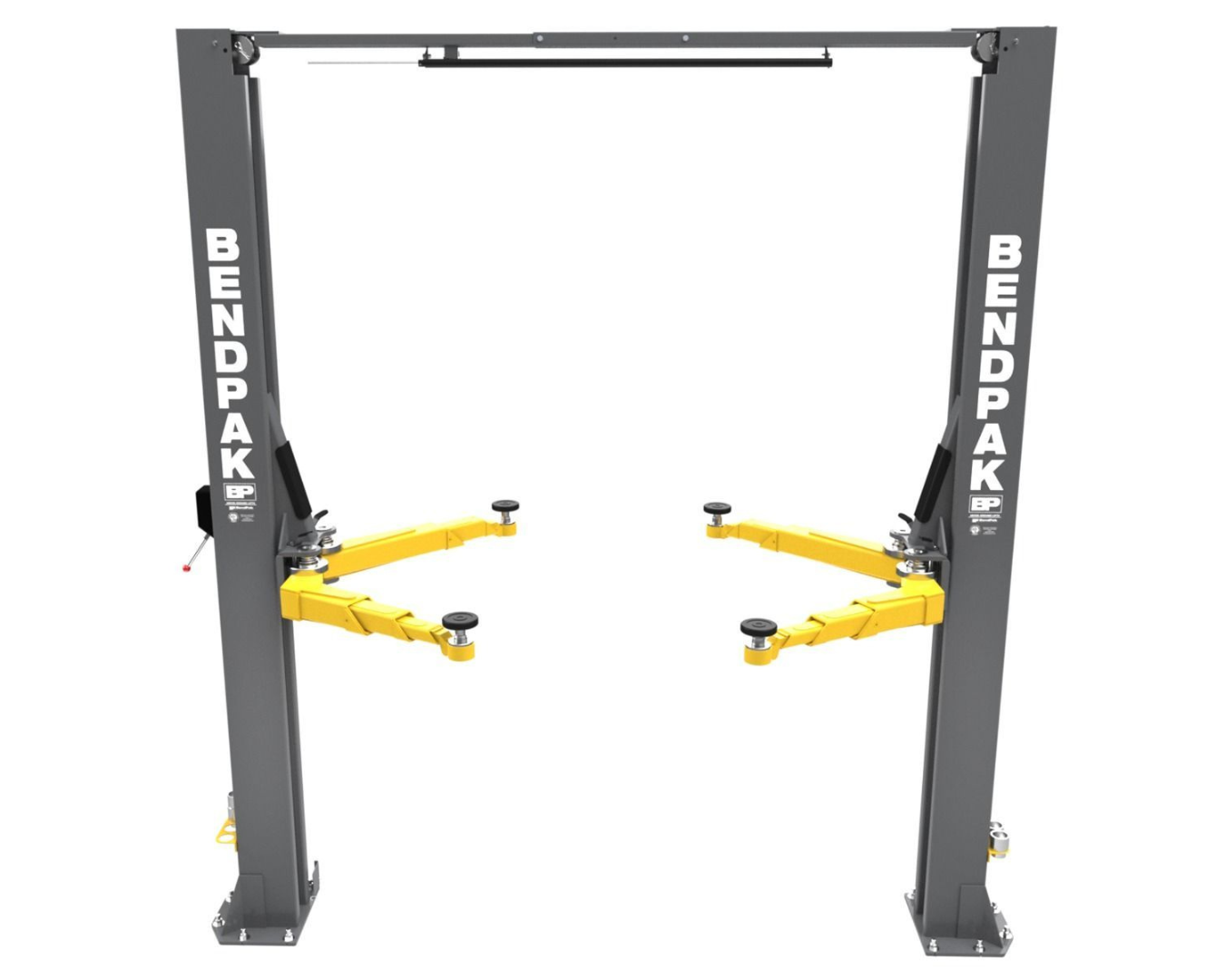

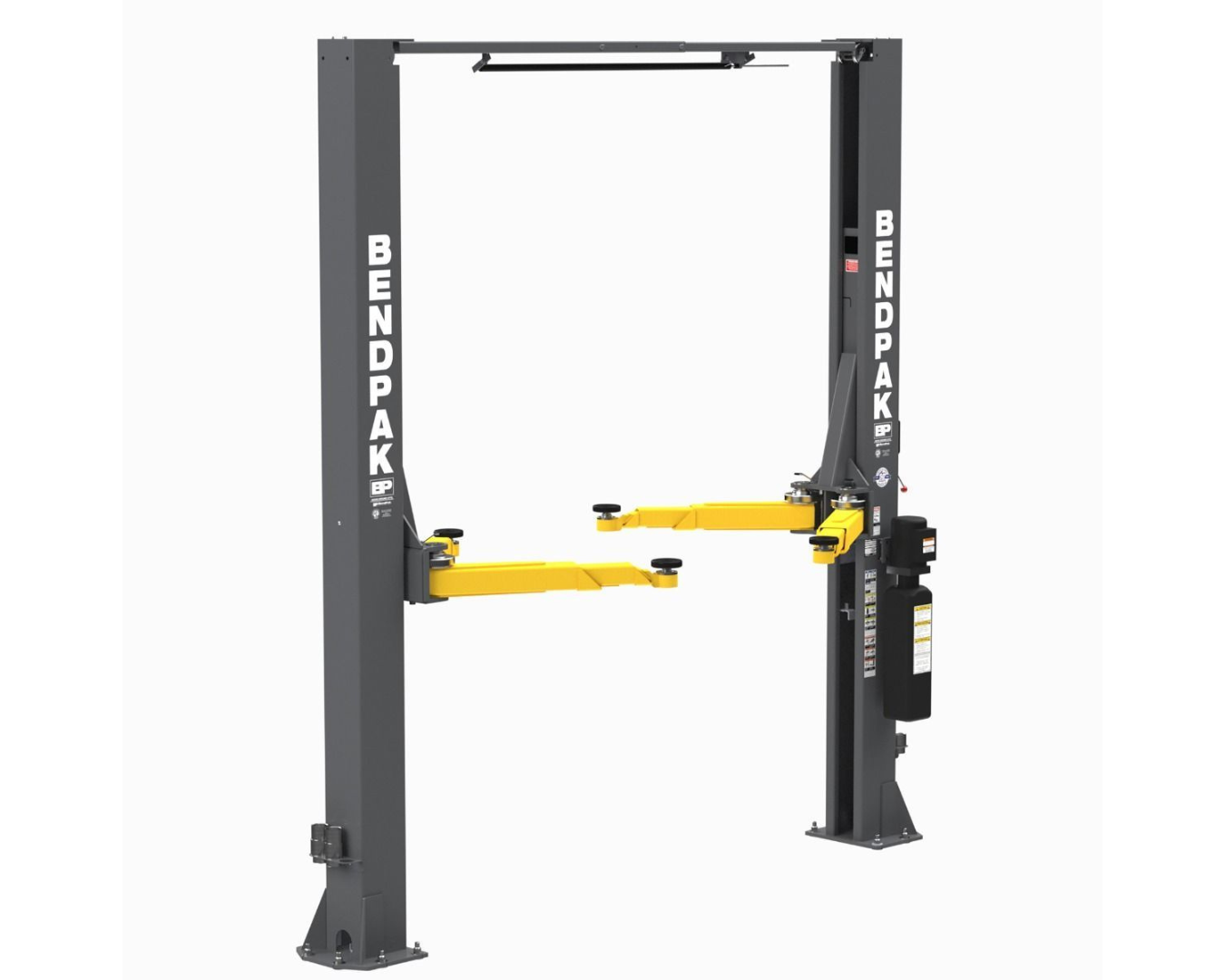

BendPak 10AP Pro-Series Two-Post Car Lift – 10,000 lb Capacity | Bi-Metric Arms | ALI Certified

The BendPak 10AP Pro-Series represents the pinnacle of professional lifting technology, built for the future of automotive service. With a 10,000-lb capacity, advanced safety systems, and industry-leading arm design, it delivers the performance, flexibility, and reliability required by today’s top-tier shops. Whether servicing standard passenger vehicles or electric vehicles, the 10AP provides smooth, safe, and efficient operation in every use case.

The Power of the AP Pro-Series

At the heart of the 10AP is BendPak’s Automatic Swing Arm Restraint System (ASARS)—a revolutionary feature that redefines vehicle stability during lifting. Built with forged-steel components, the ASARS delivers a 360° grip and over 2,000 lbs of load-holding force, keeping arms locked securely in place while preventing unwanted movement. Its adaptive design requires minimal operator input, maximizing both safety and efficiency.

The 10AP’s expandable top beam and exclusive Bi-Metric arms make it one of the most versatile lifts on the market, accommodating both symmetric and asymmetric configurations. This flexibility allows technicians to position vehicles exactly as needed, reducing setup time and boosting productivity.

For shops servicing larger vehicles, the lift includes Frame Cradle Pads and Adapter Pins for added support and safety. An optional Air-Electric Station provides industrial-grade air and power access, creating a fully integrated, professional-grade service bay.

Automatic Arm Restraint System (ASARS)

• Forged-steel arm restraint design with 360° grip coverage

• Withstands over 2,000 lbs of side-force load

• Prevents unplanned swing arm movement during operation

• Adaptive system ensures non-shifting precision

• Quick-release lever allows instant release of clamping pressure

Triple-Telescoping Nested Swing Arm Design

• Patented three-stage arms provide greater reach and retraction

• Nested sliding tubes retract fully past the pivot pin for full adjustability

• Ideal for a wide range of vehicle lift points—from compact cars to extended wheelbases

• Smooth, efficient movement allows faster setup and safer lifting

Low-Profile Arms for Maximum Access

• Low-Pro™ swing arms with dropped-end pad receivers

• Designed for lowered and performance vehicles

• Reduce risk of side-skirt or underbody damage

• Telescoping channels ensure easy lift point access

• Compatible with height adapters for flexible pad positioning

Adjustable Screw Pads and Stackable Adapters

• Double-telescoping screw adapters with durable polyurethane pads

• Optional 2.5” and 5” stackable adapters provide vertical adjustment

• Quick drop-in design for fast setup and changeovers

• Column-mounted storage racks keep adapters organized and accessible

Innovative Safety Lock System

• Patented automatic locking mechanism engages during every lift cycle

• Single-point ergonomic release enables smooth lowering

• Maintains consistent, safe locking even under full load

• Improves workflow and technician safety

Exclusive Bi-Metric Arm Geometry

• Allows symmetric or asymmetric lifting without reconfiguration

• 2-in-1 design eliminates downtime between setups

• Enables faster, more efficient service across a variety of vehicles

Built for Power and Performance

• Durable powder-coat finish resists corrosion and wear

• Expandable top beam for wide or narrow drive-thru configurations

• Dual hydraulic direct-drive cylinders for smooth and balanced lifting

• Electric / hydraulic HVLP power system for quiet, efficient performance

• Oversized 53" & 59" carriages for superior column stability

• Self-lubricating UHMW polyethylene bearings reduce maintenance

• 3/8" (10 mm) galvanized steel equalizing cables ensure balanced operation

• Automatic arm restraints handle 2,000+ lbs of side force

• Oversized sheaves reduce cable fatigue for long-term reliability

• ALI Certified for professional-grade safety

Key Features

• 10,000-lb lifting capacity ideal for cars, SUVs, and light-duty trucks

• Durable powder-coat finish resists corrosion and wear

• Expandable top beam fits both wide and narrow drive-thru configurations

• Double-telescoping screw pads provide precise lifting adaptability

• Padded overhead safety shutoff bar protects vehicle roofs during lift

• Exclusive Bi-Metric arm design for symmetric or asymmetric positioning

• Single-point safety release for quick, ergonomic operation

• Drop-end arms allow a lower pad height for low-clearance vehicles

• Dual hydraulic direct-drive cylinders deliver smooth, even lifting power

• Oversized 53" and 59" carriages increase strength and column stability

• Electric/hydraulic HVLP power system for quiet, efficient operation

• Self-lubricating Dura-Glide UHMW polyethylene bearings reduce maintenance

• Safety locks in each column spaced every 3" for secure height control

• Automatic arm restraints withstand over 2,000 lbs of side force

• 3/8" (10 mm) galvanized multi-strand equalizing cables ensure balance and durability

• Oversized cable sheaves reduce wear and extend service life

• Four triple-telescoping arms provide exceptional reach and versatility

• ALI Certified for proven safety and reliability

Specifications

Capacity

• Lifting Capacity: 10,000 lbs. (4,536 kg)

• Maximum Load per Arm: 2,500 lbs. (1,134 kg)

Rise

• Lift Rise: 69" (1,753 mm)

• Rise + Pad: 72.25" (1,835 mm)

• Minimum Height + Pad: 4" (102 mm)

• Time to Full Rise: 45 seconds

Outside Dimensions

• Height Overall: 145" (3,683 mm)

• Width Overall: 135" (3,429 mm) or 145" (3,683 mm)

• Outside Columns: 127" (3,226 mm) or 137" (3,480 mm)

Inside Dimensions

• Inside Columns: 108.25" (2,750 mm) or 118.25" (3,004 mm)

• Drive-Thru Clearance: 92" (2,337 mm) or 102" (2,591 mm)

• Floor to Overhead Switch: 139.25" (3,537 mm)

Arms & Pads

• Front Arm Reach (Min): 24.5" (622 mm)

• Front Arm Reach (Max): 50" (1,270 mm)

• Rear Arm Reach (Min): 32" (812 mm)

• Rear Arm Reach (Max): 59.25" (1,504 mm)

Noise

• Operational Sound Level: <70 dB

Shipping

• Shipping Dimensions: 150" × 24" × 28" (3,810 mm × 610 mm × 711 mm)

• Shipping Weight: 1,729 lbs. (784 kg)

A $395 surcharge from the freight carrier will be applied if no forklift or loading dock is available at the delivery location.
