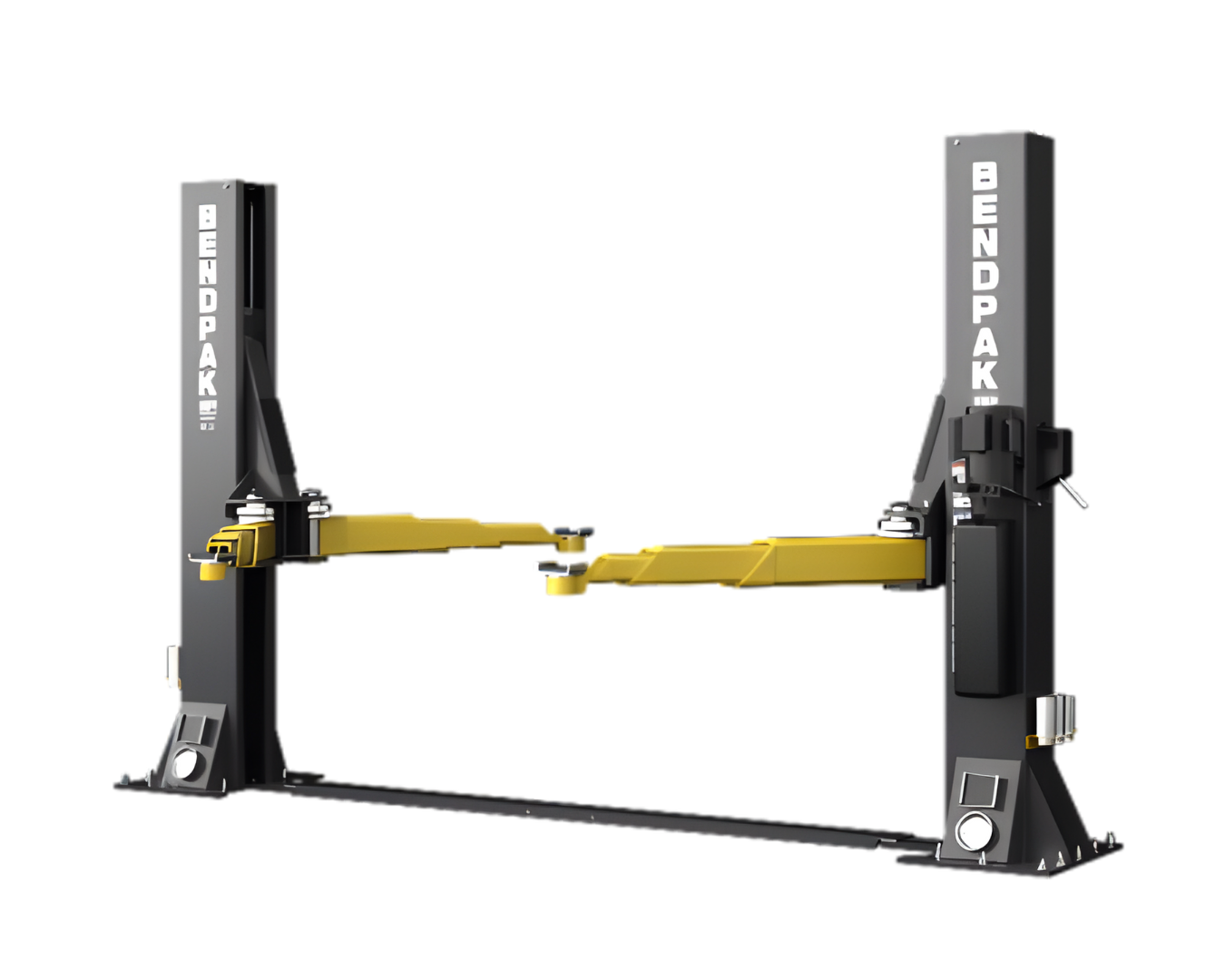

BendPak 12AP-SRT Short-Rise Two-Post Car Lift – 12,000 lb Capacity – Floorplate Design

Versatility & Precision in Every Lift

The BendPak 12AP-SRT Short-Rise Two-Post Car Lift is the ultimate solution for professionals who need a high-performance lift that adapts to various tasks. Engineered for tire changes, wheel alignments, and heavy-duty servicing, this lift is perfect for those working with trucks, SUVs, and other large vehicles. With a 12,000-lb lifting capacity, the 12AP-SRT offers seamless adaptability between symmetric and asymmetric configurations, ensuring precision, safety, and efficiency every time.

Key Features – 12AP-SRT

• Durable Powder-Coat Finish for long-lasting protection

• Power Side Post supports the power unit, safety lock release handle, and lowering handle

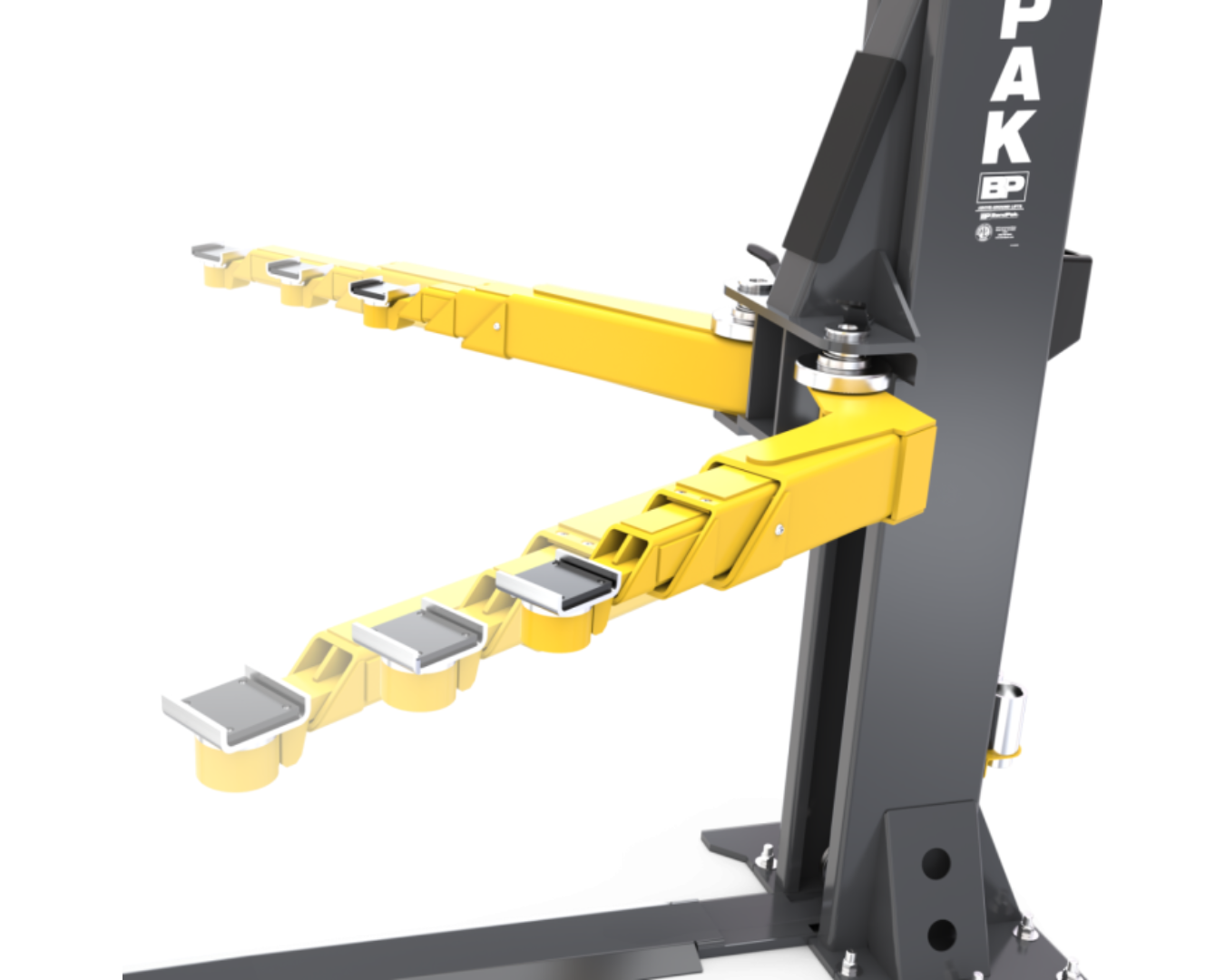

• Exclusive Bi-Metric™ Arm Design for more versatile arm positioning

• Four cradle adapters included to raise trucks and SUVs (body-on-frame style)

• Single-Point Safety Release for easy and safe operation

• Drop-End Arms provide a lower pad height, ideal for low-clearance vehicles

• Dual Hydraulic Direct-Drive Cylinders for smooth, synchronized lifting

• Electric / Hydraulic HVLP Power System for quiet and efficient operation

• Self-Lubricating Dura-Glide UHMW Polyethylene Bearing System ensures smooth travel

• Safety Locks in each column, spaced every 3″, for secure lifting positions

• Automatic Arm Restraints withstand over 2000-lbs of side force, preventing unplanned movement

• Heavy-Duty ½” Aircraft-Quality Equalizer Cables for added durability

Specifications

Capacity

• Lifting Capacity: 12,000 lbs (5,443 kg)

• Max Capacity / Front Axle: 6,000 lbs (2,722 kg)

• Max Capacity / Rear Axle: 6,000 lbs (2,722 kg)

• Max Load per Arm: 3,000 lbs (1,361 kg)

Rise

• A – Rise: 72″ (1,829 mm)

• B – Rise + Pad Only: 76″ (1,930 mm)

• C – Rise + Pad + Adapter: 86″ (2,184 mm)

• D – Min. Height + Pad: 4″ (102 mm)

• Time to Full Rise: ≈ 45 seconds

Outside Dimensions

• E – Height Overall: 140″ (3,556 mm)

• F – Width Overall: 132″ (3,353 mm)

• G – Outside Columns: 120″ (3,048 mm)

Inside Dimensions

• H – Inside Columns: 102″ (2,591 mm)

• I – Drive-Thru Clearance: 94″ (2,387 mm)

Arms & Pads

• K – Front Arm Reach (Min): 22″ (559 mm)

• K – Front Arm Reach (Max): 49″ (1,245 mm)

• L – Rear Arm Reach (Min): 30″ (762 mm)

• L – Rear Arm Reach (Max): 57″ (1,448 mm)

• Screw Pad Adjustment: 2″ (51 mm)

Power Unit

• Motor: 220 VAC / 60 Hz / 1 Phase

• Noise Level: < 70 dB

Optional Add-Ons

Frame Cradle Pads

• Set of 4 heavy-duty pads

• Polyurethane-lined to protect vehicle frames

• Ideal for trucks and body-on-frame vehicles

Medium Adapter (60 mm Pin)

• Set of 4 – 2.5″ height

• For vehicles with uneven underbodies or high-clearance

Tall Adapter (60 mm Pin)

• Set of 4 – 5″ height

• Adds vertical reach for larger vehicles

WSA-100 Work Station

• Four 110V GFI-protected outlets

• Two air-service outlets for tire inflation and pneumatic tools

• Built-in regulator, filter, and oiler

Specifications

Capacity

• Lifting Capacity: 12,000 lbs (5,443 kg)

• Max Capacity / Front Axle: 6,000 lbs (2,721.5 kg)

• Max Capacity / Rear Axle: 6,000 lbs (2,721.5 kg)

• Maximum Capacity per Lift Arm: 3,000 lbs (1,360 kg)

Dimensions

• Width Overall: 155 in (3,937 mm)

• Base Plate Width: 26.5 in (674 mm)

• Post Height: 93.5 in (2,377 mm)

• Drive-Thru: 102.25 in (2,598 mm)

• Inside Posts: 119 in (3,026 mm)

• Outside Posts: 142 in (3,606 mm)

• Minimum Height with Pad: 4.25 in (105 mm)

• Max. Lifting Height: 46 in (1,168 mm)

• Max. Rise: 42.75 in (1,089 mm)

• Min. Height with Adapters (5 in + 2.5 in): 11.75 in (298 mm)

• Floor Plate Height: 1.5 in (36 mm)

• Floor Plate Width: 9.5 in (240 mm)

Arms & Pads

• Front Arm Reach (Min): 26 in (659 mm)

• Front Arm Reach (Max): 55.25 in (1,403 mm)

• Rear Arm Reach (Min): 29.25 in (745 mm)

• Rear Arm Reach (Max): 60 in (1,525 mm)

Safety

• Safety Lock Positions: 8

Power Unit

• Standard Motor: 208-230 VAC, 50/60 Hz, 1 Phase, 5 HP, 23 Amps

• Time to Full Rise: ≈ 45 seconds

• Sound Pressure: Lift produces less than 85 dB when in operation

• Operating Hydraulic Pressure under Max. Load: 2,170 psi
