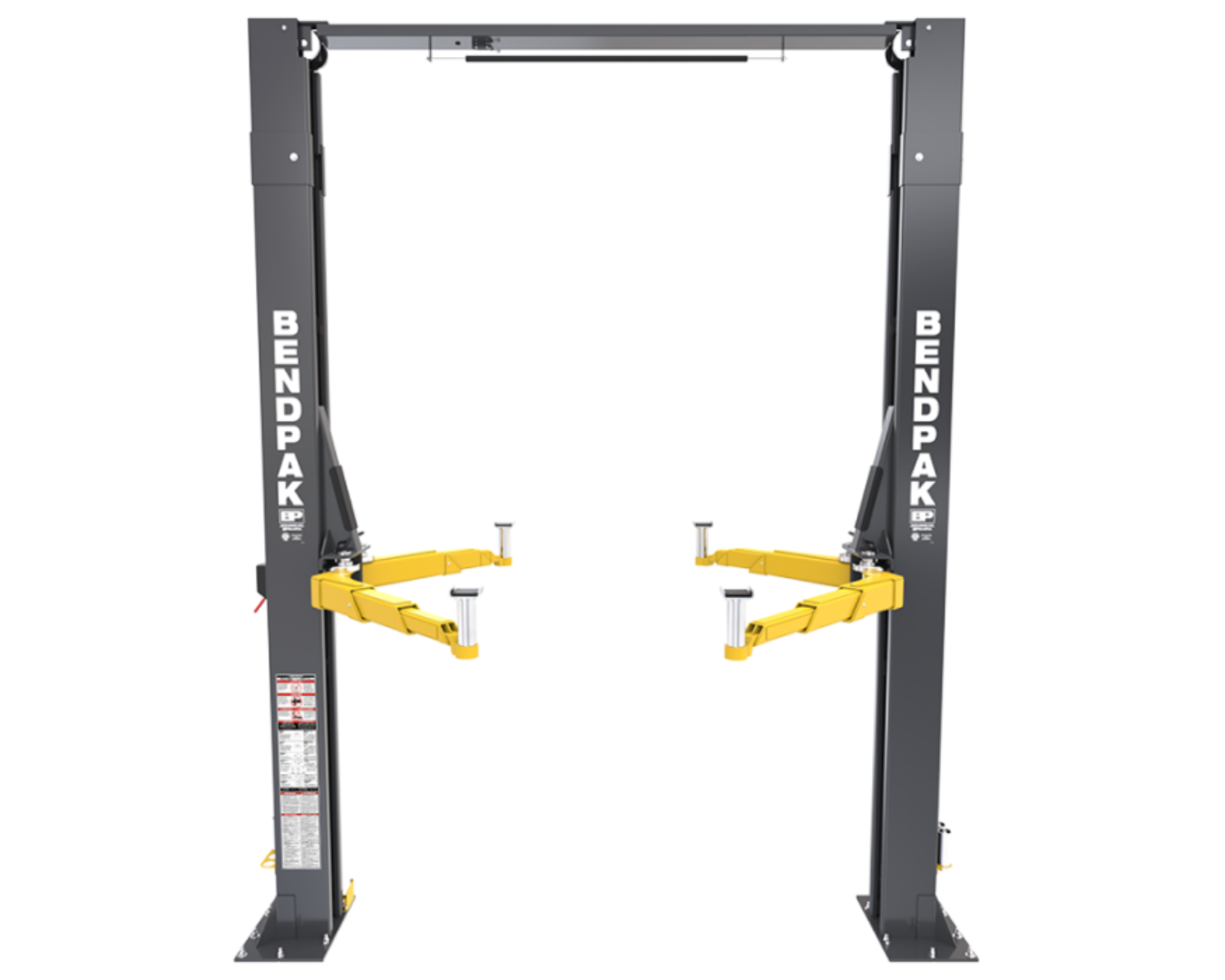

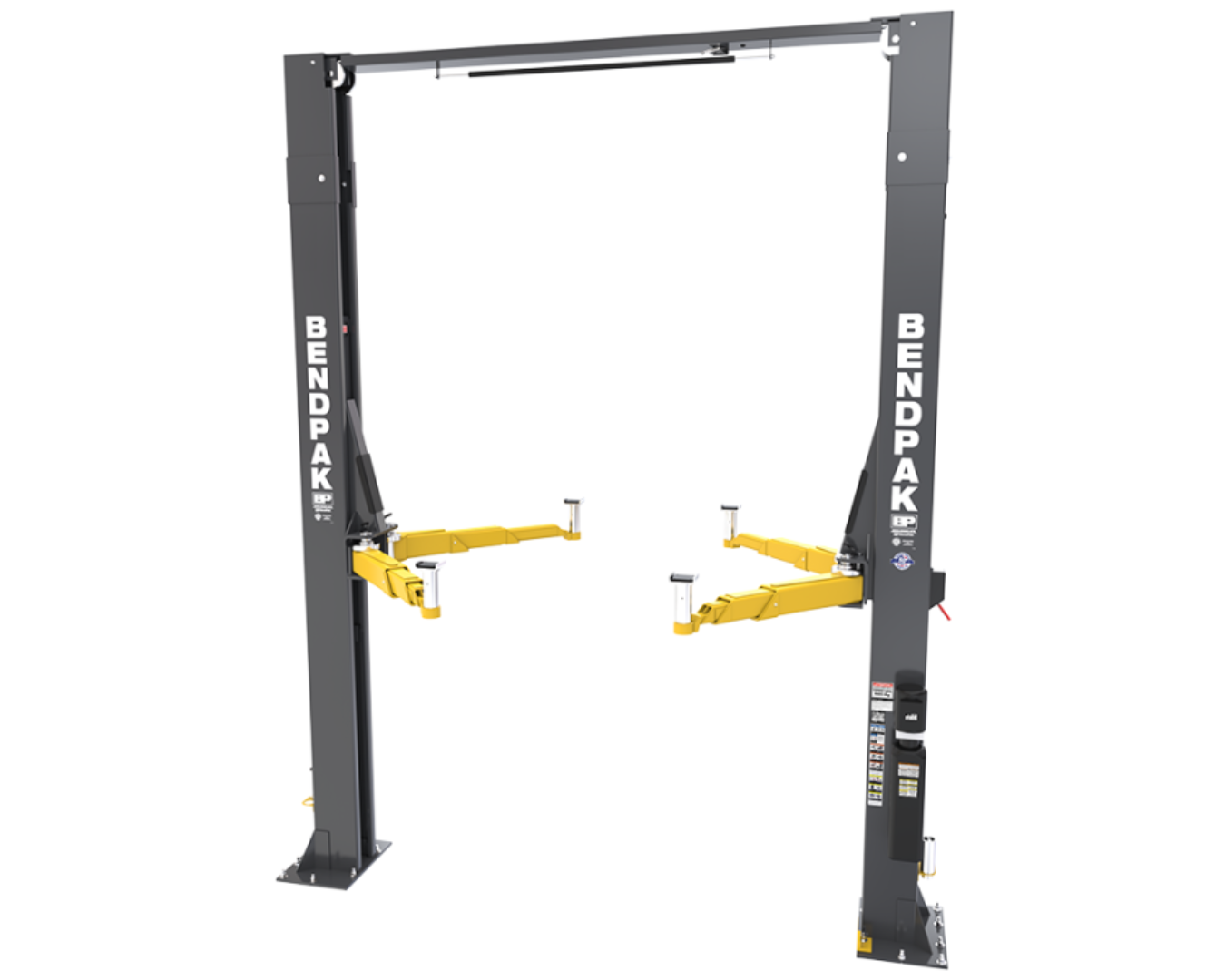

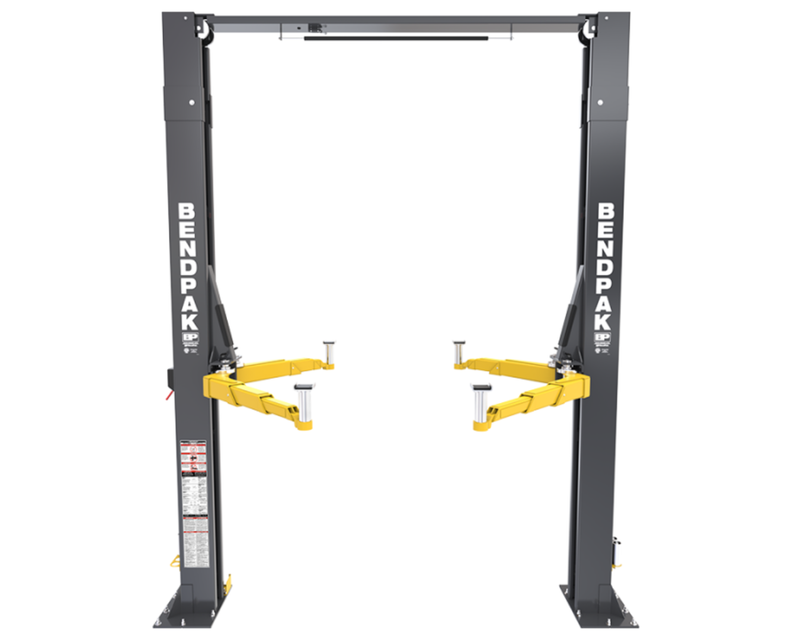

BendPak 12APX-192 Two Post Car Lift - 12,000-Lb Capacity - High Rise, 192" Extended Height

The BendPak 12APX-192 is a high-performance two-post lift designed to handle demanding lifting tasks. With a maximum lifting capacity of 12,000 lbs., it provides excellent power for a wide range of vehicles, including modern electric vehicles (EVs). Featuring a towering height of 193 inches and the ability to lift vehicles up to 82.5 inches with the pad up, it offers impressive clearance. The lift's advanced Bi-Metric™ arms allow for both symmetric and asymmetric lifting configurations, while the Low-Pro™ triple-telescoping arms provide versatility for a variety of vehicles. Enhanced safety features like the Automatic Swing Arm Restraint System (ASARS) and automatic safety locks ensure secure operation, making this lift an ideal solution for both professional and high-volume automotive shops.

• Additional Accessories Included:

  • 2.5" Medium Adapters (Set of 4)

  • 5" Tall Adapters (Set of 4)

  • Drop-In Cradle Pads (Set of 4)

  • Adapter Holders (Set of 2)

• Optional Accessories:

  • Quick-Fit Pinch-Weld Pucks (Set of 4)

  • Quick-Fit Pinch-Weld Pads (Set of 4)

  • Wide Frame Cradle Adapters (Set of 2)

  • Steel Lift Pads (Set of 4)

Key Features:

• Lifting Capacity: 12,000 lbs. (5,443 kg)

• Max. Rise: 75.75 in. / 1,922 mm

• Max. Lifting Height (Pad Up): 82.5 in. / 2,095 mm

• Min. Height (Pad): 4 in. / 101.2 mm

• Overall Height: 193 in. / 4,904 mm

• Overall Width: 156 in. / 3,959 mm

• Drive-Thru Width: 103 in. / 2,616 mm

• Front Arm Reach (Min): 55.25 in. / 1,404.2 mm

• Rear Arm Reach (Max): 60 in. / 1,524.4 mm

• Max Load per Lift Arm: 3,000 lbs. / 1,361 kg

• Time to Full Rise: ≈ 45 seconds

• Motor: 220 VAC, 60 Hz, 1 Phase

• Sound Level: <70 dB

A $395 surcharge from the freight carrier will be applied if no forklift or loading dock is available at the delivery location.
