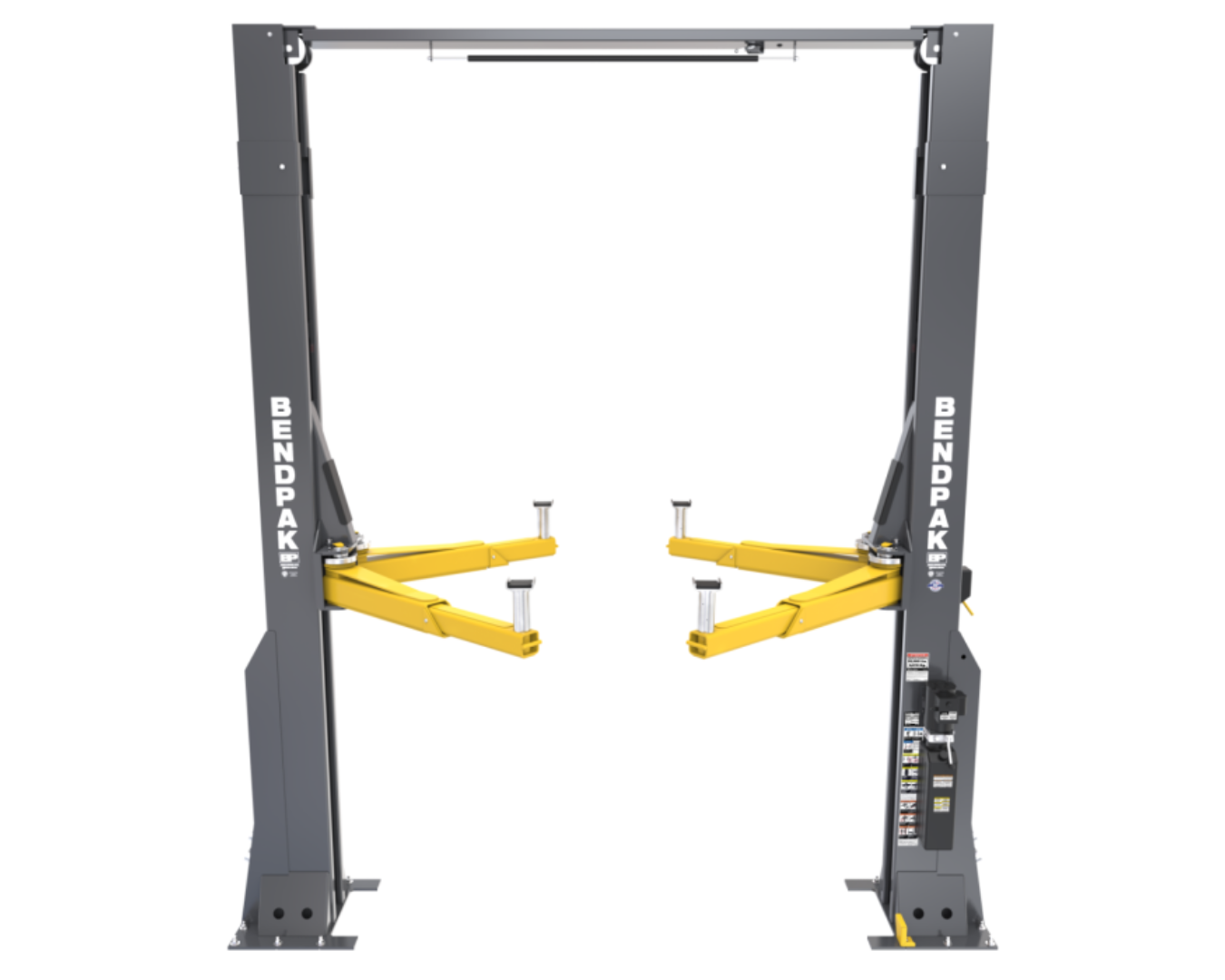

BendPak 20AP-192 Super-Duty Two Post Car Lift - 20,000-Lb Capacity - 192" Extended Height

The BendPak 20AP-192 is engineered for extreme lifting needs, providing the power and precision required for heavy-duty vehicles. With a remarkable 20,000 lb. lifting capacity, it can handle a variety of vehicles with ease. Its advanced hydraulic system, robust design, and high-quality materials make this lift a standout in any automotive shop. Equipped with features like dual hydraulic cylinders, drop-end arms for lower pad height, and a self-lubricating bearing system, the 20AP-192 delivers exceptional performance with minimal maintenance. Safety is a top priority with the automatic arm restraints, safety locks, and a durable powder coat finish to ensure long-lasting protection.

Key Features:

• Max Lifting Capacity: 20,000 lbs. (9,072 kg)

• Durable Powder Coat Finish: For added protection and long-term use.

• Padded Overhead Safety Shutoff Bar: Enhances safety during lift operation.

• Single-Point Safety Release: Quick and easy operation for lowering.

• Drop-End Arms: Provides lower pad height for improved versatility.

• Dual Hydraulic Direct-Drive Cylinders: Ensures smooth and powerful lifting.

• Electric / Hydraulic HVLP Power System: High-efficiency power system for long-lasting performance.

• Self-Lubricating Dura-Glide UHMW Polyethylene Bearing System: Reduces friction and wear.

• Safety Locks in Each Column: Spaced every 3 inches for secure lifting.

• Automatic Arm Restraints: Withstands over 2,000 lbs. of side force for added stability.

• Heavy-Duty ½” Aircraft-Quality Equalizer Cables: For enhanced load distribution and reliability.

• Oversized Cable Sheave Diameter: Reduces cable fatigue for smoother operation.

Specifications

• Max. Lifting Capacity: 20,000 lbs. / 9,072 kg

• Max. Capacity – Front Axle: 10,000 lbs. / 4,536 kg

• Max. Capacity – Rear Axle: 10,000 lbs. / 4,536 kg

• Max. Rise: 76.25 in. / 1,934 mm

• Lifting Height w/Pad: 83 in. / 2,111 mm

• Max. Lifting Height: 91.5 in. / 2,327 mm

• Min. Height w/Pad: 8 in. / 206 mm

• Height Overall: 193 in. / 4,904 mm

• Width Overall: 168 in. / 4,267 mm

• Width, Outside Posts: 149 in. / 3,785 mm

• Width, Inside Posts: 126 in. / 3,199 mm

• Drive-Thru Width: 107.75 in. / 2,739 mm

• Floor to Top Switch: 186.5 in. / 4,738 mm

• Lift Arm Reach: 35 in. to 62 in. (893 mm to 1,678 mm)

• Max Load per Lift Arm: 5,000 lbs. / 2,268 kg

• Motor: 220 VAC, 60 Hz, 1 Phase

• Sound Level: <70 dB

• Time to Full Rise: ≈ 79 seconds

A $395 surcharge from the freight carrier will be applied if no forklift or loading dock is available at the delivery location.
