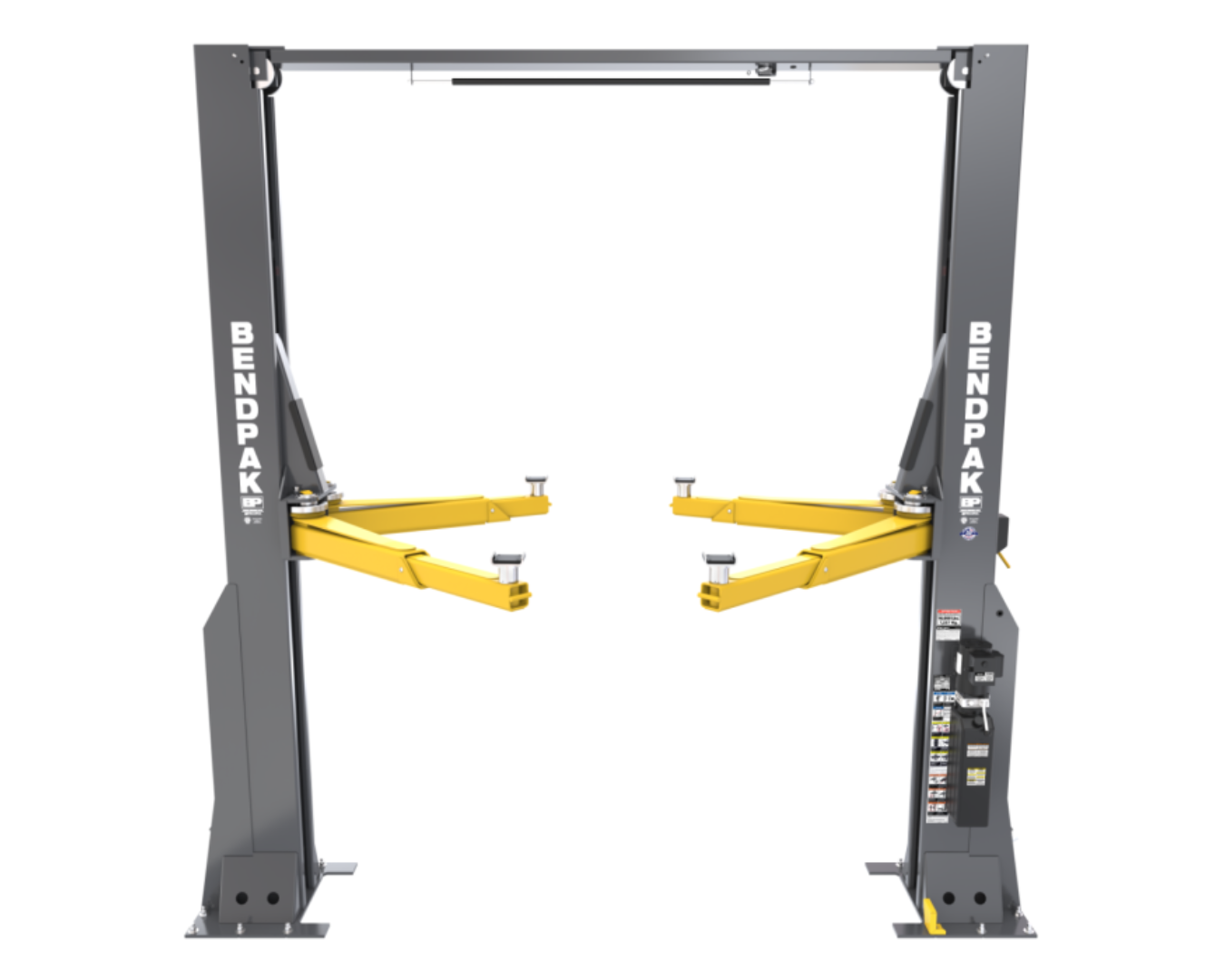

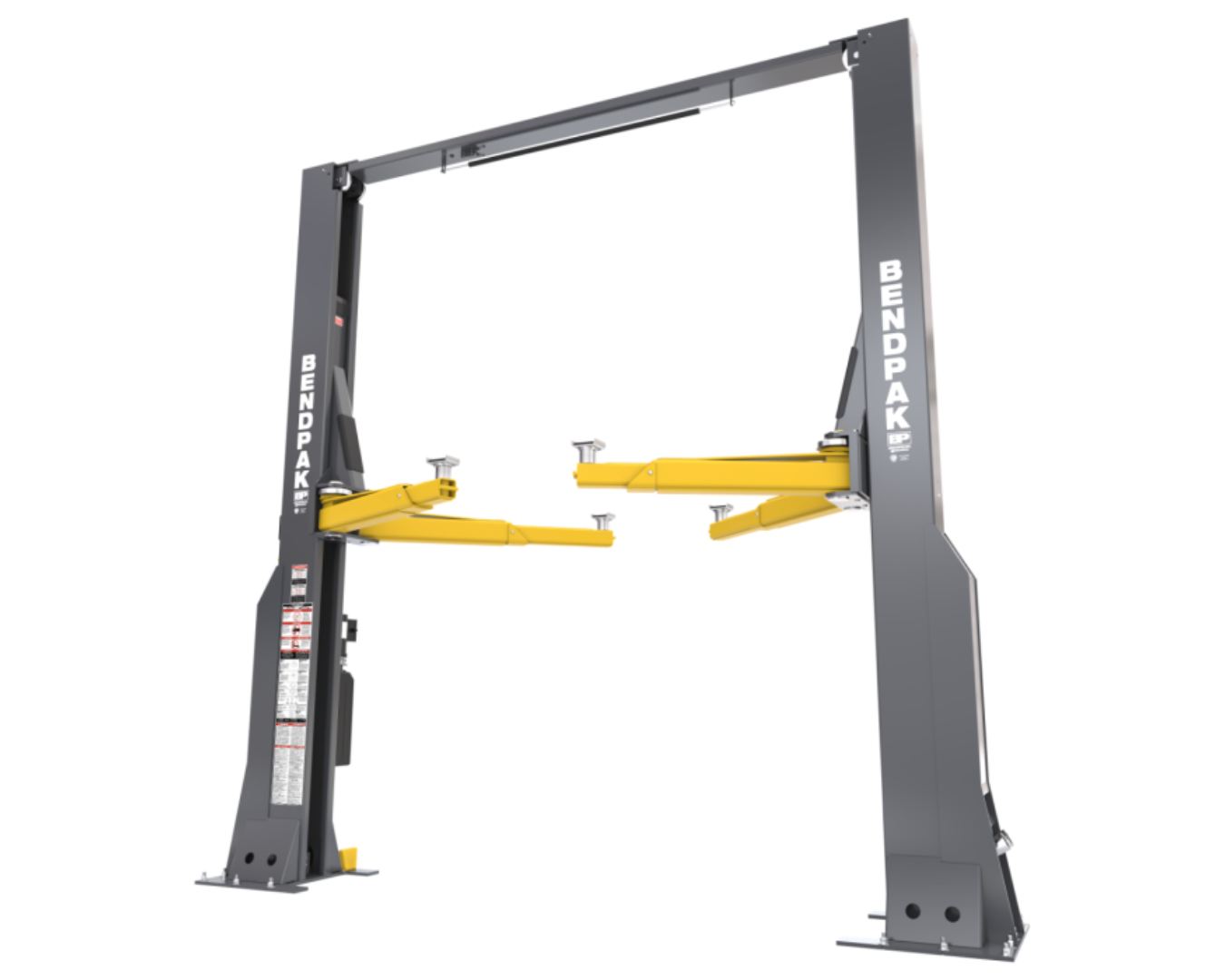

BendPak 20AP Two Post Car Lift - 20,000-Lb Capacity

The BendPak 20AP is designed for automotive professionals who demand the highest performance and reliability. With an impressive 20,000 lb. lifting capacity, this heavy-duty car lift is built to manage the heaviest of vehicles with ease, ensuring your shop stays efficient and productive. Engineered with cutting-edge technology, it guarantees exceptional lifting performance while offering unmatched durability.

Key Features:

• 20,000 lbs. Lifting Capacity: Handles heavy-duty vehicles, including trucks and large SUVs.

• Durable Powder Coat Finish: Ensures long-lasting protection against wear and corrosion.

• Padded Overhead Safety Shutoff Bar: Enhances safety during lifting and lowering operations.

• Single-Point Safety Release: Simplifies the process of releasing safety locks.

• Drop-End Arms: Allows for a lower pad height to accommodate a variety of vehicles.

• Dual Hydraulic Direct-Drive Cylinders: Provides smooth and reliable lifting power.

• Electric/Hydraulic HVLP Power System: High-efficiency system designed for quiet and reliable operation.

• Self-Lubricating Dura-Glide UHMW Polyethylene Bearing System: Minimizes friction for smoother movement and less maintenance.

• Automatic Arm Restraints: Withstand over 2000 lbs. of side force, preventing arm movement during lifting.

• Oversized Cable Sheave Diameter: Reduces cable fatigue and prolongs the system’s lifespan.

• ALI Certified: Meets the highest safety and quality standards.

Specifications:

• Max. Lifting Capacity: 20,000 lbs. / 9,072 kg

• Max. Rise (no Safety Lock Engaged): 76.5 in. / 1,943 mm

• Max. Lifting Height w/ Pad (Top Lock): 82.75 in. / 2,103 mm

• Max. Lifting Height w/ Pad (no Lock): 83.25 in. / 2,114 mm

• Max. Lifting Height w/ Adapters (Top Lock): 90.25 in. / 2,292 mm

• Min. Height w/ Pad: 8 in. / 206 mm

• Overall Height: 169 in. / 4,294 mm

• Width Overall: 168 in. / 4,267 mm

• Width, Outside Posts: 149 in. / 3,785 mm

• Width, Inside Posts: 126 in. / 3,199 mm

• Drive-Thru Width: 107.75 in. / 2,742 mm

• Floor to Top Switch: 162.5 in. / 4,128 mm

• Lift Arm Reach (min. - max.): 35 in. to 62 in. / 893 mm to 1,678 mm

• Base Plate Width: 28 in. / 710 mm

• Post to Base Plate: 9.5 in. / 241 mm

• Time to Full Rise: ≈ 79 seconds

• Operating Pressure at Max Load: 2,647 psi

A $395 surcharge from the freight carrier will be applied if no forklift or loading dock is available at the delivery location.
