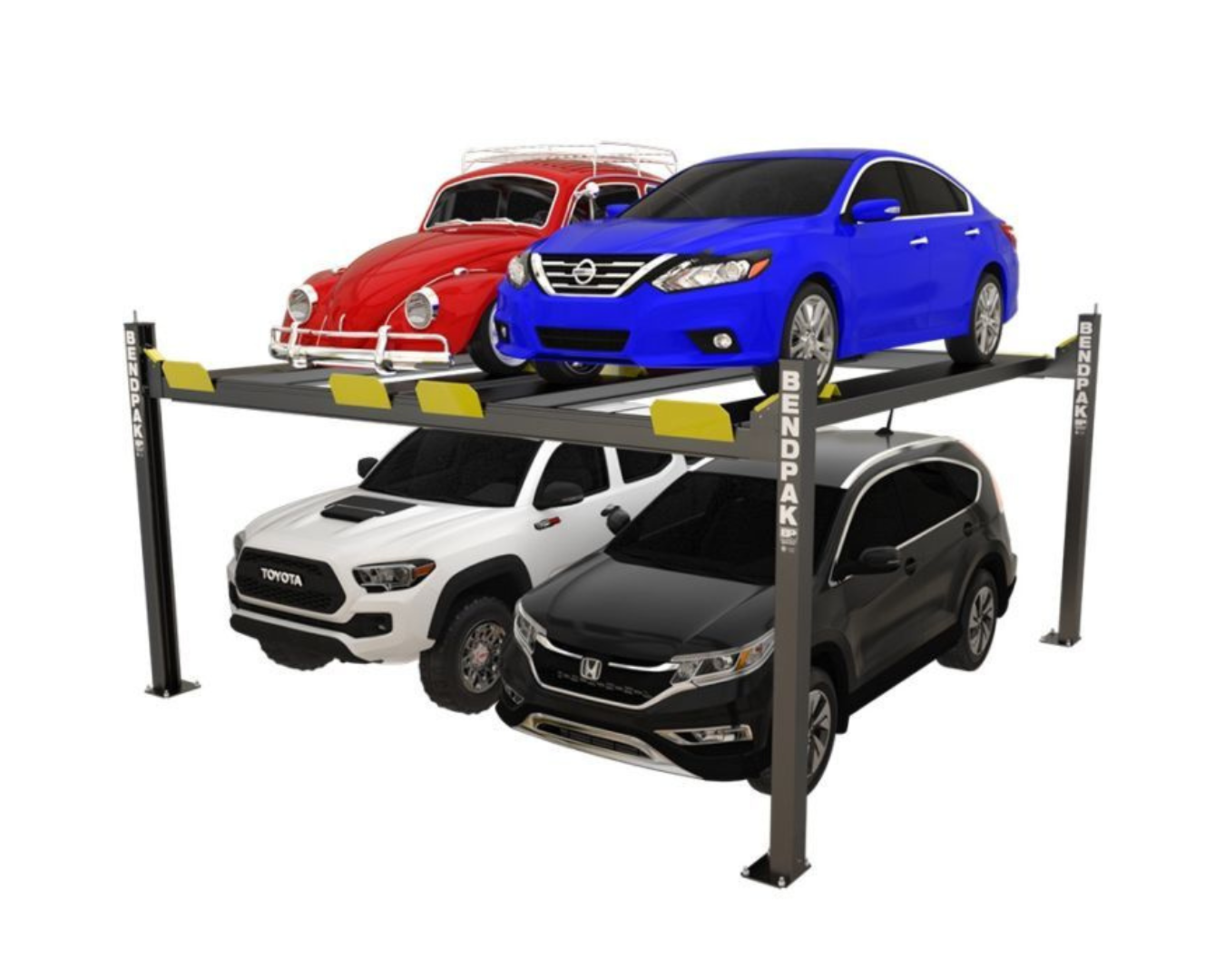

BendPak HD-9SW Super-Wide Four-Post Car Lift - 9,000-Lb Capacity

The BendPak HD-9SW is a super-wide four-post lift designed for versatility, convenience, and performance. With a 9,000-lb. lifting capacity, this lift is ideal for parking, servicing, or storing wider vehicles such as trucks, SUVs, and performance cars. The “SW” in its name stands for Super-Wide, giving you extra room between runways while maintaining exceptional strength and reliability. Built with heavy-duty components, safety locks, and a high-speed hydraulic system, the HD-9SW is a dependable solution for both commercial shops and home garages that demand more space and capability.

Key Features:

• Model: HD-9SW

• Lifting Capacity: 9,000 lbs. (4,082 kg)

• Standard Rise: Offers ample clearance for vehicle stacking and service

• Compact Runway Design: Shorter runways fit easily in smaller spaces

• Wide Vehicle Compatibility: Runways accommodate both narrow and wide vehicles

• Rail Kit Included: Ready for optional accessories and attachments

• Electric / Hydraulic Power System: Ensures efficient, reliable operation

• Single Hydraulic Cylinder: Mounted under the runway for smooth lifting

• Fully Enclosed Cables & Safety Locks: Protects components for long-term durability

• Internal Anti-Sway Slider Blocks: Provides added stability in each column

• Heavy-Duty 3/8" Aircraft Cables: Designed for superior lifting strength

• Oversized Cable Rollers & Sheaves: Reduce wear and cable fatigue

• Multi-Position Safety Locks: Allow for flexible height settings

• Push-Button Pneumatic Safety Release: Simple and fast lock release

• Adjustable Lock Ladders: Customize height for different vehicle types

• Rugged 1.25" Roller Axles: Enhances durability and reliability

• Durable Matte-Finish Runways: Resist wear and corrosion

• Removable Approach Ramps: Provides extra drive-under clearance

• Optional Accessories: Drive-thru ramps, drip trays, solid deck panels, and 4,500-lb air/hydraulic rolling jacks available

• Includes: 1 pair of aluminum ramps (additional ramps sold separately)

Key Features:

• Max Lifting Capacity: 9,000 lbs (4,082 kg)

• Runway Width: 19" (483 mm)

• Maximum Rise: 70" (1,778 mm)

• Overall Width: 202" (5,131 mm)

• Overall Length: 218.5" (5,550 mm)

• Height of Columns: 90" (2,284 mm)

• Drive-Thru Clearance: 178" (4,521 mm)

• Locking Positions: 14 (spaced every 4" / 102 mm)

• Max Lifting Height: 77" (1,956 mm)

• Motor: 220 VAC / 60 Hz / 1 Phase

• Time to Full Rise: Approximately 55 seconds

• Shipping Weight: 2,796 lbs (1,268 kg)

• Shipping Dimensions: 200” x 22” x 52” (5,080 mm x 5,080 mm x 1,333 mm)

Enhanced Vehicle Compatibility:

• Width Between Columns: 192" (4,877 mm)

• Runway Length: 164" (4,166 mm)

• Runway Centerline: 56.25" to 62.75" (1,429 mm to 1,594 mm)

• Width Between Runways: 34.25" (870 mm) to 41" (1,041 mm)

• Outside Edge of Runways: 75.25" (1,911 mm) to 81.75" (2,076 mm)

A $395 surcharge from the freight carrier will be applied if no forklift or loading dock is available at the delivery location.
