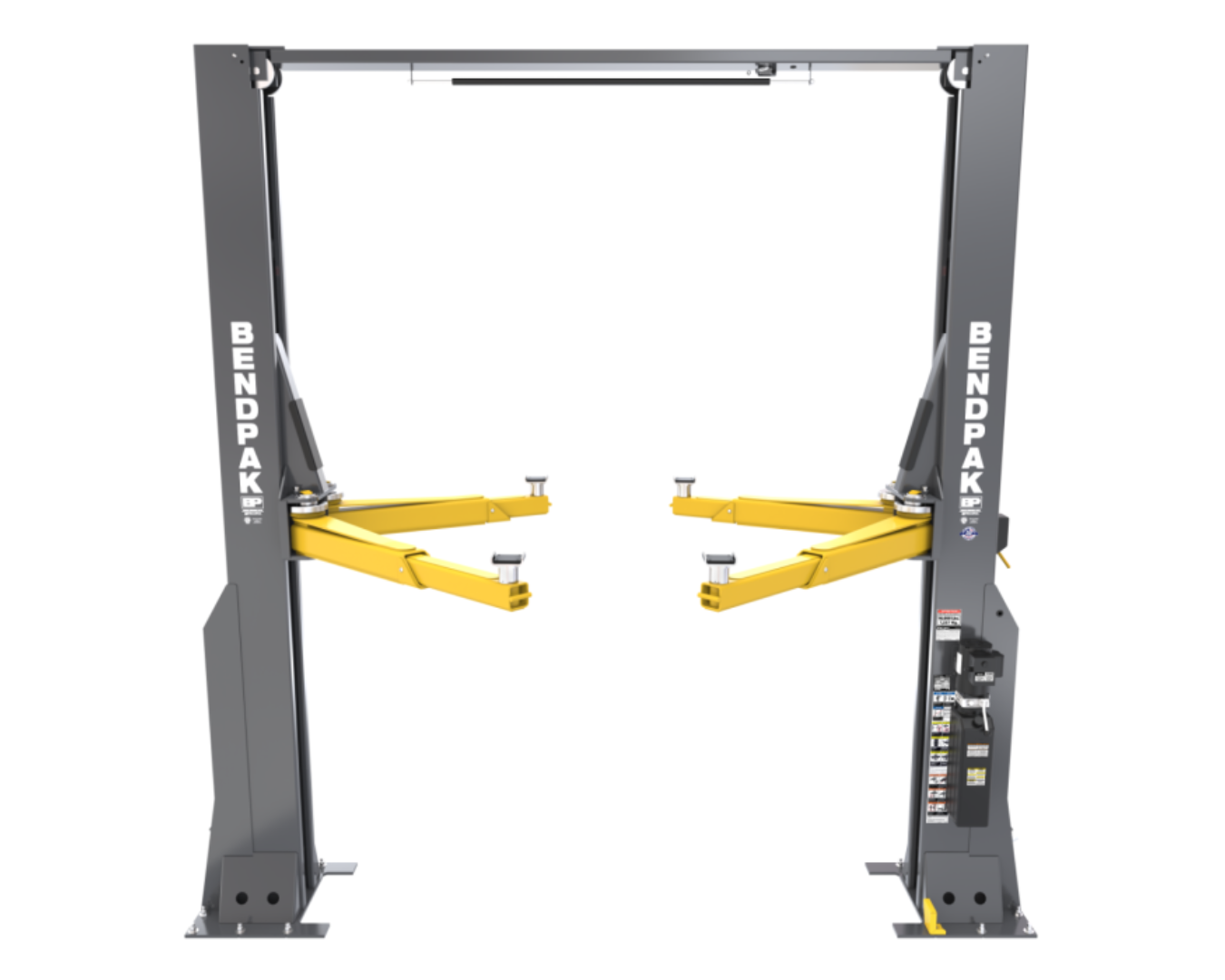

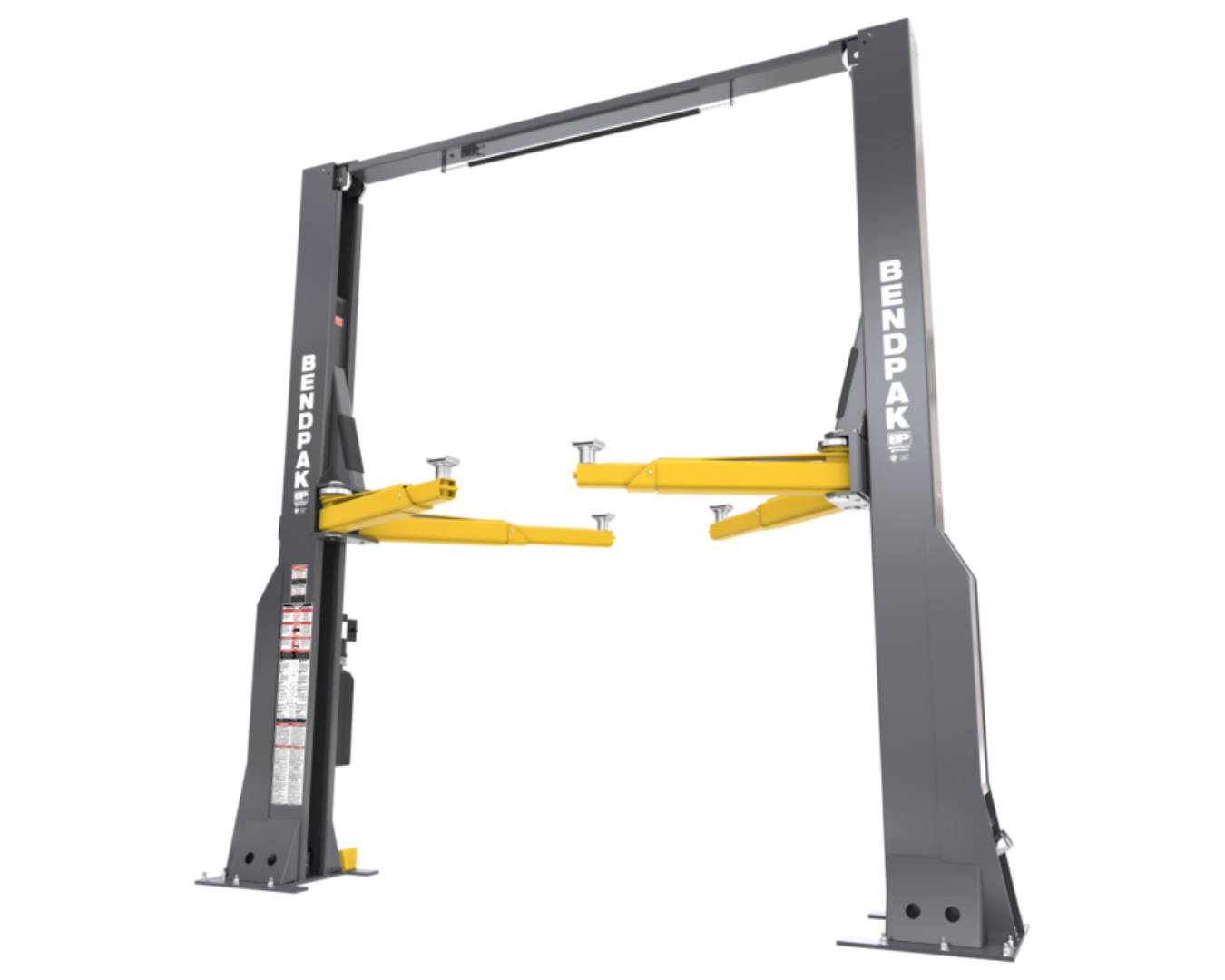

BendPak 16AP-192 Super-Duty Two Post Car Lift - 16,000-Lb Capacity - 192" Extended Height

The BendPak 16AP-192 Super-Duty Two Post Car Lift is engineered for heavy-duty lifting applications with a robust 16,000-lb capacity. Built for durability and efficiency, this lift combines cutting-edge technology and heavy-duty construction, making it an ideal solution for commercial garages, fleet service centers, and maintenance facilities.

Key Features:

• Convenient Storage for Lifting Adapters: Organize and store your lifting adapters for easy access.

• Dual Direct-Drive Hydraulic Cylinders: Offers smooth lifting performance for heavy-duty tasks.

• Electric-Hydraulic Power System: Ergonomic push-button controls make operation simple and efficient.

• Lift Dampener Lowering Control: Ensures softer, controlled descents, protecting both vehicle and lift.

• Padded Overhead Safety Shutoff Bar: Adds an extra layer of safety, preventing unintentional shutdowns.

• Failsafe Mechanical Equalization System: Ensures equal load distribution, maximizing safety during lifting.

• Safety Locks in Each Column: Spaced every 4” to securely lock the lift during operation.

• Extended Height Top-Beam: Provides additional clearance, perfect for taller vehicles.

• Multi-Face Metal Columns: Reinforced columns designed for high-strength and durability, especially under biaxial loading conditions.

• Ultra-Tall Lifting Carriages with UHMW Load Bearings: Distributes both radial and axial load forces evenly during lifting and lowering.

• Multi-Adjustable Telescoping Arms: Adaptable to a wide range of vehicle chassis for enhanced versatility.

• Redundant Safety-Lock Mechanisms: Ensures that the lifting carriages and arm assemblies remain securely locked during operation.

• Full-Perimeter 360-Degree Arm Restraints: Keeps the lift arms secure, preventing unintended movement when loaded.

• Durable Powder-Coat Finish: Resistant to wear and corrosion, ensuring long-lasting durability.

Specifications:

• Max. Lifting Capacity: 16,000 lbs. / 7,257 kg

• Max. Rise: 75.75 in. / 1,922 mm

• Lifting Height w/ Pad Down: 78.50 in. / 1,992.3 mm

• Max. Lifting Height w/ Pad Up: 82.5 in. / 2,095 mm

• Min. Height w/ Pad: 4 in. / 101.2 mm

• Overall Height: 193 in. / 4,904 mm

• Overall Width: 156 in. / 3,959 mm

• Width, Outside Posts: 143 in. / 3,238 mm

• Width, Inside Posts: 120 in. / 3,047 mm

• Width, Drive-Thru: 103 in. / 2,616 mm

• Floor to Top Switch: 186.50 in. / 4,738.5 mm

• Front Arm Reach: 36 in. to 65 in. (931 mm to 1,651 mm)

• Rear Arm Reach: 36 in. to 65 in. (931 mm to 1,651 mm)

• Max. Load per Lift Arm: 4,000 lbs. / 1,814 kg

• Pad Adapters Total Height: 7.50 in. / 188 mm

• Time to Full Rise: ≈ 45 seconds

• Motor: 220 VAC, 60 Hz, 1 Phase

• Sound Level: <70 dB
