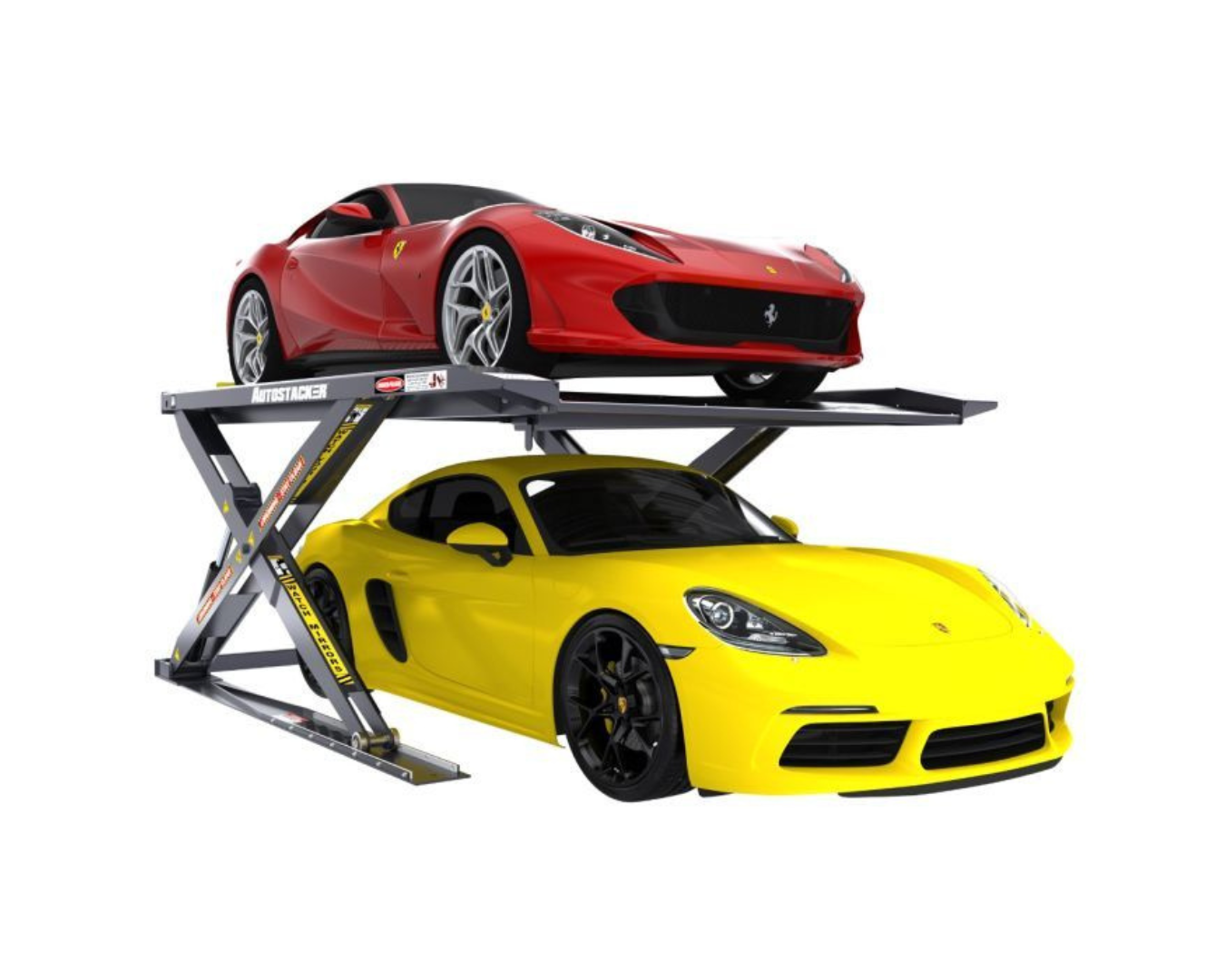

BendPak A6W Car Parking Lift

Available
P/N: 5175282
BendPak A6W Car Parking Lift
BendPak A6W Car Parking Lift
$14,336.95

⦿  30 days returns. Buyer pays for return shipping. See details

BendPak A6W Car Extra-Wide Parking Lift

The Autostacker A6W is an extra-wide version of the popular fully collapsible parking lift, designed to accommodate a wide range of vehicles with enhanced door clearance. Perfect for both residential and commercial use, it allows homeowners and parking lot operators to store two vehicles in a single parking space while maximizing access and minimizing the risk of vehicle damage. Its increased width provides a better environment for vehicle loading, particularly for wider cars, trucks, and SUVs. The lift's design incorporates advanced safety features and low maintenance, making it an ideal choice for tight spaces, garages, and commercial applications.

Features:

  • Lifting Capacity: 6,000 lbs. (2,722 kg)

  • Extra-wide design: More space for vehicle doors and loading

  • Key-Switch Disconnect: Enhances security by fully disabling lift operation

  • Audible Alarm and Warning Buzzer: Alerts operator and bystanders when in operation

  • Vehicle Compatibility: Accommodates cars, light trucks, and SUVs

  • Construction: Rugged, welded steel with a hot-dipped galvanized steel platform

  • Finish: Slate gray, baked-on powder coat for added toughness

  • Platform Design: Extra-wide, gradual sloping platform for reduced entry ramp height

  • Hydraulic System: Dual, direct-drive hydraulic cylinders for precise and equalized lifting

  • Safety Features: Automatic safety locks at five parking heights, hydraulic safety valves to prevent platform collapse

  • Scissor Leg Design: Contoured scissor legs for rigidity and low collapsed height

  • Asymmetric Scissor Arms: Increase underside door clearance

  • Door-Sentry™ Car Door Protectors: Energy-absorbing rubber to prevent door dings and scratches

  • Space-saving Design: Ideal for tight spaces in both commercial and residential settings

  • Maintenance: No cables to replace, easy to operate with minimal maintenance required

Specifications:

  • Capacity: 6,000 lbs. (2,722 kg)

  • Platform Dimensions: 100% hot-dipped galvanized steel

  • Hydraulic System: Dual cylinders for precise lifting

  • Safety Locking Positions: 5 different parking heights

  • Drive: Direct hydraulic drive system

  • Finish: Powder-coated slate gray for durability

  • Platform Construction: Full-width scissor arms with cross member bracing

  • Lifting Capacity: 6,000 lbs. (2,722 kg)

  • Overall Width: 111” (2,815 mm)

  • Overall Length: 144” (3,658 mm)

  • Platform Length: 124” (3,150 mm)

  • Platform Width: 91.75” (2,331 mm)

  • Platform Height (Forward): 13” (330 mm)

  • Ramp Height (Entry): 2” (51 mm)

  • Maximum Underclearance: 80” (2,032 mm)

  • Under Clearance on 1st Lock (Lowest): 52.5" (1,331 mm)

  • Under Clearance on 2nd Lock: 60.75" (1,543 mm)

  • Under Clearance on 3rd Lock: 68.5" (1,736 mm)

  • Under Clearance on 4th Lock: 75" (1,909 mm)

  • Under Clearance on 5th Lock (Highest): 81.25" (2,064 mm)

  • Motor: 208-240V, 50/60 Hz / 1 Ph

  • Noise Level: 52 dB

  • Shipping Weight: 3,350 lbs. (1,530 kg)

  • Shipping Dimensions: 144'' x 28'' x 30'' (3,657 mm x 711 mm x 762 mm)
