Lifting Capacity: 4,500 lbs. / 2,041 kg
-
Maximum Rise: 77.75 in. / 1,972 mm
-
Overall Length: 91.25 in. / 2,318 mm
-
Top Deck Length (with Handles): 71.25 in. / 1,807 mm
-
Top Deck Length: 63 in. / 1,600 mm
-
Overall Width (with Handles): 53 in. / 1,348 mm
-
Top Deck Width: 42.75 in. / 1,088 mm
-
Screw Jack Maximum Adjustment: 1.5 in. / 38 mm
-
Minimum Deck Height: 34.25 in. / 868 mm
-
Height of Steering Handle: 39.25 in. / 997 mm
-
Motor: 12VDC
-
Operating Pressure at Max Load: 1,720 psi
-
Battery Charger: Input: 120 VAC, 60 Hz / Output: 12VDC, 15A
-
Battery Charge Time: 10-12 hours to full charge from ≈20%
-
Lifting Time: ≈18 seconds
-
Weight: 1,918 lbs. / 870 kg
;

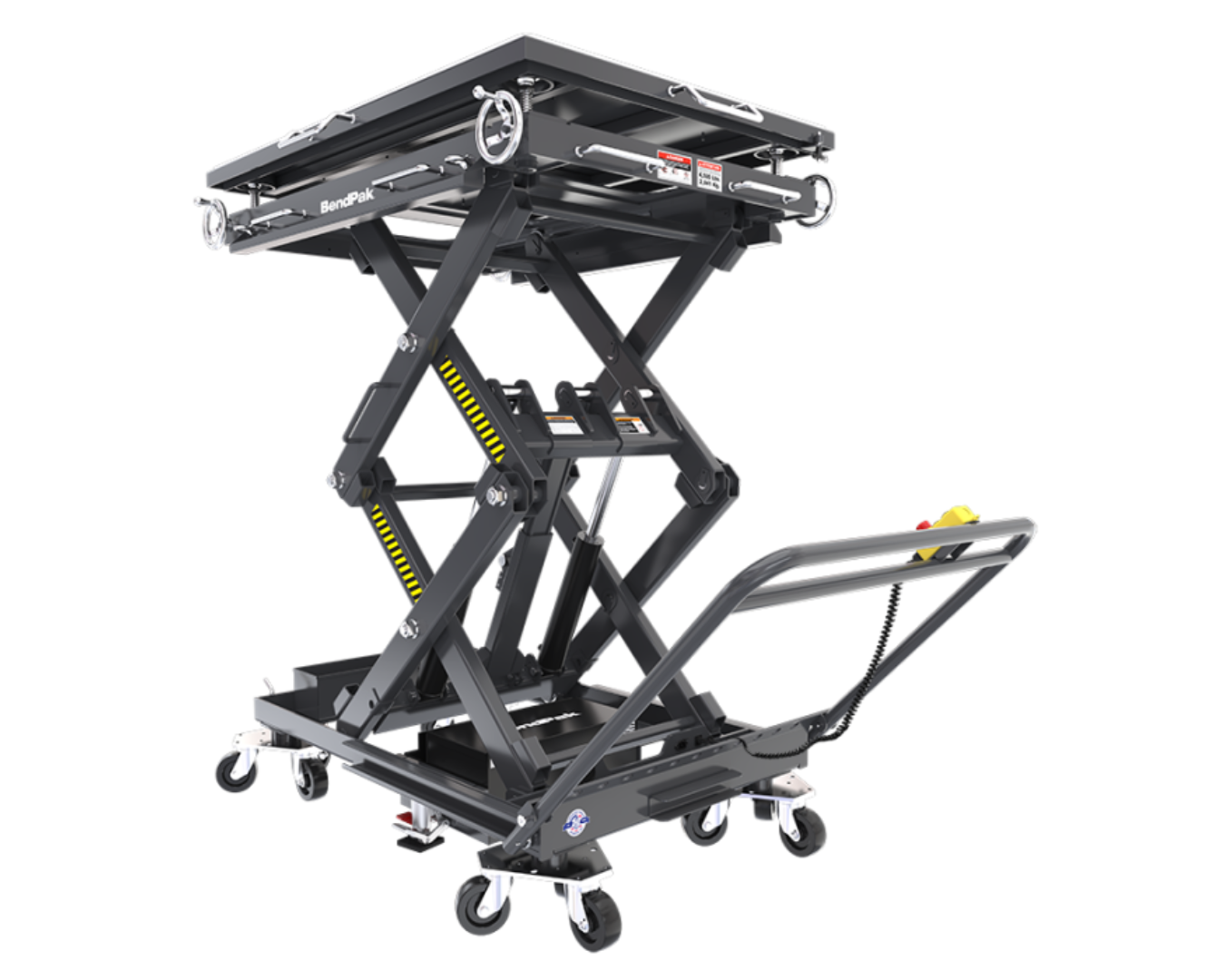

BendPak EVS4500 Full-Rise Scissor Lift
BendPak EVS4500 Full-Rise Scissor Lift
The Mobi-EVS EVS4500 Lift Table is designed to revolutionize the handling of heavy components in automotive workshops, particularly for electric vehicles (EVs). With advanced technology and robust construction, it enables safe and efficient handling of heavy battery packs and powertrain systems. The lift platform, which reaches over 6 feet in less than 20 seconds, offers impressive versatility with its state-of-the-art engineering. This lift is a must-have for any workshop focusing on EV maintenance or other heavy-duty operations.
Features:
-
Rapid Elevation: Platform rises over 6 feet in less than 20 seconds with pendant control.
-
Heavy-Duty Construction: Twin hydraulic cylinders with chrome-plated rods and welded construction for durability.
-
High-Performance Power System: 12V DC power unit with deep cycle battery and onboard charger.
-
Heavy Load Handling: 63” x 42.5” platform with multiple anchoring locations for heavy-duty components.
-
Ultra-Durable Surface: UHMW Polyethylene protects the platform and ensures smooth, low-friction movement.
-
Seamless Integration: Pairs well with BendPak's AP series lifts, especially for EV servicing.
-
Ergonomic Design: Thoughtfully integrated features to improve efficiency and reduce operator fatigue.
-
Safety Features: Multi-point safety locks and manual floor locks for enhanced security.
-
Remote Control Operation: Convenient remote control for ease of use.
-
Zero-Throw Casters: Extreme maneuverability with easy-to-move casters.
-
Stowable Tow Bar: Convenient tow bar for added functionality.
-
Mobi-EVS4500 Lift Table
-
Pendant Control
-
Full-Length Utility Trays
-
Manual Floor Locks
-
Remote Control Unit
Specifications:
-
Model: Mobi-EVS4500
-
Platform Size: 63” x 42.5”
-
Lifting Capacity: Suitable for heavy battery packs and powertrain systems
-
Power: 12V DC deep cycle battery with onboard charger
-
Safety Features: Multi-point safety locks, manual floor locks
-
Surface Material: Ultra-High Molecular Weight Polyethylene
-
Casters: Zero-throw casters for extreme maneuverability
-
Remote Control: Yes, included
-
Ergonomics: Full-length utility trays, remote operation for ease of use
-
Compatibility: Pairs well with BendPak’s AP series lifts
A $395 surcharge from the freight carrier will be applied if no forklift or loading dock is available at the delivery location.
