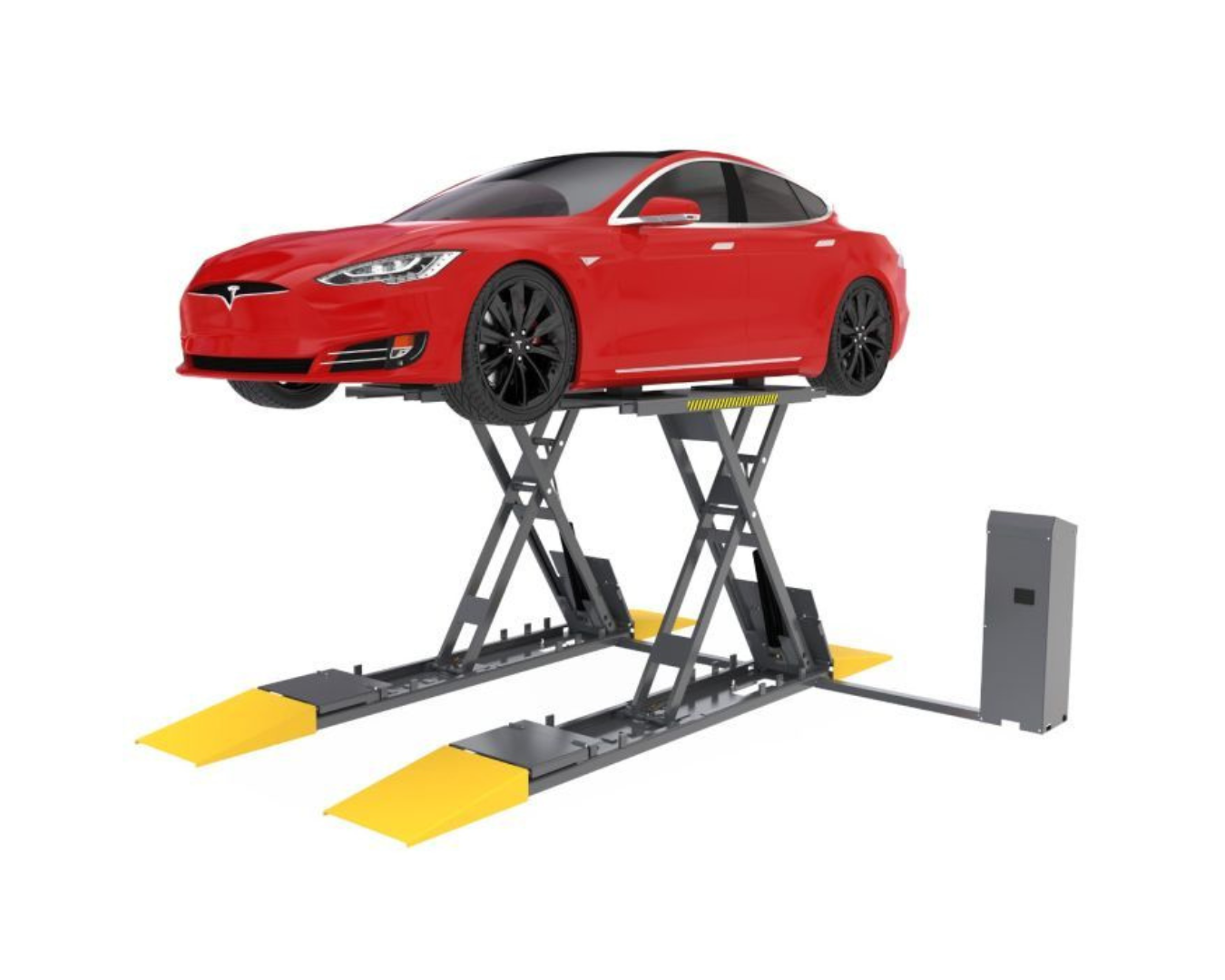

BendPak SP-7XE Full-Rise Scissor Lift

The SP-7XE Full-Rise Scissor Lift is designed to provide maximum stability and safety for auto shops, quick-lube pits, and service areas with limited space. Its open-center design ensures easy access to critical undercarriage areas, eliminating the need for stooping or crawling. Featuring a large, heavy-duty base frame and advanced electric/hydraulic power systems, the SP-7XE guarantees smooth and reliable vehicle lifting. It also includes pneumatic safety locks, dual hydraulic cylinders for balanced rises, and hardened pivot pins with Zerk fittings for smooth operation. This lift is perfect for environments that require a low-profile design with high lifting capacity.

Specifications:

• Brand: SP-7XE

• Lifting Capacity: 7,000 lbs

• Power System: Electric/hydraulic

• Hydraulic Cylinders: Dual master hydraulic cylinders with integrated flow restrictors

• Safety: Pneumatic safety locks with convenient operator stand for release

• Design: Open-center design with no cross member for better access

• Base Frame: Large, heavy boxed-steel formed base for stability

• Maintenance: Hardened pivot pins with Zerk grease fittings for smooth lift operation

• Cushioning: Durable, cushioned rubber contact blocks for vehicle protection

• Control System: Ergonomic controls, easy-to-reach for the operator

• Installation: Comes with detailed installation and maintenance instructions

• Lifting Capacity: 7,000 lbs (3,175 kg)

• Max Height Raised: 70.5" (1,791 mm)

• Single Platform Length: 62.5" (1,590 mm)

• Single Platform Width: 22" (554 mm)

• Overall Length: 165" (4,190 mm)

• Overall Width (Min): 81.5" (2,068 mm)

• Overall Width (Max): 87.5" (2,218 mm)

• Lowered Lift Height: 6.5" (165 mm)

• Lifting Time: 45 seconds

• Motor: 208-240 VAC / 50-60 Hz / 1Ph

• Shipping Weight: 2,502 lbs (1,134 kg)

• Shipping Dimensions: 106" x 27" x 43" (2,692 mm x 685 mm x 1,092 mm)

Items Included:

• SP-7XE Full-Rise Scissor Lift

• Four durable rubber contact blocks

• Graphic safety decals and instruction placard

• Maintenance and safety guidelines
