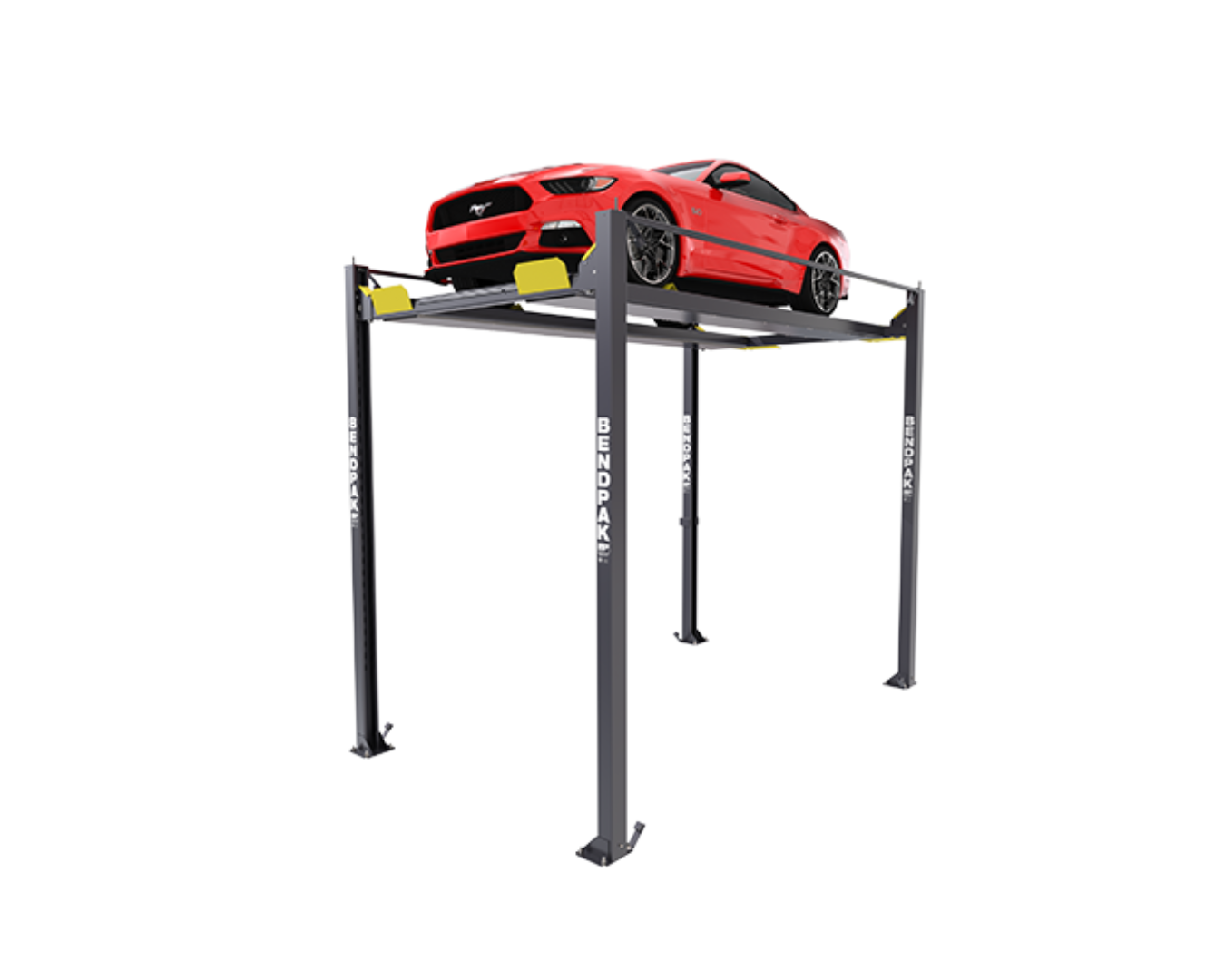

BendPak HD-7PXW Four-Post Lift – 7,000-lb Capacity

The BendPak HD-7PXW is a high-performance four-post lift, perfect for those who need to accommodate a variety of vehicles with its impressive 7,000-lb lifting capacity and 182" long runways. Designed to handle a wide range of vehicle sizes and wheelbases, this lift offers superb versatility for both professional shops and home garages.

Features:

• 7,000-lb. Lifting Capacity: Capable of handling a wide range of vehicles with ease.

• Super Tall Rise: Offers a remarkable 12-feet of lifting height, making it perfect for larger vehicles.

• Electric / Hydraulic Power System: Ensures efficient operation with minimal maintenance.

• Single Hydraulic Cylinder: Tucked neatly under the power-side runway for a clean and streamlined design.

• Internal Anti-Sway Slider Blocks: Provides added stability during use.

• Oversized Self-Lubricating Cable Rollers: Ensures smooth lifting and lowering with reduced maintenance.

• Heavy-Duty 3/8” Aircraft Cable: Built to last, providing reliable support.

• Rugged 1.25” Roller Axles: Ensures durability and smooth performance.

• Multi-Position Safety Locks: Offers enhanced safety with adjustable lock ladders for secure operation.

• Non-Skid Ramps: Provides easy and safe vehicle loading and unloading.

• Push-Button Pneumatic Safety Release: Quickly disengages all locks simultaneously for convenient lowering.

Dimensions:

• Max Lifting Capacity: 7,000 lbs.

• Max Rise: 12-feet of lifting height

• Runway Length: 182 inches

• Width Between Columns: 100.25"

• Drive-Thru Clearance: 86.5"

Key Features:

• Lifting Capacity: 7,000 lbs. (3,175 kg)

• Max Capacity (Front/Rear Axle): 3,500 lbs. (1,588 kg)

• Min. Runway Height: 5" (127 mm)

• Max. Rise: 140.25" (3,562 mm)

• Max. Lifting Height: 145.25" (3,689 mm)

• Time to Full Rise: 50 seconds

• Dimensions:

  • Overall Width: 110.25" (2,800 mm)

  • Overall Length: 198" (5,029 mm)

  • Height of Columns: 158" (4,013 mm)

  • Drive-Thru Clearance: 86.5" (2,197 mm)

  • Runway Width: 19" (483 mm)

  • Length of Runways: 182.25" (4,629 mm)

  • Width Between Runways: 35" (889 mm) or 41" (1,041 mm)

• Motor: 208-230 VAC, 1 Phase, 50-60 Hz

• Noise Level: 45 dB

• Shipping Dimensions: 192" x 22" x 31" (4,876 mm x 558 mm x 787 mm)

• Weight: 2,254 lbs. (1,022 kg)

A $395 surcharge from the freight carrier will be applied if no forklift or loading dock is available at the delivery location.
