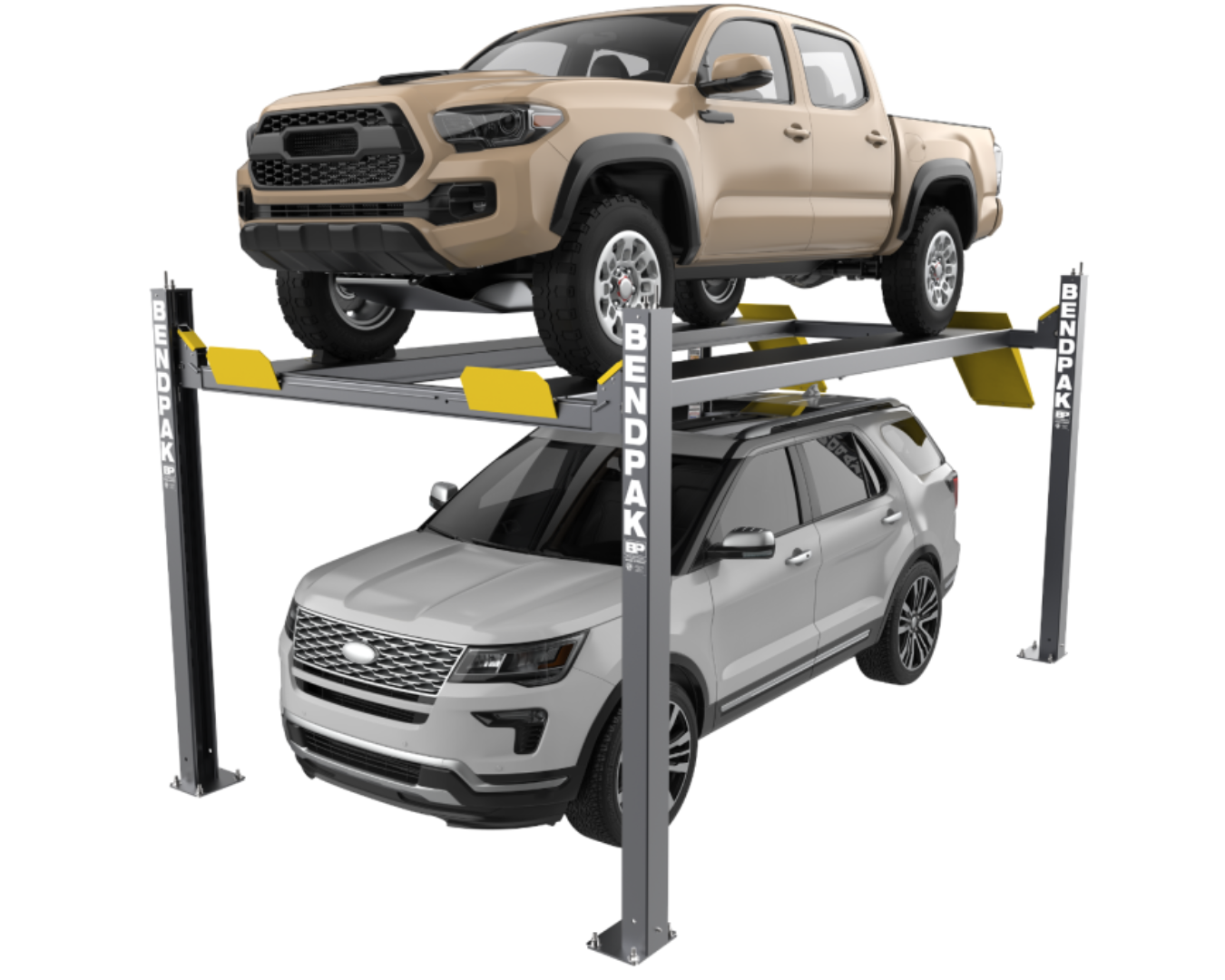

BendPak HD-9EWT Four-Post Car Lift – 9,000-Lb Capacity – High-Rise Design

The BendPak HD-9EWT is the perfect solution for garages with high ceilings and large vehicles. Designed for a 9,000-lb lifting capacity, this four-post lift is ideal for wide-body trucks and SUVs, providing ample space for vehicles with greater clearance. With an impressive 82” rise, the HD-9EWT is built to accommodate both standard and high-clearance vehicles, ensuring easy access for taller technicians.

Key Features:

• Max Capacity: 9,000 lbs. (4,082 kg)

• Lifting Height: 82” (2,083 mm) with runways; offers an impressive 145.25” max with adapters.

• Dual Hydraulic Direct-Drive Cylinders: Power and efficiency combined with smooth operation.

• High Rise: Provides ample space to work on high-clearance vehicles.

• Freestanding Design: Versatile for various garage configurations, with no need for floor anchors.

• Enclosed Lifting Cables: For a streamlined look and enhanced safety, cables are hidden within the posts.

• Safety Locks: Multi-position safety locks spaced every 4” provide secure hold during operation.

• Electric-Hydraulic Power System: Effortless operation with push-button pneumatic safety release.

• Integrated Design: Cables, airlines, and safety mechanisms routed internally to reduce wear and ensure a clean look.

• Adjustable Lock Ladders: Fine-tune lock positions for easy, convenient vehicle servicing.

• Heavy-Duty Construction: Equipped with oversized cable rollers, durable matte finish runways, and rugged 3/8” aircraft-grade cables.

Specifications:

• Lifting Capacity: 9,000 lbs. (4,082 kg)

• Max. Capacity at Front & Rear Axle: 4,500 lbs. (2,041 kg) each

• Minimum Runway Height: 4.75 in. (121 mm)

• Maximum Rise: 82.165 in. (2,087 mm)

• Maximum Lifting Height: 87 in. (2,208 mm)

• Overall Width: 117 in. (2,970 mm)

• Overall Length: 224.50 in. (5,703 mm)

• Height of Post: 100 in. (2,537 mm)

• Distance Between Posts: 107 in. (2,716 mm)

• Drive-Thru Clearance: 93.25 in. (2,371 mm)

• Runway Dimensions: Width: 19 in. (482 mm), Length: 182.25 in. (4,629 mm)

• Width Between Runways: 35.75 in. – 42.0 in. (910 mm – 1,068 mm)

• Locking Positions: 17, spaced every 4 in. (102 mm)

• Motor: 220 VAC, 60 Hz, 1 Ph (special voltages available upon request)

Additional Features:

• Max Load Operating Pressure: 135 in. (3,429 mm)

• Min. Wheelbase for Rated Capacity: 115 in. (2,921 mm)

• Min. Wheelbase for 75% Capacity: 95 in. (2,413 mm)

• Min. Wheelbase for 25% Capacity: 80 in. (2,032 mm)

A $395 surcharge from the freight carrier will be applied if no forklift or loading dock is available at the delivery location.
