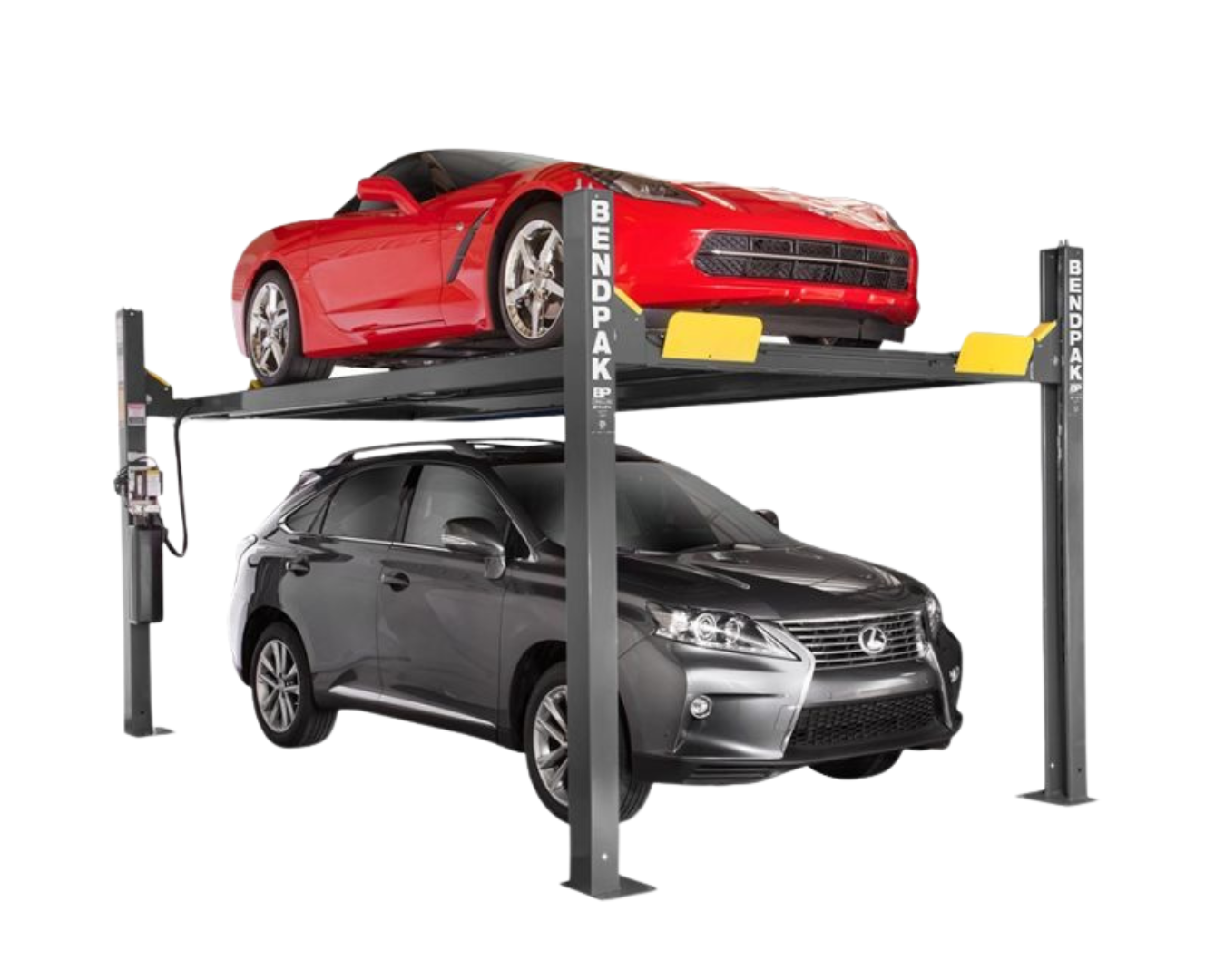

BendPak HD-9XW Four Post Car Lift

The HD-9XW is a high-performance four-post lift with extra-tall capabilities designed to accommodate light-duty trucks, SUVs, and low ground-clearance vehicles. Offering ample overhead clearance and extra side room, this lift is ideal for both storage and service, ensuring efficient use of space in garages and professional workshops. Its powerful electric-hydraulic power system and robust construction provide long-lasting durability and safe lifting for a variety of vehicle types.

Bullet Points:

• Lifting Capacity:

  • 9,000 lbs. (4,082 kg)

• Certification & Compliance:

  • CE Approved and Certified

  • Meets or exceeds European Standard EN-1493

• Design & Features:

  • Freestanding design

  • High-rise lift with extra clearance

  • Ideal for parking, storage, and service

  • Runways accommodate narrow and standard vehicles

  • Runways include rail-kit for optional accessories

• Power & Performance:

  • Electric-hydraulic power system

  • Single hydraulic cylinder mounted underneath runway

  • Time to full rise: Not specified

  • Features heavy-duty 3/8" aircraft cable

• Safety & Convenience:

  • Fully enclosed lifting cables, safety locks, and sheaves

  • Internal anti-sway slider blocks in each column

  • Oversized self-lubricating cable rollers

  • Multi-position safety locks in each column

  • Adjustable lock ladders

  • Push-button pneumatic safety release

  • Independent backup slack-cable safety latches

• Runway & Access:

  • Runways feature durable matte finish

  • Removable approach ramps for additional drive-under clearance

  • Longer approach ramps for low-ground clearance vehicles available

  • Optional drive-thru ramps and drip trays

  • Optional solid deck to increase storage capacity

• Additional Accessories:

  • Optional 4,500-lb. air/hydraulic rolling jacks (Model RJ-45)

• Approval:

  • ETL Approved

Specifications:

• Lifting Capacity:

  • Maximum Capacity: 9,000 lbs. (4,082 kg)

  • Front Axle Max Capacity: 4,500 lbs. (2,041 kg)

  • Rear Axle Max Capacity: 4,500 lbs. (2,041 kg)

• Height & Dimensions:

  • Min. Runway Height: 5" (127 mm)

  • Max. Rise: 82" (2,083 mm)

  • Max. Lifting Height: 87" (2,210 mm)

  • Time to Full Rise: 50 seconds

  • Overall Width: 110.25" (2,800 mm)

  • Overall Length: 198" (5,029 mm)

  • Overall Length (including ramps): 224.5" (5,702 mm)

  • Height of Columns: 100.25" (2,546 mm)

• Inside Dimensions:

  • Width Between Columns: 100.25" (2,546 mm)

  • Drive-Thru Clearance: 86.5" (2,197 mm)

• Runways:

  • Runway Width: 19" (483 mm)

  • Runway Length: 182.25" (4,629 mm)

  • Width Between Runways: 35" (889 mm) or 41" (1,041 mm)

  • Runway Centerline: 56.75" (1,441 mm) or 63" (1,600 mm)

  • Outside Edge of Runways: 75.75" (1,924 mm) or 82" (2,083 mm)

• Minimum Wheelbase:

  • Rated Capacity: 135" (3,429 mm)

  • 75% Capacity: 115" (2,921 mm)

  • 50% Capacity: 95" (2,413 mm)

  • 25% Capacity: 80" (2,032 mm)

• Locking:

  • Locking Positions: 17

  • Lock Spacing: Every 4" / 102 mm

• Power Unit:

  • Motor: 220 VAC / 60 Hz, 1 Ph

  • Noise Level: 45 dB

• Shipping Details:

  • Weight: 1,778 lbs. (806 kg)

  • Shipping Dimensions: 191" x 22" x 28" (4,851 mm x 558 mm x 711 mm)

A $395 surcharge from the freight carrier will be applied if no forklift or loading dock is available at the delivery location.
