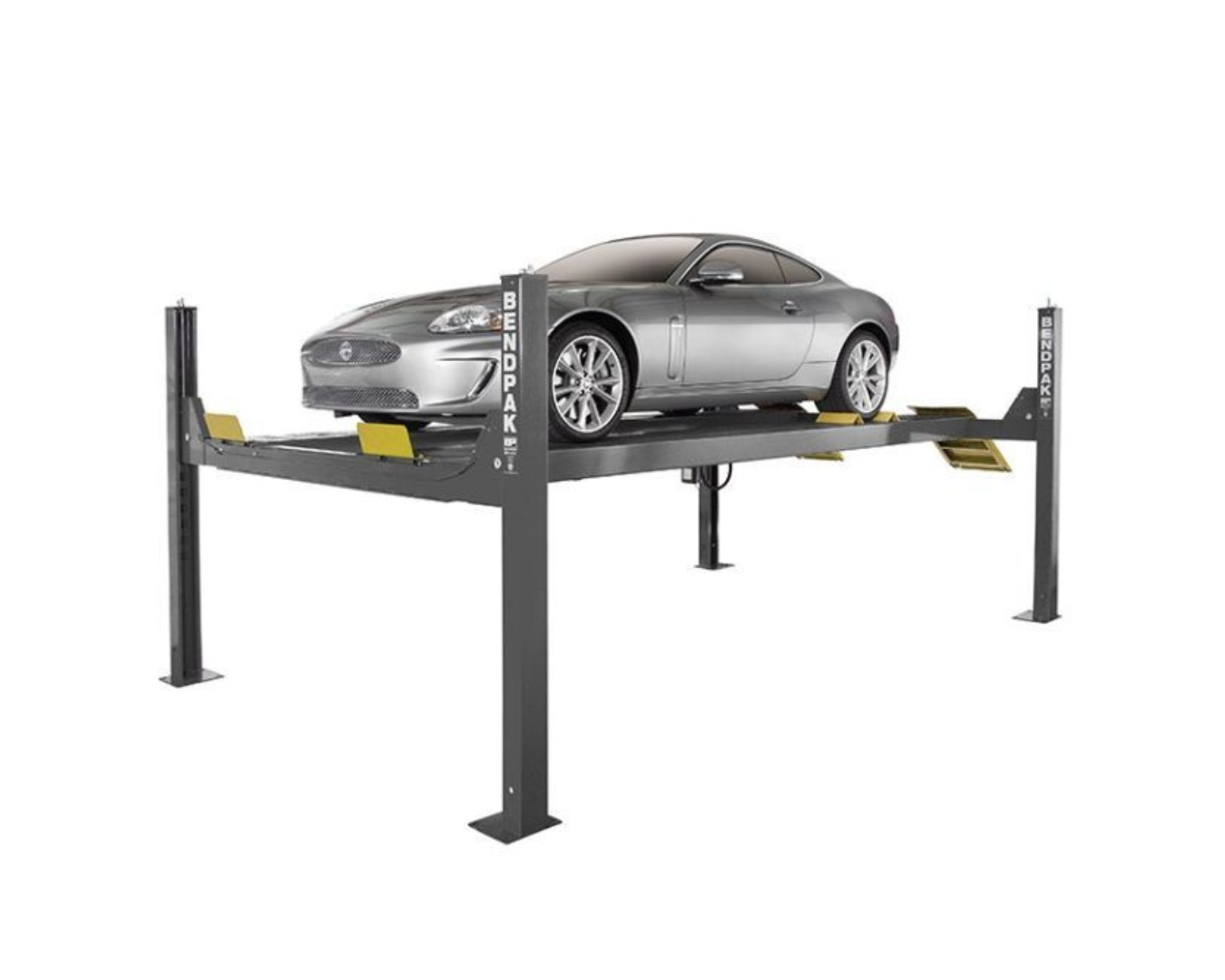

BendPak HDS-14 Four Post Car Lift

The HDS-14 Four-Post Car Lift is a robust and high-performing lift engineered to handle the most demanding professional applications. With its 14,000-lb. lifting capacity, extended runways, and advanced safety features, this lift ensures reliability and efficiency in both commercial and residential garages. Designed for durability, the HDS-14 offers increased lifting heights and superior weight support, making it the ideal choice for servicing and storing large vehicles, including trucks, SUVs, and cars. The lift’s heavy-duty construction and powerful hydraulic system provide smooth and safe lifting, with additional features that increase service life and reduce maintenance costs.

• Lifting Capacity:

  • Maximum Lifting Capacity: 14,000 lbs. (6,350 kg)

  • Max Capacity per Axle: 7,000 lbs. (3,175 kg) per axle

• Runway and Dimensions:

  • Extended Runways: Ideal for long-wheelbase vehicles

  • Runway Width: 19" (483 mm)

  • Runway Length: 182.25" (4,629 mm)

  • Height of Columns: 102" (2,591 mm)

  • Overall Width: 130" (3,302 mm)

  • Overall Length: 243" (6,172 mm)

  • Drive-Thru Clearance: 86.5" (2,197 mm)

• Hydraulic and Safety Features:

  • Single Hydraulic Cylinder mounted underneath the runway

  • Fully Enclosed Lifting Cables, Safety Locks, and Sheaves

  • Heavy-Duty 1/2" Aircraft Cable for reliable lifting

  • Anti-Sway Slider Blocks in each column for smooth operation

  • Pneumatic Push-Button Safety Release for quick and easy operation

  • Safety Locks Enclosed in Columns to minimize pinch points

  • Multi-Position Safety Locks for versatile vehicle positioning

  • Independent Backup Slack-Cable Safety Latches for additional safety

• Durability and Construction:

  • Dual-Hub Cable Sheaves for reducing stress and extending component life

  • Oversized Sheave Diameter reduces cable fatigue and wear

  • Rugged 1.75" Roller Axles for enhanced durability

  • Large Base Plates (10" x 12") provide a solid foundation

• Customization and Accessories:

  • Customizable Power Unit Location to fit your garage layout

  • Approach Ramps with built-in rear-wheel chocks for extra stability

  • Optional Drip Trays and Drive-Thru Ramps available

  • Optional 7,000-lb. Air/Hydraulic Rolling Jacks (Model RJ7W) for added versatility

• Certifications and Approval:

  • CE Approved and Certified to meet European standards (EN-1493)

  • ETL Approved for safety and performance compliance

Specifications:

• Lifting Capacity:

  • Maximum Lifting Capacity: 14,000 lbs. (6,350 kg)

  • Max Capacity per Axle:

    • Front Axle: 7,000 lbs. (3,175 kg)

    • Rear Axle: 7,000 lbs. (3,175 kg)

• Rise and Dimensions:

  • Min. Runway Height: 7.5" (191 mm)

  • Max. Rise: 70" (1,778 mm)

  • Max. Lifting Height: 77.5" (1,969 mm)

  • Time to Full Rise: 60 seconds

• Overall Dimensions:

  • Overall Width: 130" (3,302 mm)

  • Outside Length: 213" (5,410 mm)

  • Overall Length: 242" (6,147 mm)

  • Height of Columns: 92" (2,337 mm)

• Inside Dimensions:

  • Width Between Columns: 120" (3,048 mm)

  • Drive-Thru Clearance: 98" (2,489 mm)

• Runway Specifications:

  • Runway Width: 20" (508 mm)

  • Runway Length: 197.5" (5,017 mm)

  • Width Between Runways: 34.5" (876 mm) or 41.5" (1,054 mm)

  • Runway Centerline: 57.5" (1,461 mm) or 64.5" (1,638 mm)

  • Outside Edge of Runways: 77.5" (1,969 mm) or 84.5" (2,146 mm)

• Minimum Wheelbase:

  • Rated Capacity: 140" (3,556 mm)

  • 75% Capacity: 120" (3,048 mm)

  • 50% Capacity: 100" (2,540 mm)

  • 25% Capacity: 80" (2,032 mm)

• Locking System:

  • Locking Positions: 15

  • Lock Spacing: Every 4" (102 mm)

• Power Unit:

  • Motor: 220 VAC / 60 Hz / 1 Ph

  • Noise: 45 dB

• Shipping:

  • Weight: 2,606 lbs. (1,182 kg)

  • Shipping Dimensions: 209" x 22" x 29" (5,309 mm x 558 mm x 737 mm)

A $395 surcharge from the freight carrier will be applied if no forklift or loading dock is available at the delivery location.
