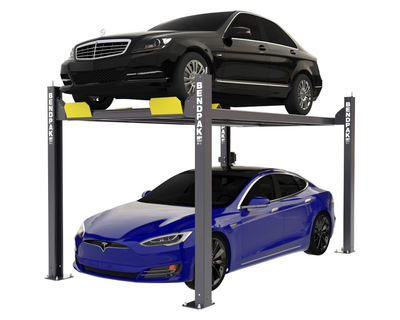

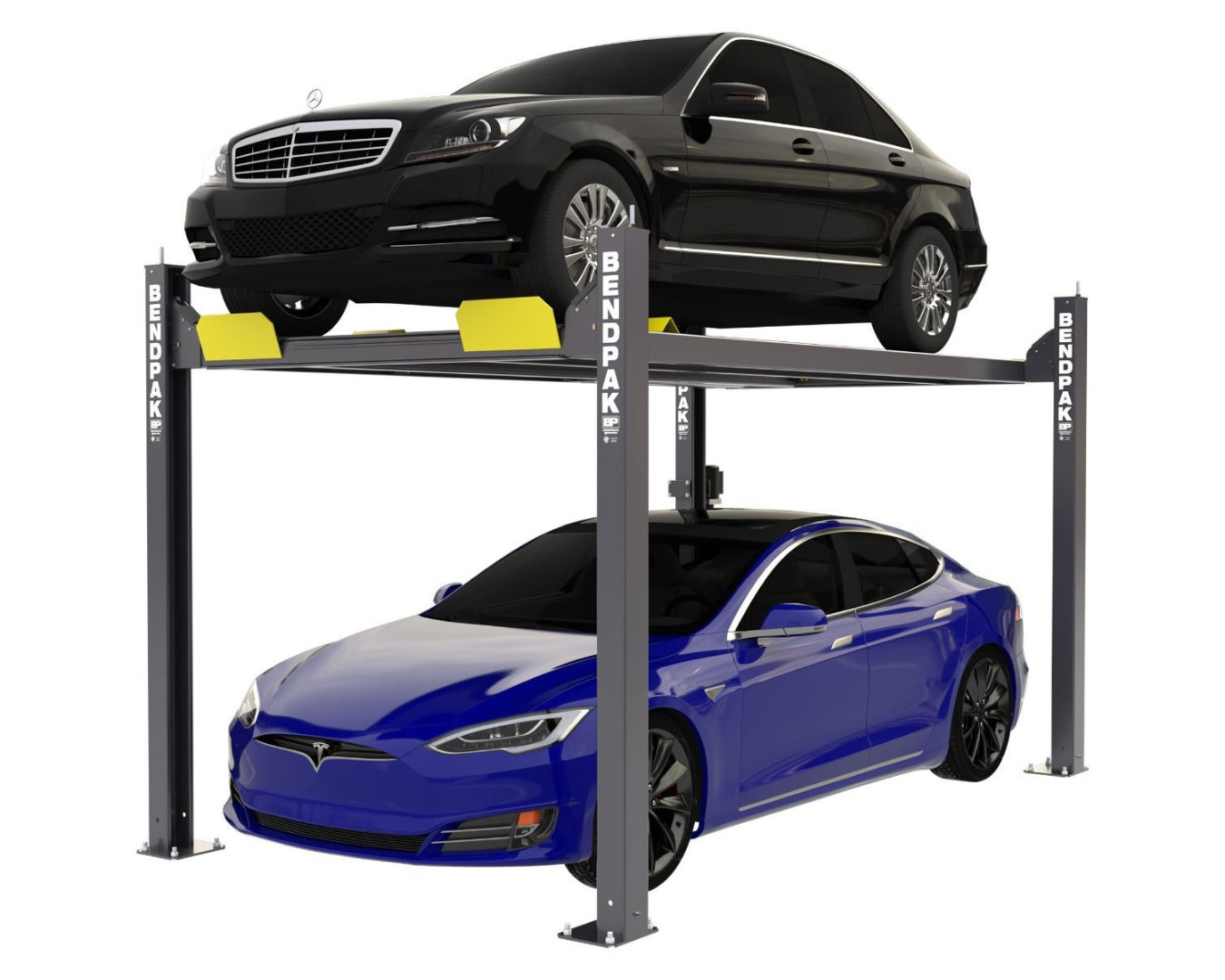

BendPak HD-7 Parking Lift - 7,000-Lb Capacity

The BendPak HD-7 Parking Lift is a compact and versatile solution for maximizing space in both home garages and commercial parking facilities. With a 7,000-lb lifting capacity, this parking lift can efficiently double your parking spaces, offering a sleek and reliable way to store vehicles without taking up additional floor space.

Key Features:

• Lifting Capacity: 7,000 lbs (3,175 kg) for handling most standard vehicles with ease.

• Electric/Hydraulic Power System: Easy-to-use controls with a maintenance-free design.

• Heavy-duty Aircraft Cable: Rated over 822% of the lift’s capacity for unmatched safety and strength.

• Multi-level Locking Positions: Four automatic safety locks engage as the lift rises, with a pneumatic safety release for easy descent.

• Durable Design: Internal routing of cables, airlines, and sheaves for enhanced safety and a clean, professional look.

• Low-Deck Runways: Designed for low-bodied vehicles, including sports and race cars.

• Secondary Slack-Cable Locks: Automatically engage if cable slack is detected, ensuring enhanced safety during lift operations.

• Large Base Plates: Provides a stable and strong foundation for the lift.

• Versatile Ramp Options: Longer approach ramps to prevent undercarriage damage and accommodate a wide range of vehicles.

Optional Accessories:

• Caster Kit: Allows for mobility with or without a vehicle on the lift.

• 4,500-lb Rolling Jack (RJ-45): Adds flexibility to lift and service vehicles.

• Wide or Narrow Configuration Options: Customizable to fit your garage space and vehicle requirements.

Features:

• Lifting Capacity: 7,000 lbs. (3,175 kg)

• Max Capacity (Front Axle): 3,500 lbs. (1,588 kg)

• Max Capacity (Rear Axle): 3,500 lbs. (1,588 kg)

• Rise:

  • Min. Runway Height: 5" (127 mm)

  • Max. Rise: 82" (2,083 mm)

  • Max. Lifting Height: 85.75" (2,178 mm)

  • Time to Full Rise: 35 seconds

• Dimensions:

  • Overall Width: 100.25” (2,546 mm)

  • Overall Length: 174" (4,420 mm)

  • Height of Columns: 100" (2,540 mm)

  • Drive-Thru Clearance: 76.5" (1,943 mm)

• Runways:

  • Runway Width: 19" (483 mm)

  • Length of Runways: 158.25" (4,020 mm)

  • Width Between Runways: 34.5" (876 mm) to 41" (1,041 mm)

• Minimum Wheelbase:

  • Rated Capacity: 115" (2,921 mm)

  • 75% Capacity: 100" (2,540 mm)

  • 50% Capacity: 85" (2,159 mm)

  • 25% Capacity: 70" (1,778 mm)

• Locking:

  • Locking Positions: 17

  • Lock Spacing: Every 4" (102 mm)

Power & Performance:

• Motor: 220 VAC / 60 Hz / 1 Ph

• Noise: 45 dB

Shipping:

• Weight: 1,756 lbs. (796 kg)

• Shipping Dimensions: 167" x 22" x 28" (4,242 mm x 558 mm x 711 mm)

A $395 surcharge from the freight carrier will be applied if no forklift or loading dock is available at the delivery location.
