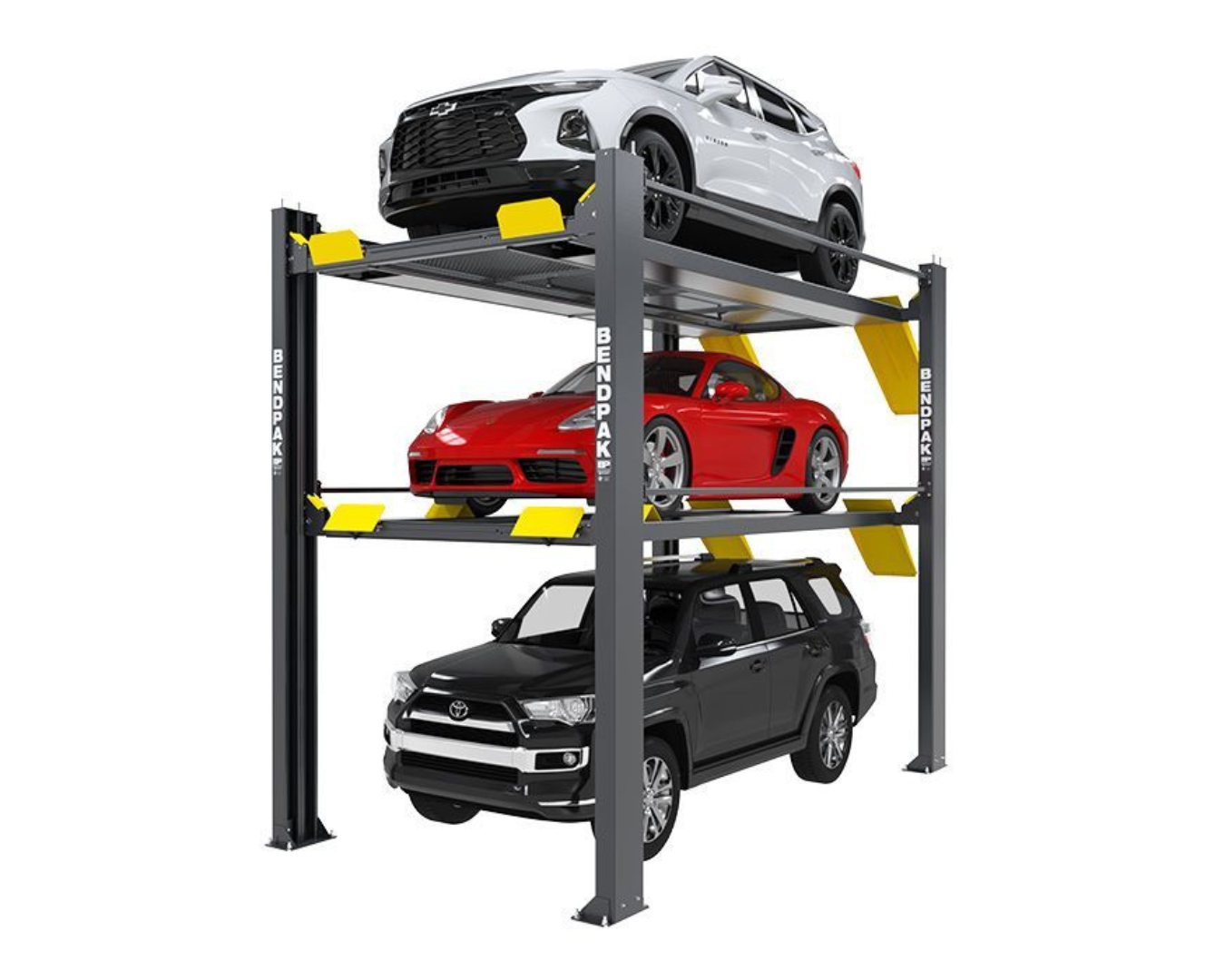

BendPak HD-973PX Tri-Level Four Post Car Lift

The BendPak HD-973PX tri-level parking lift is designed to revolutionize your parking and storage capabilities. With the ability to park three vehicles in the space of one, this unique four-post lift offers exceptional flexibility for both home garages and commercial spaces. Featuring an extended length and higher rise than the HD-973P, the HD-973PX provides ample room for even the largest vehicles, from cars to trucks and SUVs. Whether you're looking to store or service vehicles, this heavy-duty lift ensures maximum efficiency, safety, and ease of use.

Key Features:

• Lifting Capacity:

  • Upper Deck: 7,000 lbs. (3,175 kg)

  • Lower Deck: 9,000 lbs. (4,082 kg)

• Design:

  • Extended length and high rise to accommodate larger vehicles

  • Full-length aluminum decking for platforms

  • Rugged welded-steel construction for durability

• Power & Performance:

  • Powerful hydraulic cylinders for reliable lifting

  • Heavy-duty 3/8" lifting cables for long-lasting performance

  • Electric-hydraulic power system with simple controls

• Safety Features:

  • Multi-position safety locks with redundant anti-fall devices

  • Automatic safety locks and backup slack-cable safety latches

  • Integrated hydraulic flow restrictor for controlled descent in case of hose rupture

• Convenience & Maintenance:

  • Grease nipples on every sheave and sheave axle for easy lubrication

  • Padded trip bar with limit switch to prevent lower vehicle contact with the upper platform

  • Adjustable lock ladders and push-button pneumatic safety release

• Optional Add-ons:

  • Drive-thru ramps for easy vehicle access

  • 4,500-lb. air-hydraulic rolling jacks for additional lifting needs

Specifications:

• Lifting Capacity:

  • Top Platform: 7,000 lbs. (3,175 kg)

  • Bottom Platform: 9,000 lbs. (4,082 kg)

  • Max Capacity per Front and Rear Axle: 3,500 lbs. (1,588 kg) / 4,500 lbs. (2,041 kg) respectively

• Dimensions:

  • Overall Width: 110.5" (2,807 mm)

  • Overall Length: 252.25" (6,409 mm)

  • Height of Columns: 169.75" (4,312 mm)

  • Drive-Thru Clearance: 86.5" (2,197 mm)

  • Max Rise: 151.5" (3,849 mm)

  • Max Lifting Height: 156" (3,988 mm)

• Runways:

  • Runway Width: 19" (482 mm)

  • Runway Length: 208.5" (5,296 mm)

  • Width Between Runways: 35" (889 mm) or 41" (1,041 mm)

• Wheelbase:

  • Min. Wheelbase @ Rated Capacity: 140" (3,556 mm)

  • Min. Wheelbase @ 75% Capacity: 120" (3,084 mm)

  • Min. Wheelbase @ 50% Capacity: 100" (2,540 mm)

  • Min. Wheelbase @ 25% Capacity: 80" (2,032 mm)

• Locking:

  • Locking Positions: 34

  • Lock Spacing: Every 4" (102 mm)

• Lifting Time:

  • Time to Max. Rise: 90 seconds for top platform / 50 seconds for bottom platform

• Motor:

  • 220 VAC / 60 Hz / 1 Ph

• Shipping Information:

  • Weight: 5,932 lbs. (2,691 kg)

A $395 surcharge from the freight carrier will be applied if no forklift or loading dock is available at the delivery location.
