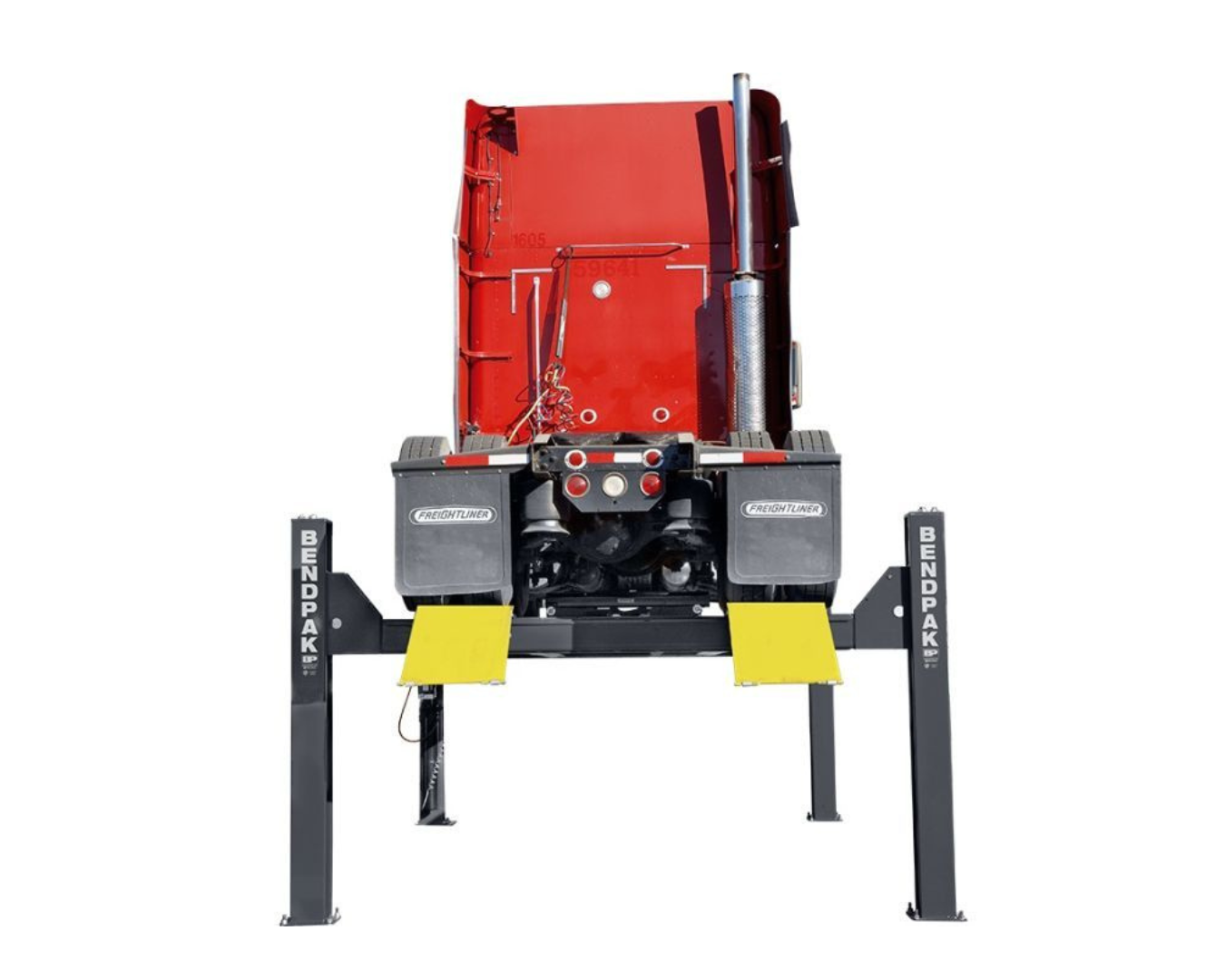

BendPak HDS-27X Four Post Truck Lift

The HDS-27X is a commercial lifting solution designed for extremely heavy-duty vehicles, including semi-trucks, city buses, stretch limos, and garbage trucks. With a 27,000-lb. lifting capacity and an impressive 317.5" runway length, this lift is built to handle the toughest jobs. Featuring dual-hub cable sheaves, spring-loaded safety locks, and a secondary lock system, it ensures maximum safety and longevity for heavy-duty fleet maintenance. Additionally, optional rolling bridge jacks allow for full wheel access and a versatile work environment. The HDS-27X is CE approved, ensuring it meets the highest standards of performance and safety.

Key Features:

• Lifting Capacity: 27,000 lbs (12,247 kg)

• Runways: Extended 317.5" (nearly 27 feet long) for accommodating large vehicles like semi-trucks and city buses

• Dual-Hub Cable Sheaves: Massive 12" diameter with 4" sheave axles for extended lifespan and reduced wear

• Base Plates: Large 12" x 12" base plates for maximum structural integrity

• Spring-Loaded Safety Locks: Multiple locking positions engage during lift and instantly release upon descent

• Secondary Lock System: Provides additional safety, preventing the lift from failure due to excess cable slack

• Rolling Bridge Jacks: Two jacks provide full access to wheels for large vehicles, eliminating the need for additional machinery

• CE Approved: Meets or exceeds the European Standard EN-1493

• Grease Nipples: For easy maintenance and long-lasting performance

• Hydraulic System: Single hydraulic under-runway cylinder with integrated flow restrictor

• Coating: Durable powder coat for added longevity

• Height Locking: Multiple adjustable height positions for flexibility in lifting

• Electric Hydraulic Power System: Maintenance-free and reliable

• Operator Controls: Conveniently positioned for ease of use

• Finish: Runways feature a durable matte finish

• Optional Accessories: Optional rolling jacks for enhanced lifting capabilities

• Lifting Capacity:

  • 27,000 lbs. (12,247 kg)

  • Max Capacity / Front Axle: 13,500 lbs. (6,123 kg)

  • Max Capacity / Rear Axle: 13,500 lbs. (6,123 kg)

• Rise:

  • A - Min. Runway Height: 9.5" (241 mm)

  • B - Max. Rise: 60" (1,524 mm)

  • C - Max. Lifting Height: 69.5" (1,765 mm)

  • Time to Full Rise: 75 seconds

• Outside Dimensions:

  • D - Overall Width: 153.5" (3,899 mm)

  • E - Outside Length: 317" (8,051 mm)

  • F - Overall Length: 372.75" (9,468 mm)

  • G - Height of Columns: 91.25" (2,318 mm)

• Inside Dimensions:

  • H - Width Between Columns: 133.5" (3,391 mm)

  • I - Drive-Thru Clearance: 109" (2,769 mm)

• Runways:

  • J - Runway Width: 22" (559 mm)

  • K - Length of Runways: 315.5" (8,014 mm)

  • L - Width Between Runways: 40" (1,016 mm) or 45.25" (1,149 mm)

  • M - Runway Centerline: 67.25" (1,708 mm) or 72.5" (1,842 mm)

  • N - Outside Edge of Runways: 89.25" (2,267 mm) or 94.5" (2,400 mm)

• Minimum Wheelbase:

  • Rated Capacity: 230" (5,842 mm)

  • 75% Capacity: 195" (4,953 mm)

  • 50% Capacity: 165" (4,191 mm)

  • 25% Capacity: 130" (3,302 mm)

• Locking:

  • Locking Positions: 13

  • Lock Spacing: Every 4" (100 mm)

• Power Unit:

  • Motor: 220 VAC / 60 Hz / 1 Ph

  • Noise: 45 dB

• Shipping:

  • Weight: 6,944 lbs. (3,149 kg)

  • Dimensions: 326" x 27" x 36" (8,280 mm x 685 mm x 914 mm)

A $395 surcharge from the freight carrier will be applied if no forklift or loading dock is available at the delivery location.
