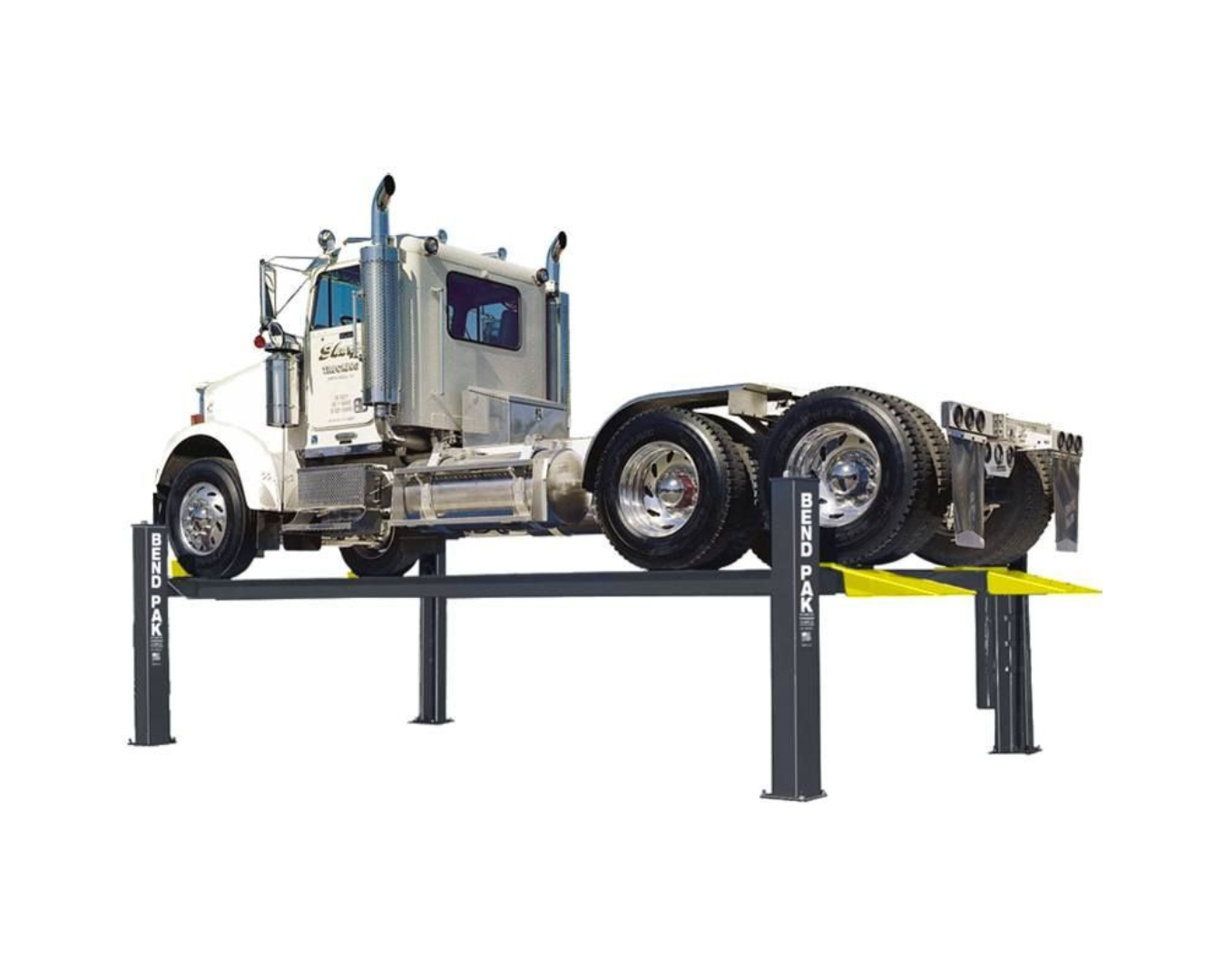

BendPak HDS-40X Heavy-Duty Four Post Truck Lift

The HDS-40X is BendPak's strongest and longest four-post lift, designed to handle 40,000 lbs. with ease. Perfect for large commercial vehicles, military contractors, and government entities, this industrial-grade powerhouse can lift even the heaviest and longest vehicles, including buses and semi-trucks. With super-long 310" runways and an impressive 28" width, this lift accommodates tires of almost any size. Featuring advanced safety features such as spring-loaded safety locks and a secondary lock system, the HDS-40X is built for secure, efficient, and high-capacity lifting. This lift is ideal for large commercial maintenance spaces and doubles as a parking lift for ultra-safe vehicle storage.

Key Features:

• Lifting Capacity: 40,000 lbs. (18,144 kg)

• Runways: Extended 310" length and 28" width to accommodate large vehicles such as buses and trucks

• Cable Sheaves: Supersized 12" diameter with 4" axles for long-lasting performance

• Heavy-Duty Cables: Galvanized cables for maximum strength and corrosion resistance

• Lubrication: Grease nipples to ensure smooth cable movement and reduce maintenance

• Hydraulic System: Single hydraulic under-runway cylinder with integrated flow restrictor for stable lifting

• Safety Locks: 13 spring-loaded locking positions, automatically engaging during rise and disengaging at the push of a button

• Secondary Lock System: Backup cable-slack detection system for added security

• Bridge Jacks: Optional RBJ25000 rolling bridge jacks (two jacks can lift up to 50,000 lbs.)

• Base Plates: Large 12" x 12" base plates for maximum stability and support

• Runway Finish: Durable matte finish for long-lasting performance

• Electric Power System: Maintenance-free electric hydraulic power system

• Operator Controls: Conveniently positioned for ease of use

• Coating: Durable powder coat for long-term durability

• Optional Accessories: Optional rolling jacks for added lifting capability

Specifications:

• Lifting Capacity:

  • 40,000 lbs. (18,144 kg)

  • Max Capacity / Front Axle: 20,000 lbs. (9,072 kg)

  • Max Capacity / Rear Axle: 20,000 lbs. (9,072 kg)

• Rise:

  • A - Min. Runway Height: 9.5" (241 mm)

  • B - Max. Rise: 60" (1,524 mm)

  • C - Max. Lifting Height: 67" (1,702 mm)

  • Time to Full Rise: 75 seconds

• Outside Dimensions:

  • D - Overall Width: 153.5" (3,899 mm)

  • E - Outside Length: 317" (8,052 mm)

  • F - Overall Length: 373.75" (9,487 mm)

  • G - Height of Columns: 91.25" (2,318 mm)

• Inside Dimensions:

  • H - Width Between Columns: 133.5" (3,391 mm)

  • I - Drive-Thru Clearance: 109" (2,769 mm)

• Runways:

  • J - Runway Width: 28" (711 mm)

  • K - Length of Runways: 316" (8,026 mm)

  • L - Width Between Runways: 40.75" (1,038 mm)

  • M - Runway Centerline: 74" (1,880 mm)

  • N - Outside Edge of Runways: 102" (2,592 mm)

• Minimum Wheelbase:

  • Rated Capacity: 230" (5,842 mm)

  • 75% Capacity: 195" (4,953 mm)

  • 50% Capacity: 165" (4,191 mm)

  • 25% Capacity: 130" (3,302 mm)

• Locking:

  • Locking Positions: 13

  • Lock Spacing: Every 4" / 100 mm

• Power Unit:

  • Motor: 220 VAC / 60 Hz / 1Ph

  • Noise: 45 dB

• Shipping:

  • Weight: 6,748 lbs. (3,060 kg)

  • Dimensions: 266" x 33" x 37" (6,756 mm x 838 mm x 940 mm)

A $395 surcharge from the freight carrier will be applied if no forklift or loading dock is available at the delivery location.
