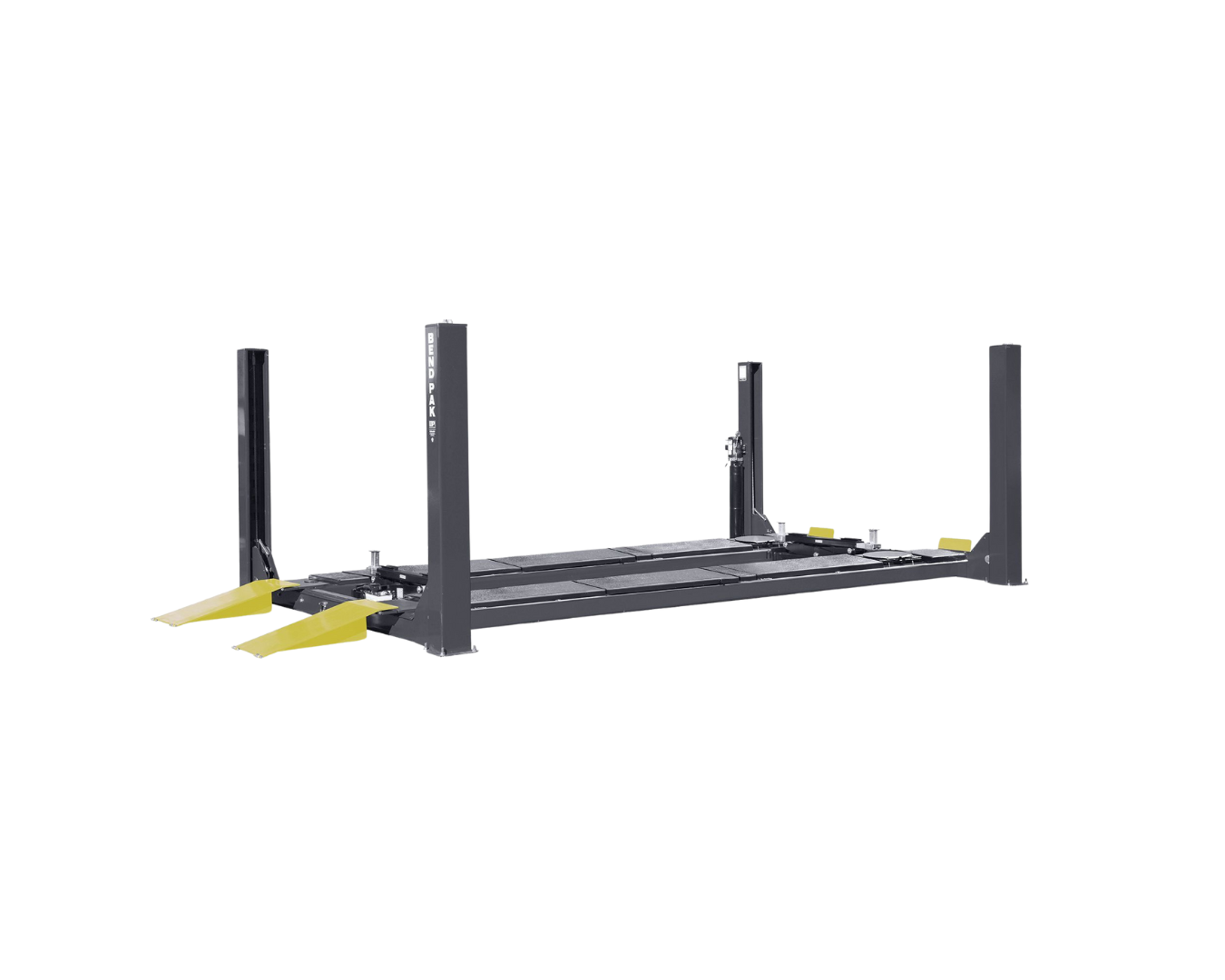

BendPak HDS-18EA Alignment Lift

The BendPak HDS-18EA Four-Post Truck Lift is built for heavy-duty alignment applications, boasting a lifting capacity of 18,000 lbs. This powerful lift can accommodate a wide range of vehicles, from large trucks and SUVs to smaller sports cars and race cars, making it the perfect solution for busy shops with limited space. The lift features multi-caster slip plates and corrosion-resistant front-alignment turn plates, designed for precise wheel alignments. With aircraft-quality steel cables, spring-loaded automatic safety locks, and a maintenance-free power system, the HDS-18EA ensures durability and long-lasting performance. Additionally, it includes a slack-cable secondary lock system and push-button pneumatic lock release for added safety and ease of use.

• Lifting Capacity: 18,000 lbs. (8,164 kg)

• Slip Plates: Rear-seated, free-floating slip plates for precise alignments without flex or pressure loss

• Turn Plates: Galvanized and corrosion-resistant front turn plates with dual recessed pockets for easy vehicle positioning

• CE Certified: Meets or exceeds European Standard EN-1493

• Multi-Caster Slip Plates: Ensures smooth and precise vehicle adjustments

• Spring-Loaded Automatic Safety Locks: Keeps the lift secure during operation

• Supersized 12" Diameter Cable Sheaves: For durability and long-term reliability

• Four Stainless Steel Lifting Cables: Aircraft-quality cables for maximum lifting power

• Grease Nipples on Every Sheave and Axle: Ensures smooth and efficient operation with minimal maintenance

• Single Hydraulic Under-Runway Cylinder: For powerful, smooth lifting

• Integrated Hydraulic Flow Restrictor: Ensures safe and controlled descent in case of failure

• Durable Powder Coat Finish: Protects the lift from wear and tear

• Push-Button Pneumatic Lock Release: Simple and efficient lock release for easy lowering

• Secondary Lock System: Constantly guards against slack cable to prevent accidents

• Enclosed Cables, Airlines, and Safety Latches: Protects critical components and enhances safety

• Multiple Adjustable Locking Positions: Offers flexible operation for various vehicle types

• Maintenance-Free Power System: No need for regular maintenance

• Conveniently Located Controls: User-friendly design for easy operation

• 12" x 12" Base Plates: Provides stability and strength for heavy lifting

• Runways with Durable Matte Finish: Ensures longevity and reduces maintenance needs

• Optional Rolling Jacks: Available for enhanced service capabilities (Model RJ-7)

Specification:

• Lifting Capacity: 18,000 lbs. (8,165 kg)

• Max Capacity (Front Axle): 9,000 lbs. (4,082 kg)

• Max Capacity (Rear Axle): 9,000 lbs. (4,082 kg)

• Minimum Runway Height: 11.5" (292 mm)

• Maximum Rise: 60" (1,524 mm)

• Maximum Lifting Height: 71.5" (1,816 mm)

• Time to Full Rise: 75 seconds

• Overall Width: 153.5" (3,899 mm)

• Outside Length: 257" (6,528 mm)

• Overall Length: 312.5" (7,938 mm)

• Height of Columns: 91.25" (2,318 mm)

• Width Between Columns: 133.5" (3,391 mm)

• Drive-Thru Clearance: 109" (2,769 mm)

• Runway Width: 22" (559 mm)

• Length of Runways: 257.25" (6,534 mm)

• Width Between Runways: 40" (1,016 mm) or 45.25" (1,149 mm)

• Minimum 4-Wheel Alignment: 83" (2,108 mm)

• Maximum 4-Wheel Alignment: 138" (3,505 mm)

• Maximum 2-Wheel Alignment: 211" (5,359 mm)

• Minimum Wheelbase at Rated Capacity: 185" (4,699 mm)

• Minimum Wheelbase at 75% Capacity: 160" (4,064 mm)

• Minimum Wheelbase at 50% Capacity: 135" (3,429 mm)

• Minimum Wheelbase at 25% Capacity: 110" (2,794 mm)

• Locking Positions: 13

• Lock Spacing: Every 4" (102 mm)

• Motor Power: 220 VAC / 60 Hz / 1 Ph

• Noise Level: 45 dB

• Shipping Weight: 6,790 lbs. (3,079 kg)

• Shipping Dimensions: 265" × 27" × 44" (6,731 mm × 686 mm × 1,118 mm)

A $395 surcharge from the freight carrier will be applied if no forklift or loading dock is available at the delivery location.
