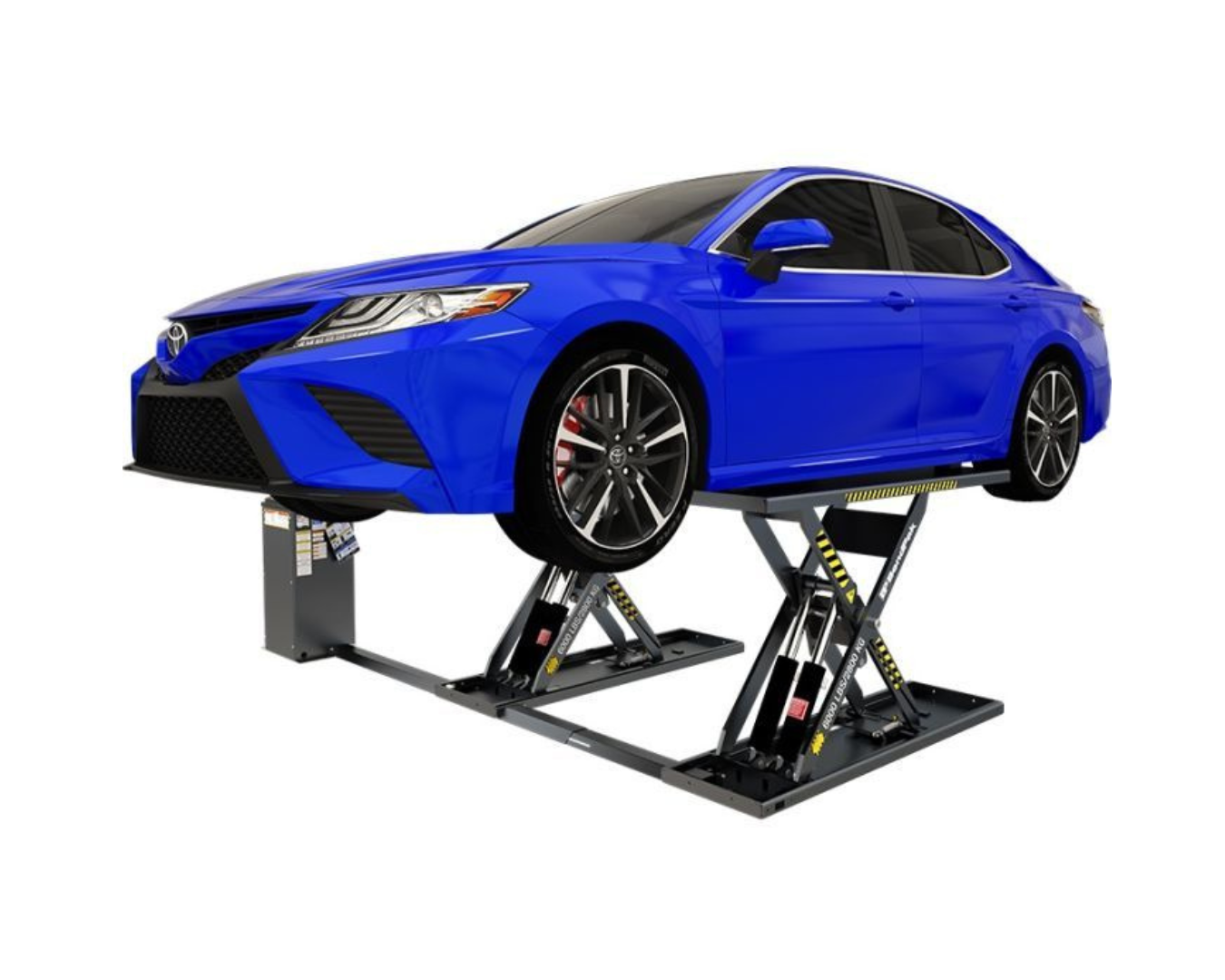

BendPak MDS-6LPF Mid-Rise Scissor Car Lift

The MDS-6LPF is the ideal choice for those looking for a flush-mount scissor lift to be installed in the floor for a smooth, space-saving design. It shares all the same features as the MDS-6LP, but with the added benefit of a flush-mount design, ensuring a parallel installation with your flooring.

Key Features:

• Stronger Lift: A pneumatic "kick" boosts the lift from its collapsed position, allowing it to go from zero-footprint to full rise in just 45 seconds.

• Four Hydraulic Cylinders: Ensures a safe and even lift with 6,000-lb. capacity by providing equal pressure through the four cylinders.

• Solid-Steel Safety Lock Bars: The lift features three locking positions for versatile work height options, offering excellent stability during use.

• Convenient Pneumatic Cylinders: Unlike spring releases, the pneumatic cylinders are pressurized to 50 psi, 10-CFM and provide reliable release functionality.

• Push-Button Safety Lock Release: Safely lowers the lift and releases all locks with a simple push of a button.

• Zerk Grease Fittings: Ensure long-lasting, self-lubricating performance with minimal maintenance.

• Durable Rubber Contact Blocks: Cushioned rubber blocks prevent slipping and protect vehicle frames during lifting.

• Three Locking Positions: Allows technicians to work at different heights, improving productivity and minimizing fatigue.

• Powder Coat Finish: Provides a durable, long-lasting finish to resist wear and corrosion.

Specifications:

• Lifting Capacity: 6,000 lbs (2,722 kg)

• Height: Full rise in 45 seconds

• Locking Positions: Three adjustable positions for optimal work height

• Cylinders: Four hydraulic cylinders for equal pressure distribution

• Grease Fittings: Zerk grease fittings for lubrication at critical wear points

• Contact Blocks: Cushioned rubber blocks for a stable lifting surface

• Finish: Powder-coated for durability

• Flush-Mount Design: Designed for in-ground installation

• Fully Lowered Height: 5" (127 mm)

• 1st Lock Height: 21" (533 mm)

• 2nd Lock Height: 32" (813 mm)

• 3rd Lock Height: 38.75" (984 mm)

• Full Rise Height: 44" (1,118 mm)

• Lifting Capacity: 6,000 lbs. (2,722 kg)

• Lifting Height (without blocks): 44" (1,118 mm)
  Subtract 4-3/8" for sub-surface flooring

• Lifting Height (with blocks): 46" (1,168 mm)
  Subtract 4-3/8" for sub-surface flooring

• Lift Platform Dimensions: 19" x 67" (484 mm x 1,701 mm)

• Width Between Platforms: 40" to 46" (1,018 mm to 1,168 mm)

• Overall Width: Adjustable

• Overall Length: 67" (1,701 mm)

• Lowered Height: Flush with the ground

• Lifting Time: 35 seconds

• Motor: 208-230 VAC / 60 Hz / 1 Ph

• Shipping Weight: 1,422 lbs. (645 kg)

• Shipping Dimensions: 70" x 61" x 25" (1,778 mm x 1,549 mm x 635 mm)

A $395 surcharge from the freight carrier will be applied if no forklift or loading dock is available at the delivery location.
