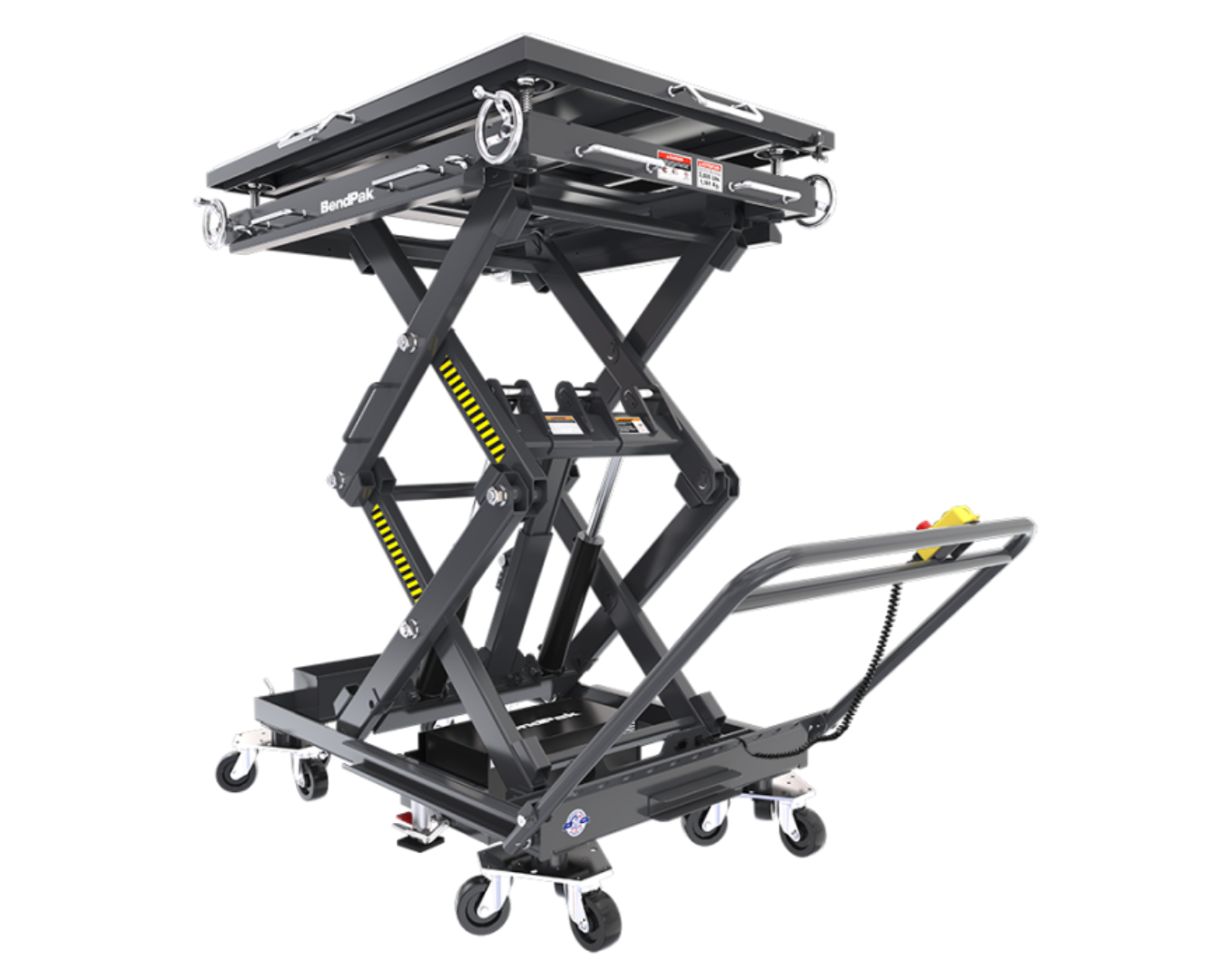

BendPak EVS3000 Full-Rise Scissor Lift

Introducing the Mobi-EVS3000, the future of electric vehicle (EV) service, designed with cutting-edge technology and engineered to meet the highest standards of performance and safety. This multi-functional scissor-style lift is tailored for the demands of modern automotive workshops, offering unrivaled precision, adaptability, and efficiency. Built tough with minimal steel usage, it guarantees reliability and longevity, while ensuring ergonomic ease for mechanics.

The Mobi-EVS3000's platform elevates over 6 feet in under 20 seconds, powered by a DC electric system with onboard charging. It features advanced zero-throw casters for easy maneuverability and precise adjustments, making it ideal for servicing EV batteries, engine assemblies, and powertrain systems. With a remote control operation and multiple safety features, this lift promises to enhance productivity while minimizing operator fatigue.

Key Features:

• Zero-Throw Casters: Extreme maneuverability with minimal effort, allowing for easy directional changes.

• Adjustable Screw Jack: Effortless roll, pitch, and yaw adjustments for precise alignment and leveling of EV systems.

• Built Tough: High-tensile steel construction for durability, reinforced upper deck plate for enhanced safety.

• Twin Hydraulic Cylinders: Long-lasting operation with chrome-plated rods and high-polished bores.

• Tri-Caster Locking Pin: Converts tri-casters into a fixed design for easier straight-line travel over longer distances.

• DC Electric Power System: Onboard charging and efficient energy management.

• Full-Length Utility Trays: For convenient storage of tools and accessories during service operations.

• Remote Control Operation: Easy control of lift functions via a pendant for enhanced usability.

• Multiple Safety Locks: Multi-point safety locks for secure operation at all stages of use.

Specifications:

• Lift Platform Dimensions: 42.75" x 63"

• Hydraulic System: Twin hydraulic cylinders with welded construction

• Power System: DC Electric with onboard charging

• Casters: Zero-throw casters for extreme maneuverability

• Safety Features: Multi-point safety locks, hydraulic fail-safe circuit, manual floor locks

• Control Type: Remote control operation with pendant

• Lifting Capacity: 3,000 lbs. (1,361 kg)

• Maximum Rise: 77.75 in. (1,972 mm)

• Overall Length: 91.25 in. (2,318 mm)

• Top Deck Length (with handles): 71.25 in. (1,807 mm)

• Top Deck Length: 63 in. (1,600 mm)

• Overall Width (with handles): 53 in. (1,348 mm)

• Top Deck Width: 42.75 in. (1,088 mm)

• Screw Jack Max. Adjustment: 1.5 in. (38 mm)

• Minimum Deck Height: 34.25 in. (868 mm)

• Height of Steering Handle: 39.25 in. (997 mm)

• Motor: 12VDC

• Operating Pressure at Max Load: 1,250 psi

• Battery Charger: Input: 120 VAC, 60 Hz. / Output: 12VDC, 15A

• Battery Charge Time: 10-12 Hours to full charge from ≈20%

• Lifting Time: ≈18 seconds

• Weight: 1,918 lbs. (870 kg)

Items Included:

• Mobi-EVS3000 Lift Table

• Pendant Remote Control

• Full-Length Utility Trays

• Stowable Tow Bar

• Multi-Point Safety Locks
