Home » BendPak MDS-6EXTF Mid-Rise Scissor Car Lift
;
Bendpak

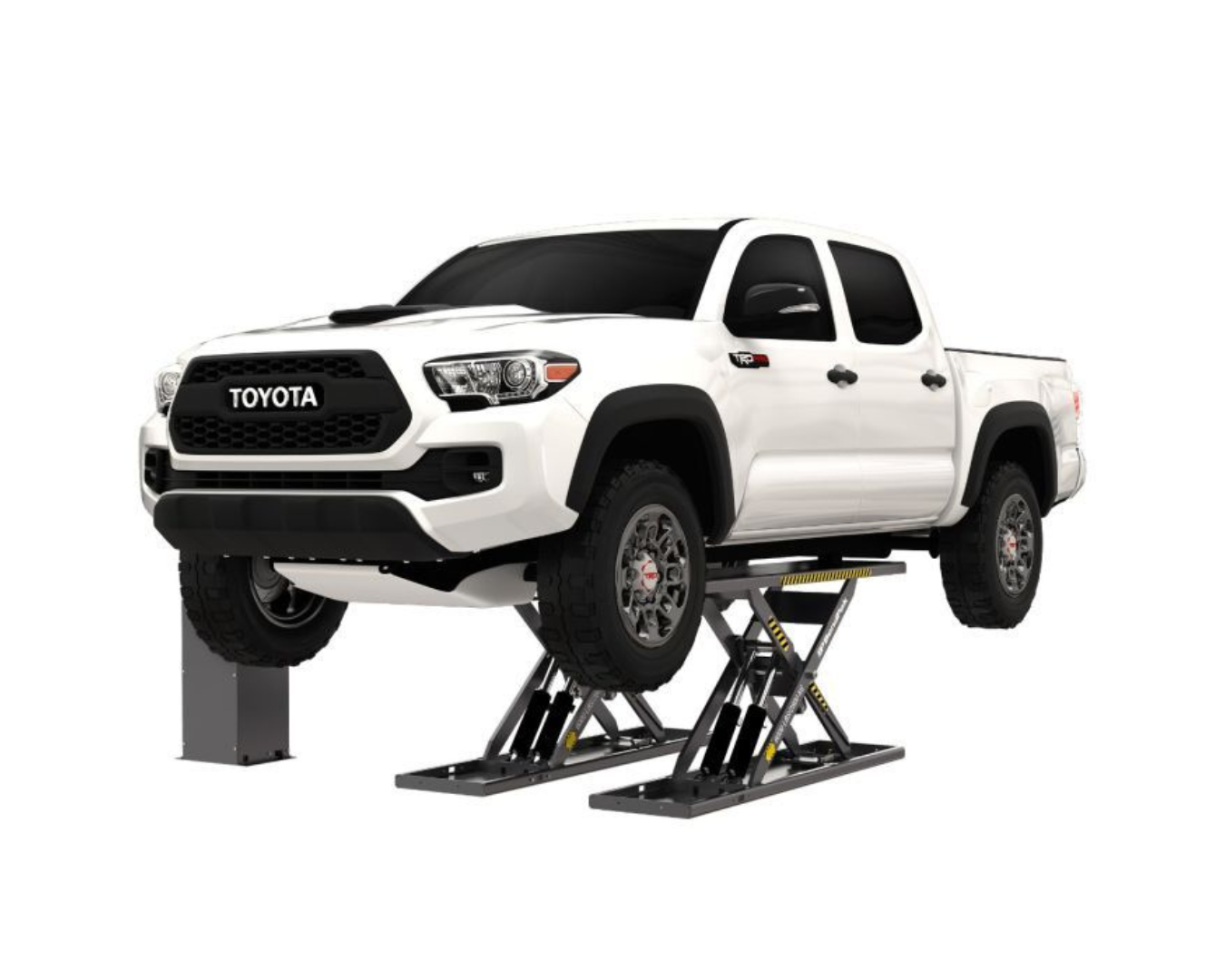

BendPak MDS-6EXTF Mid-Rise Scissor Car Lift

Only 1 left
P/N: 5175151
BendPak MDS-6EXTF Mid-Rise Scissor Car Lift
BendPak MDS-6EXTF Mid-Rise Scissor Car Lift
$8,604.75

⦿  30 days returns. Buyer pays for return shipping. See details

BendPak MDS-6EXTF Mid-Rise Scissor Car Lift

The MDS-6EXTF mid-rise lift is specifically designed for long-wheelbase vehicles, offering extended lifting points to easily reach the far edges of your vehicle’s underbody. With its pneumatic kicker and extended approach ramps, this lift accommodates both low-stance vehicles and larger tires, making it highly versatile. The four hydraulic cylinders work in unison for a fast and uniform lift, while the safety features, including automatic safety arms and air lock releases, ensure a secure and reliable operation. Designed with ease of use in mind, the MDS-6EXTF is built for heavy-duty performance and durability, making it the perfect addition to any shop.

Key Features:

  • Lifting Capacity: 6,000 lbs.

  • Extended Lifting Points: Ideal for long-wheelbase vehicles with hard-to-reach underbodies.

  • Pneumatic Kicker: Boosts the lift platforms by 6 inches, assisting hydraulics during the initial lift phase.

  • Four Hydraulic Cylinders: Ensure uniform lifting, with a built-in flow divider for equal pressure distribution.

  • Safety Features: Automatic locking safety arms engage during ascent, and air lock releases instantly disengage during descent with a button press.

  • Low Maintenance: Air locks require minimal maintenance, needing only a 50 PSI, 10 CFM air source during installation.

  • Grease Fittings: Keep critical wear areas lubricated for smooth operation.

  • Durable Rubber Lift Blocks: Four cushioned-rubber blocks for secure lifting points and heavy-duty use.

  • Multiple Lock Positions: Allows for different working heights to increase productivity and reduce operator fatigue.

  • Powder-Coat Finish: Provides a durable, long-lasting finish.

Specifications:

  • Lift Type: Mid-rise with extended lifting points for long-wheelbase vehicles.

  • Hydraulic Cylinders: Dual master hydraulic cylinder with dual equalizing cylinders for level lifting.

  • Safety Locks: Solid-steel safety lock bars engage automatically during descent.

  • Pneumatic Lock Release: Stainless-steel pneumatic cylinders with push-button safety lock release (requires 50 PSI, 10 CFM air source).

  • Grease Fitting: Zerk grease fitting at hinge point for lubrication of critical areas.

  • Rubber Blocks: Four durable cushioned-rubber contact blocks included.

  • Lock Positions: Three adjustable locking positions for different work heights.

  • Lifting Capacity: 6,000 lbs. / 2,722 kg

  • Lifting Height (Full-Rise – No Blocks): 36.75 in. / 933 mm

  • Lifting Height (Full-Rise) with Medium Lift Blocks (1.5 in. / 38mm): 38.25 in. / 972 mm

  • Lifting Height (Full-Rise) with Tall Lift Blocks (2.9 in. / 75mm): 39.65 in. / 1,007 mm

  • Platform Length: 78.75 in. / 2,000 mm

  • Total Length (No Ramps or Extensions): 78.75 in. / 2,000 mm

  • Lowered Height: 5.25 in. / 133 mm (Top of Platform Flush with Floor)

  • Platform Width: 19 in. / 484 mm

  • Width Between Platforms: 40 to 46 in. / 1,018 to 1,168 mm

  • Ramp Length: N/A (No Ramps)

  • Ramp Extension Length: N/A (No Extensions)

  • Max. Platform to Console Distance: 40 in. / 1,024 mm

  • Lifting Time: 35 seconds

  • Hydraulic Pressure at Max. Capacity: 1700 psi / 11.72 N/m²

  • Motor Specifications:

    • 110 VAC at 50-60 Hz., 1 Ph.

    • 220 VAC at 50 Hz., 1 Ph.

    • 208-230 VAC at 60 Hz., 1 Ph.

Items Included:

  • MDS-6EXTF Mid-Rise Lift

  • Four Rubber Lift Blocks

  • Instruction Manual

  • Safety Decals and Training Placards

A $395 surcharge from the freight carrier will be applied if no forklift or loading dock is available at the delivery location.
