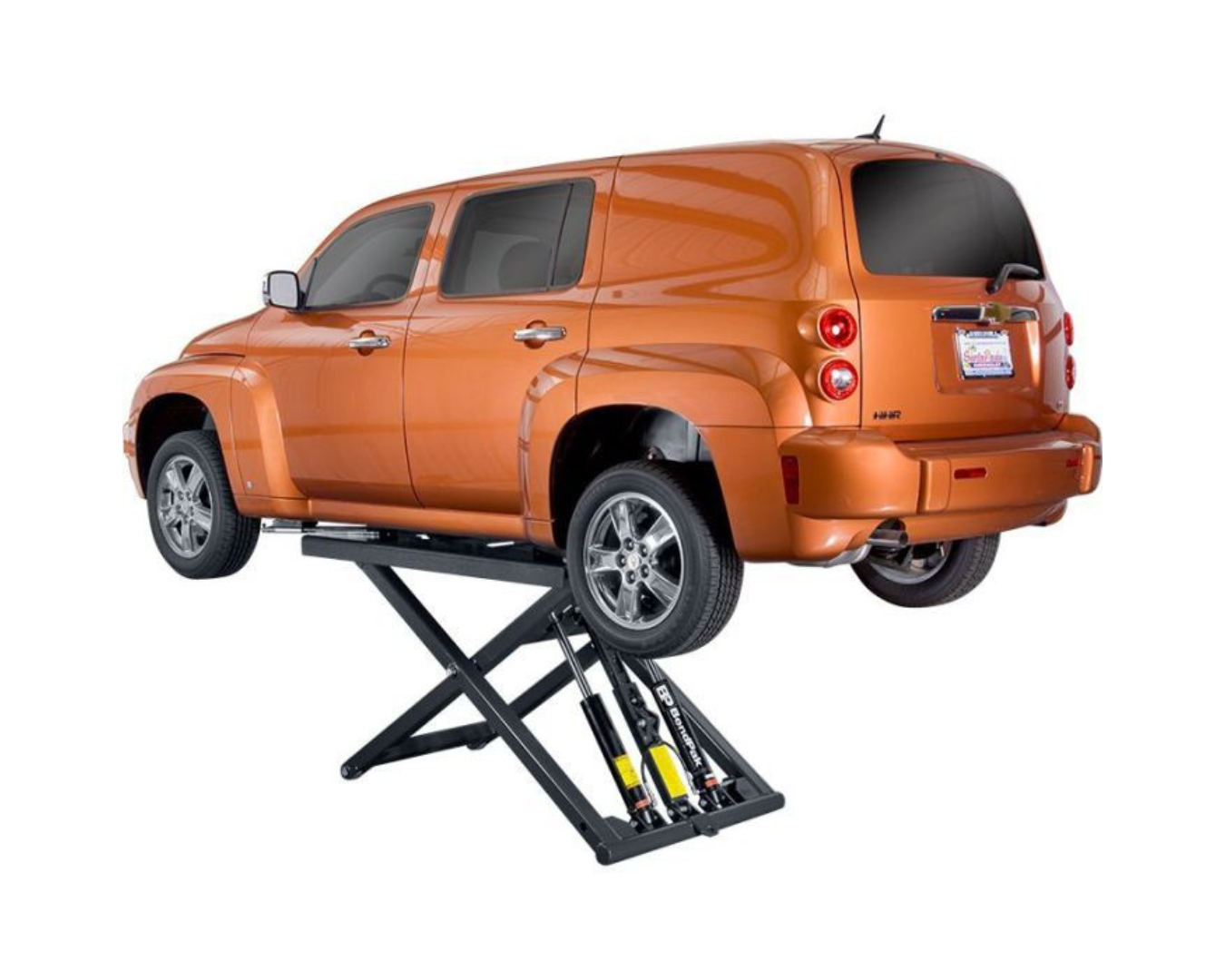

BendPak MD-6XP Mid-Rise Scissor Car Lift

The MD-6XP mid-rise scissor lift from BendPak is engineered to provide versatility and productivity, offering a 6,000-lb. lifting capacity in a compact design that fits neatly into narrower bays. It’s perfect for home garages and professional shops, thanks to its small footprint and portability. The lift is equipped with adjustable arm assemblies, a multi-position safety lock bar, and a powerful hydraulic system for safe, reliable operation. With the added benefit of truck adapters, the MD-6XP maximizes your garage's potential, offering convenience and efficiency for a wide range of vehicle services.

Key Features:

• Lifting Capacity: 6,000 lbs. (2,722 kg)

• Compact Design: Ideal for narrow bays and smaller workspaces.

• Adjustable Arm Assemblies: For flexibility in lifting various vehicles.

• Safety Lock Bar: Multiple lock positions for secure vehicle lifting.

• Portability: Comes with a portable power unit and cart for easy movement from bay to bay.

• Truck Adapters: Free set of truck adapters included for added convenience.

• Durable Rubber Contact Blocks: Robust and textured for a secure hold on most vehicle types.

• Dual Master Hydraulic Cylinder: Ensures safe, even rise and descent with every use.

• Pneumatic Safety Lock Release: Stainless-steel pneumatic cylinders for a controlled descent (requires 50 PSI, 10-CFM air source).

• Zerk Grease Fittings: Lubricate critical wear areas for long-term, low-maintenance operation.

Specifications:

• Lifting Capacity: 6,000 lbs.

• Platform Length: 78.75 in. / 2,000 mm

• Platform Width: 19 in. / 484 mm

• Lowered Height: 5.25 in. / 133 mm (flush with the floor)

• Lifting Height (Full-Rise): 36.75 in. / 933 mm (No blocks)

• Lifting Height (Full-Rise) with Medium Blocks (1.5 in. / 38mm): 38.25 in. / 972 mm

• Lifting Height (Full-Rise) with Tall Blocks (2.9 in. / 75mm): 39.65 in. / 1,007 mm

• Hydraulic Pressure at Max Capacity: 1700 psi / 11.72 N/m²

• Motor Specifications:

  • 110 VAC at 50-60 Hz., 1 Ph.

  • 220 VAC at 50 Hz., 1 Ph.

  • 208-230 VAC at 60 Hz., 1 Ph.

• Lifting Time: 35 seconds

• Lifting Capacity: 6,000 lbs. (2,724 kg)

• Lifting Height (without adapters): 47" (1,194 mm)

• Lowered Height: 4.75" (121 mm)

• Lifting Time: 45 seconds

• Motor: 110 VAC / 50-60 Hz / 1 Ph

• Shipping Weight: 962 lbs. (436 kg)

• Shipping Dimensions: 82" x 44" x 20" (2,082 mm x 1,117 mm x 508 mm)

Items Included:

• MD-6XP Mid-Rise Lift

• Portable Power Unit and Cart

• Adjustable Arm Assemblies

• Truck Adapters

• Instruction Manual

• Safety Decals and Maintenance Guidelines

A $395 surcharge from the freight carrier will be applied if no forklift or loading dock is available at the delivery location.
