Lifting Capacity: 4,500 lbs. (2,041 kg)
-
Suitable Lift Model(s): HD-7 Series, HD-9 Series, GP-9 Series
-
Min. Drive-Over Height:
-
Pad Only: 4.25" (108 mm)
-
Pad + 2.75" Adapter: 7" (178 mm)
-
Pad + 5.5" Adapter: 9.75" (248 mm)
-
-
Max. Lifting Height:
-
Pad Only: 15.25" (387 mm)
-
Pad + 2.75" Adapter: 18" (457 mm)
-
Pad + 5.5" Adapter: 21" (533 mm)
-
-
Reach:
-
Support Base Width: 35.5" (902 mm) - 46.5" (1,181 mm)
-
Max. Arm Reach: 61" (1,549 mm)
-
Min. Arm Reach: 42" (1,067 mm)
-
-
Time to Full Rise: 55 seconds
-
Pump: Air/Hydraulic
-
Air Pressure: 125 PSI (10-25 CFM)
-
Max. Operating Hydraulic Pressure: 2,490 PSI
-
Power Requirement: None
-
Shipping Weight: 306 lbs. (139 kg)
-
Shipping Dimensions: 41.25" x 25" x 13" (1,048 mm x 635 mm x 330 mm)
;

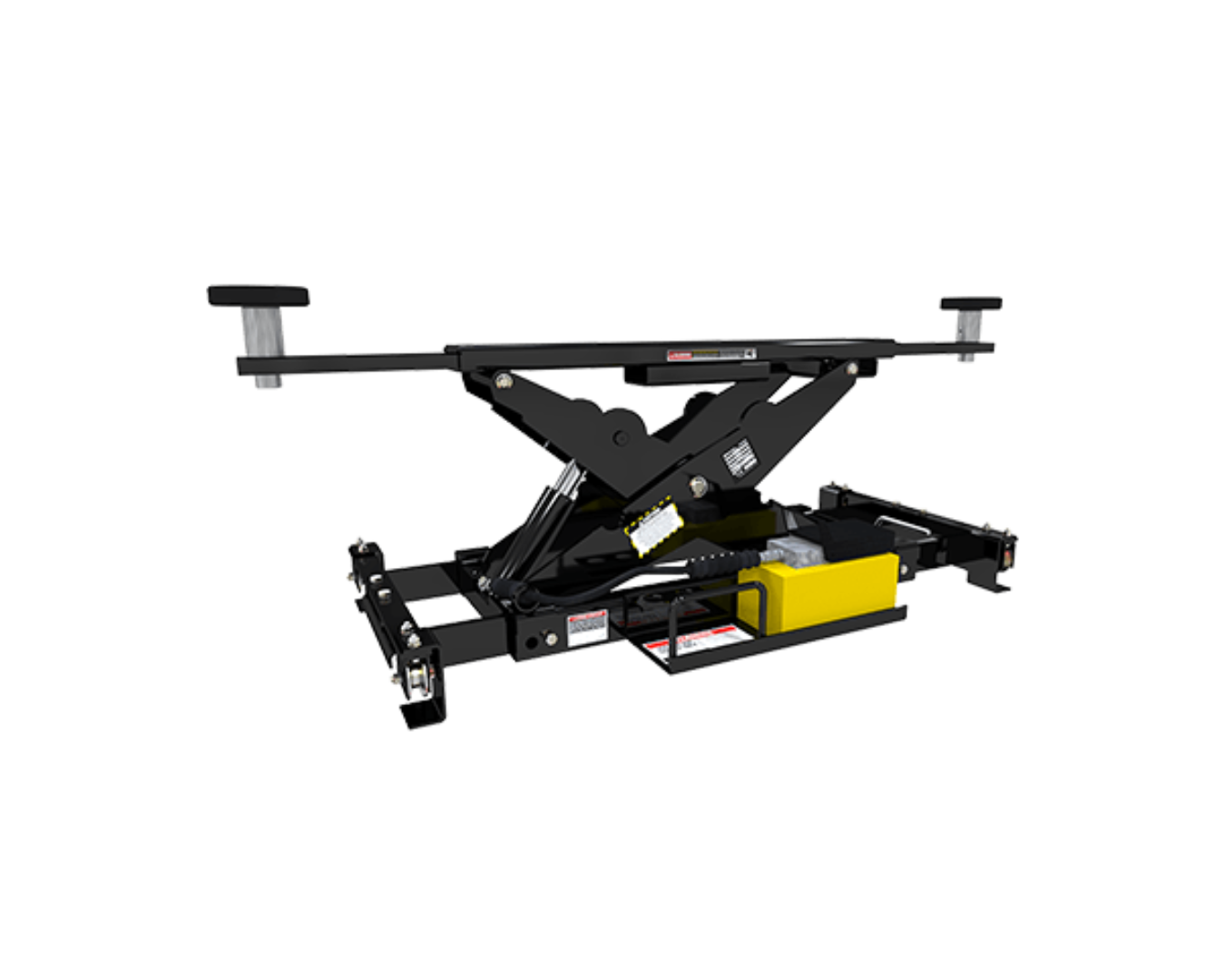

BendPak RJ45LP Rolling Bridge Jack
BendPak RJ45LP Rolling Bridge Jack
The RJ45LP Rolling Bridge Jack is a versatile tool designed for efficient wheel service, particularly for shops with the HD-7 or HD-9 series four-post lifts. It has a low-profile design, sitting only 4.25" from the runway surface, making it ideal for low-stance sports cars and modified vehicles. The jack features easy-roll wheels, rubber contact pads, and stackable adapters for high-clearance vehicles, all contributing to its high functionality and durability. It also includes a high-pressure hydraulic power unit for easy operation and three lock positions to provide customizable lift heights for undercarriage access.
Specifications
-
Lifting Capacity: 4,500 lbs
-
Minimum Drive-Over Height: 4.25"
-
Easy-Roll Wheels: Standard feature for effortless gliding
-
Rubber Contact Pads: Non-marring for vehicle protection
-
Stackable Adapters: Included for high-clearance vehicles
-
Hydraulic Power Unit: High-pressure with ergonomic foot pedal control
-
Three Lock Levels: Adjustable height for convenient access to undercarriage
-
Optional Air-Line Kit: Available for enhanced performance
