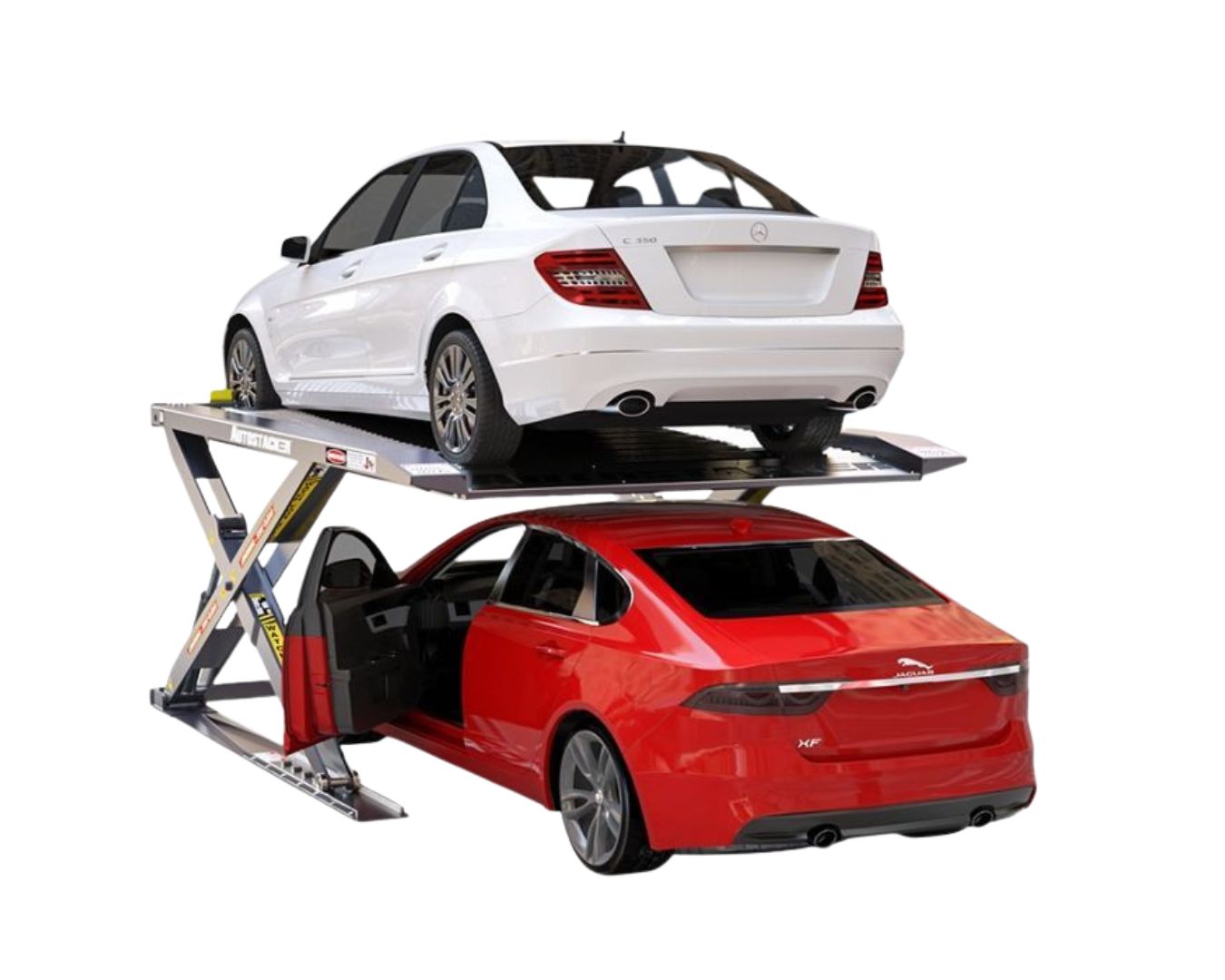

BendPak A6S Car Parking Lift

Only 1 left
P/N: 5175274
BendPak A6S Car Parking Lift
BendPak A6S Car Parking Lift
$13,854.75

⦿  30 days returns. Buyer pays for return shipping. See details

BendPak A6S Car Parking Lift

The Autostacker A6S is a low-profile, high-capacity parking lift designed for both residential and commercial use. Built to maximize space efficiency without compromising on strength, it offers a 6,000-lb lifting capacity and an industrial-grade galvanized steel platform. Its innovative design eliminates side posts, making it ideal for tight spaces and garages with low ceilings. Equipped with advanced hydraulic systems, automatic safety locks, and user-friendly controls, the A6S ensures secure, quiet, and maintenance-free operation. Its compact footprint, superior stability, and unique Door-sentry™ protectors make it a safe, durable, and cost-effective parking solution for cars, SUVs, and light trucks.

  • 6,000-lb lifting capacity for cars, light trucks, and SUVs

  • Fully hot-dipped galvanized steel platform for rust resistance

  • Key-switch disconnect for enhanced safety and security

  • Audible alarm and warning buzzer during lift operation

  • Dual, direct-drive hydraulic cylinders ensure balanced lifting

  • Five automatic safety lock positions for secure parking

  • Contoured scissor legs for stability and low collapsed height

  • Full-width pivot pins improve lift alignment and stability

  • Asymmetric scissor arms provide extra door clearance

  • Door-sentry™ rubber protectors prevent vehicle door damage

  • Front wheel dish acts as a wheel chock for added safety

  • Space-saving design fits in a standard parking space

  • Variable height parking for multiple ceiling heights

  • Minimal footprint suitable for home or commercial use

  • Hydraulic safety valves prevent sudden platform collapse

  • Rugged welded-steel construction ensures long-term durability

  • Optional multi-unit power system supports up to 14 lifts

  • Simple push-button operation with ergonomic console

  • Attractive slate gray powder coat finish adds toughness

  • Designed and manufactured by Autostacker, a BendPak division

Specifications:

  • Style: Multi-Platform Parking Lift

  • Lifting Capacity: 6,000 lbs. (2,722 kg)

  • Overall Width: 103” (2,620 mm)

  • Overall Length: 143” (3,632 mm)

  • Platform Length: 124” (3,150 mm)

  • Platform Width: 83.75” (2,128 mm)

  • Platform Height (Forward): 13” (330 mm)

  • Ramp Height (Entry): 2” (51 mm)

  • Maximum Underclearance: 80” (2,032 mm)

  • Under Clearance at 1st Lock (Lowest): 52.5” (1,331 mm)

  • Under Clearance at 2nd Lock: 60.75” (1,543 mm)

  • Under Clearance at 3rd Lock: 68.5” (1,736 mm)

  • Under Clearance at 4th Lock: 75” (1,909 mm)

  • Under Clearance at 5th Lock (Highest): 81.25” (2,064 mm)

  • Motor: 208-240V, 50/60 Hz / 1 Ph

  • Noise: 52 dB

  • Shipping Weight: 2,558 lbs. (1,160 kg)

  • Shipping Dimensions: 143” x 28” x 22” (3,632 mm x 711 mm x 558.8 mm)

A $395 surcharge from the freight carrier will be applied if no forklift or loading dock is available at the delivery location.
