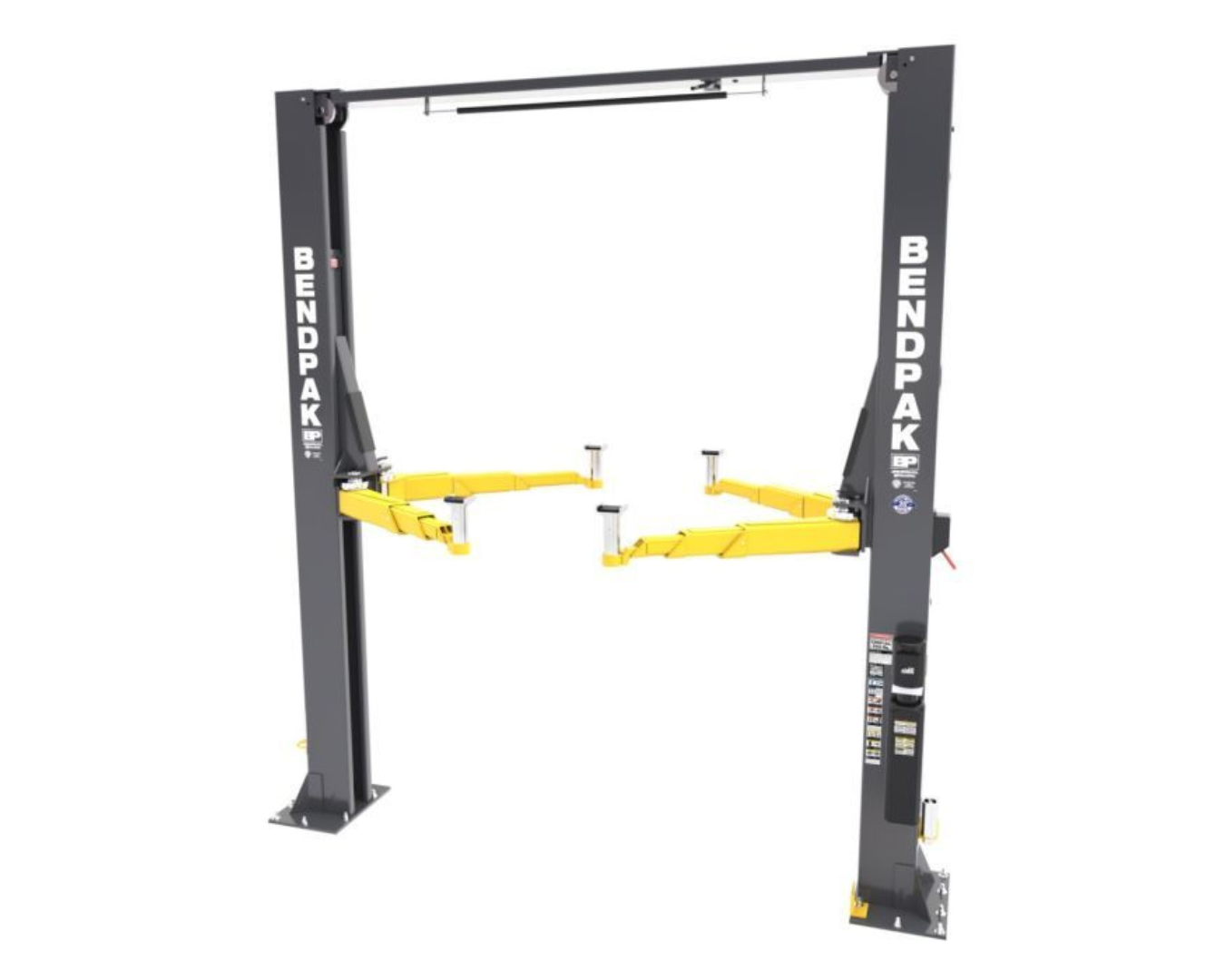

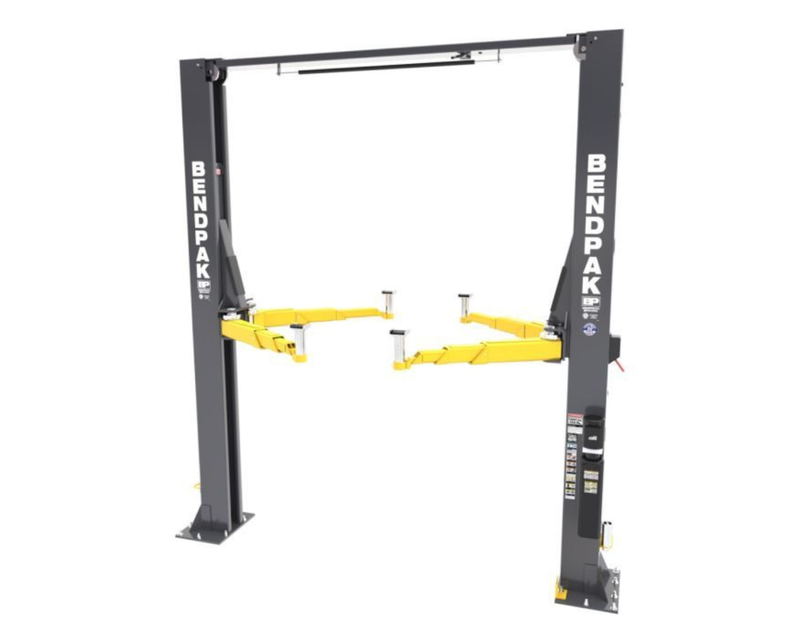

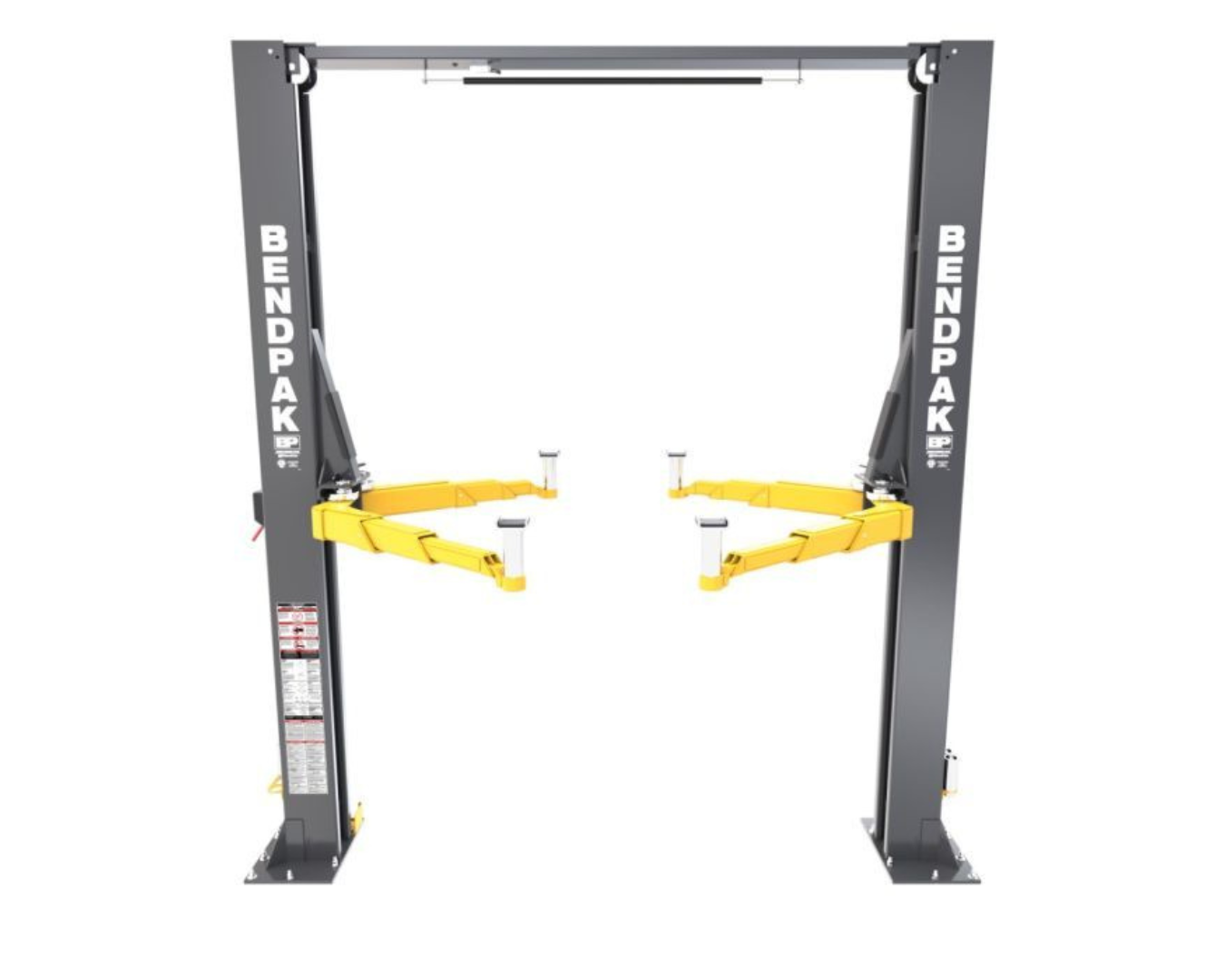

BendPak 12APX Two Post Car Lift – 12,000-Lb Capacity – High Rise

The BendPak 12APX is a high-performance lift designed for the most demanding automotive shops. Built with a 12,000-lb lifting capacity, it’s perfect for handling a wide range of vehicles, including modern electric vehicles (EVs), trucks, vans, and sports cars. With a towering 169" overall height, the 12APX provides ample clearance for tall vehicles like cargo vans, while its Low-Pro Triple-Telescoping Arms and Bi-Metric arm design ensure smooth and precise lifting in both symmetrical and asymmetrical configurations.

This lift is engineered with advanced safety features, including the Automatic Swing Arm Restraint System (ASARS), which prevents unplanned arm movement during use. The self-lubricating Dura-Glide UHMW polyethylene bearing system minimizes maintenance needs, while the electric/hydraulic HVLP power system guarantees smooth operation. Whether you need to service heavy-duty vehicles or EVs, the 12APX offers the versatility, performance, and safety required for the job.

Key Features:

• Lifting Capacity: 12,000 lbs (5,443 kg)

• Bi-Metric Lifting: Seamlessly transitions between symmetric and asymmetric lifting configurations

• Low-Pro Triple-Telescoping Arms: Ideal for low-clearance vehicles

• Automatic Swing Arm Restraint System (ASARS): Prevents unintended arm movement with over 2000 lbs of holding force

• Durable Powder Coat Finish: Long-lasting protection against wear

• Expandable Top Beam: Accommodates wide or narrow drive-thru configurations

• Double-Telescoping Screw Pads: Increases versatility in vehicle height adjustments

• Padded Overhead Safety Shutoff Bar: Added protection during operation

• Single-Point Safety Release: For easy lift operation

• Drop-End Arms: Provides a lower pad height for improved vehicle access

• Dual Hydraulic Direct-Drive Cylinders: Ensures smooth lifting and lowering

• Self-Lubricating Dura-Glide UHMW Polyethylene Bearing System: Low maintenance and smooth operation

• Heavy-Duty Aircraft-Quality Equalizer Cables: For improved durability

• Oversized Cable Sheave Diameter: Reduces cable fatigue for long-lasting performance

• Four Triple-Telescoping Arms: Offers greater reach and retraction for versatile lifting support

Included Accessories:

• 2.5" Medium Adapters (Set of 4)

• 5" Tall Adapters (Set of 4)

• Adapter Holders (Set of 2)

• Drop-In Cradle Pads (Set of 4)

Optional Accessories:

• Quick-Fit Pinch-Weld Pucks (Set of 4)

• Quick-Fit Pinch-Weld Pads (Set of 4)

• Wide Frame Cradle Adapters (Set of 2)

• 2" Low Adapter (Set of 4)

• Steel Lift Pads (Set of 4)

• Replacement Urethane Pads (Set of 4)

• Screw Pads (Set of 4)

Specifications:

• Max. Lifting Capacity: 12,000 lbs (5,443 kg)

• Max Capacity / Front Axle: 6,000 lbs (2,721.5 kg)

• Max Capacity / Rear Axle: 6,000 lbs (2,721.5 kg)

• Max Load Per Lift Arm: 3,000 lbs (1,361 kg)

• A - Max Rise: 75.75" (1,922 mm)

• B - Lifting Height w/ Pad Down: 78.50" (1,992.3 mm)

• C - Max Lifting Height w/ Pad Up: 82.5" (2,095 mm)

• D - Min. Height w/ Pad: 4" (101.2 mm)

• E - Overall Height: 169" (4,294 mm)

• F - Overall Width: 156" (3,959 mm)

• G - Outside Columns: 143" (3,238 mm)

• H - Inside Columns: 120" (3,047 mm)

• I - Drive-Thru Clearance: 103" (2,616 mm)

• J - Floor to Top Switch: 162.50" (4,128.1 mm)

• K - Front Arm Reach (Min.): 26" (660.4 mm)

• L - Rear Arm Reach (Min.): 29.5" (745.3 mm)

• Screw Pad Adjustment: 2" (51 mm)

• Time to Full Rise: ≈ 45 seconds

• Motor: 220 VAC, 60 Hz, 1 Phase

• Noise: < 70 dB

A $395 surcharge from the freight carrier will be applied if no forklift or loading dock is available at the delivery location.
