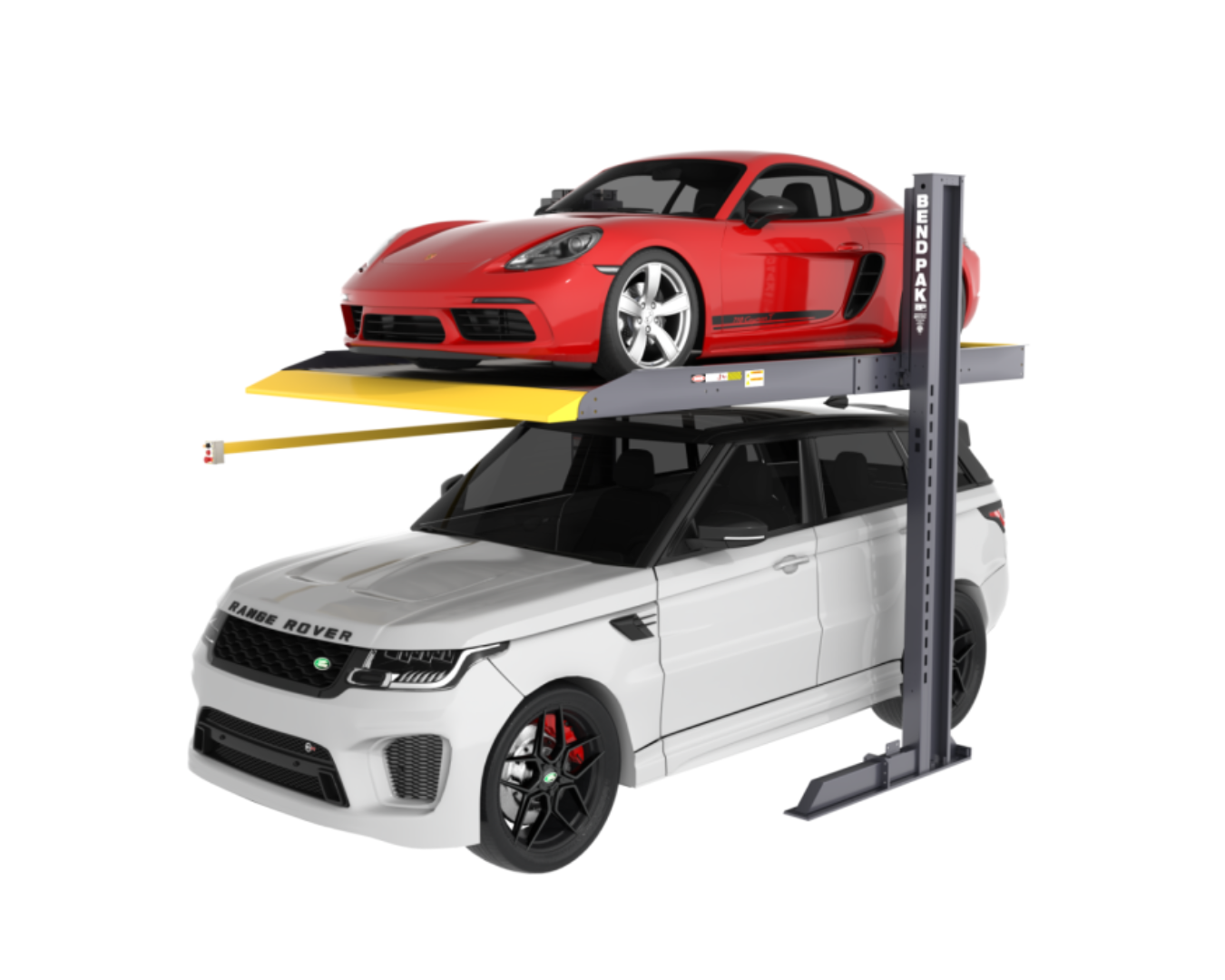

BendPak PL-6000DCX Two Post Car Lift

The BendPak PL-6000DCX dual-column parking lift is designed to handle a variety of vehicles, including SUVs, sedans, and sports cars, making it perfect for both long-term and short-term parking. Its space-efficient design is ideal for real estate developers, architects, engineers, automotive dealers, and commercial parking operators. With a straightforward installation process, low operating costs, and dependable hydraulic operation, this lift is suitable for use in both indoor and outdoor locations. The innovative ganged column design allows multiple installations in confined spaces, maximizing parking capacity while maintaining a compact footprint.

Features:

• Brand: BendPak

• Model: PL-6000DCX

• Type: Dual-Column Parking Lift

• Vehicle Compatibility: SUVs, sedans, sports cars, light trucks

• Application: Long-term and short-term parking

• Installation: Fits in standard 8-foot parking space; suitable for indoor and outdoor use

• Hydraulic Operation: Single direct-drive hydraulic cylinder

• Power Supply: Overhead power unit, gravity-driven lowering for reduced operating costs

• Design: Ganged/Shared columns for multiple installations in confined spaces

• Safety Features: Automatic load-holding device, manual safety lock, hydraulic overloading protection

• Platform: Galvanized and corrugated anti-slip, wide deck platform for various vehicles

• Maintenance: Maintenance-free composite carriage bearings

• Security: Electric key switch with automatic shut-off and manual lock release

• Dimensions: Platform size and lift height adjustable to fit various vehicles and ceiling heights

• Package: Compact professional packing and delivery

Specifications:

• Lifting Capacity per Platform: 6,000 lbs. (2,700 kg)

• Total Width, Outside Edge to Outside Edge: 112 in. (2,847 mm)

• Lift Platform Length: 157 in. (3,990 mm)

• Post Height: 131 in. (3,320 mm) *See Note 1

• Post, Center to Center Width: 105.5 in. (2,682 mm)

• Post Support Length: 60.25 in. (1,532 mm)

• Lifting Height: 82.5 in. (2,100 mm)

• Control Column Height: 71 in. (1,805 mm)

• Lift Platform (Usable Width): 94.5 in. (2,400 mm)

• Side Clearance Min.: 2 in. (50.75 mm)

• Platform to Support: 36.25 in. (918.25 mm)

• Length Overall: 163.5 in. (4,152.5 mm)

• Lifting Time: <50 Seconds

• Motor: 208-240V, 50/60HZ, 1-Ph., 4 HP, 22 Amps

• Operating Temperature and Humidity: +41° to +104°F / +5° to +40°C, 50% RH

A $395 surcharge from the freight carrier will be applied if no forklift or loading dock is available at the delivery location.
