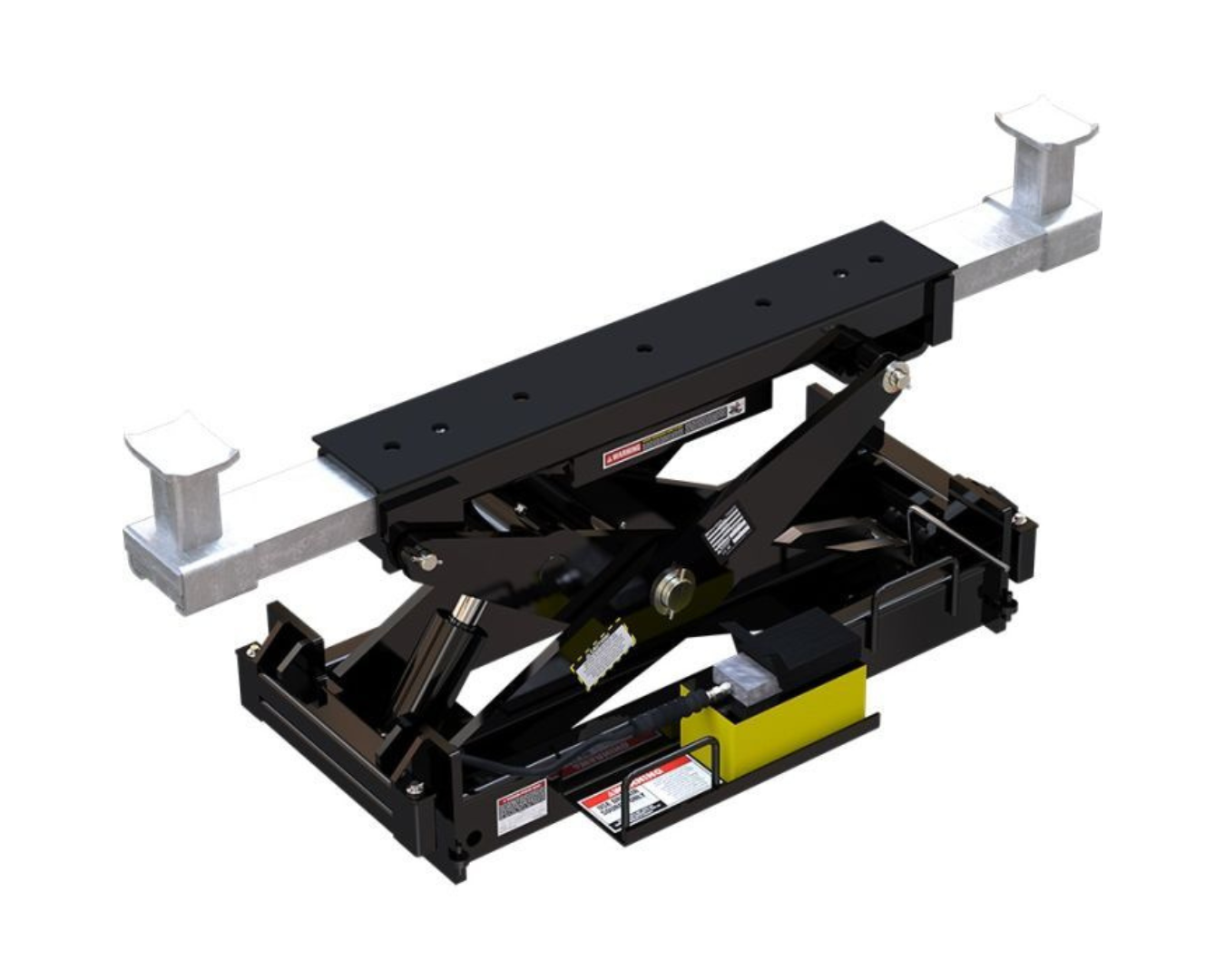

BendPak RBJ25000 Rolling Bridge

The RBJ25000 Rolling Bridge Jacks are built to handle extremely heavy vehicles with a lifting capacity of 25,000 lbs. per jack, making them ideal for heavy-duty trucks and buses. These high-quality jacks feature steel contact pads that provide exceptional durability and support. Powered by a high-pressure hydraulic power unit, these jacks are designed for easy and efficient operation. With three lock positions, they offer versatility in raising and providing undercarriage clearance for larger vehicles. When paired together, the RBJ25000 can lift up to 50,000 lbs., perfect for wheel service on heavy vehicles. This jack is engineered for over-engineered strength and reliable safety.

Specifications:

• Lifting Capacity: 25,000 lbs. per jack

• Total Capacity: 50,000 lbs. (when used in pairs)

• Contact Pads: Steel for heavy-duty use

• Power Unit: High-pressure hydraulic system

• Airline Kit: Optional for convenient connection of two jacks

• Lock Levels: Three for optimal undercarriage clearance

• Suitability: Heavy-duty trucks, buses, and other large vehicles

Features:

• Lifting Capacity: 25,000 lbs. per jack (50,000 lbs. when paired)

• Steel Contact Pads: Designed to handle heavy use and support vehicle axles

• Hydraulic Power Unit: Pneumatic-hydraulic system for easy operation

• Lock Positions: Three lock levels for secure and safe lifting

• Airline Kit: Optional to connect two jacks together for simultaneous operation

Specifications:

• Lifting Capacity: 25,000 lbs. (11,340 kg)

• Suitable Lift Model(s): HDS-40 Series

• Min. Drive-Over Height:

  • Short Arm Pad: 9" (229 mm)

  • Short Top Pad: 9.75" (248 mm)

  • Tall Arm Pad: 10.5" (267 mm)

  • Tall Top Pad: 11.25" (286 mm)

• Max. Lifting Height:

  • Short Arm Pad: 19" (483 mm)

  • Short Top Pad: 19.75" (502 mm)

  • Tall Arm Pad: 20.5" (521 mm)

  • Tall Top Pad: 21.25" (540 mm)

• Reach:

  • Support Base Width: 45" (1,143 mm)

  • Max. Arm Pad Reach: 63.75" (1,619 mm)

  • Min. Arm Pad Reach: 48.5" (1,232 mm)

  • Max. Top Pad Reach: 39.5" (1,003 mm)

  • Min. Top Pad Reach: 8" (203 mm)

• Time to Full Rise: 55 seconds

• Pump: Air/Hydraulic

• Air Pressure: 125 PSI (10-25 CFM)

• Max. Operating Hydraulic Pressure: 7,200 PSI

• Power Requirement: None

Shipping Details:

• Shipping Weight: 786 lbs. (356 kg)

• Shipping Dimensions: 47" x 29" x 17" (1,206 mm x 736 mm x 431 mm)

A $395 surcharge from the freight carrier will be applied if no forklift or loading dock is available at the delivery location.
