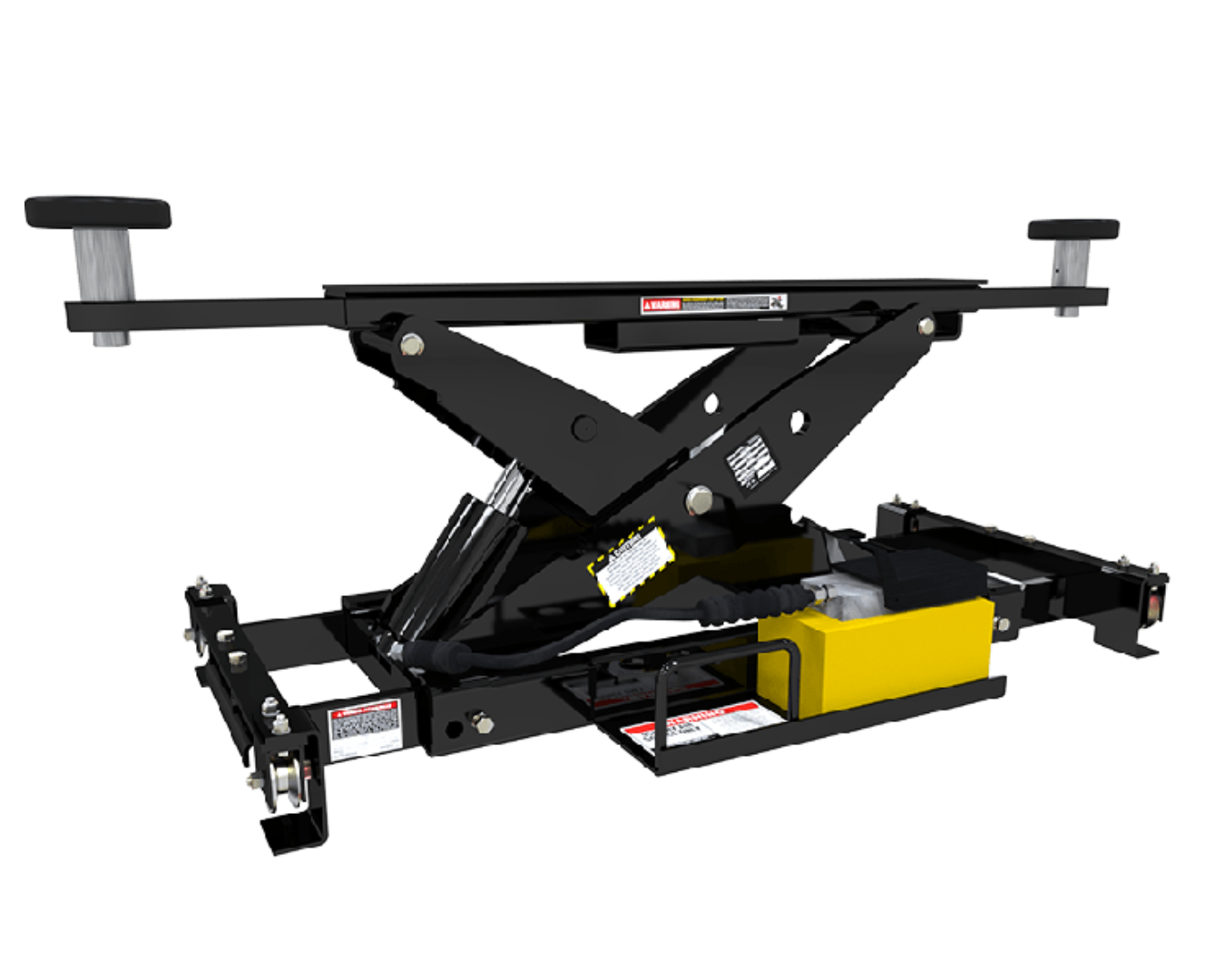

BendPak RJ6W Rolling Bridge Jack

The RJ6W rolling bridge jack is engineered for safety and durability, capable of lifting up to 6,000 lbs. with ease. It provides a reliable and efficient solution for servicing vehicles, ensuring peace of mind when working with heavy loads.

Features:

• Lifting Capacity: 6,000 lbs.

• Easy-Roll Wheels: Standard wheels for smooth and effortless movement along runway channels on 12,000-lb lifting capacity or greater four-post lift models.

• Rubber Contact Pads: Durable, adjustable pads engage directly at manufacturer-recommended lift points. Optional frame cradle pads for wider frames.

• Stackable Adapters: Extend the reach of the jack arms for longer undercarriage access. Accommodates virtually every vehicle type.

• High-Pressure Hydraulic Power Unit: Commercial-grade air-hydraulic pump requires 125 psi and 10-20 CFM. Quick lift for immediate use.

• Three Lock Levels: Provides multiple height options for precise vehicle positioning. Automatically engages and releases for smooth operation.

• Optional Air-Line Kit: For additional functionality.

Specifications:

• Lifting Capacity: 6,000 lbs. (2,721 kg)

• Suitable Lift Model(s): XR-12000 Series

• Min. Drive-Over Height:

  • Pad Only: 1.25" (32 mm)

  • Pad + 2.75" Adapter: 4" (102 mm)

  • Pad + 5.5" Adapter: 6.75" (171 mm)

• Max. Lifting Height:

  • Pad Only: 12" (305 mm)

  • Pad + 2.75" Adapter: 14.75" (375 mm)

  • Pad + 5.5" Adapter: 17.5" (445 mm)

• Reach:

  • Support Base Width: 36.25" (921 mm) - 47.25" (1,200 mm)

  • Max. Arm Reach: 56" (1,422 mm)

  • Min. Arm Reach: 42" (1,067 mm)

• Time to Full Rise: 55 seconds

• Pump: Air/Hydraulic

• Air Pressure: 125 PSI (10-25 CFM)

• Max. Operating Hydraulic Pressure: 3,370 PSI

• Power Requirement: None

• Shipping Weight: 436 lbs. (193 kg)

• Shipping Dimensions: 42" x 24" x 14" (1,066 mm x 609 mm x 355 mm)
