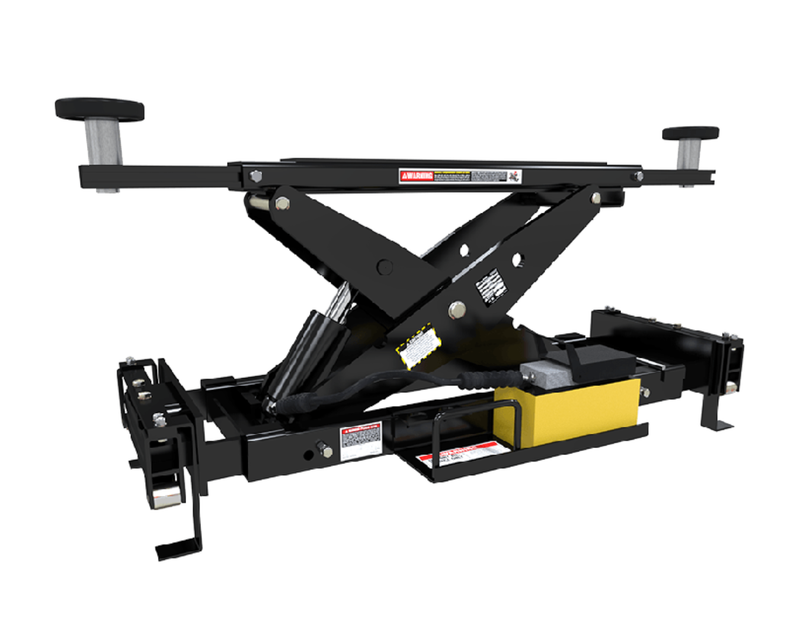

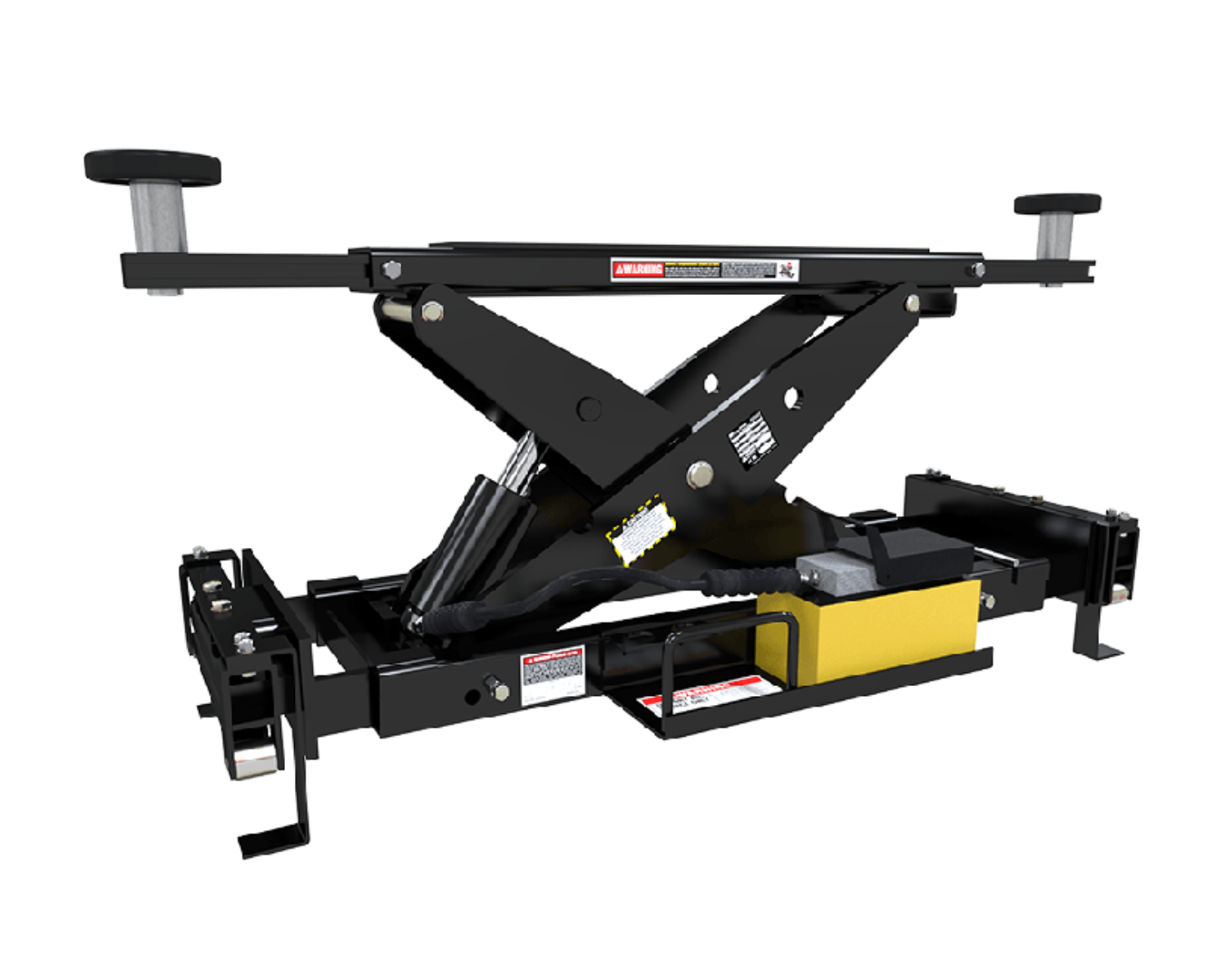

BendPak RJ9W Rolling Bridge Jack

The BendPak RJ9W Rolling Bridge Jack is designed to handle the toughest lifting tasks. With a 9,000 lbs. lifting capacity, it’s the ideal solution for vehicles that require extra support. Unlike standard four-post lifts, the RJ9W provides exceptional reliability and power to lift vehicles safely, even those with offset centers of gravity. It offers seamless adjustability and ease of use for full wheel service capability.

Key Features:

• 9,000 lbs. Lifting Capacity: Capable of lifting heavy-duty vehicles for complete wheel service.

• Easy-Roll Wheels: Rollers made of hardened stainless-steel for smooth movement inside runway channels on lifts with 18,000 lbs. or greater capacity.

• Rubber Contact Pads: Durable, non-marring pads that protect your vehicle’s undercarriage from damage while providing secure lifting.

• Stackable Adapters: Enhances versatility for lifting vehicles with varying suspension heights.

• High-Pressure Hydraulic Power Unit: Comes with an integrated pneumatic-hydraulic power unit for independent operation, ensuring reliable lifting performance.

• Three Lock Levels: Allows precise height adjustments for optimal positioning and safety.

• Optional Air-Line Kit: Provides flexibility with an additional air-line connection for enhanced performance.

Specifications:

• Lifting Capacity: 9,000 lbs. (4,082 kg)

• Suitable Lift Model(s): HDS-18E, HDS-27 Series

• Min. Drive-Over Height:

  • Pad Only: 5.25" (133 mm)

  • Pad + 2.75" Adapter: 8" (203 mm)

  • Pad + 5.5" Adapter: 10.75" (273 mm)

• Max. Lifting Height:

  • Pad Only: 16.25" (413 mm)

  • Pad + 2.75" Adapter: 19" (483 mm)

  • Pad + 5.5" Adapter: 21.75" (552 mm)

• Reach:

  • Support Base Width: 45" (1,143 mm) - 50" (1,270 mm)

  • Max. Arm Reach: 56" (1,422 mm)

  • Min. Arm Reach: 42" (1,067 mm)

• Time to Full Rise: 55 seconds

• Pump: Air/Hydraulic

• Air Pressure: 125 PSI (10-25 CFM)

• Max. Operating Hydraulic Pressure: 5,020 PSI

• Power Requirement: None

• Shipping Weight: 478 lbs. (217 kg)

• Shipping Dimensions: 47" x 25" x 15" (1,206 mm x 635 mm x 381 mm)

A $395 surcharge from the freight carrier will be applied if no forklift or loading dock is available at the delivery location.
