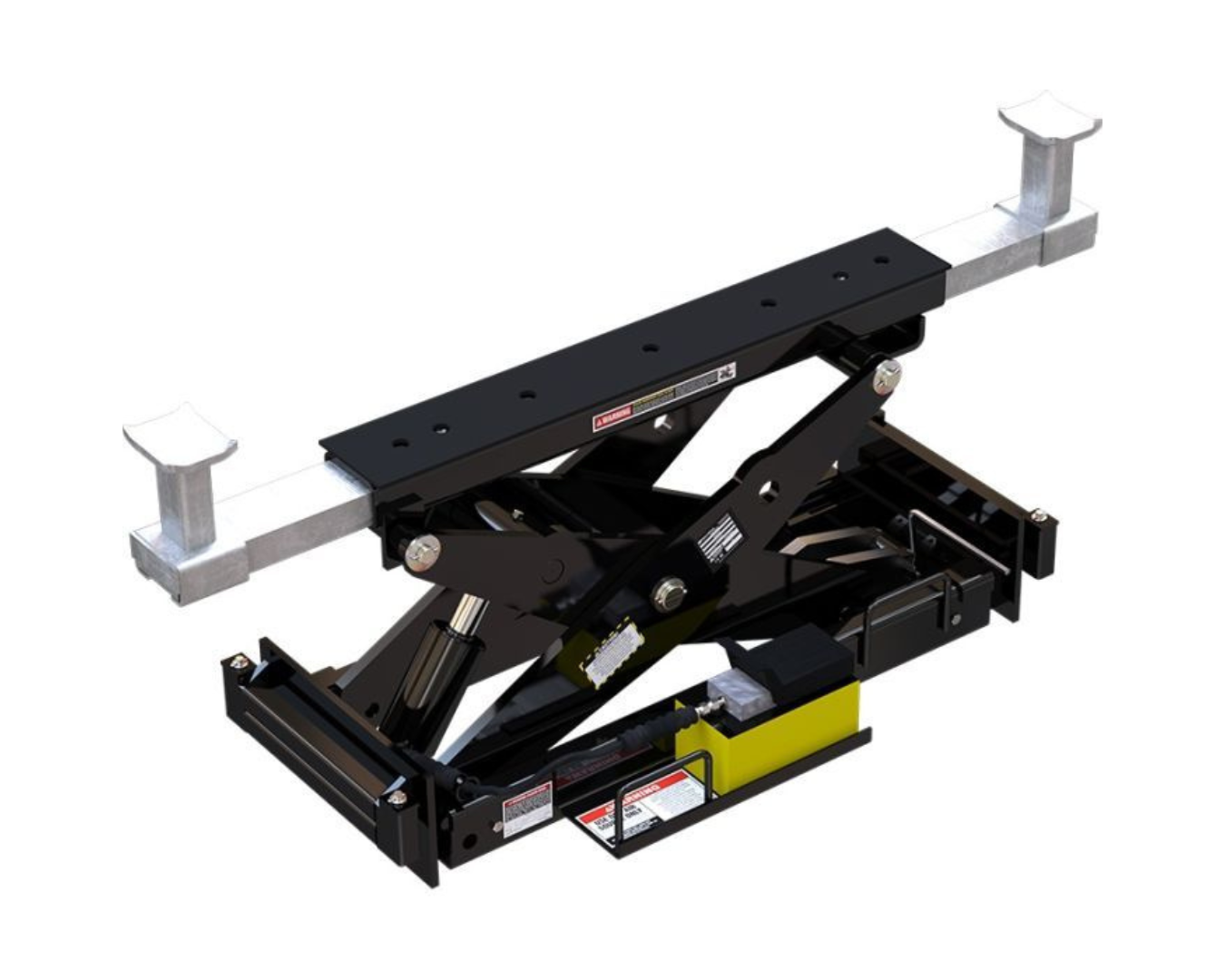

BendPak RBJ15000 Rolling Bridge Jack

The RBJ15000 bridge jack is a heavy-duty tool designed to lift up to 15,000 lbs, ideal for full wheel service tasks. Perfect for professional workshops, it offers the capability to lift half of a 30,000-lb truck or commercial bus, providing easy access to the undercarriage while also enabling the use of wheel balancers, aligners, and tire changers. Equipped with steel contact pads, high-pressure hydraulic power, and three lock levels, this bridge jack is both reliable and versatile, making it a must-have for any garage dealing with large vehicles.

Specifications:

• Lifting Capacity: 15,000 lbs

• Steel Contact Pads: Built to withstand heavy use and fit comfortably under low-stance cars

• Power Unit: Pneumatic-hydraulic, controlled by an ergonomically designed foot pedal

• Lock Levels: 3 adjustable height levels for comfort and ease of use

• Airline Kit: Optional for sharing a single airline between two bridge jacks

• Compatibility: Ideal for lifting trucks and commercial vehicles

• Lifting Capacity: 15,000 lbs. (6,804 kg)

• Suitable Lift Model(s): HDS-27 Series, HDS-40 Series

• Min. Drive-Over Height:

  • Short Arm Pad: 9" (229 mm)

  • Short Top Pad: 10" (254 mm)

  • Tall Arm Pad: 11" (279 mm)

  • Tall Top Pad: 12" (305 mm)

• Max. Lifting Height:

  • Short Arm Pad: 19" (483 mm)

  • Short Top Pad: 20" (508 mm)

  • Tall Arm Pad: 21" (533 mm)

  • Tall Top Pad: 22" (559 mm)

• Reach:

  • Support Base Width: 45.75" (1,162 mm) - 59" (1,499 mm)

  • Max. Arm Pad Reach: 63.75" (1,619 mm)

  • Min. Arm Pad Reach: 48.5" (1,232 mm)

  • Max. Top Pad Reach: 39.5" (1,003 mm)

  • Min. Top Pad Reach: 7.75" (197 mm)

• Time to Full Rise: 55 seconds

• Pump: Air/Hydraulic

• Air Pressure: 125 PSI (10-25 CFM)

• Max. Operating Hydraulic Pressure: 6,000 PSI

• Power Requirement: None

• Shipping Weight: 708 lbs. (321 kg)

• Shipping Dimensions: 48" x 29" x 18" (1,238 mm x 736 mm x 457 mm)

A $395 surcharge from the freight carrier will be applied if no forklift or loading dock is available at the delivery location.
