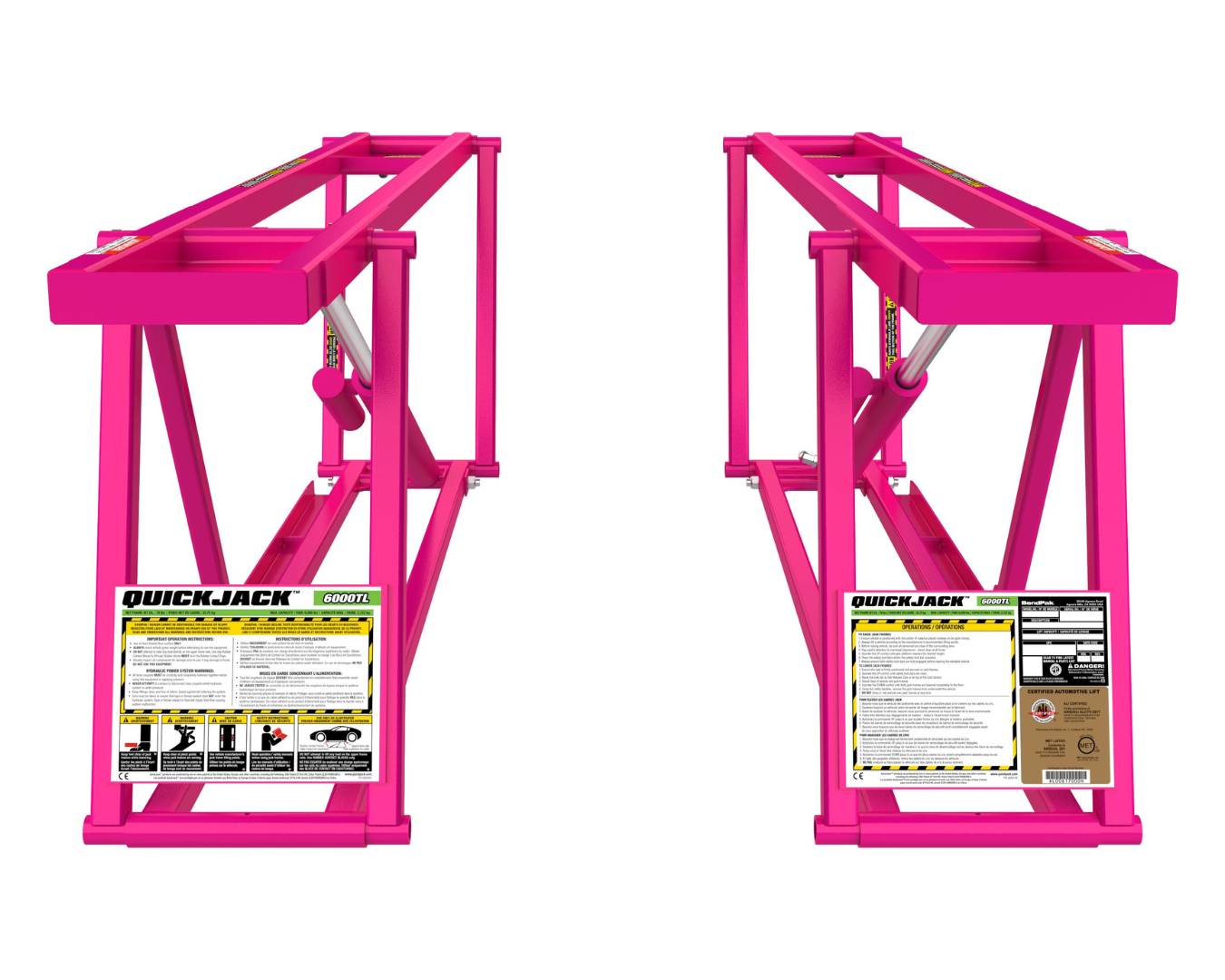

Limited-Edition Pink QuickJack 6000TL Portable Car Lift

The QuickJack 6000TL Pink Edition is a portable, 6,000 lb capacity car lift system designed for fast setup and clean storage in home garages, track days, or professional bays. This limited pink finish is for Breast Cancer Awareness Month.

Key Improvements (6000TL vs. Previous TL)

• Capacity Increase: The lifting capacity was increased to 6,000 lb without changing the compact frame dimensions.

• Structural Upgrades: Reinforced cross members, improved weld geometry, and upgraded pivot joints increase rigidity and stability under heavier loads.

• Synchronized Movement: The new electric hydraulic power unit features a pressure compensated flow divider so both frames lift and lower in sync for smoother, safer operation.

Key Specifications & Dimensions

• Capacity: 6,000 lb (Maximum).

• Lift Height: 24 in (Full-rise).

• Collapsed Height: 3 in (Slim, low profile).

• Frame Dimensions: 70 in length, 11 in width.

• Operation: One-hand pendant control.

• Portability: Portable design with durable urethane wheels; stores vertically.

Core Features

• Safety Locks: Updated dual-position automatic locks engage at mid-rise and full-rise.

• Hydraulics: Electric/hydraulic power unit with a pressure compensated flow divider; ships with the hydraulic system factory preassembled for quicker setup.

• Versatility: Ideal for wheel-off service and undercar work; accessories like frame extensions and kits for motorcycles/ATVs are available.

• Maneuverability: Compact design and low collapsed height make it easy to position, roll, and store in tight spaces.

Specifications

• Lifting Capacity: 6,000 lbs. (2,722 kg)

• Lowered Height (with 2" block): 3.5" (89 mm)

• Lifting Height (with 2" block): 21" (521 mm)

• Lifting Height (with 3" block): 22" (546 mm)

• Maximum Lift Height: 24" (616 mm)

• Lift Height (with adapters): 24" (597 mm)

• Lift Height (with adapters + pin): 26.75" (673 mm)

• Maximum Lift Point Spread: 60" (1,524 mm)

• Minimum Lift Point Spread: 37" (940 mm)

• Frame Width (each): 11" (278 mm)

• Frame Length (each): 70" (1,778 mm)

• Frame Weight (each): 78 lbs. (35 kg)

• Time to Full Rise: 30 seconds

• Power Unit Weight: 15 lbs. (7 kg)

• Shipping Dimensions (each frame): 73.5" (L) × 15.25" (W) × 5" (H)
  (1,869 mm × 385 mm × 129 mm)

• Shipping Weight: 240 lbs. (109 kg)
