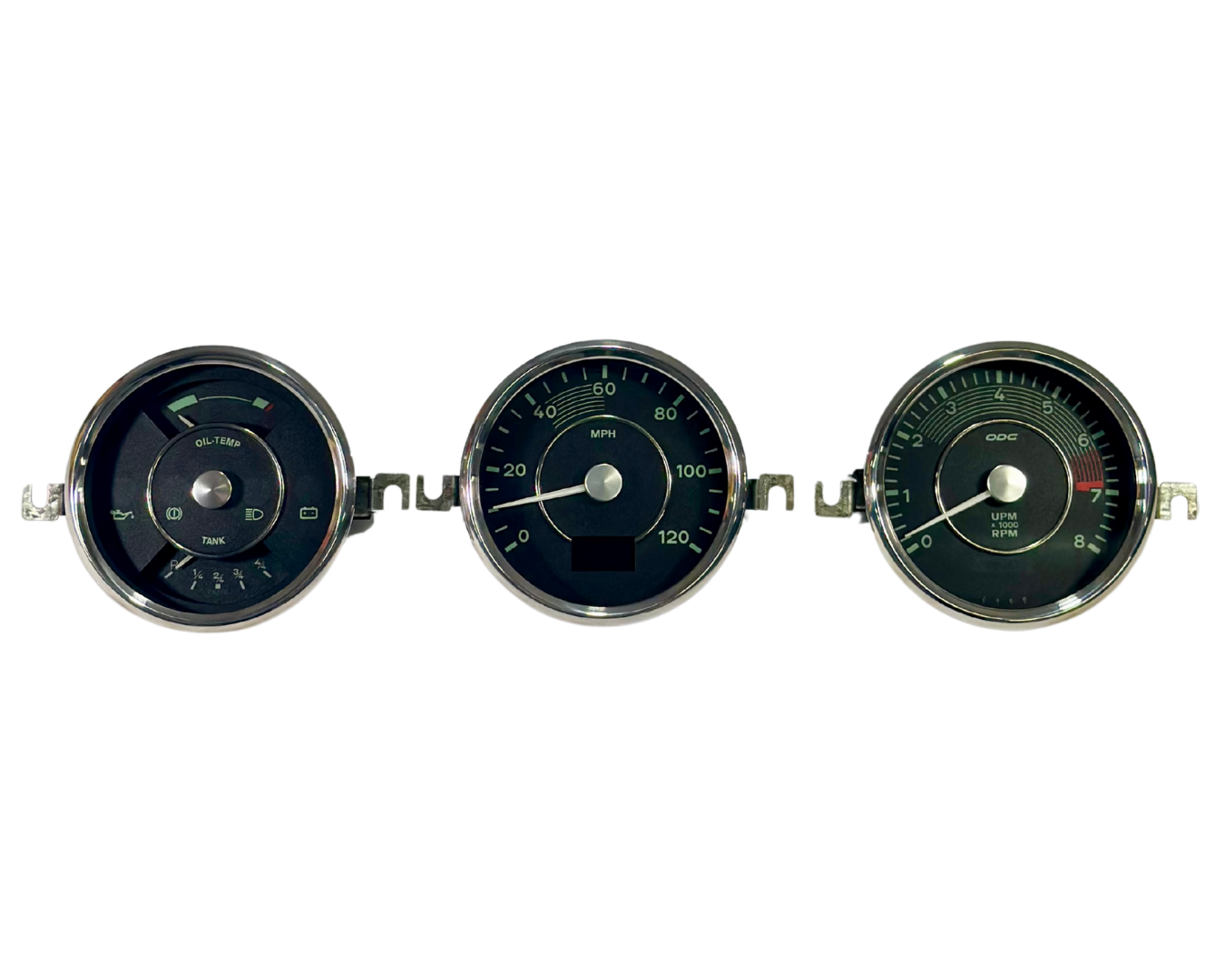

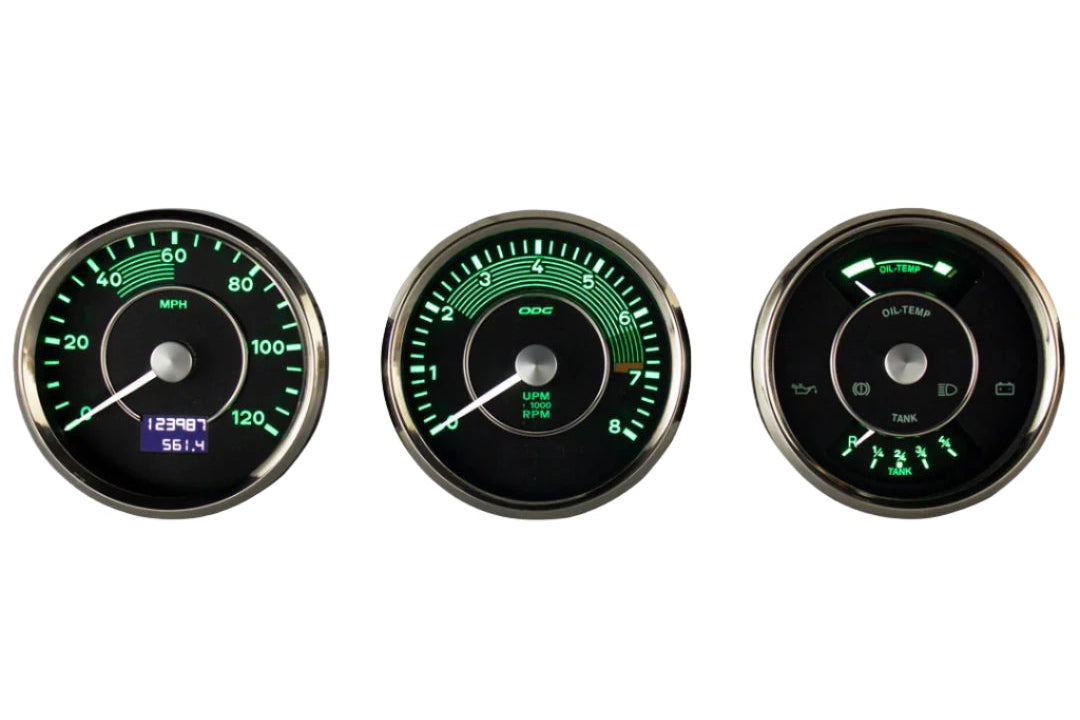

This high-performance automotive instrument is designed to provide a complete and customized experience for your vehicle.

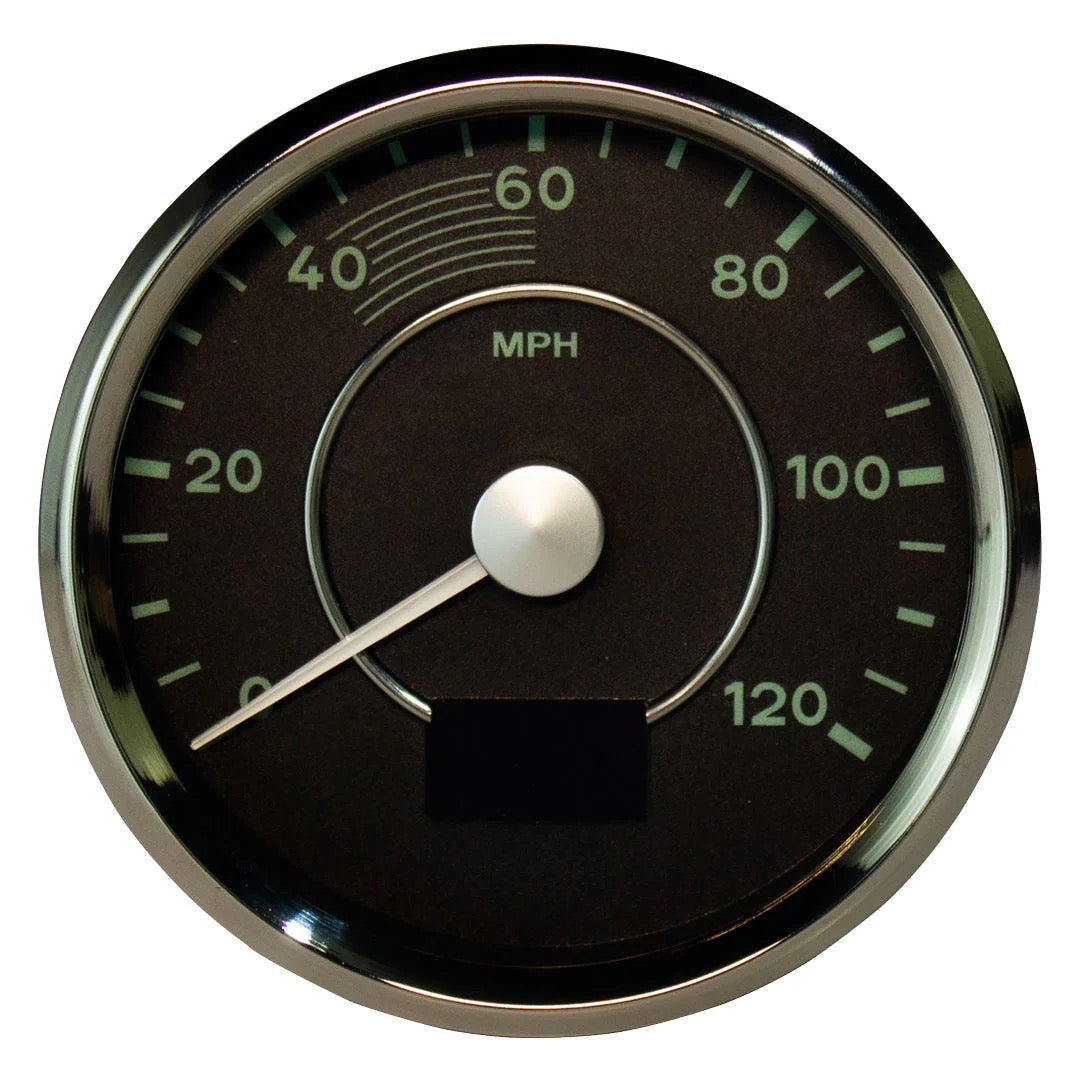

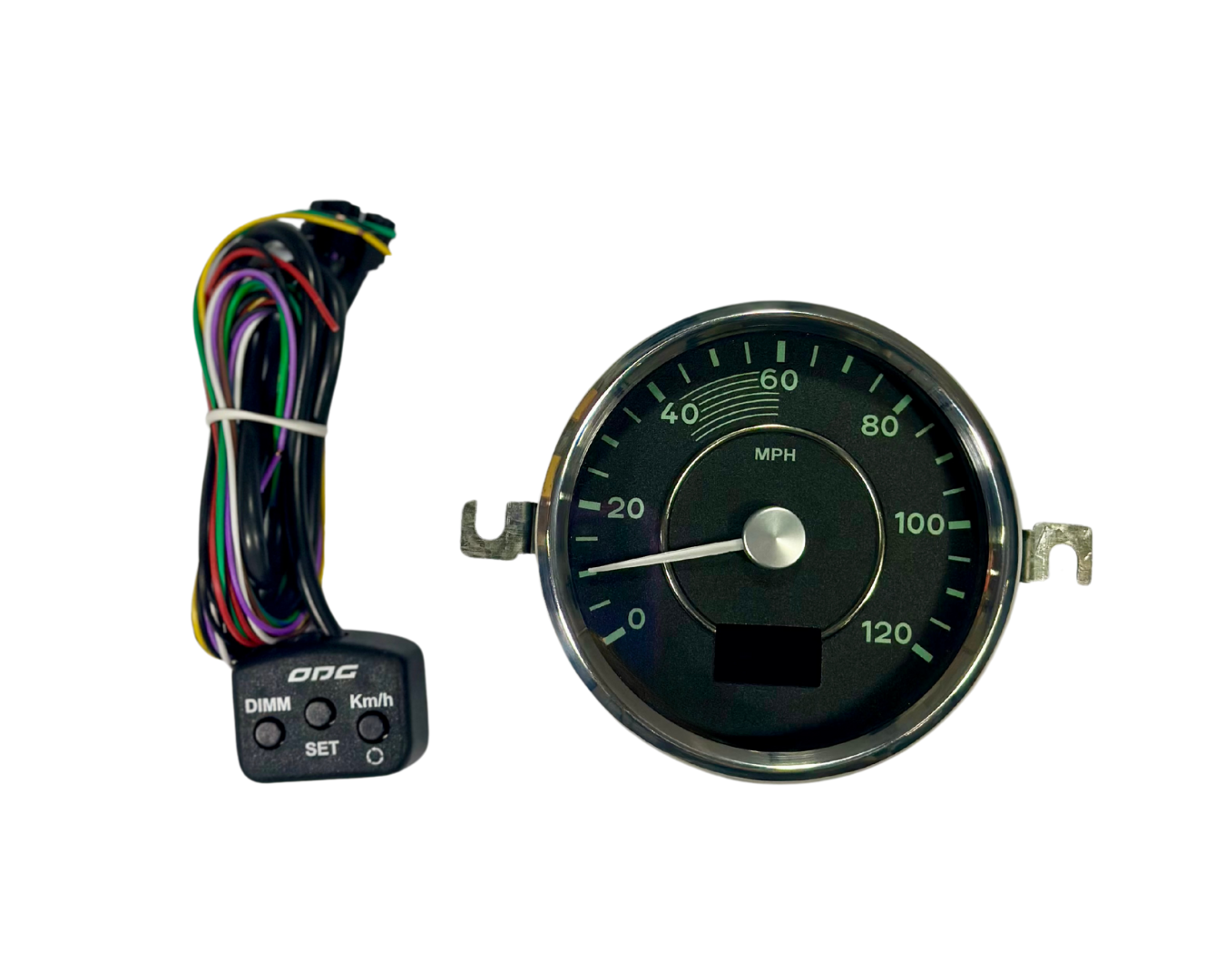

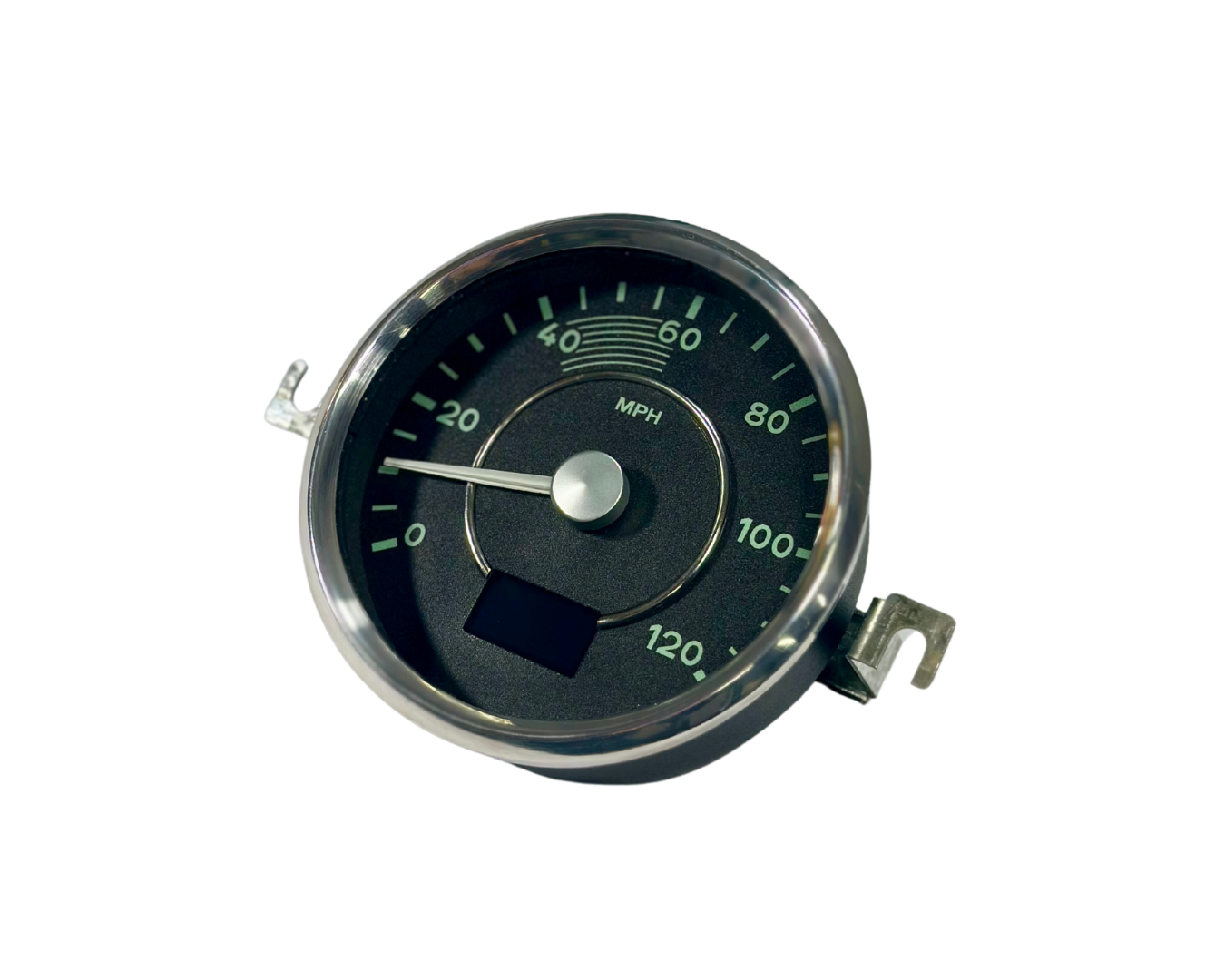

Speedometer - 100mm

This instrument was specifically developed for automotive applications and customizations. It features both total and partial odometers, an integrated turn signal.

Equipped with a digital system, the instrument allows installation in vehicles with any gear ratio or tire external diameter. It can be configured to work with either HALL or INDUCTIVE type sensors.

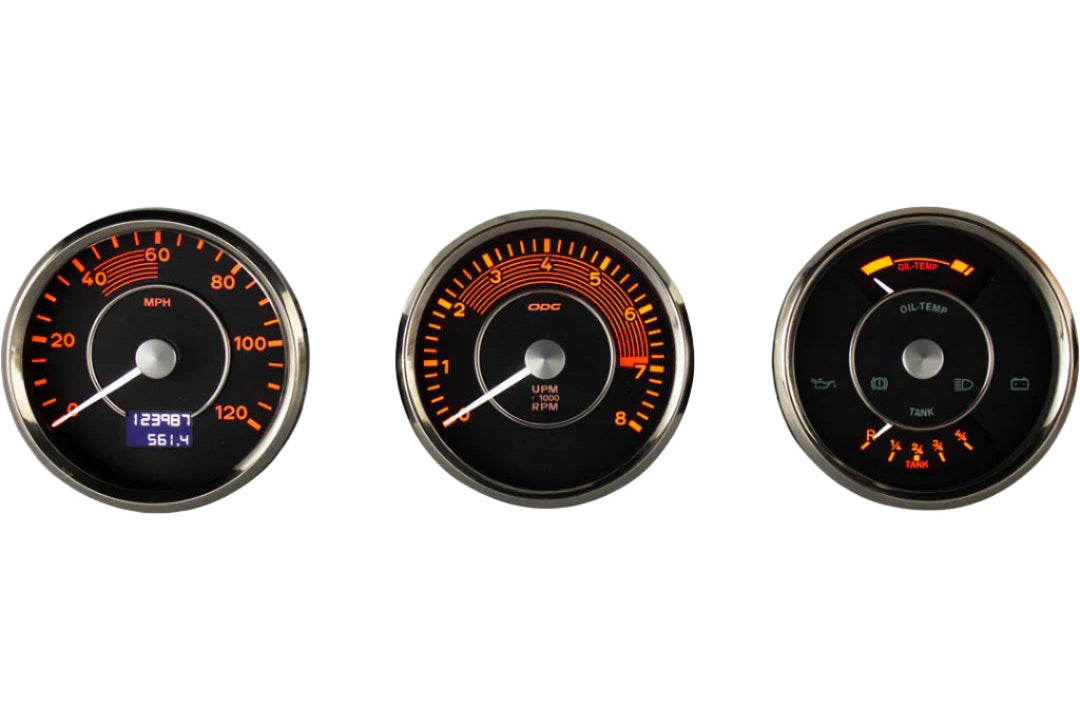

Its translucent lighting offers 7 color options, and the pointer comes with either white lighting. A high-performance, durable electronic motor drives the pointer, and it returns to its resting position electronically.

Key Features

• Speedometer: Displays both total and partial odometer readings. Configurable for any gear ratio and tire diameter. Compatible with HALL or INDUCTIVE speed sensors.

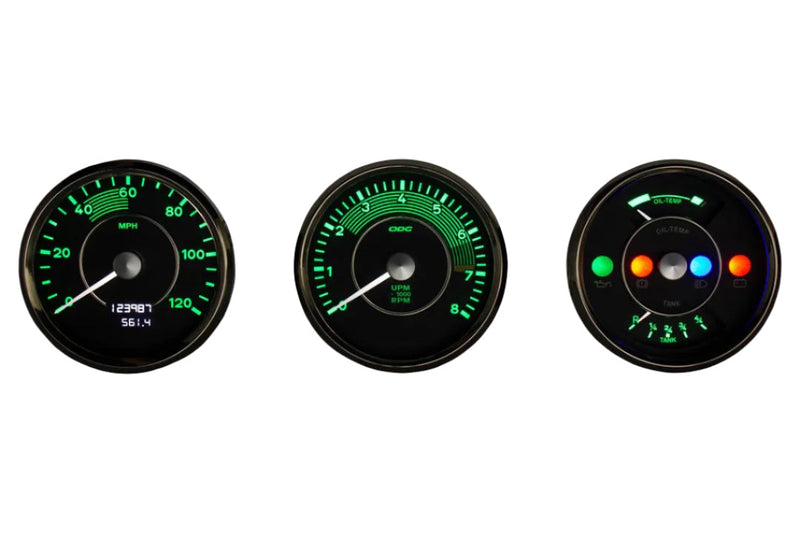

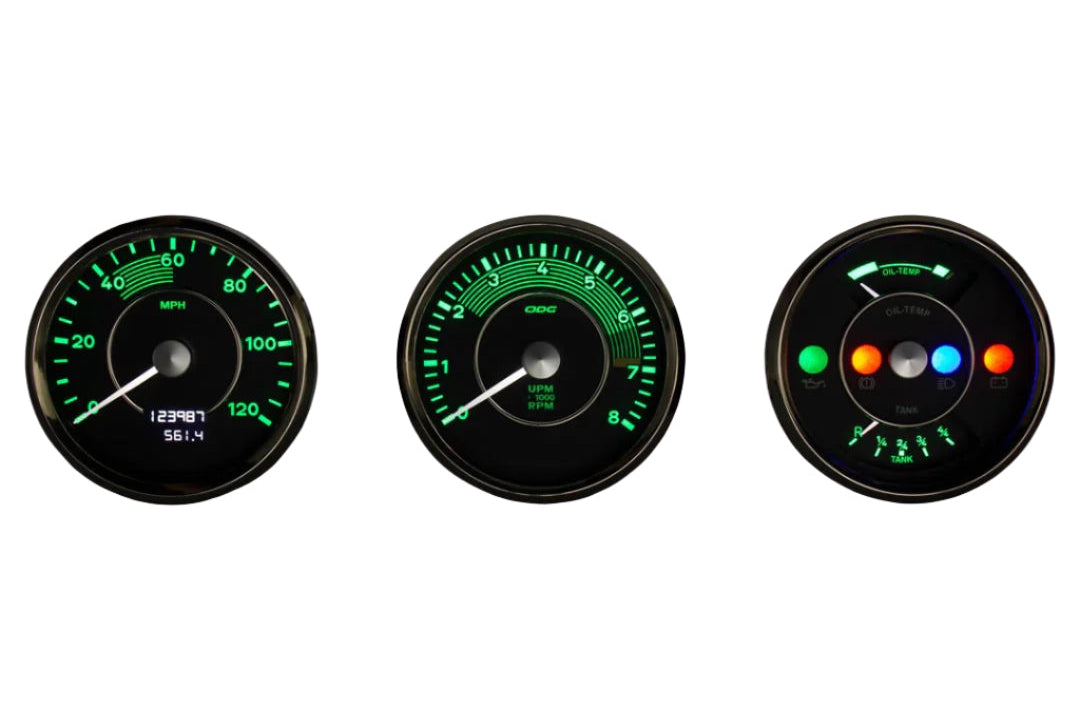

• Lighting: Translucent backlighting with 7 selectable colors, and a Dimmer function to control lighting intensity.
• MASTER Function: Allows users to customize and control the color and intensity of other instruments in the FullColor ODG line.

*Speed Sensor - (sensor not included). It is necessary to use a speed sensor, which can be of the HALL(3-wire) or INDUCTIVE (2-wire) type.

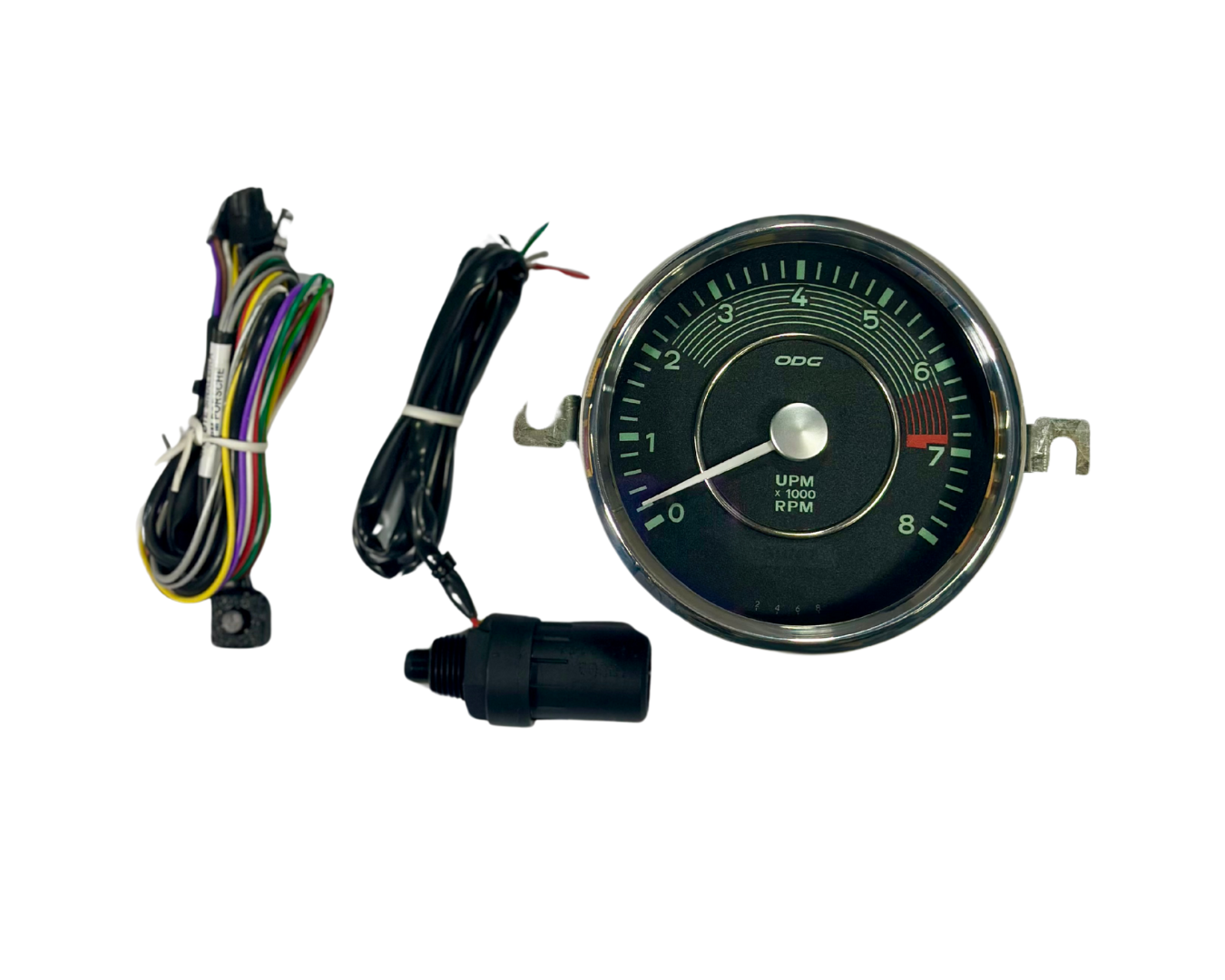

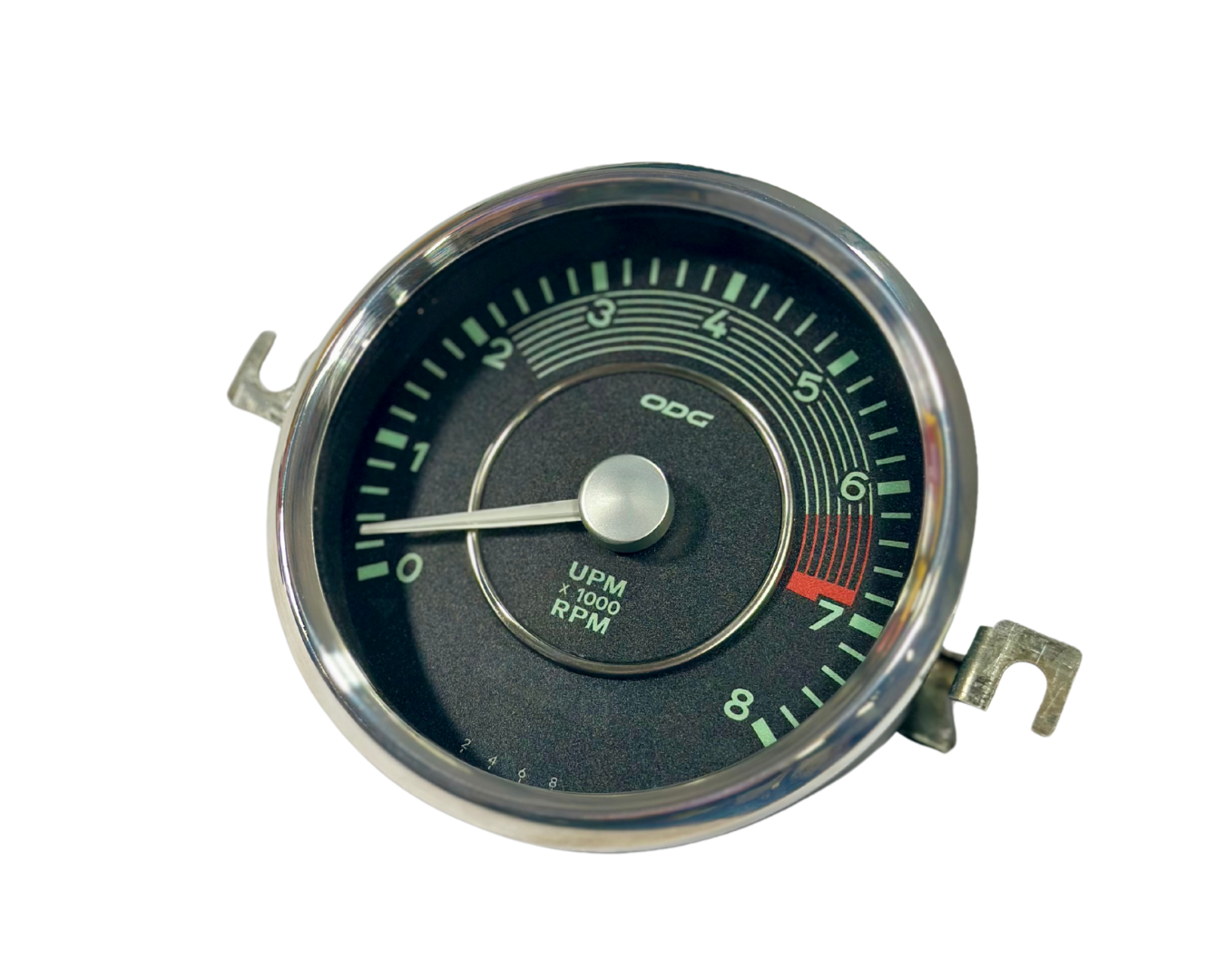

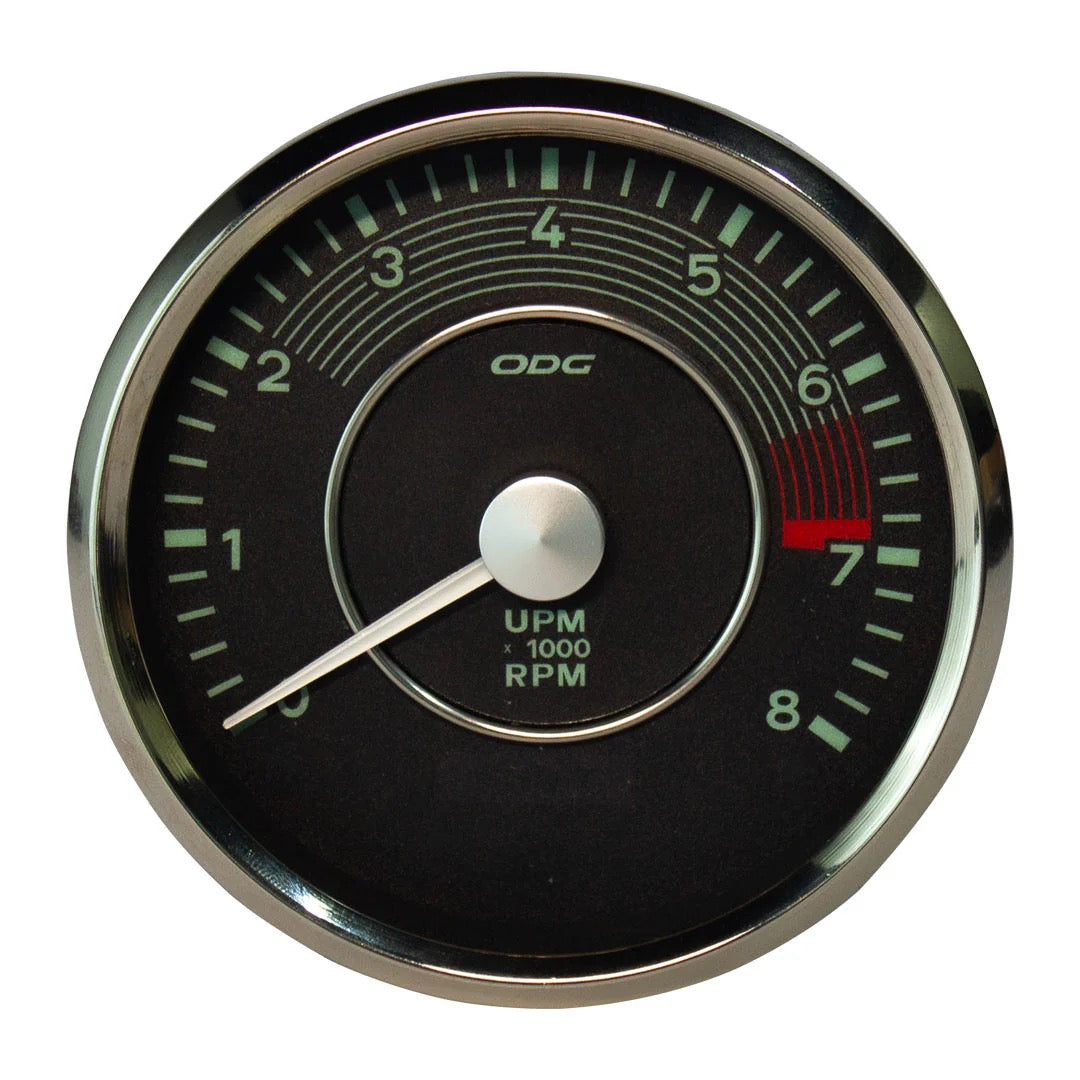

Tachometer - 100mm

The 100mm tachometer is designed for installation in vehicles equipped with either spark ignition systems (OTTO cycle) or Diesel cycle engines.

Features:

• Translucent lighting with 7 selectable colors.
• Dimmer function to control lighting intensity.
  • Note: To enable the dimmer function, the tachometer must be installed alongside the 100mm ODG Speedometer or the Dimmer Module (ODG code 148.0.0.0.0), which is sold separately.

Assembly:

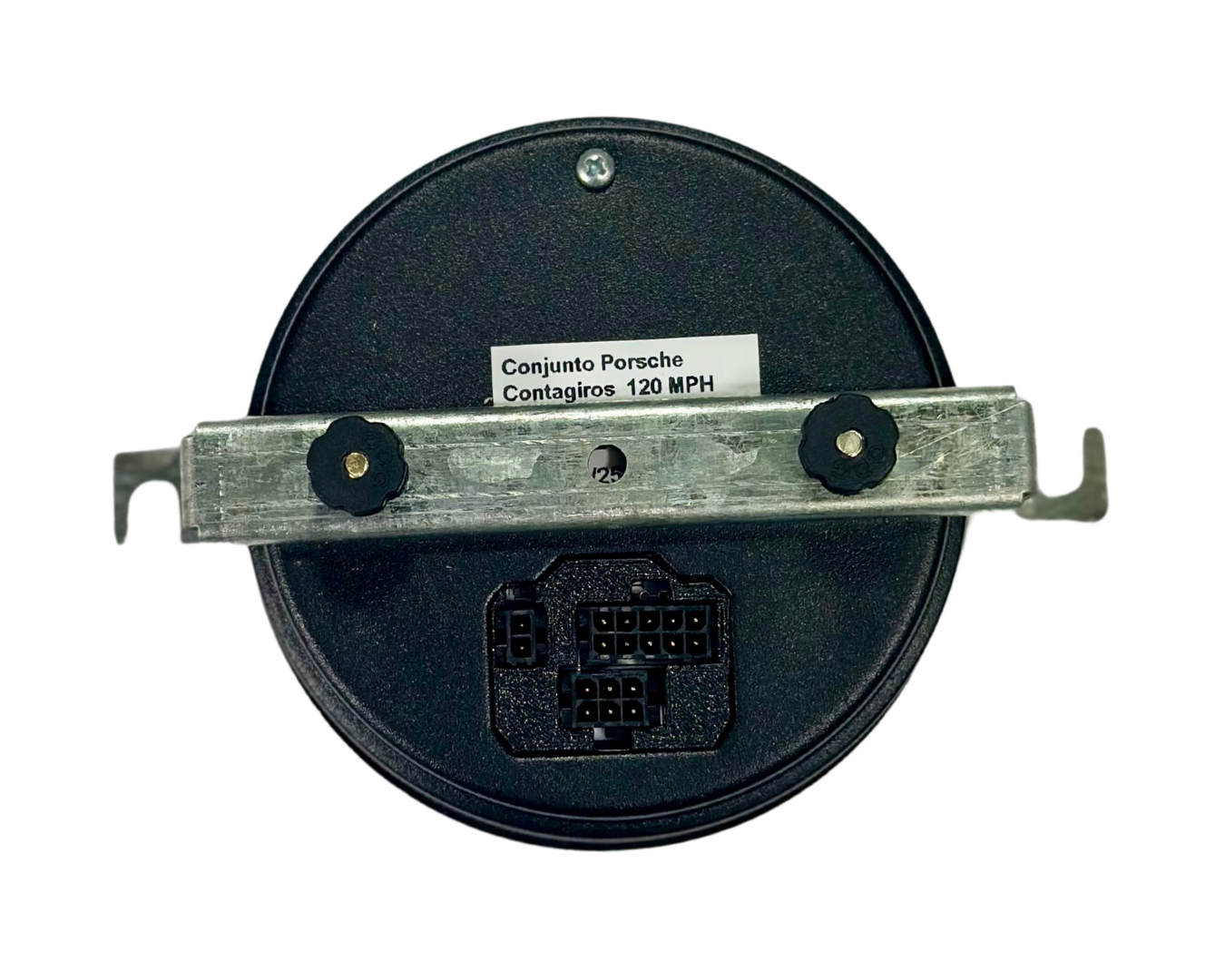

• The instrument can be securely mounted to the dashboard using the included fixing clip.
• The configuration key should be placed in the desired location and fixed using the self-adhesive tape on the key's base.

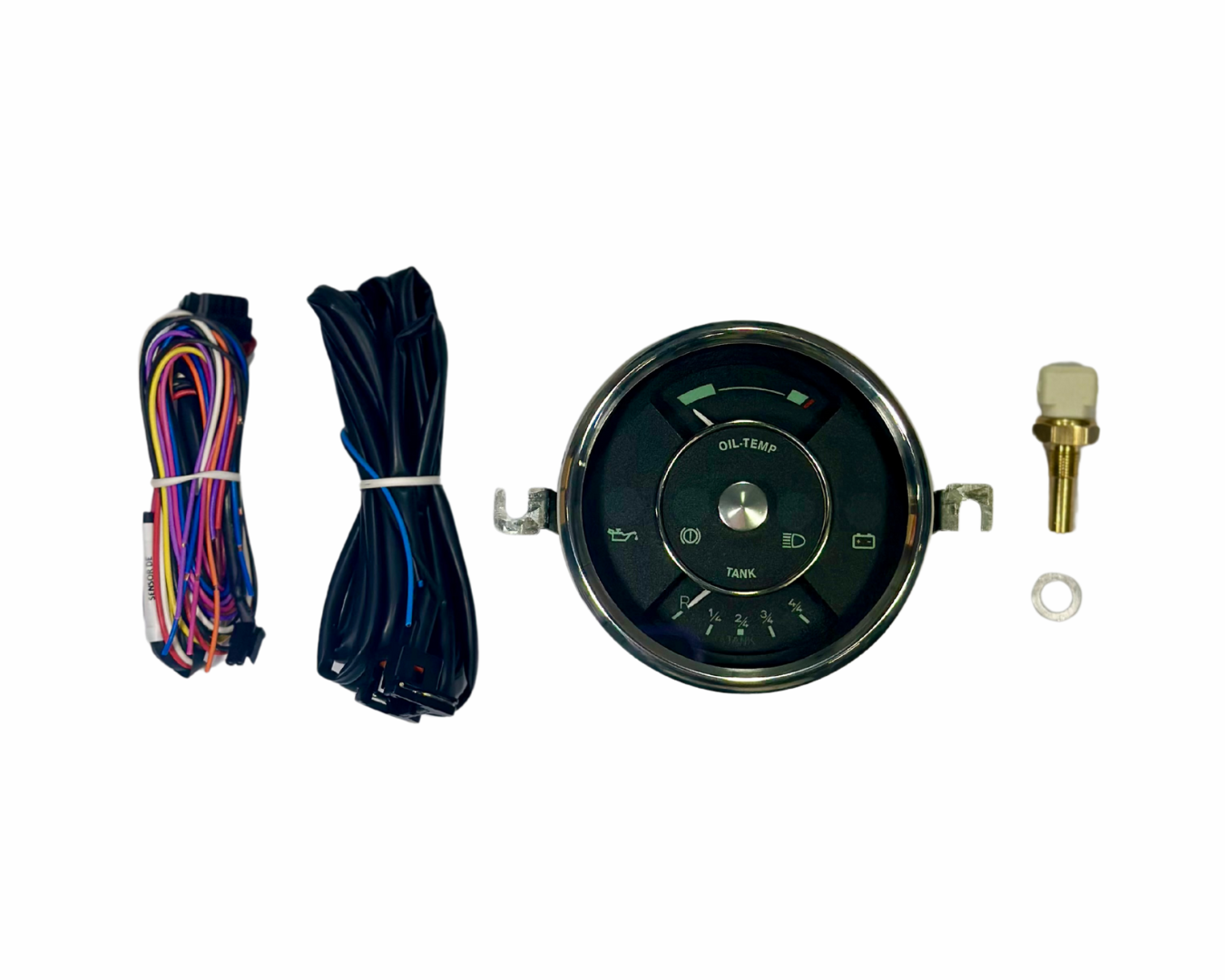

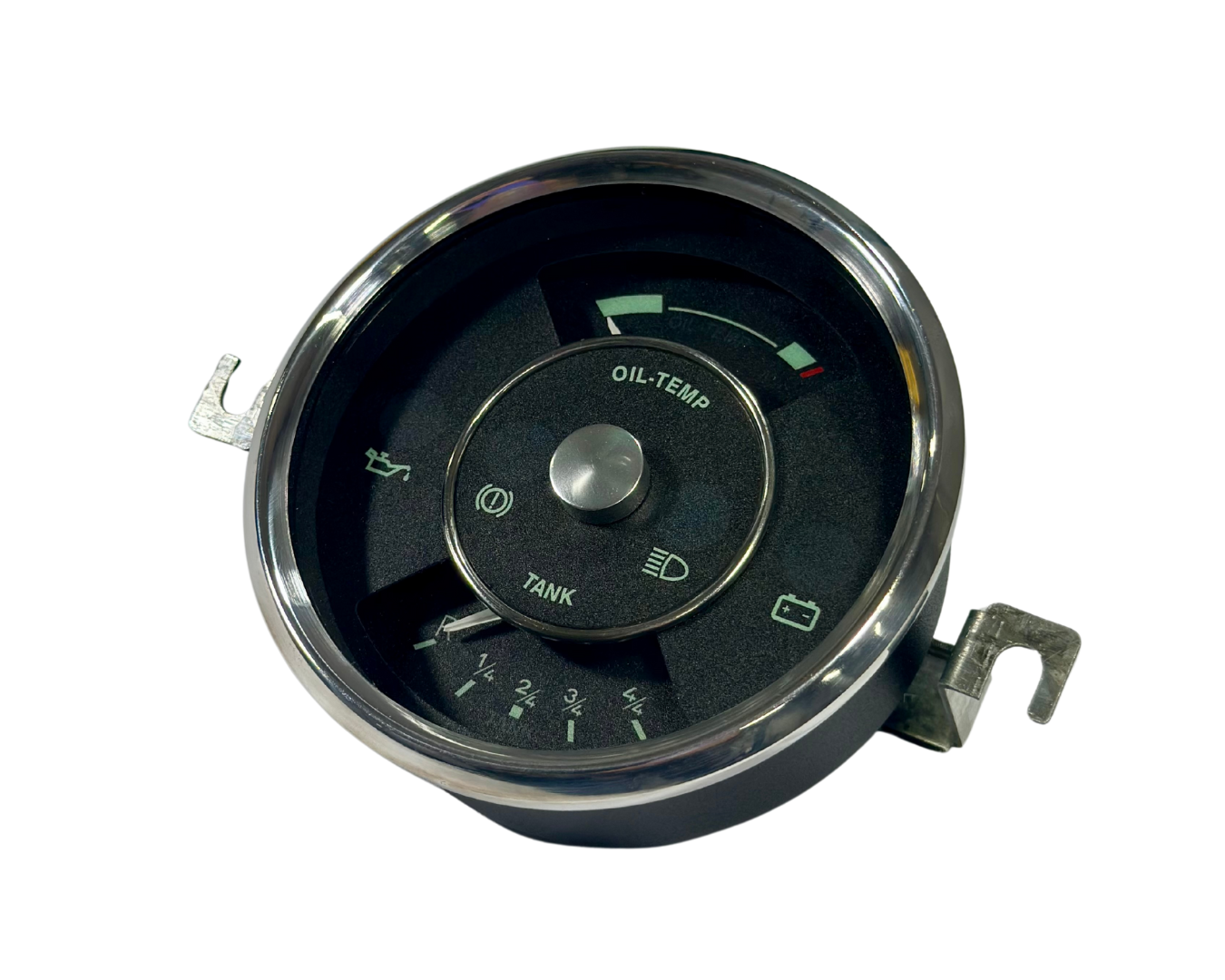

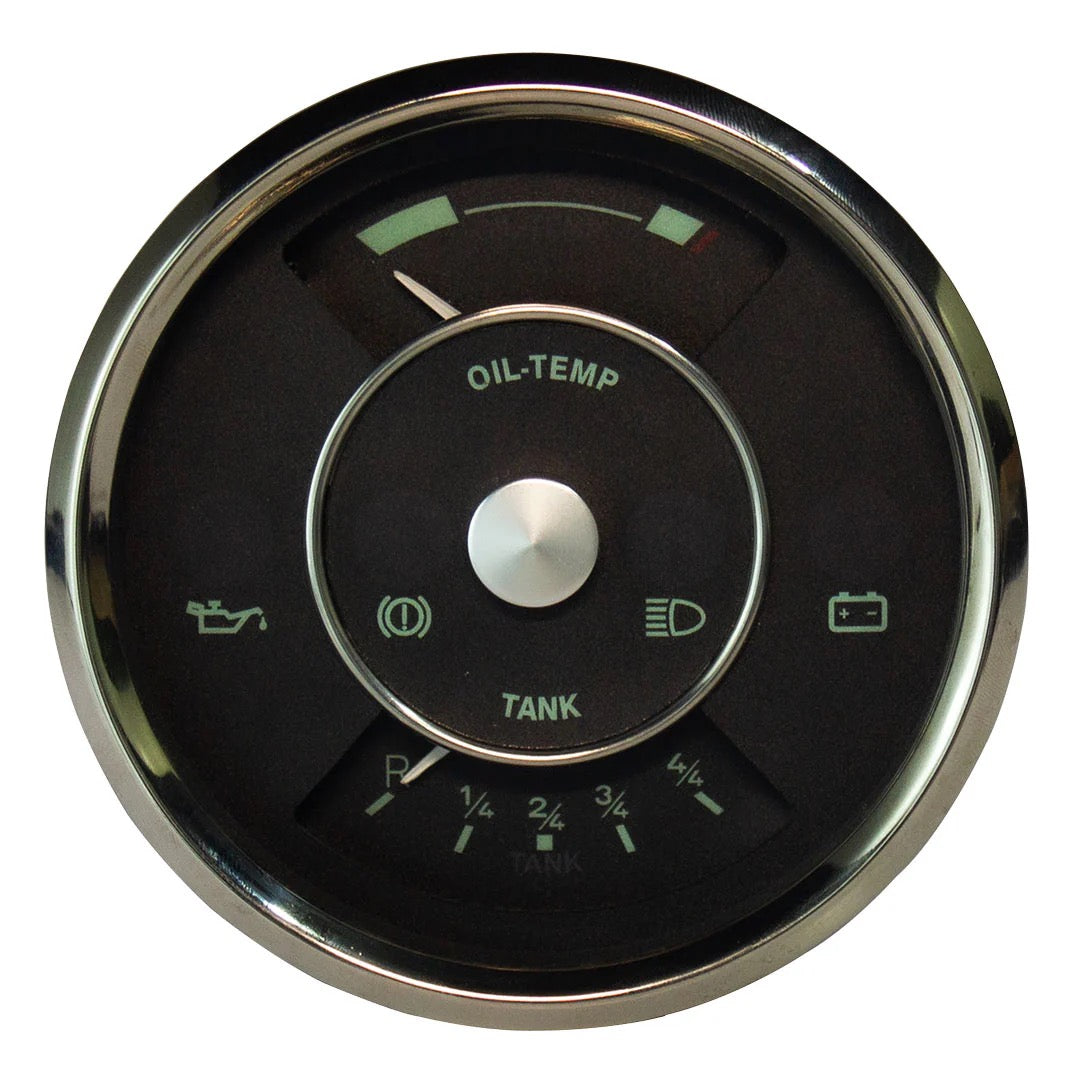

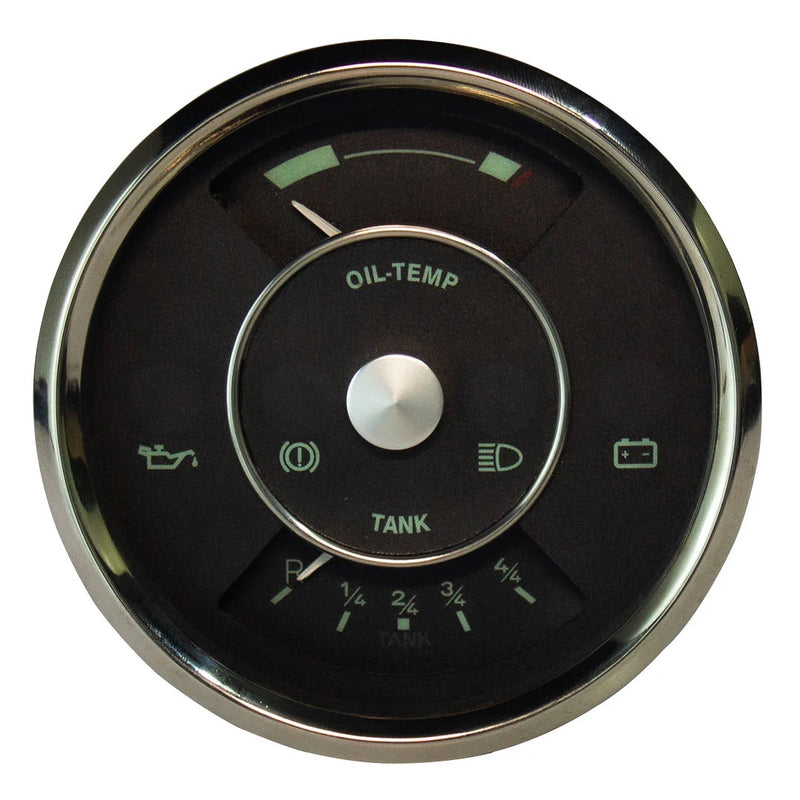

Elitric Dual Gauges - 100mm

The Double Indicator instrument was developed to simultaneously display both the oil temperature and fuel level in a single 100mm gauge.

This instrument features translucent backlighting with 7 selectable colors, allowing for a customizable appearance.

It also includes indicators for turn signals, high beams, oil, and brake.

To control the lighting intensity (dimmer function), the instrument must be installed together with the 100mm ODG speedometer.
