901.611.303.00
Battery Cable for Twin Battery Cars
This cable runs from the left battery box to the right battery box. Includes a positive battery terminal, both ends are tinned, and the cable is covered in durable PVC sheathing. Its high flexibility allows for a tight, clean installation in dual battery configurations.
901.611.902.20

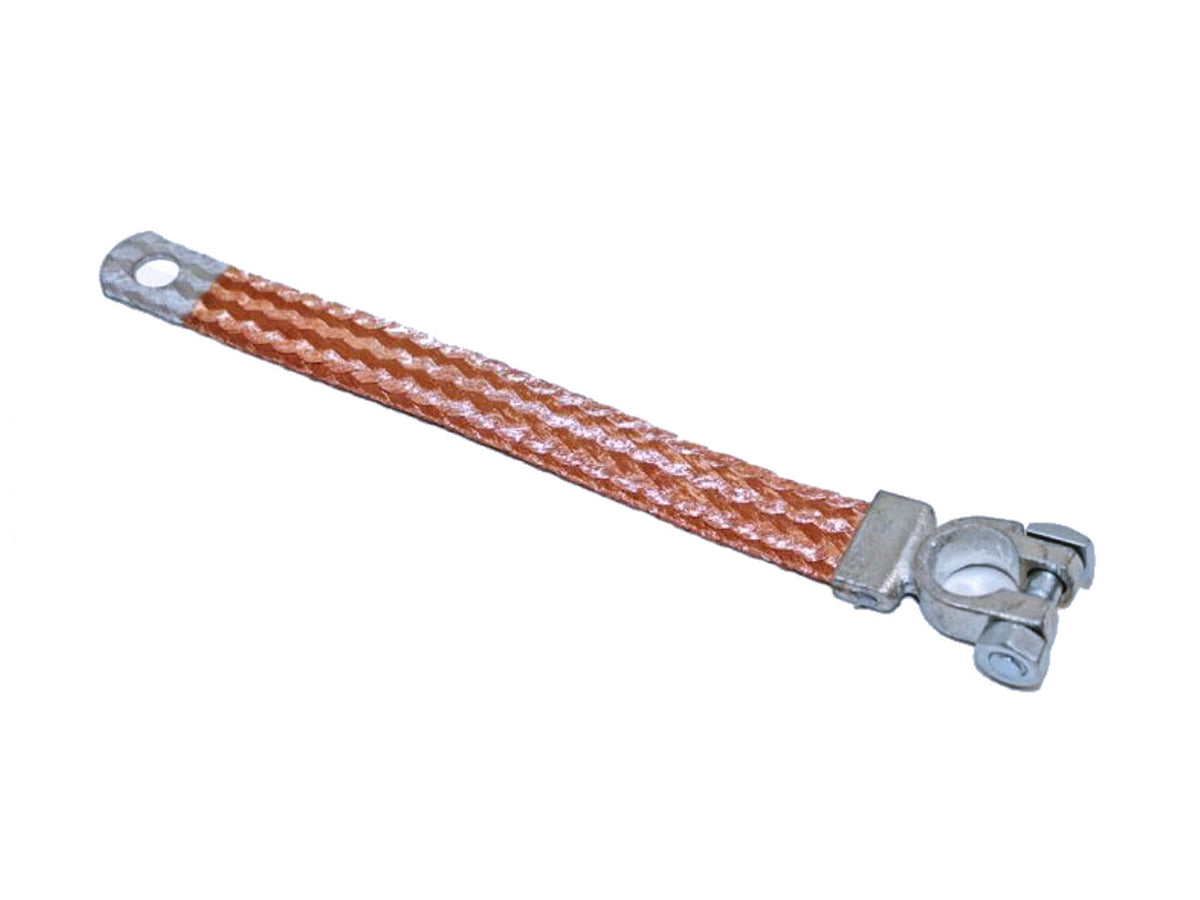

Battery Ground Cable
Heavy-duty battery ground cable designed to ensure a reliable electrical ground from the battery to the chassis.

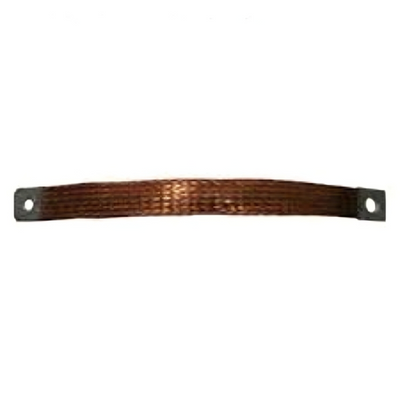

901.611.918.20

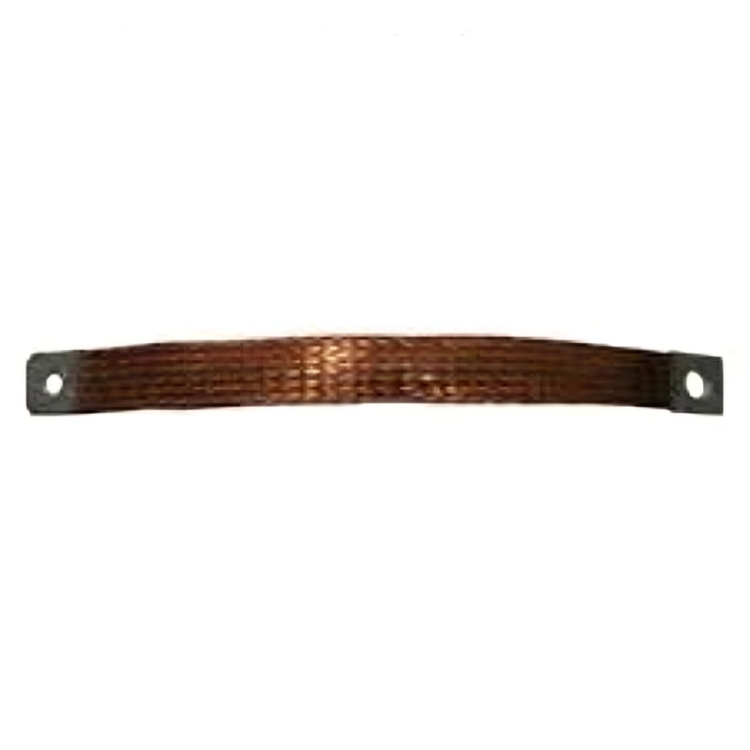

Chassis Ground Strap
Chassis ground strap connecting the transmission to the ground stud on the heel panel near the torsion tube, ensuring proper grounding of drivetrain components.
901.612.035.20
Interior Light Harness
Interior light harness connects to the main harness under the right-side A-pillar and routes up the A-pillar to supply power to both interior dome lights.
901.612.041.20
License Plate Light Harness
Harness for license plate illumination. Connects to the main harness in the engine compartment, routed around the left deck lid hinge and underneath the sheet metal to the plate lights.
901.612.042.00
Luggage Compartment Light Harness
Two-bulb light harness for the front luggage compartment. Connects to the main harness near the right-side hood hinge.

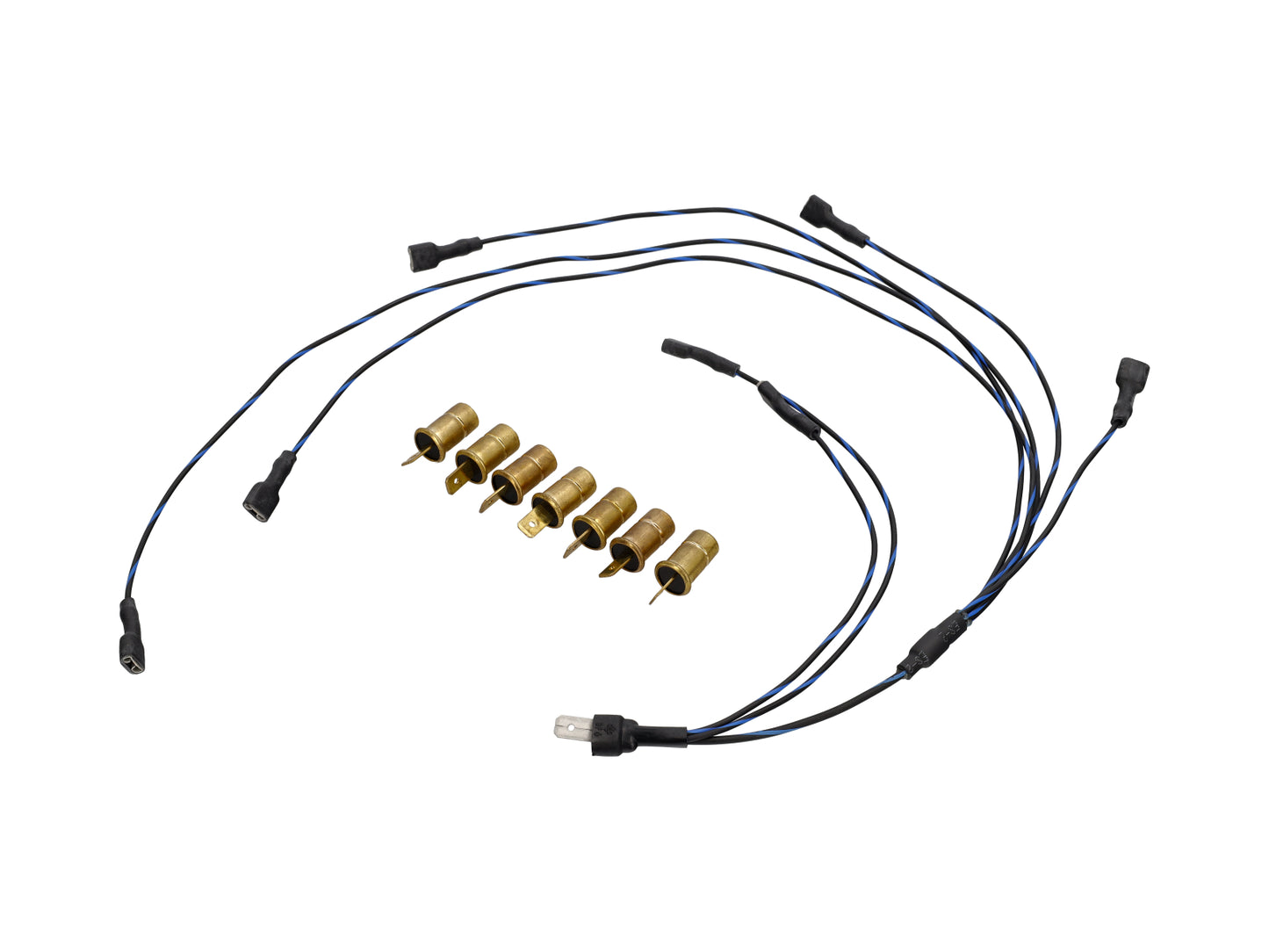

901.612.043.03

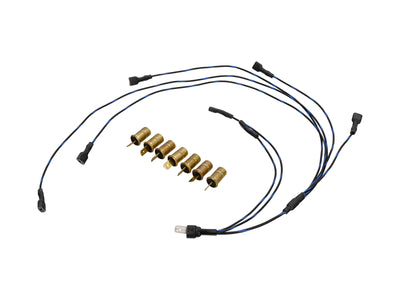

Gauge Wiring - 7 Wire (1969–73)
Seven-wire gauge illumination harness complete with BA7s bulb sockets (qty 7) and 2-watt bulbs (qty 7) for proper dash lighting on early 911s.
901.612.333.00

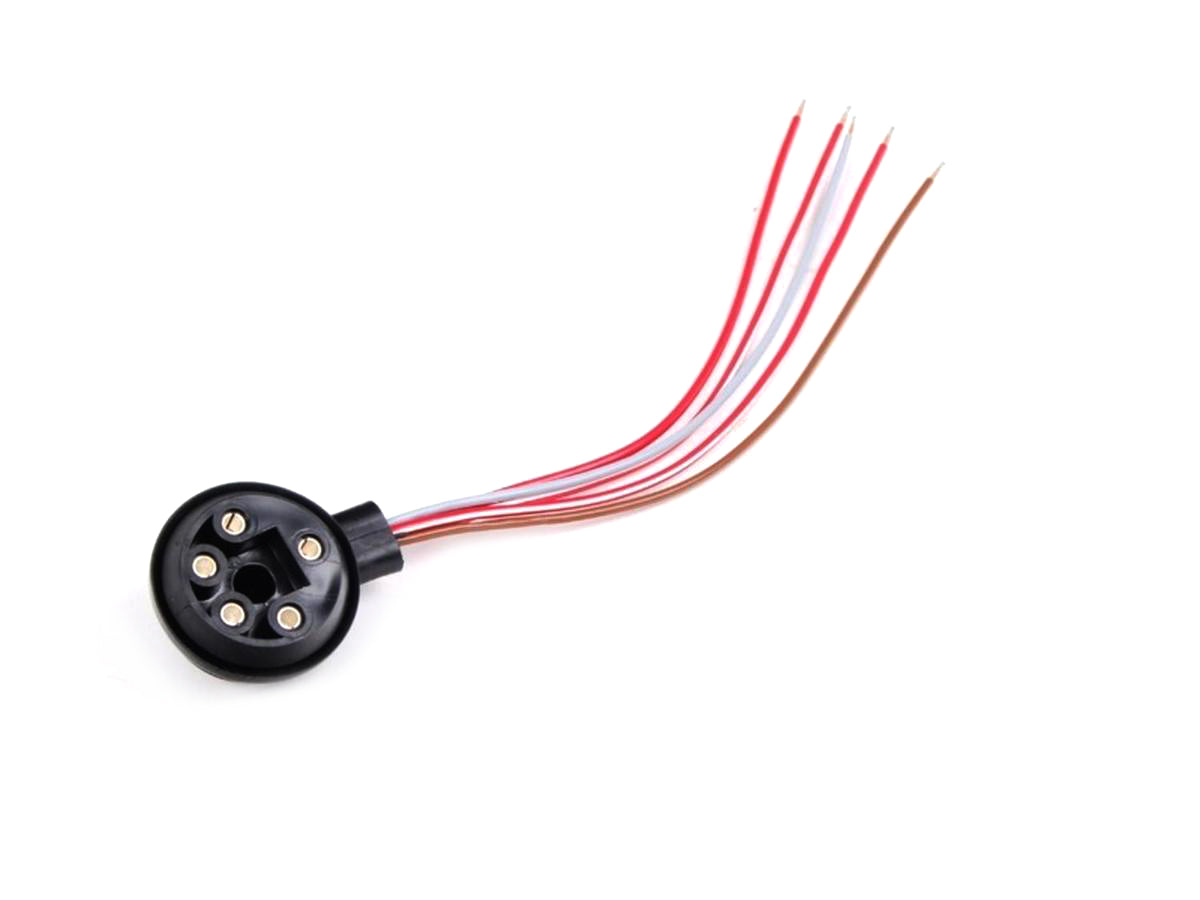

Relay Socket for Round Relay
Fully wired relay socket for round 5-pin relays. Features 1.5mm² wire for coil windings and 2.0mm² wire for common and contact terminals.
901.612.891.01

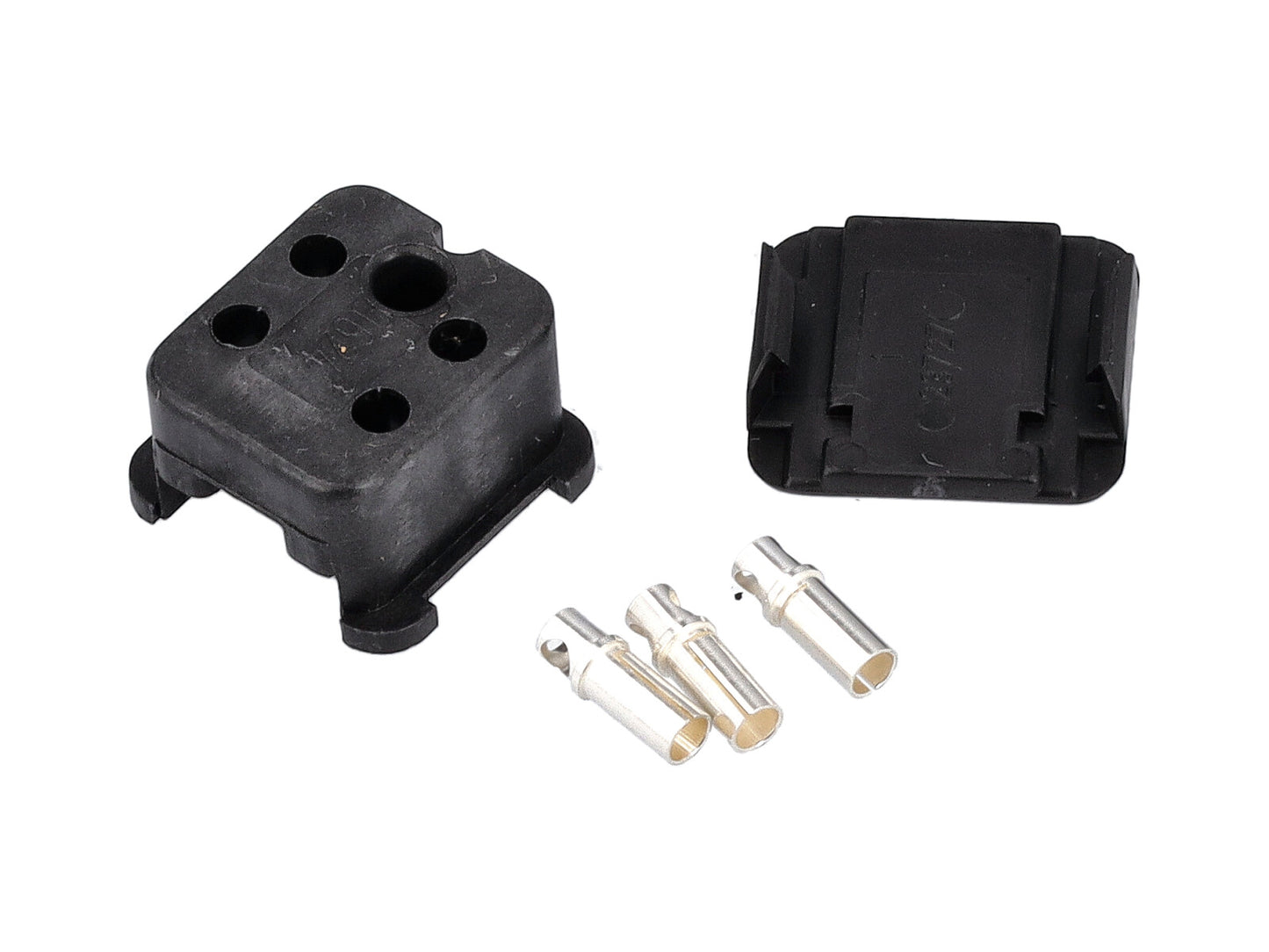

Four Pole Connector Housing with Terminal Sleeves
Four-pin connector housing used for fuel sending units and blower motor wiring. Comes with four solder socket terminals for a reliable connection.
911.612.001.21

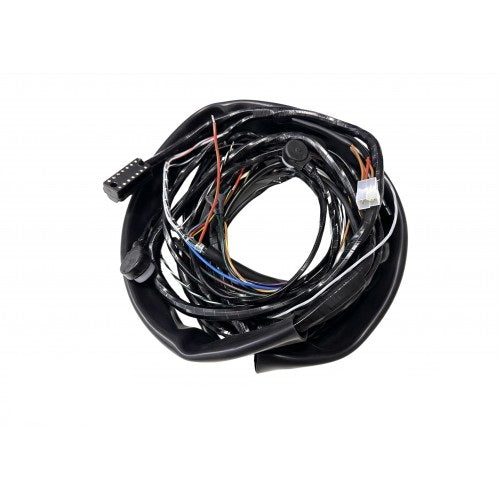

Tunnel Harness
Runs from front fuse panel and gauges to engine compartment and rear lights. Includes provisions for a rear-mounted fuel pump. Designed for 1971–1973 911 models.
911.612.002.10
Front Luggage Compartment Harness
Wiring harness for front compartment, connecting the fuse panel to dash switches and gauges. For 1971–1973 Porsche 911s.
911.612.003.10
Front Light Harness
Front light harness runs from fuse panel to inner fenders, includes horn relay socket, and is neatly laced. Fits 1971–1973 911s. Pairs with RD-911.612.024.00 for headlight buckets.
911.612.004.10
Regulator Panel Wiring Harness
Connects the tunnel harness to engine components, including warm-up relay, Bosch voltage regulator, CDI, speed switch, and 3-position fuse panel. Suited for 1971–1973 911s.
911.612.010.00
Light Switch Harness
Connects the front luggage compartment harness to the light switch for proper lighting control.
911.612.011.00

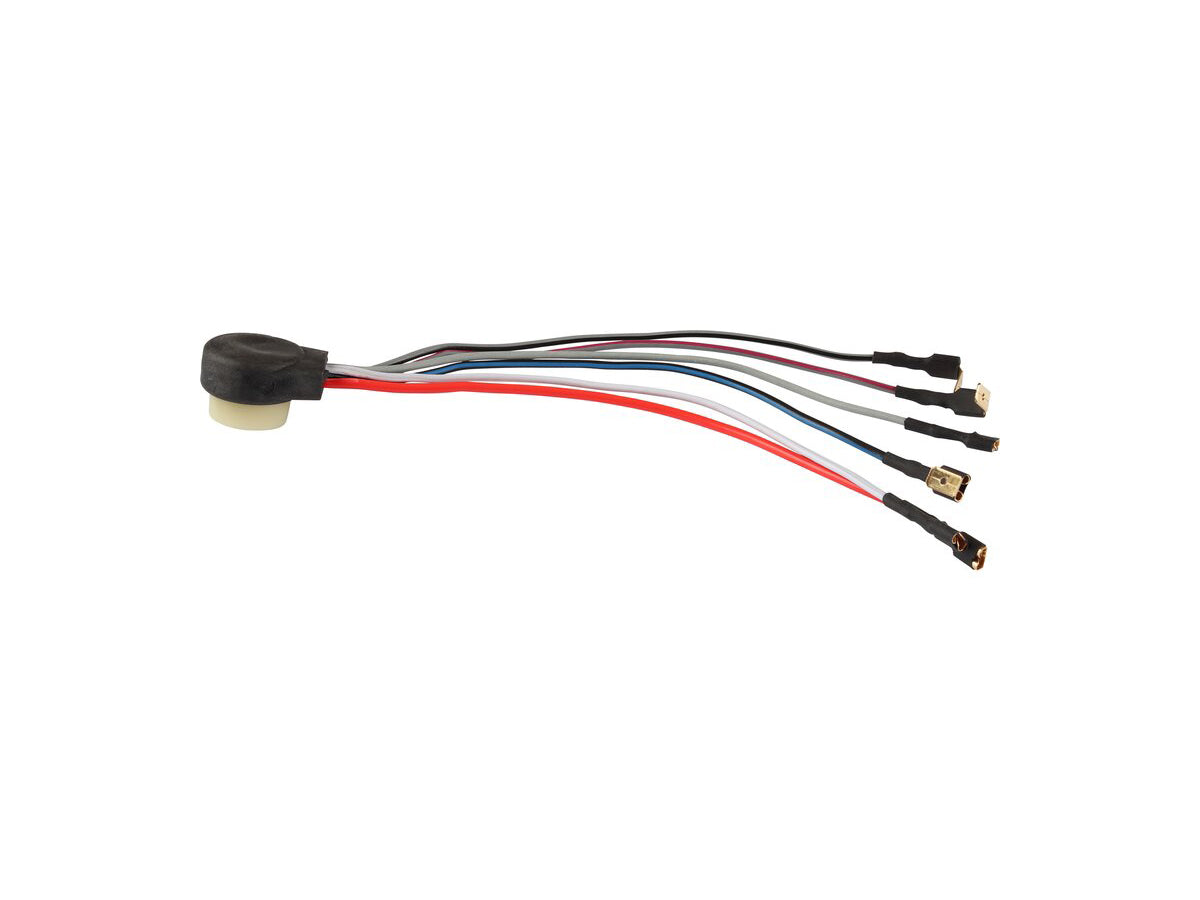

Ignition Switch with 6 Pole Plug and Housing
Ignition/starter switch harness routed under the dash. Connects luggage compartment harness to ignition switch. Designed for 1970–1971 911s; dash bulb resistor not included.
911.612.014.00
Hazard Switch Harness
Eight-position molded connector housing for hazard switch. Intended for 1970–1972 Porsche 911s.
911.612.016.00

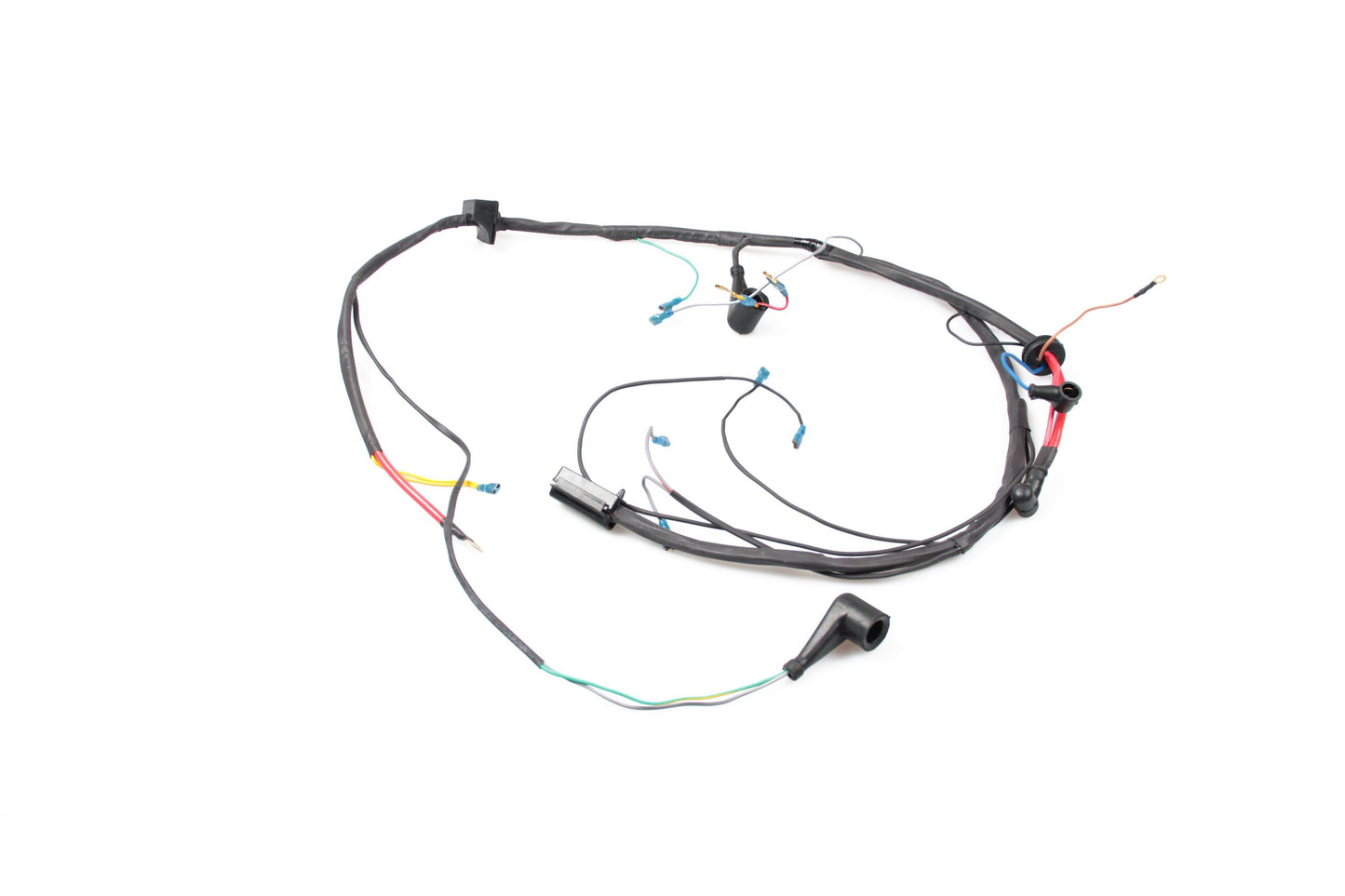

Engine Harness (Bosch Alternator)
MFI engine harness for 2.2L 911s with Bosch alternator and voltage regulator. For 1970–1971 models.
911.612.017.00 Engine Harness (Motorola Alternator)
Engine harness for 2.2L 911s using a Motorola alternator and regulator. Includes full MFI support. For 1970–1971 models. Or, 911.612.017.20 Engine Harness Engine harness for 2.4L MFI 911s with Motorola alternator and regulator. Compatible with 1972–1973 models.
911.612.022.24

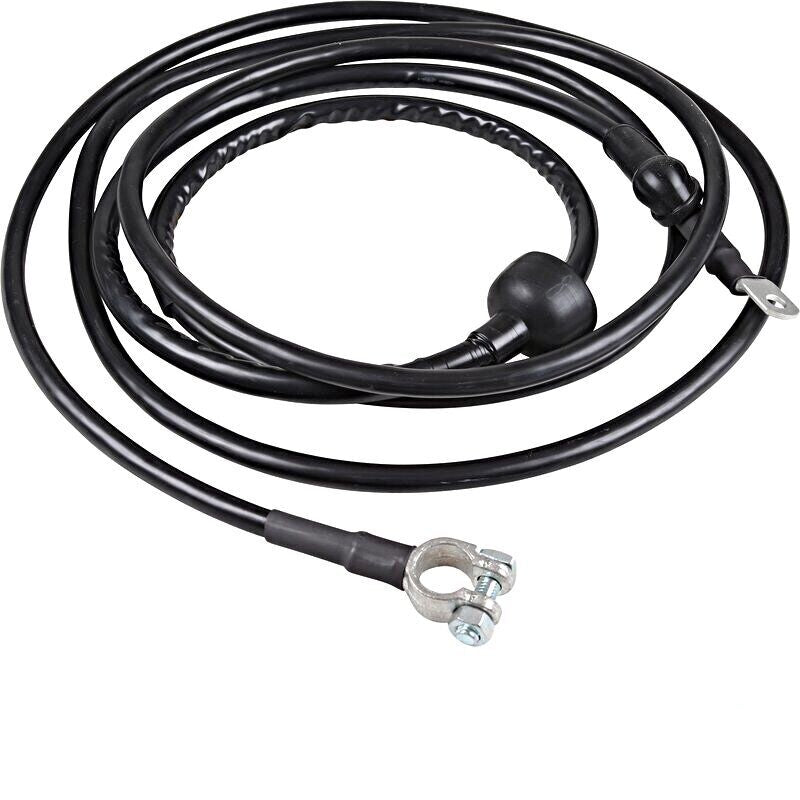

Starter Cable 911
High-capacity starter cable featuring hex-crimped battery lug, tunnel boot, and starter boot for late-model 911s.
911.612.024.00
Headlight, Fog Light and Horn Wiring Harness
Harness runs from inner fender to headlight bucket. Includes correct grommets and H4 headlight connector.
911.612.027.00
Fog Light Harness
Direct-fit fog light harness that connects to the fuse panel without modification.
911.612.029.01
AC Switch Harness
Harness for air conditioning switch relay control.
911.612.032.01

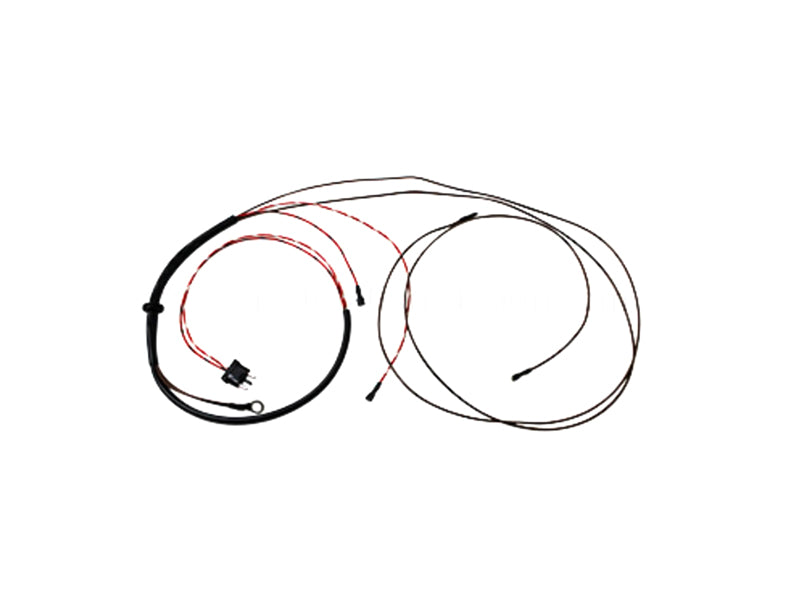

Two Stage Rear Window Defogger Harness
Two-stage defogger harness connects engine bay relay panel to rear window elements. Includes grommet for parcel shelf.
911.612.035.00
Two Stage Rear Window Defogger Relay Harness
Connects two-stage defogger relay to tunnel and window element harnesses. Plug-and-play with two-pole connector included. Or, 911.612.054.00
Single Stage Rear Window Defogger Relay Harness Relay harness for single-stage rear window defogger systems.
911.612.039.10
Rear Light Harness
Rear light wiring for inner fender to tail light housing. Grommet included. Two required per vehicle.
911.612.050.00
Complete Harness for 3 Pin CDI/HKZ Box
Complete CDI wiring harness with all connector boots, PVC sheathing, braided ground strap, and premium wire. For 1970–1974 911s.
911.612.072.10
Fuel Pump Harness
Fuel pump harness for engine bay-mounted pumps. Designed to match original layout and functionality.
911.612.078.00
AC Power Control Relay Harness
Relay harness for air conditioning power control. Interfaces with the fuse panel and AC relay.
911.612.079.00
Electromagnetic AC Clutch Harness
AC clutch wiring from front luggage compartment to engine bay compressor. Fits 911s from 1970–1985.
911.612.080.01
AC Relay Harness
A/C relay harness designed for Porsche 911s from 1970 to 1985.
911.615.109.02
Black Relay
High-performance 30A relay with 225 Ohm coil resistance, TVS protection, and anodized aluminum casing. Built in Canada using modern components. RoHS compliant. Use 911.612.108.01 for red variant.
999.632.007.00

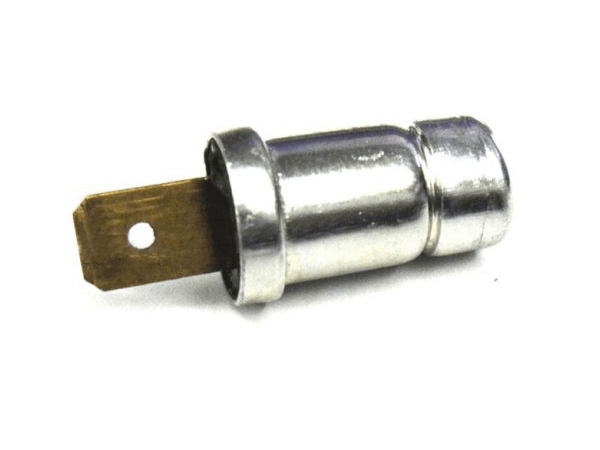

Single Pole Instrument Bulb Holder
Brass bulb socket for BA7s 2W bulbs. 6.3mm quick-connect terminal. Used in 911 (1969–77) and 914 (1970–76). Diameter: 10mm nominal.
999.632.009.10
Instrument Light Bulb Holder
Two-pole BA7s bulb holder (2W, 12V). Does not include bulb. For use in signal or gauge lighting.
999.652.151.40
Push-On Connector
Weco 3-pole push-on connector for various electrical applications.
999.659.006.50

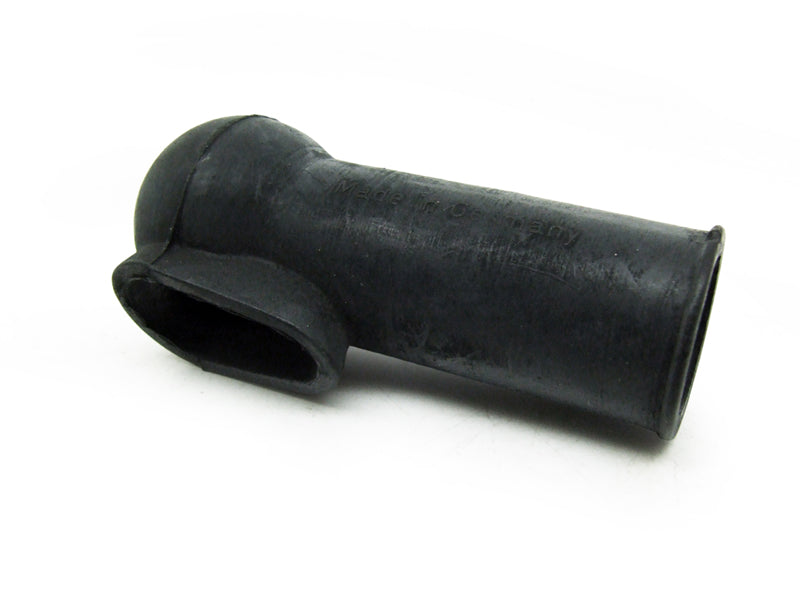

Protective Rubber Boot
Rubber boot designed to protect the starter cable's positive terminal. Prevents moisture and debris from causing shorts.
H4RP
H4 Light Bulb Repair Pigtail
Repair pigtail for H4 headlight bulbs. Ideal for fixing damaged or corroded factory connectors.

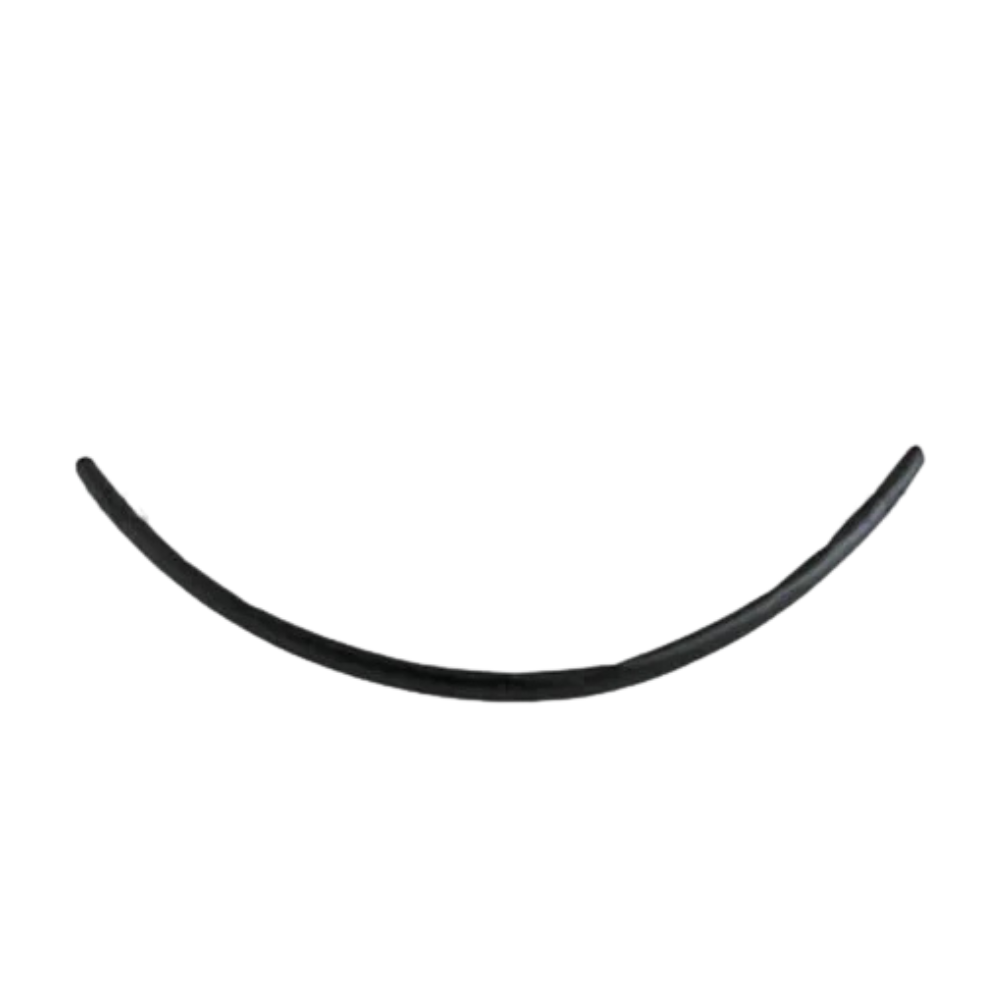

Tunnel.Tubing
Tunnel Tubing
Heat- and oil-resistant tubing that protects the tunnel harness as it exits the tunnel and routes above the torsion tube. 30mm inner diameter. Sold in 5-foot lengths (1.5m).
VoltReg1

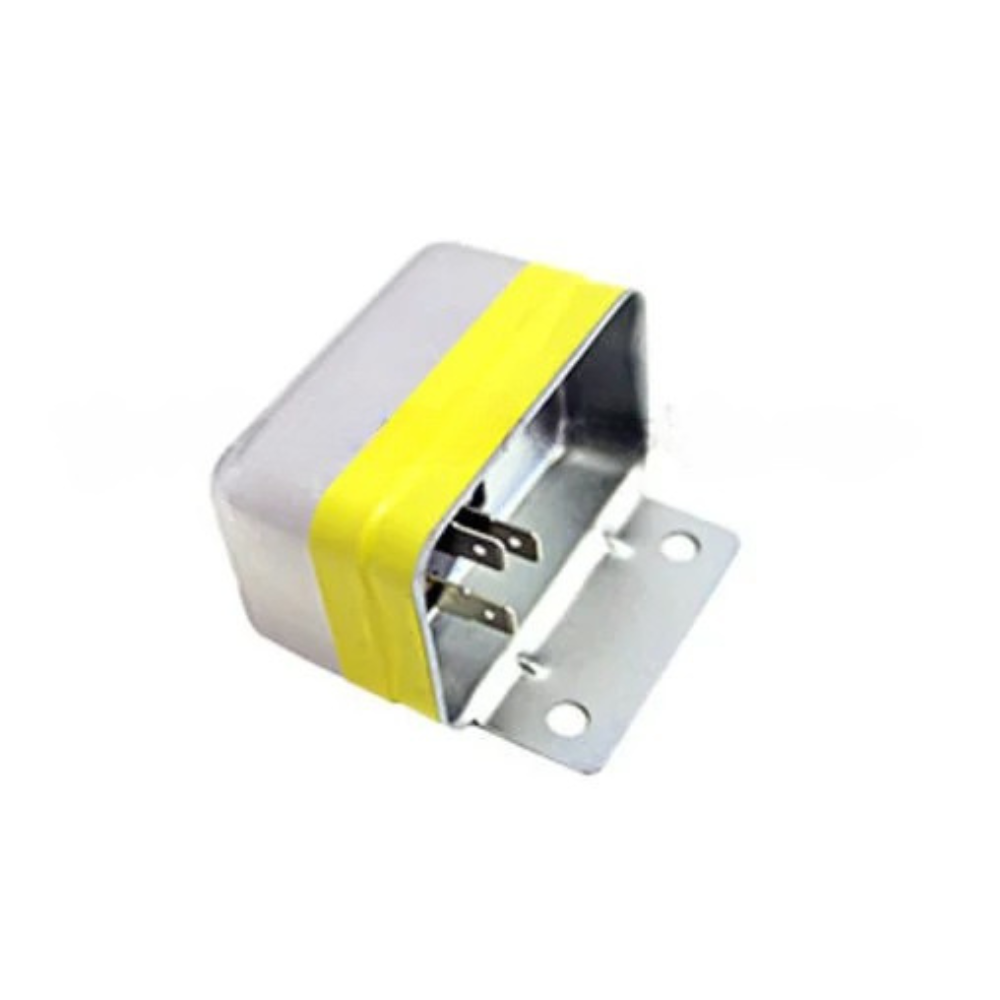

Bosch Style Voltage Regulator
Steel-cased voltage regulator. 12V rated, 14.4V operating, positively regulated. Designed in the Bosch style for compatibility with classic Porsche systems.
