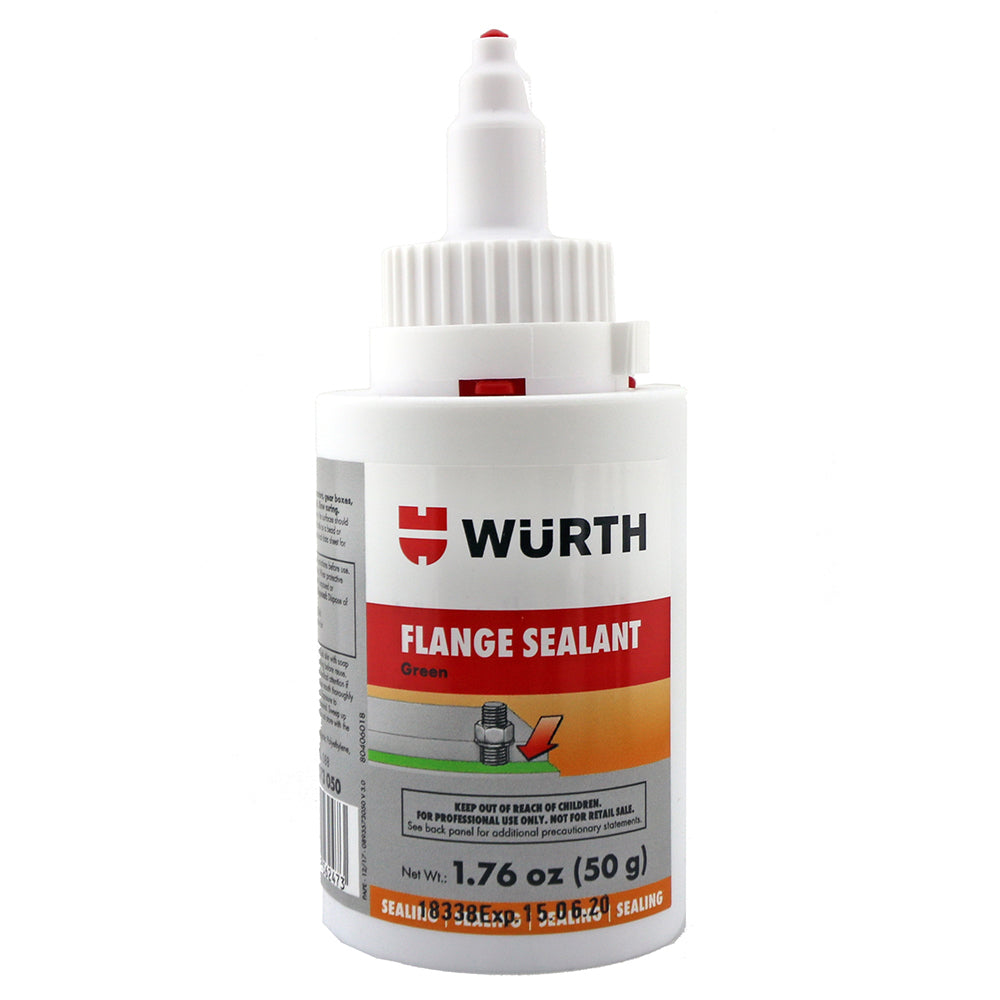

DOS Flange Sealant (Green) - 1.76 oz

This 1.76 oz container of DOS Flange Sealant in green is designed for sealing flanges and surfaces with small gaps up to 0.3 mm. It serves as a reliable replacement for solid seals and is particularly effective in applications requiring good wetting, such as intricate castings, narrow webs, and smooth surfaces.

Physical Properties (Liquid State):

• Chemical Description: Dimethylacrylate
• Color: Green
• Viscosity (Brookfield at 77°F): 40,000 - 60,000 mPas (spindle 6/2.5 rpm) / 15,000 - 25,000 mPas (spindle 6/2.5 rpm)
• Density: 1.05 g/cm³
• Flash Point: >212°F
• Shelf Life: 1 year at room temperature

Physical Properties (Cured State):

• Hand-Tight After: 5-10 minutes
• Usable After: 30-40 minutes
• Final Strength After: 3-6 hours
• Pressure Shearing Strength (DIN 54452): 18-26 N/mm²
• Operating Temperature Range: -67°F to +302°F

Key Features:

• Low Strength: Allows for easy disassembly when needed.
• Effective Sealing: Provides a reliable seal for flanges and surfaces with small gaps.
• Excellent Wetting: Ideal for complex castings, narrow webs, and smooth surfaces.
• Replaces Solid Seals: Offers a convenient alternative to traditional gaskets.
• Versatile Use: Suitable for a range of applications requiring a low-strength, easily removable seal.
