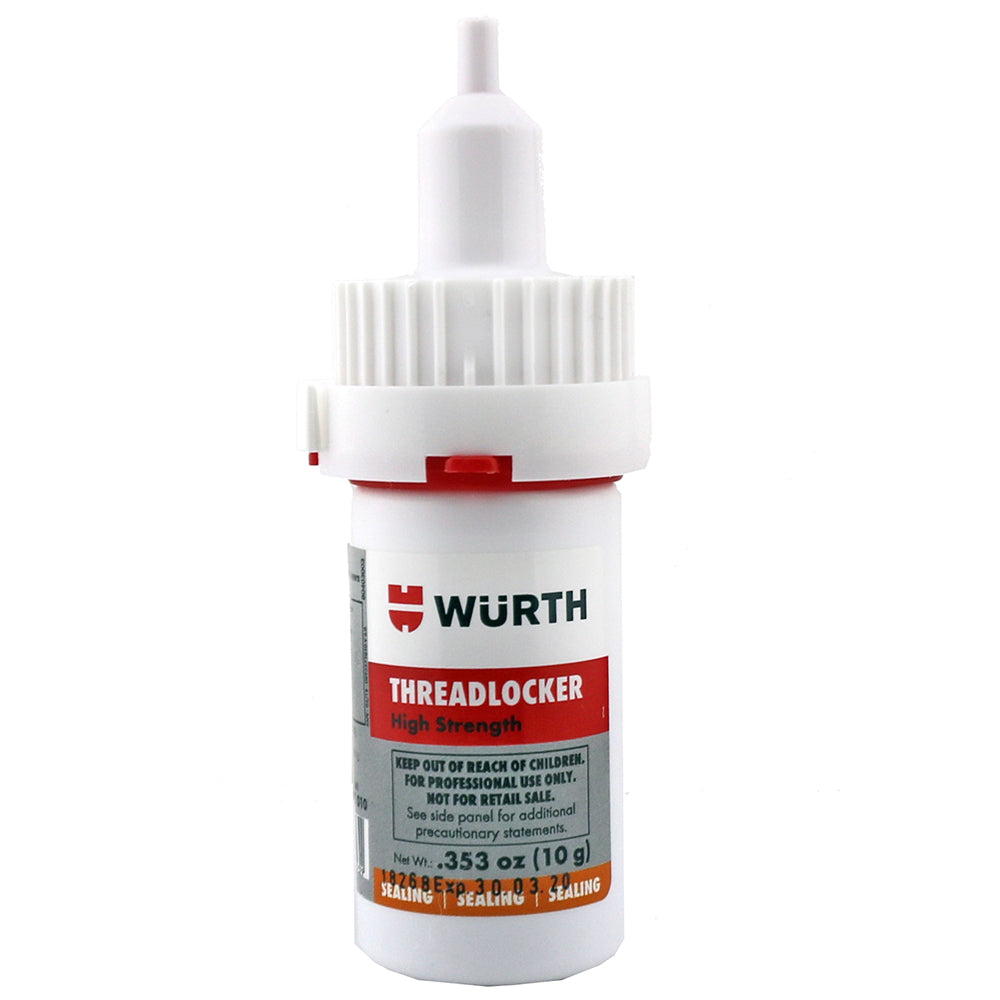

DOS Threadlocker - High Strength (0.35 oz)

This 0.35 oz container of DOS Threadlocker is a high-strength, hardly removable compound designed for securing threaded fasteners. Ideal for screws, studs, bolts, nuts, threaded inserts, and plugs intended for permanent installation, it offers exceptional resistance to loosening and harsh environments.

Physical Properties (Liquid State):

• Chemical Description: Dimethylacrylate
• Color: Red
• Viscosity (Brookfield at 77°F): 400 - 600 mPas (spindle 2/20 rpm)
• Density: 1.11 g/cm³
• Maximum Thread Diameter: M20
• Maximum Gap Filling Capacity: 0.15 mm
• Flash Point: >212°F
• Shelf Life: 1 year at room temperature

Physical Properties (Cured State):

• Hand-Tight After: 10-20 minutes
• Usable After: 1-3 hours
• Final Strength After: 5-10 hours
• Initial Breakaway Torque: >30 Nm (M10)
• Continuing Torque: >45 Nm (M10)
• Pressure Shearing Strength (DIN 54452): 12-15 N/mm²
• Operating Temperature Range: -67°F to +302°F

Key Features:

• High-Strength Formula: Ideal for heavy-duty applications requiring a permanent hold.
• Permanent Bond: Requires significant heat (572°F) for removal.
• Chemical and Heat Resistant: Withstands harsh environments and high temperatures.
• Vibration and Impact Resistant: Prevents loosening due to vibrations or impacts.
• Versatile Use: Suitable for a wide range of threaded fasteners.
• Eliminates Need for Mechanical Retainers: Offers a secure hold without additional hardware.
