Porsche Super RTV Silicone Red 200ml 08933312
Porsche

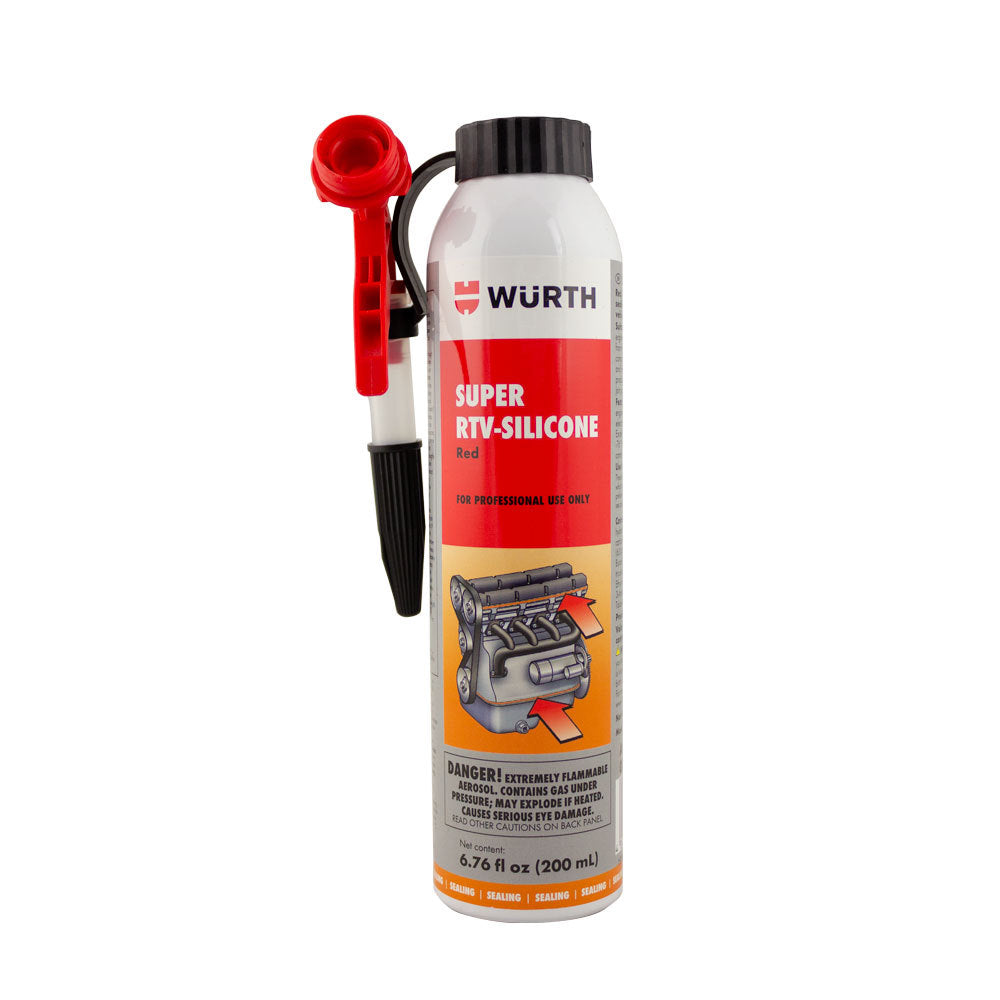

Super RTV Silicone Red (200ml).
Würth Red Super RTV Silicone is a premium adhesive and sealing compound specifically designed for use in high-temperature automotive applications. Its modified oxime silicone base provides exceptional resistance to chemicals, making it ideal for critical areas exposed to various fluids. The convenient aerosol can packaging ensures easy and precise application.
Technical Data:
- Chemical Basis: Modified oxime silicone
- State: Thixotropic paste
- Skin Forming Time (ASTM-D-4678): 7 minutes
- Dry Surface (ASTM-D-4678): Approximately 10 minutes
- Curing Speed: Approximately 2 mm/24 hours (73.4°F/50% relative humidity)
- Shore A Hardness (ASTM-D-676): 40
- Tensile Strength (ASTM-D-412): Approximately 2.2 N/mm²
- Elongation at Rupture (ASTM-D-412): 270-300%
- Thermal Conductivity (ASTM-D-2214/70): 0.002 Jcm⁻¹s⁻¹K⁻¹
- Coefficient of Thermal Expansion (ASTM EB-31): 20 x 10⁻⁵ K⁻¹
- Dielectric Strength (ASTM-D-149): 15 kV/mm
- Dielectric Constant @ 1MHz (ASTM-D-150): 2.8
- Loss Factor @ 1MHz (ASTM-D-150): 0.002
- Volume Resistance (ASTM-D-257): 1 x 10¹⁵ Ω/cm
- Temperature Range: -76°F to +599°F (briefly up to +698°F)
Key Features & Benefits:
- Excellent Chemical Resistance: Resists motor and gear oils, refrigerants, and antifreeze, making it suitable for critical areas.
- Acid-Free Curing: Non-corrosive and non-conductive, protecting electronic components and lambda sensors.
- High-Temperature Stability: Withstands the extreme temperatures found in engine and machinery applications.
- Easy Application: The compressed air spray can allows for easy and precise dispensing.
- Durable Seal: Provides a strong, flexible seal that can withstand vibration and movement.
Application Area:
Ideal for sealing:
- Engine covers
- Flanges
Application Instructions:
- Ensure surfaces are clean, dry, and free from old sealant material.
- Apply an even bead of Würth Red Super RTV Silicone to one surface.
- Assemble parts as required.
- Allow sealant to cure according to the specifications provided in the technical data.
| Alt. Number: | 08933312 08933312 |
| Brand: | Wurth |
| WH Rack: | XYZ |
