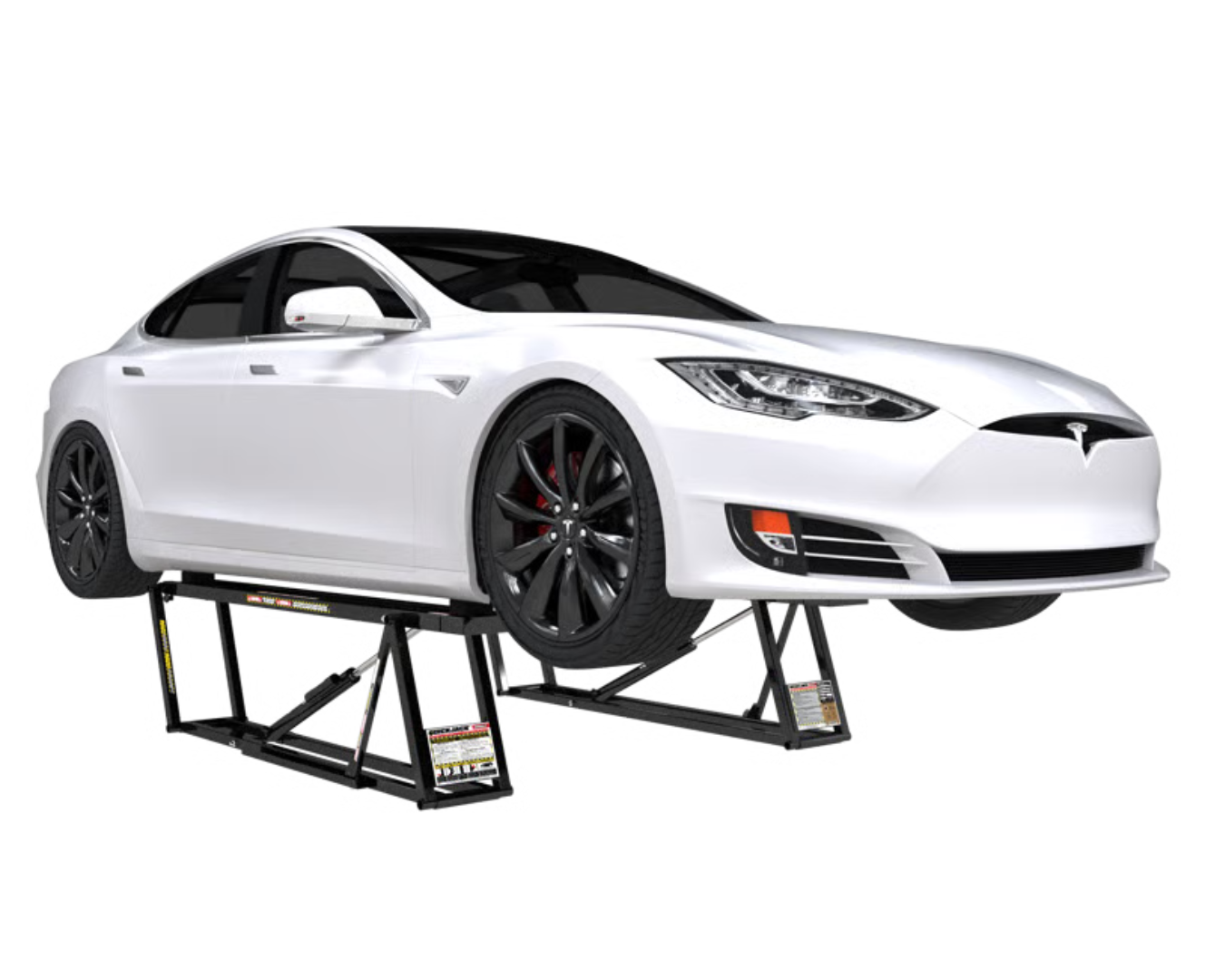

QuickJack 6000ELX Extended-Width Portable EV Car Lift

Available
P/N: 5175650
Regular price $2,348.25

⦿  30 days returns. Buyer pays for return shipping. See details

QuickJack 6000ELX Extended-Width Portable EV Car Lift

The 6000ELX Portable Car Lift is a high-performance, 6,000-lb capacity lift designed specifically for EVs and long-wheelbase vehicles. With an extended lift point spread, this lift is ideal for handling modern electric vehicles like Teslas and Rivians. The extra-long frame ensures that this lift fits virtually all contemporary EVs and luxury vehicles with extreme lift point locations. Featuring automatic safety locks and a one-touch control system, the 6000ELX guarantees both convenience and safety in lifting operations. Its portable design allows it to be easily rolled around your garage or shop for optimal efficiency.

Product Features

  • Automatic Safety Locks: Ensures secure lifting with safety locks that activate automatically.

  • Extended Lift Point Spread: Lift range from 47.5" to 76" makes it suitable for a variety of vehicles, including sports cars and trucks.

  • One-Touch Button Control: Allows easy operation with just a single button for raising and lowering the lift.

  • Built-in Hydraulic Flow Divider: Guarantees an even lift with no crossbars, ensuring stability throughout the lifting process.

  • Compact Footprint: Despite its extended frame, the lift is easy to move and store with durable urethane wheels.

  • Accessories Available: Optional accessories to enhance versatility and functionality.

Specifications:

  • Material: Steel

  • Assembly Required: Yes

  • Portable: Yes

  • Rated for Outdoor Use: No

  • Assembled Weight: 248 lbs

Dimensions

  • Height (Overall): 21 inches

  • Individual Frame Weight: 124 lbs

  • Overall Width (Max): 12.5 inches

  • Lifting Height (With 2-inch block): 21 inches

  • Lifting Height (With 3-inch block): 21.75 inches

  • Lifting Height (Stacked blocks): 24 inches

  • Maximum Lift Point Spread: 76 inches

  • Minimum Lift Point Spread: 53 inches

Lifting Capacity

  • Lifting Capacity: 6,000 lbs

Locking Dimensions

  • Locking Position Quantity: 2

  • Lock Release Type: Single-Point safety release

  • Lock Spacing: 14 inches

Power

  • Horsepower: 1

  • Voltage: 110V, 50/60HZ, 1PH

  • Amps: 10

  • Motor: 110V, 50/60Hz, 1PH

  • Noise: 70 dB

  • Power Unit: 110V, 50-60Hz, 1-Ph.

  • Watts: 1100

  • Motor RPM: 3450

Clearance Dimensions

  • Lowered Height (Frame Only): 3.5 inches

  • Lowered Height (With 2-inch block): 3.75 inches

Brand:BendPak
WH Rack:XYZ
