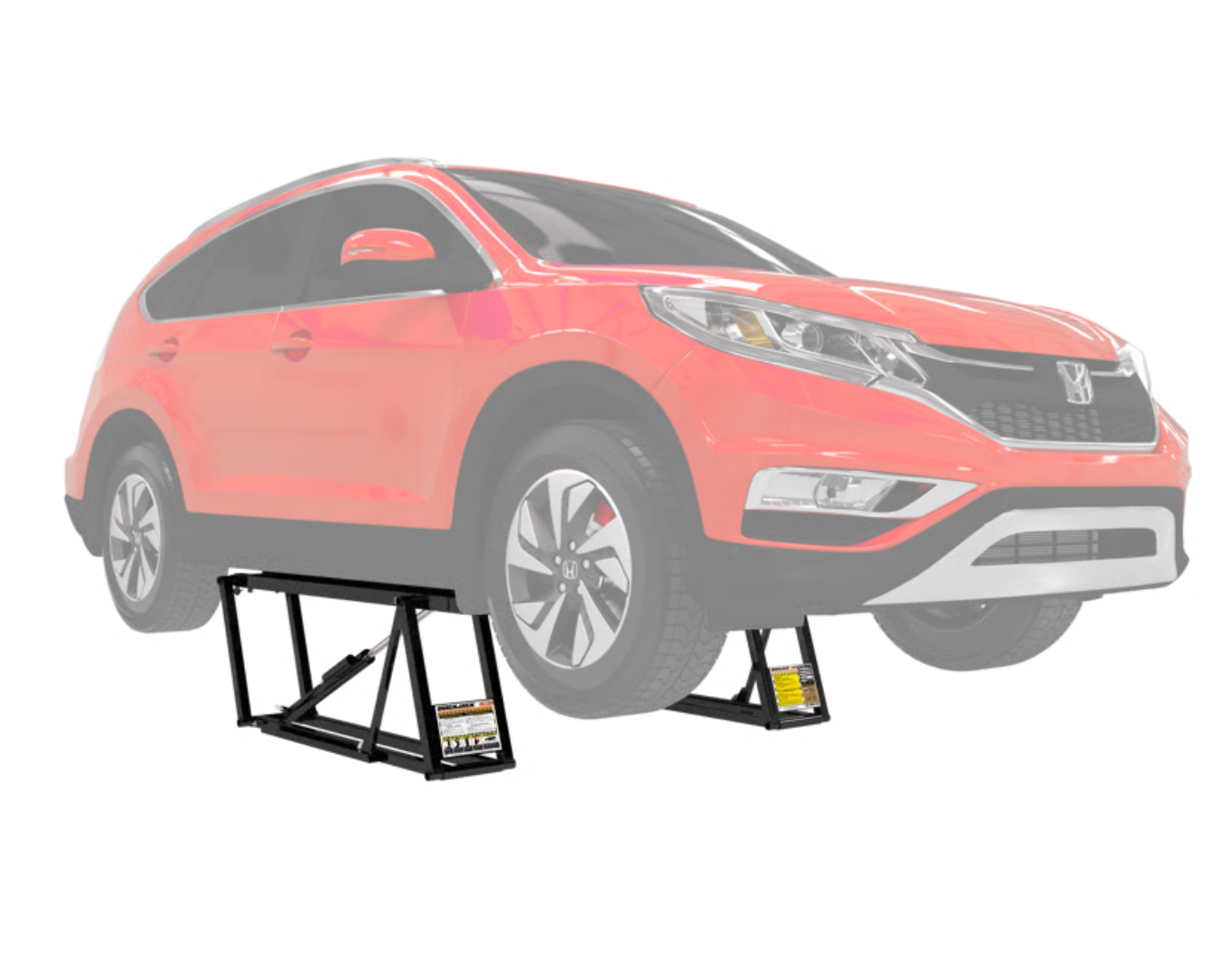

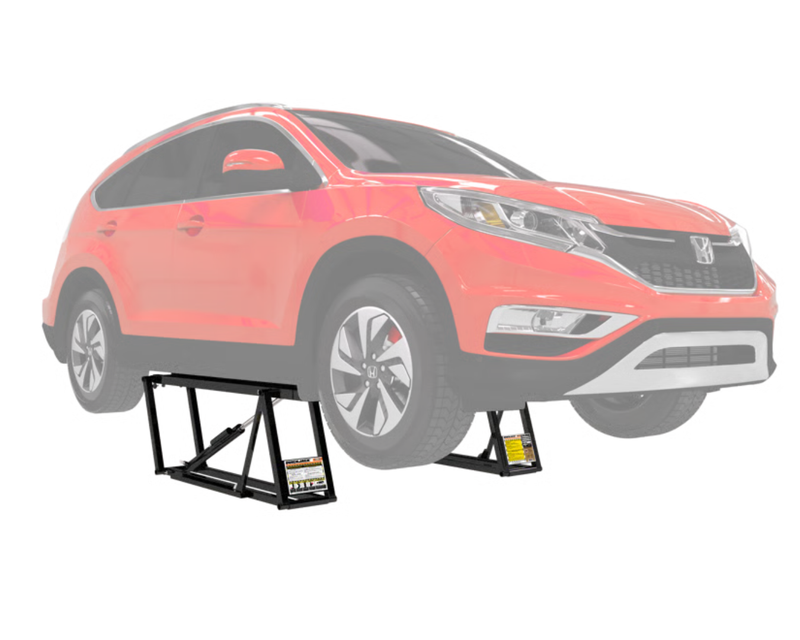

QuickJack 7000TL Standard Frame Portable Car Lift

The 7000TL lift offers a 24.5" lifting height, allowing for easy access to passenger cars, light-duty trucks, and SUVs. With reinforced upper frame rails, it provides the strength required for heavy-duty lifting. For vehicles with higher ground clearance, a truck adapter set is available. The primary difference between the 7000TL and 7000SLX is the increased lifting height, which adds an extra 3 inches, improving accessibility for various repair tasks. Despite the increase in lifting height, the overall dimensions remain the same, preserving the lift’s low 3.5" lowered height.

Features:

• Lifting Height: 24.5 inches

• Lift Capacity: Suitable for passenger cars, light-duty trucks, and SUVs

• Frame Rails: Reinforced for added strength

• Ground Clearance: Includes option for truck adapter set

• Lifting Point Spread: 37 inches

• Lowered Height: 3.5 inches

Specifications:

• Material: Steel

• Assembly Required: Yes

• Rated for Outdoor Use: No

• Assembled Weight: 220 lbs

• Height Overall: 21 inches

• Overall Width Max: 12.5 inches

• Lifting Dimensions:

  • Lifting Height with 2-inch block: 20.75 inches

  • Lifting Height with 3-inch block: 21.75 inches

  • Lifting Height with stacked blocks: 23.75 inches

• Maximum Lift Point Spread: 60 inches

• Minimum Lift Point Spread: 37 inches

• Lifting Capacity: 7000 lbs

• Rise:

  • Time to Full Rise: 30 seconds

• Locking Dimensions:

  • Locking Position Quantity: 2

• Power:

  • Horsepower: 1 HP

  • Voltage: 110V

  • Amps: 10A

  • Motor: 110V, 60Hz, 1-Ph

  • Noise Level: 70 dB

  • Power Unit: 110V, 50-60Hz, 1-Ph

  • Watts: 110W

  • Motor RPM: 3450

• Clearance Dimensions:

  • Lowered Height Frame Only: 3.5 inches

  • Lowered Height with 2-inch block: 3.75 inches
