QuickJack 8000TLX Extended Frame Portable Car Lift Package

Available
P/N: 5176113
Regular price $2,398.75

⦿  30 days returns. Buyer pays for return shipping. See details

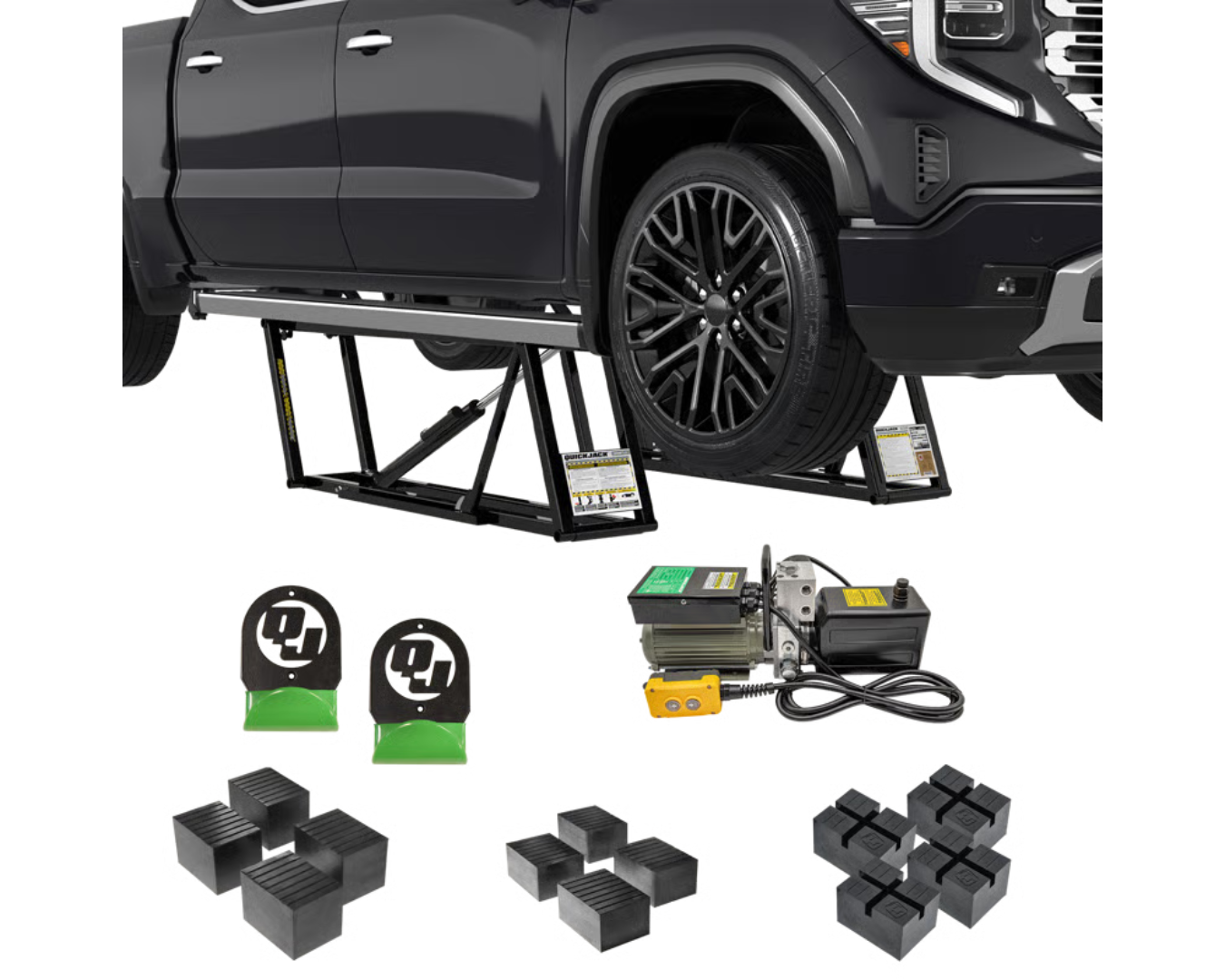

QuickJack 8000TLX Extended Frame Portable Car Lift Package

The QuickJack 8000TLX Bundle is a powerful, extended-length portable lift designed for larger vehicles like trucks and SUVs. With an impressive 8,000-lb. lifting capacity and a 76-inch frame, this bundle includes everything you need for heavy-duty lifting and efficient storage. It also features wall hangers and an SUV/truck adapter kit, making it perfect for extended, long-wheelbase vehicles. Built with a reinforced hydraulic system and automatic safety locks, the 8000TLX is a reliable solution for all your vehicle maintenance needs, including suspension work and oil changes.

Features:

  • 76" extended frame length for lifting long-wheelbase trucks and SUVs

  • 8,000-lb. lifting capacity to handle large, heavy vehicles

  • Lifts to a full 24.5" for ample undercarriage access

  • Reinforced hydraulic system for synchronized lifting and lowering

  • Automatic mechanical safety locks for secure operation

  • One-handed pendant control for easy and efficient lifting

  • Collapses to a compact 3.5" height for low-profile storage

  • Wall Hanger Set for vertical storage, frees up floor space

  • SUV & Truck Adapter Kit extends lift point height to approximately 27" for high-clearance vehicles

  • Wall hangers feature solid-steel construction with a laser-cut QuickJack logo

  • Compatible with QuickJack's full range of accessories

Specifications:

  • Material: Steel

  • Assembly Required: Yes

  • Portable: Yes

  • Individual Frame Weight: 114 lbs

  • Lifting Heights:

    • With 2-inch block: 21 inches

    • With 3-inch block: 21.75 inches

    • With stacked blocks: 24 inches

  • Maximum Lift Point Spread: 66 inches

  • Minimum Lift Point Spread: 43 inches

  • Lifting Capacity: 8,000 lbs

  • Rise Time: 26 seconds to full rise

  • Locking Positions: 2

  • Lock Release Type: Single-Point safety release

  • Power:

    • Horsepower: 1 HP

    • Voltage: 110V 50/60Hz 1PH

    • Amps: 10

    • Motor: 110V 50/60Hz 1PH

    • Noise Level: 70 dB

    • Power Unit: 110V, 50-60Hz, 1-Ph

    • Watts: 1100W

    • Motor RPM: 3450 RPM

Brand:BendPak
