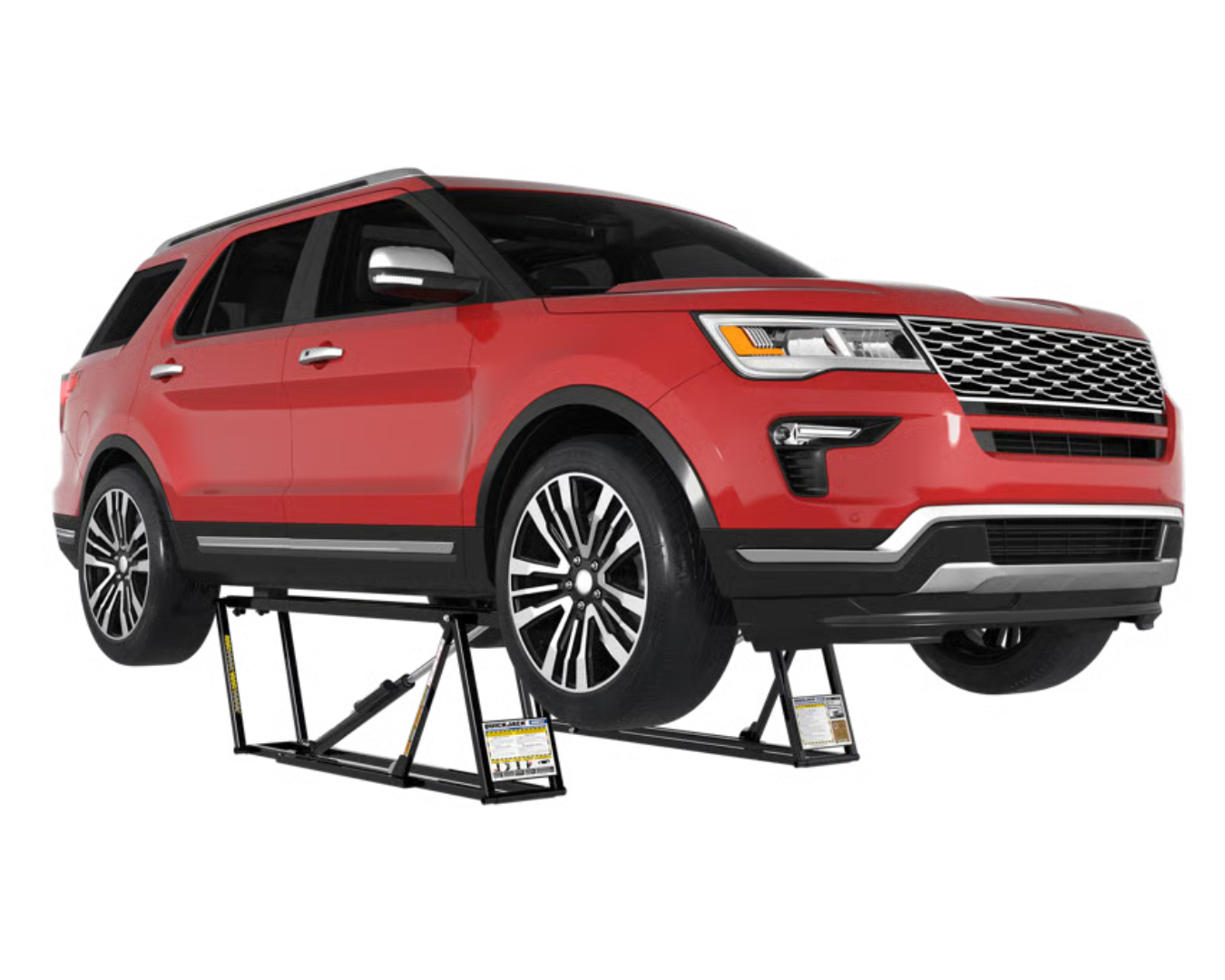

QuickJack 6000TLX Extended Frame Portable Car Lift

The QuickJack 6000TLX portable car lift is the perfect solution for lifting longer-wheelbase vehicles, offering an extended 76-inch frame and a 6,000-lb. lifting capacity. It is ideal for cars, SUVs, and light-duty trucks, offering easy and safe access to your vehicle's underside. The lift features a factory-preassembled hydraulic system, dual-position automatic safety locks, and an upgraded hydraulic unit that ensures smooth, synchronized lifting and lowering. With structural reinforcements for added durability and a compact, mobile design, this lift is perfect for both professional shops and home garages.

Features:

• Automatic Safety Locks: Dual-position locks engage securely at mid-rise and full-rise heights for added safety.

• Increased Lifting Height & Extended Reach: 24-inch lift height and 76-inch extended frame provide ample clearance for vehicles with longer wheelbases.

• Upgraded Hydraulic System: Engineered power unit with pressure-compensated flow divider ensures synchronized frame movement.

• Structural Reinforcements: Thicker cross members, improved weld geometry, and reinforced pivot joints for added stability and durability.

• One-Handed Operation: Pendant control allows for easy raising and lowering with no need for manual cranking.

• Compact & Mobile: Low profile and urethane wheels make it easy to move and store in tight spaces.

• Accessories to Increase Versatility: Compatible with QuickJack accessories like SUV adapters and motorcycle/ATV kits.

• Factory Preassembled Hydraulics: Hydraulic system comes fully assembled to eliminate setup headaches.

Specifications:

• Material: Steel

• Assembly Required: Yes

• Portable: Yes

• Frame Weight: 90 lbs

• Lifting Height with 2-inch Block: 20.75 inches

• Lifting Height with 3-inch Block: 21.5 inches

• Lifting Height with Stacked Blocks: 24 inches

• Maximum Lift Point Spread: 66 inches

• Minimum Lift Point Spread: 43 inches

• Lifting Capacity: 6,000 lbs

• Time to Full Rise: 30 seconds

• Locking Position Quantity: 2

• Lock Release Type: Single-Point Safety Release

• Horsepower: 1 HP

• Voltage: 110V, 50/60Hz, 1PH

• Amps: 10A

• Motor: 110V, 50/60Hz, 1PH

• Noise Level: 70 dB

• Power Unit: 110V, 50-60Hz, 1-Ph.

• Watts: 1100W

• Motor RPM: 3450
