QuickJack 6000TLX Extended Frame Portable Car Lift Package

Available
P/N: 5175638
Regular price $2,095.75

⦿  30 days returns. Buyer pays for return shipping. See details

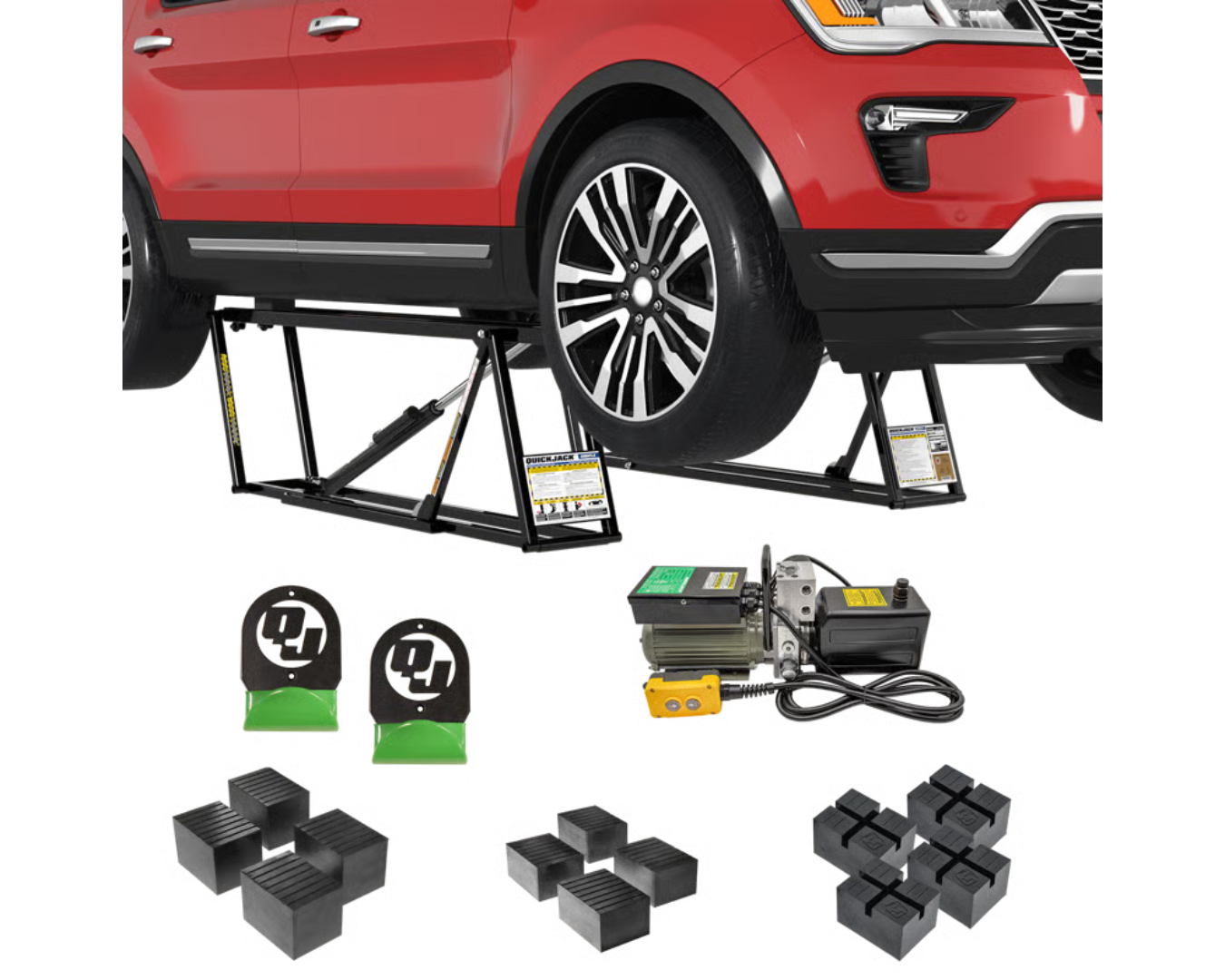

QuickJack 6000TLX Extended Frame Portable Car Lift Package

The QuickJack 6000TLX Bundle is the perfect solution for lifting longer vehicles with ease and safety. This extended-length portable car lift comes with everything you need to store your lift smartly and save space. It includes the 6000TLX lift, wall hangers for vertical storage, and pinch-weld blocks to protect your vehicle during lifting. With a 76-inch frame and 24-inch lift height, this system is ideal for long-wheelbase vehicles like sedans, SUVs, and light-duty trucks. QuickJack has enhanced the design for greater strength, stability, and reliable performance, making it perfect for both home garages and professional shops.

Features:

  • Extended 76" frame for long-wheelbase vehicles

  • 6,000-lb. lifting capacity for a wide range of vehicles

  • Upgraded hydraulic system for synchronized lifting performance

  • One-handed pendant control for easy operation

  • Automatic safety locks at mid-rise and full-rise positions

  • 3" lowered height for compact storage and easy access

  • Reinforced cross members and frame geometry for superior durability

  • Wall hanger set for vertical storage, saving garage space

  • Pinch-weld blocks for unibody vehicle protection, made of durable urethane

  • Weatherproof and oil-resistant pinch-weld blocks

  • Compatible with QuickJack's full line of accessories

  • Solid-steel wall hangers with sleek laser-cut QuickJack logo

Specifications:

  • Material: Steel

  • Assembly Required: Yes

  • Portable: Yes

  • Rated For Outdoor Use: No

  • Individual Frame Weight: 90 lbs

Lifting Dimensions:

  • Lifting Height with 2-inch block: 20.75 inches

  • Lifting Height with 3-inch block: 21.5 inches

  • Lifting Height with stacked blocks: 24 inches

  • Maximum Lift Point Spread: 66 inches

  • Minimum Lift Point Spread: 43 inches

Lifting Capacity:

  • Lifting Capacity: 6000 lbs

Rise:

  • Time to Full Rise: 26 seconds

Locking Dimensions:

  • Locking Position Quantity: 2

  • Lock Release Type: Single-Point safety release

Power:

  • Horsepower: 1 hp

  • Voltage: 110V 50/60Hz 1PH

  • Amps: 10

  • Motor: 110V 50/60Hz 1PH

  • Noise Level: 70 dB

  • Power Unit: 110V, 50-60Hz, 1-Phase

  • Watts: 1100W

  • Motor RPM: 3450
