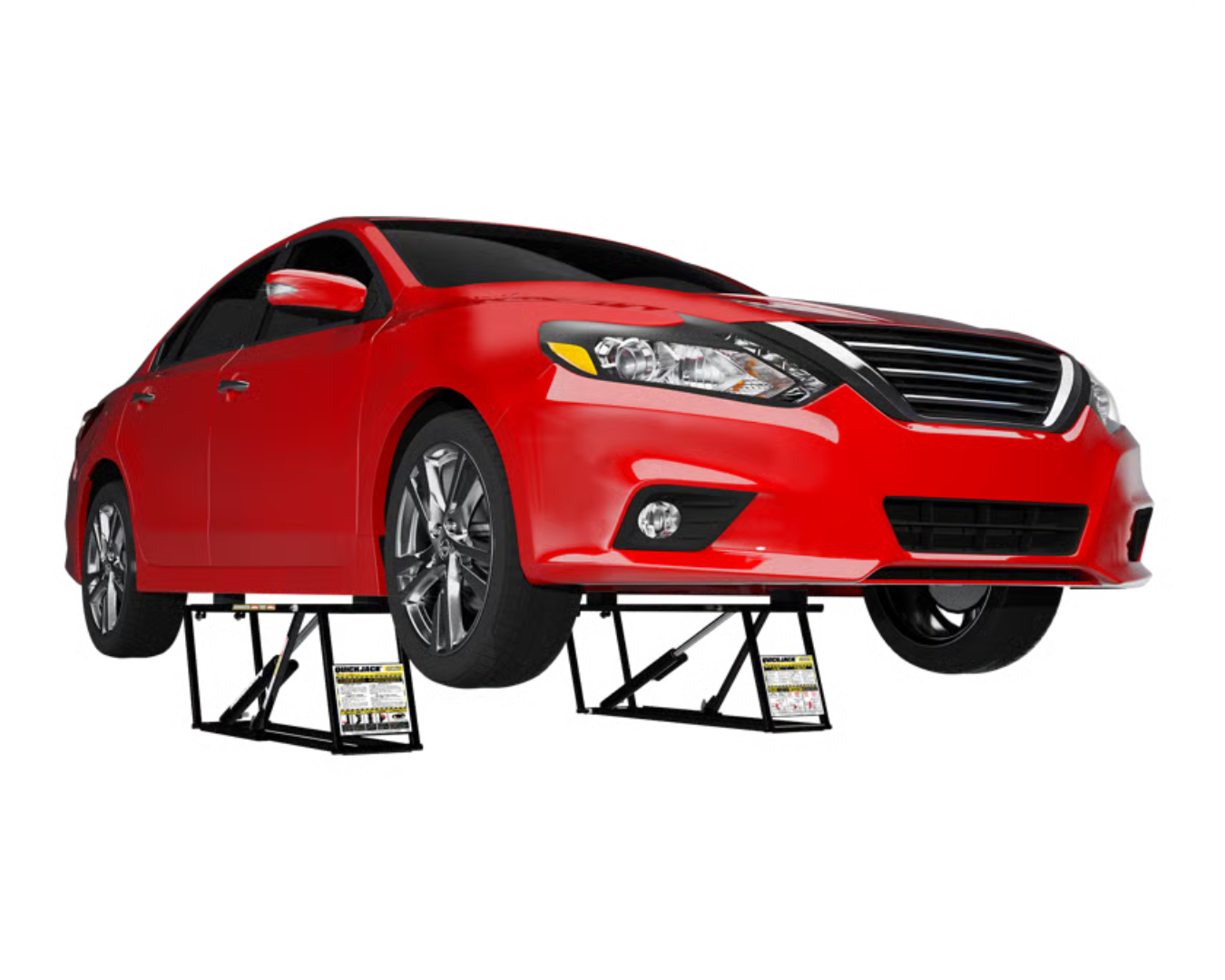

QuickJack 3500SLX Standard Frame Portable Car Lift

The 3500SLX is a lightweight and portable car lift designed for small-wheelbase vehicles, ideal for quick lifts in your garage or at the track. With a 3,500-lb capacity, this lift is perfect for sports cars like Miatas, autocross, and other jobs where speed and mobility are essential. The open-center design allows for full access to the wheels and undercarriage, while the extended block trays provide versatility for different lift point spreads. Its 12V DC power option makes it the world’s first true track lift, bringing professional-level lift performance to your garage or track day.

Features:

• Capacity: 3,500 lbs

• Designed For: Small-wheelbase cars, perfect for Miatas and autocross

• Portability: Lightweight, easy to transport to the track or garage

• Power Source: 12V DC for track use

• Block Tray Size: Extended for a lift point spread from 26.75" - 50.5"

• Design: Open-center for total access to wheels and undercarriage

• Fittings: Zero-leak flush-face hose fittings to prevent spills

• Usage: Ideal for track days and quick garage lifts

Specifications:

• Material: Steel

• Assembly Required: Yes

• Portability: Yes

• Assembled Weight: 66 lbs

• Dimensions:

  • Height Overall: 16.25 inches

  • Individual Frame Weight: 66 lbs

  • Overall Width: 10.5 inches

• Lifting Dimensions:

  • With 2-inch block: 17 inches

  • With 3-inch block: 17.75 inches

  • With stacked blocks: 20 inches

• Maximum Lift Point Spread: 50.5 inches

• Minimum Lift Point Spread: 27 inches

• Lifting Capacity: 3,500 lbs

• Rise:

  • Time to Full Rise: 26 seconds

• Locking Dimensions: 2 positions

• Runway Dimensions:

  • Width Between Runways (Narrow/Standard Configuration): 23.88 inches

• Power:

  • Horsepower: 1 hp

  • Voltage: 110V 50/60Hz

  • Amps: 10

  • Motor: 110V, 50/60Hz, 1PH

  • Noise: 70 dB

  • Watts: 1100

  • Motor RPM: 3450

• Clearance Dimensions:

  • Lowered Height (Frame Only): 2.38 inches

  • Lowered Height (With 2-inch block): 3.38 inches
