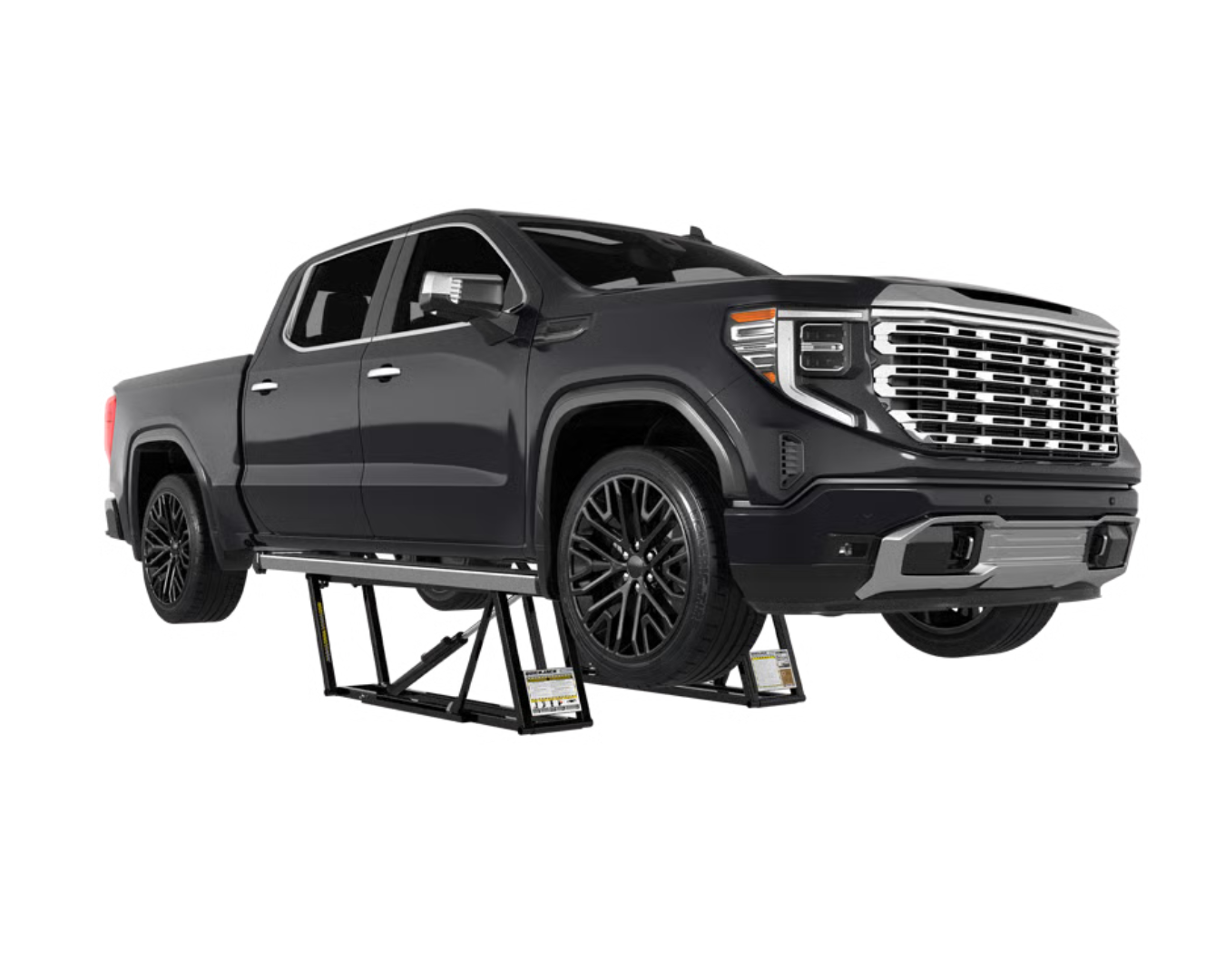

QuickJack 8000TLX Extended Frame Portable Car Lift

The QuickJack 8000TLX is the highest-capacity, extended-length portable lift in the QuickJack lineup, designed specifically for heavy-duty trucks, SUVs, and long-wheelbase vehicles. With an impressive 8,000-lb. capacity and a 66-inch lift point reach, this portable lift handles tasks that standard lifts can't manage. Despite its extended length, it remains compact and collapses to a low 3.5 inches for easy storage and portability, making it ideal for both home and professional use. Its rugged construction and upgraded hydraulic system ensure smooth operation and durability for all your lifting needs.

Features:

• Factory Preassembled Hydraulics for quick and easy setup

• Automatic Safety Locks ensure a secure and stable lifting process

• Extended-Length Design with a 76" frame and 66" lift point spread, perfect for trucks and SUVs

• Upgraded Hydraulic System for faster setup and smoother operation

• Stronger Frame for greater stability and durability

• One-Handed Pendant Operation for ease of use

• Compact Footprint for easy storage and portability, even in tight spaces

• Optional Accessories available to enhance versatility and access under higher-clearance vehicles

• Maximum Lift Capacity: 8,000 lbs.

• Max Rise: Reaches full height in approximately 30 seconds

• Collapsed Height: 3.5 inches, fits under most sedans and sports cars

Specifications:

• Material: Steel

• Assembly Required: Yes

• Portable: Yes

Dimensions:

• Individual Frame Weight: 114 lbs

• Lifting Height (with 2-inch block): 21 inches

• Lifting Height (with 3-inch block): 21.75 inches

• Lifting Height (stacked blocks): 24 inches

• Maximum Lift Point Spread: 66 inches

• Minimum Lift Point Spread: 43 inches

Lifting Capacity:

• Lifting Capacity: 8,000 lbs

Rise:

• Time to Full Rise: 26 seconds

Locking Dimensions:

• Locking Position Quantity: 2

• Lock Release Type: Single-Point Safety Release

Power:

• Horsepower: 1 HP

• Voltage: 110V 50/60Hz 1-Ph

• Amps: 10 A

• Motor: 110V, 60Hz, 1-PH

• Noise Level: 70 dB

• Power Unit: 110V, 50-60Hz, 1-Ph

• Watts: 1,100 W

• Motor RPM: 3,450 RPM
