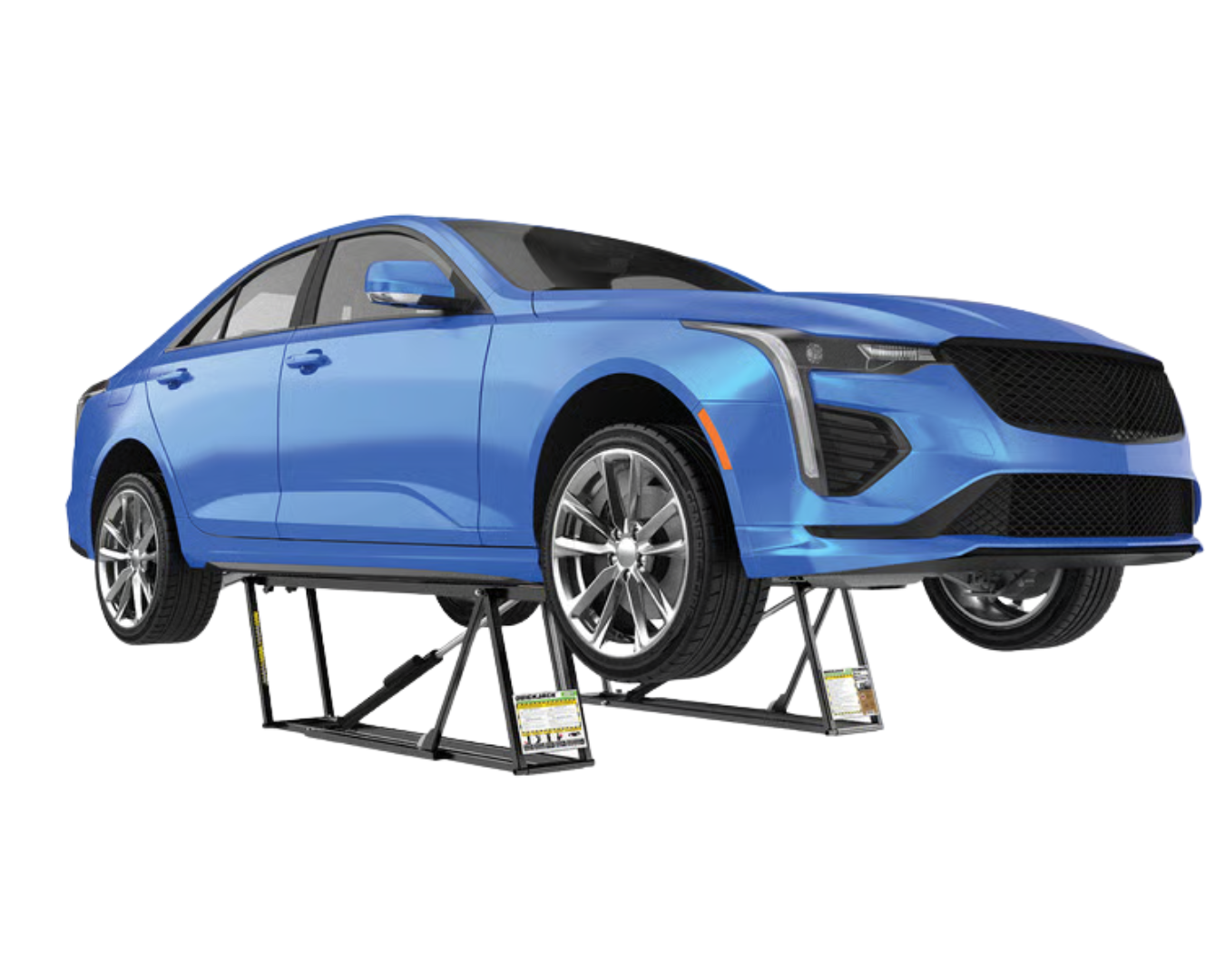

QuickJack 6000TL Standard Frame Portable Car Lift

The QuickJack 6000TL is a top-tier portable car lift designed to deliver both strength and convenience. With a 6,000-lb. lifting capacity and a lift height of 24 inches, this portable lift provides effortless access to your vehicle's undercarriage. It features a reinforced frame, upgraded hydraulic system, and advanced safety locks for a safer, more efficient lifting experience. Ideal for both home garages and professional shops, the QuickJack 6000TL is engineered for superior performance and durability.

Features:

• Automatic Safety Locks: Dual-position locks engage automatically at mid-rise and full-rise for added security during use.

• Enhanced Lifting Height & Capacity: Lifts up to 6,000 lbs. with a 24" lift height, ideal for handling a wide range of vehicles.

• One-Handed Operation & Synchronized Lifting: Effortlessly control the lift with one hand using the pendant control while the frames lift and lower in sync.

• Accessories for Expanded Versatility: Compatible with a wide range of accessories, including frame extensions and motorcycle/ATV kits.

• Compact Design for Easy Storage: Despite its powerful lifting capacity, the 6000TL maintains a compact footprint for easy storage and mobility.

• Factory Preassembled Hydraulics: Ready to use out of the box with no assembly required for hassle-free setup.

Specifications:

• General:

  • Material: Steel

  • Assembly Required: True

  • Portable: True

• Dimensions:

  • Height Overall: 24 inches

  • Individual Frame Width: 11 inches

  • Individual Frame Length: 70.25 inches

  • Individual Frame Weight: 84 lbs

• Lifting Dimensions:

  • Max Lifting Height with Pad Top Lock: 23.25 inches

  • Lifting Height with 2-inch Block: 20.75 inches

  • Lifting Height with 3-inch Block: 21.5 inches

  • Lifting Height with Stacked Blocks: 24 inches

  • Maximum Lift Point Spread: 60 inches

  • Minimum Lift Point Spread: 37 inches

• Lifting Capacity:

  • Lifting Capacity: 6000 lbs

• Rise:

  • Time to Full Rise: 30 seconds

• Locking Dimensions:

  • Locking Position Qty: 2

  • Lock Release Type: Single-Point safety release

• Power:

  • Horsepower: 1 HP

  • Voltage: 110V 60HZ 1PH

  • Amps: 10

  • Motor: 110V, 60Hz, 1-Ph.

  • Noise: 70 dB

  • Power Unit: 110V, 50-60Hz, 1-Ph.

  • Watts: 1100

  • Motor RPM: 3450

• Clearance Dimensions:

  • Lowered Height (Frame Only): 2.75 inches

  • Lowered Height with 2-inch Block: 3.5 inches
