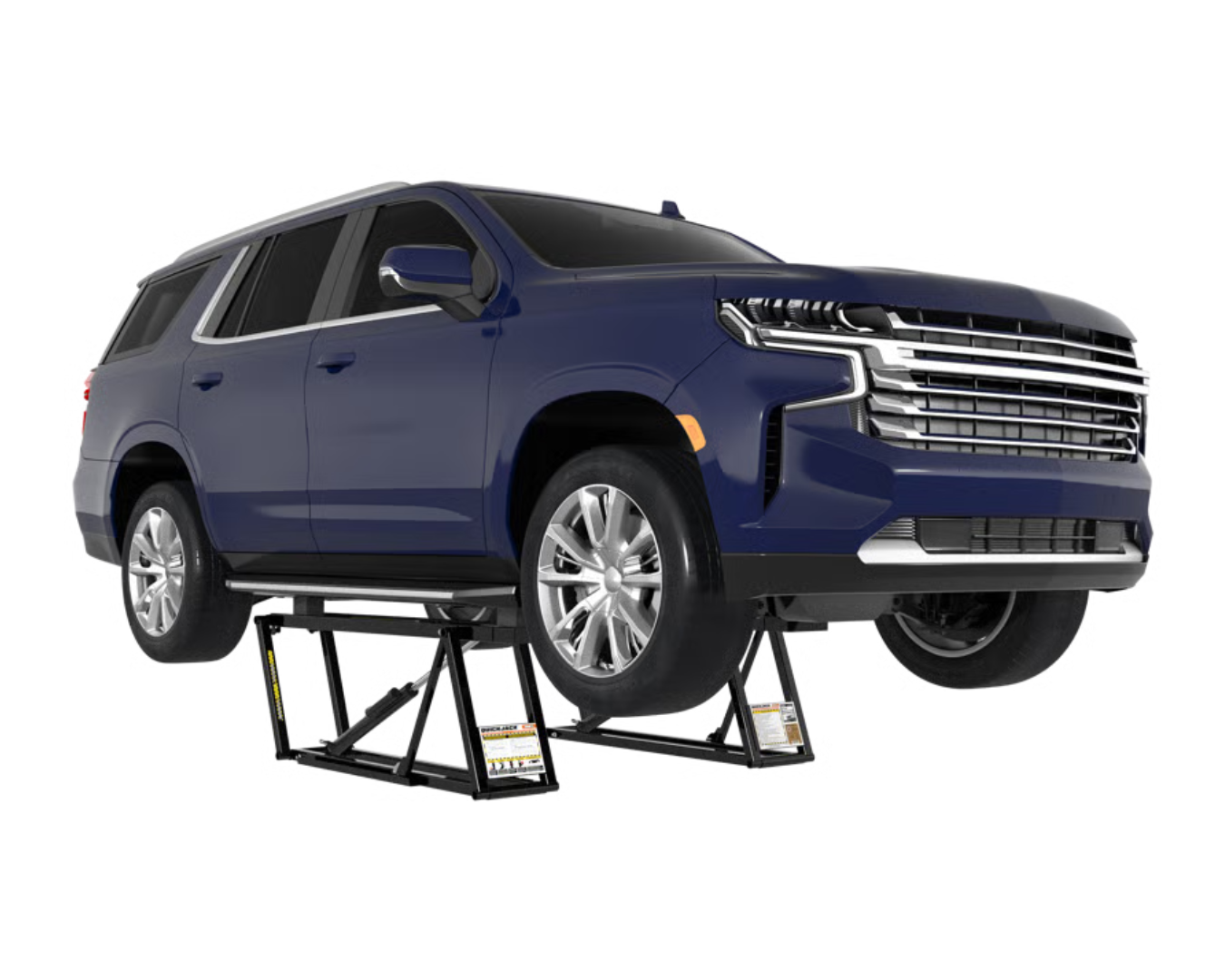

QuickJack 8000TL Standard Frame Portable Car Lift

The QuickJack 8000TL is a robust and reliable portable lift designed for heavy-duty performance. With a maximum lifting capacity of 8,000 lbs and a lift height of 24.25 inches, it's ideal for lifting SUVs, light-duty trucks, and passenger vehicles. Engineered with an upgraded hydraulic system and reinforced structure, this lift offers power, stability, and ease of use in both professional and home settings. Optional accessories such as the Truck & SUV Adapter Kit can enhance lifting height for taller vehicles, making the 8000TL a versatile and essential tool in any shop or garage.

Features:

• Heavy-duty lifting power: Rated for 8,000 lbs with a 24.25-inch lift height.

• Upgraded hydraulic system: Features a pressure-compensated flow divider and independent shut-off solenoids to ensure balanced lifting.

• Stronger frame, smarter design: Reinforced cross members, improved welds, and stronger pivot points for added rigidity and long-term durability.

• One-handed pendant control: Easily raise and lower the lift with a single hand for convenience.

• Factory preassembled hydraulics: Hydraulic system arrives preassembled, ensuring faster setup and guaranteed performance.

• Portable and easy to store: Collapses to a slim 3.5-inch profile, with integrated urethane wheels for easy transport and storage.

• Accessories for increased versatility: Compatible with various QuickJack accessories, including truck adapters, pinch-weld blocks, and frame extensions.

• Automatic safety locks: Dual-position safety locks engage securely during use for added safety.

Specifications:

• Material: Steel

• Assembly Required: Yes

• Portable: Yes

Dimensions:

• Individual Frame Weight: 108 lbs

• Lifting Height with 2-inch block: 21 inches

• Lifting Height with 3-inch block: 21.75 inches

• Lifting Height with stacked blocks: 24 inches

• Maximum Lift Point Spread: 60 inches

• Minimum Lift Point Spread: 37 inches

Lifting Capacity:

• Lifting Capacity: 8,000 lbs

Rise:

• Time to Full Rise: 30 seconds

Locking Dimensions:

• Locking Position Quantity: 2

• Lock Release Type: Single-Point Safety Release

Power:

• Horse Power: 1 HP

• Voltage: 110V 50/60Hz 1PH

• Amps: 10

• Motor: 110V, 60Hz, 1-PH

• Noise Level: 70 dB

• Power Unit: 110V, 50-60Hz, 1-Ph

• Watts: 1100

• Motor RPM: 3450
