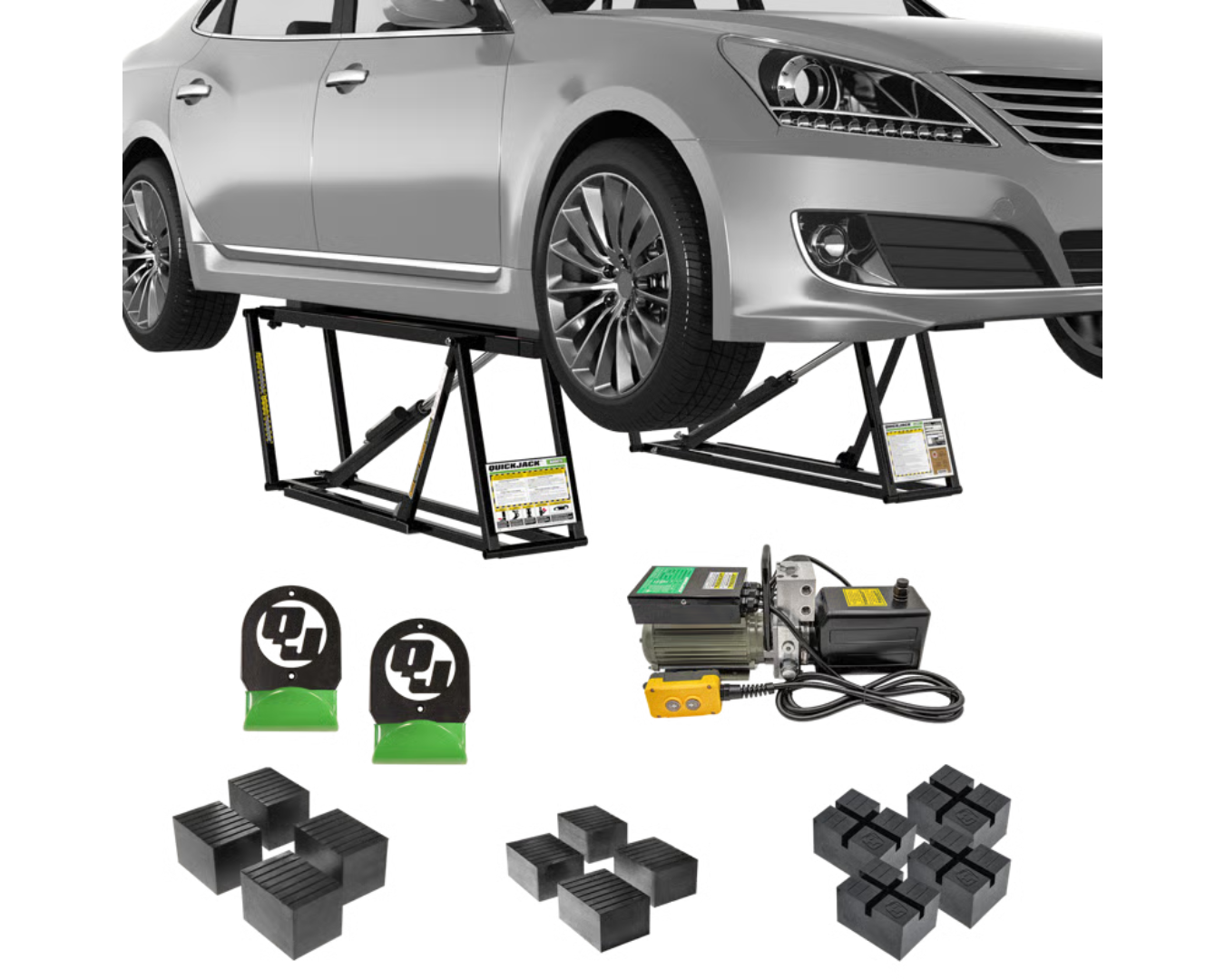

QuickJack 6000TL Standard Frame Portable Car Lift Package

The QuickJack 6000TL Bundle offers a complete lifting solution for your garage or shop. It includes the 6000-lb. lifting capacity 6000TL car lift, wall hangers for easy storage, and pinch-weld blocks designed for unibody vehicles. The portable lift reaches a 24-inch height, perfect for sedans, coupes, and small SUVs. With reinforced structural integrity, synchronized hydraulic lifting, and space-saving vertical storage, this bundle equips you with all the tools you need to safely and efficiently work on your car. Whether you're detailing, repairing, or modifying your vehicle, the QuickJack 6000TL Bundle is your ideal garage companion.

Features:

• QuickJack 6000TL Car Lift:

  • Lifting capacity: 6,000 lbs.

  • Maximum lift height: 24 inches

  • Compact 3-inch folded height for easy storage

  • 70-inch frame length fits a wide range of vehicles

  • Synchronized hydraulic lifting for even raising

  • Automatic safety locks at mid- and full-rise positions

  • One-handed pendant control for easy operation

  • Reinforced structure for increased durability

• Wall Hangers:

  • Steel construction with laser-cut QuickJack logo

  • Universal fit for all QuickJack models

  • Saves floor space by storing frames vertically

  • Easy installation on wall studs

  • Allows for easy access to the lift when needed

• Pinch-Weld Blocks:

  • Ideal for unibody vehicles with factory lift points

  • Cross-slotted urethane design securely cradles vehicle's pinch welds

  • Reduces risk of body rail damage during lifting

  • Oil-resistant and long-lasting

  • Can be directly placed into lift trays for secure connection

  • Prevents damage to delicate or corroded pinch-weld rails

Specifications:

• General:

  • Material: Steel

  • Assembly Required: Yes

  • Portable: Yes

• Dimensions:

  • Individual Frame Weight: 84 lbs

• Lifting Dimensions:

  • Lifting Height with 2-inch block: 20.75 inches

  • Lifting Height with 3-inch block: 21.5 inches

  • Lifting Height with stacked blocks: 24 inches

  • Maximum Lift Point Spread: 60 inches

  • Minimum Lift Point Spread: 37 inches

• Lifting Capacity:

  • Lifting Capacity: 6,000 lbs

• Rise:

  • Time to Full Rise: 26 seconds

• Locking Dimensions:

  • Locking Position Quantity: 2

  • Lock Release Type: Single-Point safety release

• Power:

  • Horsepower: 1 HP

  • Voltage: 110V, 50/60Hz, 1PH

  • Amps: 10

  • Motor: 110V, 50/60Hz, 1PH

  • Noise Level: 70 dB

  • Power Unit: 110V, 50-60Hz, 1-Ph.

  • Watts: 1,100W

  • Motor RPM: 3450
