Ranger RB24T Truck Wheel Balancer

Only 1 left
P/N: 5140149
Ranger RB24T Truck Wheel Balancer
Ranger RB24T Truck Wheel Balancer
$12,384.75

⦿  30 days returns. Buyer pays for return shipping. See details

Ranger RB24T Truck Wheel Balancer

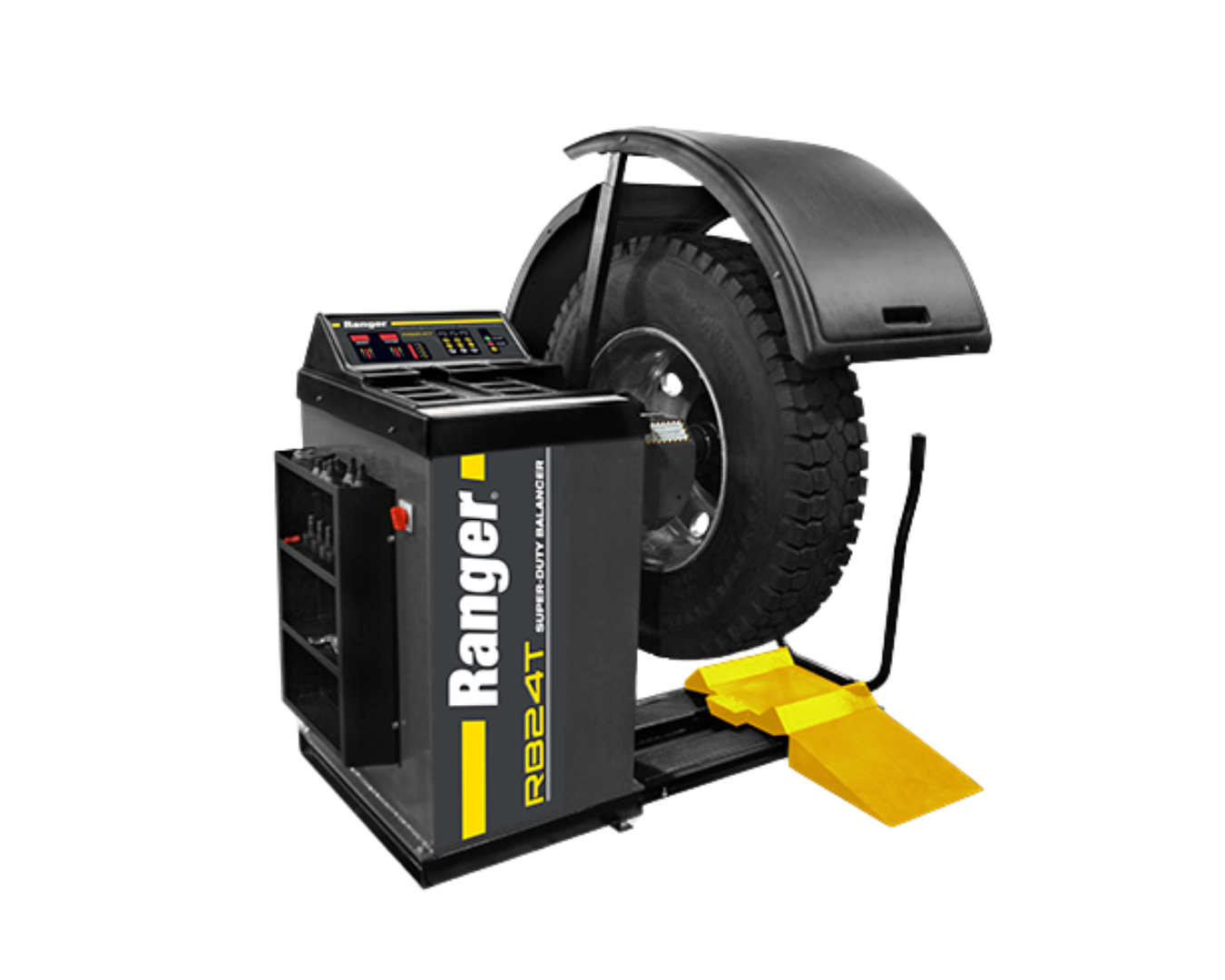

The Ranger RB24T Super-Duty Truck Wheel Balancer is designed for high-volume commercial tire dealers and heavy-duty truck fleets. Capable of handling tires up to 50" in diameter and 20" wide, it efficiently balances everything from buses and trucks to light truck wheels. Equipped with Ranger’s exclusive Drive-Check™ technology, it simulates real driving conditions to detect vibration and imbalance with extreme accuracy. Featuring advanced 64-bit digital architecture, piezoelectric quartz force sensors, and automatic weight optimization, the RB24T ensures superior precision, minimal weight usage, and maximum efficiency. The built-in wheel lift and ergonomic LED control panel streamline the workflow, while the durable serpentine belt drive and powerful three-phase motor ensure dependable performance for continuous operation.

Specifications:

  • Heavy-duty balancer for truck, bus, and OTR wheels up to 50” diameter and 20” wide

  • Drive-Check™ technology simulates real driving conditions for vibration detection

  • High-precision 64-bit single-chip architecture for accurate readings and longer equipment life

  • Multi-directional piezoelectric quartz sensors detect unbalance in all directions

  • Automatic weight optimization reduces material usage and improves balance accuracy

  • Dynamic, static, and performance alloy balancing modes

  • Electro-magnetic auto-stop with pneumatic braking system

  • Manual or automatic start when hood is lowered

  • Self-calibration and self-centering quick-chuck adapter for reduced setup time

  • Gram/ounce and millimeter/inch selection options

  • Dual weight position indicators (top-dead-center or bottom-dead-center)

  • Integrated wheel lift for effortless mounting of heavy assemblies

  • Low RPM balancing speed with rapid 7–10 second cycle time

  • Large top weight tray and side shelf storage for weights and tools

  • Precision-machined, hardened-steel 40 mm shaft

  • Open-sided hood design accommodates a wide range of tire sizes

  • Three-phase, 380V motor with digital solid-state phase converter for efficient power

  • Durable serpentine belt with fiber composite core for dependable operation

  • Power Supply: 208 – 240V, 50 / 60 Hz, 1 Ph

  • Drive Motor: 1 HP, 380V, 50 / 60 Hz, 3 Ph

  • Working Temperature: -5°C / 27°F to 50°C / 82°F

  • Drive System: Ribbed Nylon Fiber Drive Belt

  • Cycle Time: 7 - 10 seconds (average)

  • Balancing Modes: 1 Dynamic / 1 Static / 3 Alloy

  • Wheel Spin Braking: Electronic Pulse / Pneumatic Brake

  • Wheel Hold Device: Pneumatic Brake

  • Shaft Size: 40 mm

  • Centering Cones Included: 5 Standard / 1 Dual Tapered Cone

  • Maximum Tire Diameter: 50” (1,270 mm)

  • Maximum Tire Weight: 400 lbs. (181 kg)

  • Maximum Wheel Diameter: 30” (762 mm)

  • Wheel Width Capacity: 2” - 20” (51 mm - 508 mm)

  • Balancing Increments: 0.25 or 0.01 oz

  • Balancing Speed: 220 RPM

  • Accuracy (Cars & Light Trucks): +/- 1 gram / 0.03 oz

  • Accuracy (Truck, Bus & OTR): +/- 10 grams / 0.35 oz

  • Resolution: +/- 7 grams (0.25 oz)

  • Shipping Weight: 825 lbs. (374 kg)

A $395 surcharge from the freight carrier will be applied if no forklift or loading dock is available at the delivery location.
